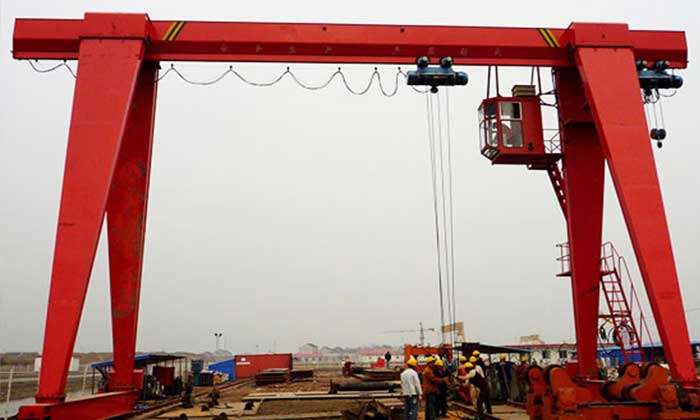

15 ton gantry crane for sale. Types of gantry crane designs & configurations for your selection, cusotmized 15 ton gantry crane specifications for your applications.
A 15 ton gantry crane has a wide range of applications, including workstations, industrial sites, warehouses, factories, railway construction sites, and material handling plants. This type of crane has a large capacity, high efficiency, a simple structure, and is simple to operate. Its primary modes of operation are remote ground control, remote cabin control, and wire control.
A 15 ton gantry cranes are available of various gantry crane designs and configurations , such as, cantilever gantry cranes, container gantry cranes, single girder gantry cranes, double girder gantry cranes, light duty gantry cranes, heavy duty gantry cranes, rail mounted gantry cranes, and rubber tyred gantry cranes, etc. As a leading overhead crane and gantry crane manufacturer, the customized 15 ton gantry crane with tailored specifications are available from us. Contact us today to get your customized gantry crane design today.
Aside from standard gantry cranes, we also have overhead bridge cranes, pillar jib cranes, chain hoists, wire rope hoists,, construction winches, and marine winches. If you are interested, please send a quote to our email address.
15 ton gantry cranes designs
Gantry cranes are classified into several types based on the type of supporting structure and application. Here are some of the most common types of gantry cranes.

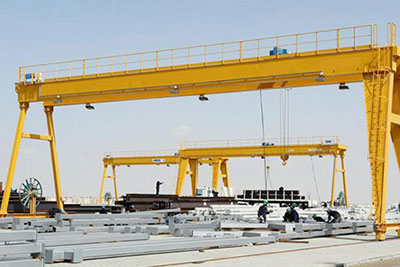

Full-Gantry Crane
It is one of the most common types of gantry cranes, with two supporting legs that can move across fixed rails. The full gantry crane is typically used in a designated area. Trucks are permitted to pass beneath the gantry crane. The trolley moves within the main span, and there is no overhang on the main beam.
Semi-Gantry Crane
a semi-gantry crane is also called single leg gantry cranes which with one leg runs along the ground rail, while the other end supported along a runway system attached to a wall or other vertical structure. Depending on your construction site or requirements, you can determine the height difference between the two legs
Full gantry crane 15 ton parameters:
- Lifting Capacity: 3t~26t
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min
15 ton semi gantry crane parameters:
- Span: 12-30m
- Lifting height: 6-12m
- Lifting speed: 6-11.5m/min
- Trolley running speed: 37-40.1m/min
- Crane running speed: 37.7-40.1m/min
- Work duty: A3-A6
Single Girder Gantry Crane
The single girder gantry crane consists of only a single girder as the main beam. The trolley and hoist are usually suspened on the lower part of the main girder. They run on the bridge's underside. It is frequently a light-to-medium-duty gantry crane that is appropriate for areas with limited floor space and low headroom. It also offers low-cost lifting solutions.

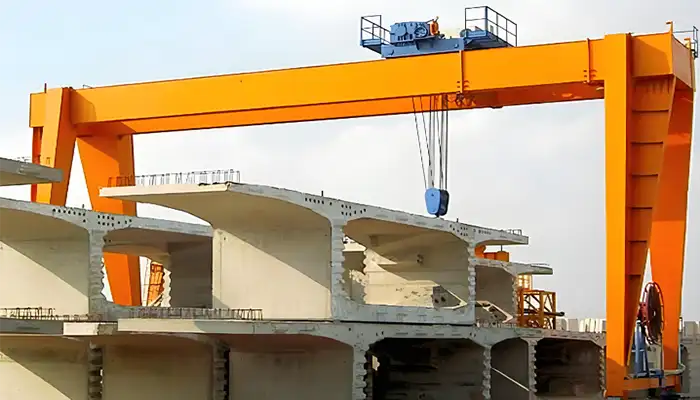

Double Girder Gantry Crane
The double beam gantry crane, on the other hand, is made up of two girder beams that are made of box girder & truss girder design. The double girder gantry crane are used for heavy duty load handling, with high safety and efficiency.
Single girder gantry crane 15 ton parameters:
- Lifting Capacity: 3t~26t
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min
Double girder 15ton gantry crane parameters:
- Span: 18-35m
- Lifting height: 6-18m
- Lifting speed: 1.5-11.5m/min
- Trolley running speed: 10-40.1m/min
- Crane running speed: 16-50m/min
- Work duty: A3-A7
Industry – Wide Uses of Gantry Cranes
Gantry cranes are used for a variety of industrial and construction applications based on their size, load capacity, and ability to move around the work area. Here are a few examples of gantry crane applications.
Manufacturing Plants
Gantry cranes are used in all types of manufacturing plants, from small to medium to large. Gantry cranes are most commonly used in the automobile, steel, and airplane manufacturing industries. Gantry cranes can be single or double girder, portable, or adjustable, depending on the application. The automobile industry, for example, employs small single-girder gantry cranes to straddle engines into cars.
Shipyards
Double girder gantry cranes, which can lift extremely heavy loads, are commonly found in shipyards. They can be used to transport heavy ship parts such as the engine or fuel tanks from the manufacturing site to the ship. A single ship-building platform may require the use of dozens of cranes at the same time.
Warehouses
Depending on the size and weight of the load, different types of gantry cranes can be used, ranging from small single girder cranes to large double girder cranes. You can also use small gantry cranes with rollers to move around freely without the need for tracks.
Construction
Portable gantry cranes are especially popular in the construction industry because they are simple to disassemble, load, and transport to a new location. They can be used to move and lift items such as small concrete blocks, steel girders, and lumber. Large-scale construction, on the other hand, necessitates the use of heavy-duty overhead gantry cranes with double or single girders. They can be used to move heavy loads vertically to almost any area on a construction site.
Shipping Terminals, Airports, and Railway Yards
Heavy-duty gantry cranes are also used to move large containers at shipping docks (or ports), airports, and railway yards. In these areas, mobility is critical. As a result of their ability to move while carrying heavy loads, rubber-tired gantry cranes are in high demand in rail yards and seaports.
Gantry crane design, get your 15 ton gantry crane price
In order to fully satisfy our clients, we are committed to provide high-quality gantry cranes and the best services. In addition to gantry cranes, we also offer additional lifting systems for a range of uses, including overhead cranes, jib cranes, hoists, construction winches, and marine winches.
To ensure high-quality hoists and crane, all of our gantry cranes are produced in accordance with manufacturing and design standards and are subject to stringent quality control. In accordance with the applicable contract, we also offer commissioning, installation, and maintenance services. As a top manufacturer and supplier of gantry cranes, we put a lot of emphasis on equipment research and development as well as crane structure optimization to increase its effectiveness and performance. The best driver for us to stay ahead is the high level of client happiness.
Contact us right away if you're interested in a 15-ton gantry crane to receive the best lifting solution and a competitive price. awaiting our collaboration with you!
