Bridge Crane, Overhead Crane & Gantry Crane for Sale Serbia

Name: Bridge Crane, Overhead Crane & Gantry Crane for Sale Serbia
Brand: Yuantai Crane
Price: Request Quote USD
Availability: InStock

Crane for sale Serbia. Types of overhead cranes, bridge cranes, gantry cranes, jib cranes and hoists for sale Serbia. Customized bridge crane for sale.

Check Types of Overhead Crane for Sale Serbia

Check Types of Gantry Crane for Sale Serbia

crane for sale Serbia, overhead crane, bridge crane, gantry crane and jib cranes

The Republic of Serbia, referred to as Serbia, is a country on the Balkan Peninsula, located in southeastern Europe and a landlocked country in the central part of the Balkan Peninsula, bordering Montenegro, Bosnia and Herzegovina, Croatia, Hungary, Romania, Bulgaria, North Macedonia, and Kosovo. From Wikipedia

Capital: Belgrade
Currency: Serbian Dinar
Population: 6.834 million (2021) World Bank
Human Development Index: ▲ 0.806 (2019); very high 64th
Official language: Serbian

Main Types of Cranes for sale Serbia

Bridge cranes and overhead cranes are classified into several types based on various factors such as, main girder design, crane hoists, and application conditions, etc. Usually, the bridge cranes are classified into single girder and double girder bridge crane, top running & underhung bridge crane, etc.
A single girder bridge cranes including the top running & under-hung crane designs are one of the most frequent used material handling devices . It has two end trucks that travel along a set of rails mounted on two runway beams. The crane hoist trolley transports materials as it travels along the bridge. The span can support up to 32 tons.
A double girder bridge crane is similar to a single girder overhead crane except that it has two spans (girders) and double rail trolleys. The double beam bridge crane crane can manage to handle heavier loads weighing up to 320 tons. It also takes up more room than a single-girder crane.
With top running bridge crane design, the overhead crane are used to hoist and transport heavy materials, the trolley travels on the rails on the bridge girders. Compared with single girder crane design,it is more expensive than single girder overhead cranes but has a higher lifting capacity.
An under running bridge crane is similar to a top-running bridge in construction, but needs less headroom because the rails are mounted below the runway beams rather than above them.
Monorail cranes are widely used for workstations for heavy loads handling. They can be designed into free standing type or ceiling mounted type.
A gantry crane is another form of bridge crane; however, unlike most other types of bridge cranes, it does not rely on an overhead beam to support its weight. Instead, it has two freestanding legs support the main girder on the both ends and travelling along the crane tracks installed on the ground.

Single girder overhead crane Serbia Crane capacity: Top running design up to 32 ton, underhung design 0.25 -20 ton.

Double girder trolley / winch overhead crane Serbia Crane capacity: 5 ton -550 ton

European standard fem underhung overhead crane Serbia 500 kg -10 ton

Hoist, winch & trolley overhead crane for sale Serbia Crane Lifting system : Electric hoist 0.25 - 80 ton, winch trolley hoist up to 550 ton

Single girder gantry crane for sale Serbia

Double girder gantry crane for sale Serbia

Truss girder gantry crane for sale Serbia

Portable gantry crane for sale Serbia

Pillar jib cranes for sale Serbia, free standing floor mounted electric jib crane, with customized rotating designs

Wall jib cranes for sale Serbia including the wall mounted jib crane and wall travelling jib cranes

Portable jib crane for sale Serbia, customized roller jib crane for 1 ton 2 ton loads handling

Electric hoist for sale Serbia, including electric wire rope hoist and electric chain hoist,

Advantages of each type of crane

Advantages of a single girder crane design:

It is the most cost-effective choice for light to medium-duty cranes.
A better hook approach for both trolley and bridge movement.
Reduced weight and pressure on runway rails/beams results in less wear on the beams and end vehicle wheels.
Ideal for settings with limited headroom, with low headroom crane design and hoist.

Benefits of double girder crane designs

It is more cost-effective than two single-girder cranes for medium- to heavy-duty cranes.
Hook height — with crane trolley placed on the top or in between of the two girder or beams, the hook height can be maximized. .
There are no maximum span or capacity limitations.
Pathways, maintenance platforms, cabs, magnetic reels, and lights can all be added with a double girder construction.

Top running single girder bridge crane benifits you in the following ways:

A normal load capacity of 1/4 ton to 20 tons
A typical span of 7.5~28.5m
Can perform light to medium duty
The deadweight is low; there is more overhead room; and the hoist and trolley speed is faster.
With less material needed, you can expect a lower cost per production unit and an overall price reduction.

Top running double girder bridge crane benifits your in the following ways:

Because the hoist and trolley can operate on top of the two bridge girders, the hook and lifting height are maximized.
Provides the greatest amount of upper floor space.
Higher hook lifting height
Can manage typical load capacities ranging from 5 to 320 tons
Span normally not exceed 40 meters.
Handles middle to heavy-duty applications

Underhung bridge crane can benifit you in the following way:

Has a usual load capacity ranging from 1/4 ton to 10 tons.
The average width is no more than 15 m.
Suitable for light to medium duty material handling. This underhung bridge crane design maximizes floor area when supported by existing ceiling trusses or a roof structure.
The expense of materials is reduced if no runway support columns are needed.
An economical overhead material handling solution.

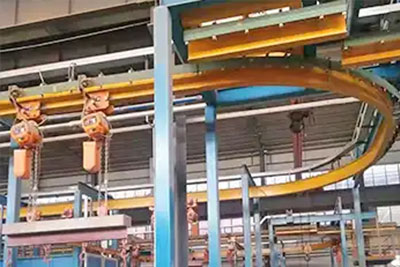

monorail overhead cranes for sale Serbia

Monorail overhead cranes can benifit you in the following way:

Enhanced workstation manufacturing productivity
Functionality that is both secure and reliable
Low running costs
Reduce your labor costs.
Monorail cranes can travelling along straight and curved rails, which is more much flexiable to meet your workstation lifting requirements and application conditions.

When and why to select bridge cranes for your material handling ?

When selecting a bridge crane, it is critical to consider the advantages and disadvantages of each variety. This will assist you in locating the ideal fit for your requirements.

Various bridge crane types are available to satisfy the specific requirements of your application. The different designs can help you in improve your manufacturing efficiency and productivity while lowering material handling expenses.
When heavy lifting operations, large spans, or larger hook height are required, top running bridge cranes outperform underhung and wall-traveling cranes.
Top running bridge cranes are ideal for moving heavy weights because they are supported by the building framework or runway support columns. This bridge travelling crane has unlimited capacity and can handle a broad range of applications.
Overhead bridge cranes are highly flexible and adaptable. This means you can modify how they function to meet your specific requirements. For different loads or lifting requirements, there are different below-the-hook lifting tools can be selected and adopted to meet the lifting works. Spreader bars, c-hooks, weight scales, custom-designed lifting tooling, manipulators, and vacuum lifters are examples of these.
Using a radio or an independent traveling pushbutton station, the operator of an overhead bridge crane can operate the loads safely and are away danger.
Soft start function, a broad range of speed options, and different handling tools or rigging allow for safe load handling.

What are limitations for bridge crane application ?

Bridge cranes take up more overhead space than other kinds of overhead/non-mobile cranes, so they may not be appropriate for all facilities. An under-running bridge crane is a better choice if you have limited headroom. Underrunning bridge cranes are supported by wheels that travel on the runway beam's bottom flange. This type of crane should be used when there is little headroom; they can be more costly to buy and run than other types of cranes.
Consider using a gantry crane instead of an overhead bridge crane if you have an unobstructed span. A gantry, which is supported by the floor rather than from above, may be exactly what your building requires.
If you need to move your bridge crane around the plant for different uses, use a workstation or jib crane instead. A jib crane or workstation can be connected to the floor, ceiling, or wall to provide mobility for your lifting activities.
