European style low headroom wire rope hoist for single girder crane & double girder crane, light weight wire rope hoist, hot sale rope hoist, good price.

Single girder crane hoists, FEM standard with 1 ton -20 ton

Double girder crane hoists with European style & Advanced design

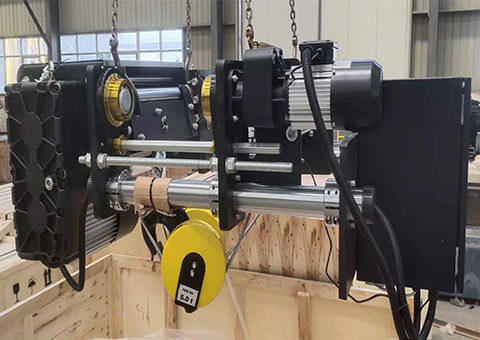

5 ton electric wire rope hoist with European style advanced design

European-style electric wire rope hoists are high-performance lifting equipment widely used in various industrial applications. They are designed to lift heavy loads in a safe and efficient manner. These hoists are known for their reliability, durability, and precision.

Yuantai Crane's advanced electric wire rope hoist is a product of years of research, development, and global market experience. This new generation electric hoist was designed and manufactured in accordance with ISO, GB, FEM, DIN, and BS standards to provide users with excellent durability, high quality, and cost-effectiveness. It offers four structural designs for users to choose from and has a hoisting capacity ranging from 1 ton to 80 tons. The standard work duty is FEM 2M/ISO M5.

Main parameters of European style electric wire rope hoists

Standard: FEM
Working Duty: M5 ~ M7
Lifting Speed:
3 ton , 5ton ,10 ton : 5/0.8 m/min (4/1);
16 ton : 3.3/0.5 m/min (6/1); 5/0.8 m/min (4/1);
20t ton 4/0.67 m/min (4/1); 5/0.8 m/min (4/1);
32 ton : 3/0.5 m/min (6/1); 0.8~5 m/min (8/2);
50 ton : 0.5~3.3 m/min (12/2);
80 ton : 0.4~2.5 m/min (16/2);
Traveling Speed: 2.0 ~ 20m/min
Lifting Height: 6m ~ 24m

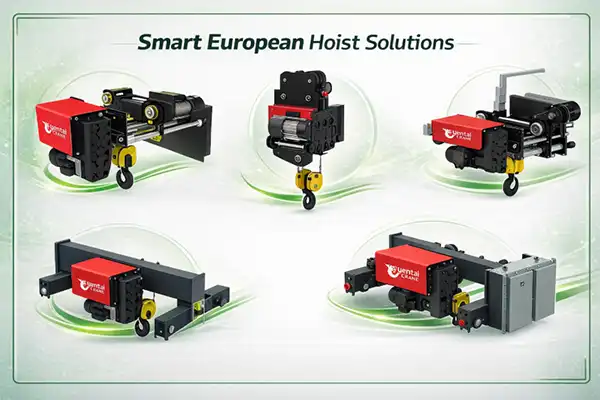

Types of wire rope electric hoists with European styles

NR wire rope electric hoist has four structural designs for users to choose from:

Model NRL electric hoist is designed for low headroom single girder crane with capacity of 3 ton, 5 ton, 10 ton, which is used to maximize the value of workshop space.
Model NRS electric rope hoist is the standard-headroom electric wire rope hoist which is generally used for single girder crane with capacity of 3 ~20ton
Model NRT double girder electric wire rope hoist trolley or crab trolley is used for double girder cranes with capacity: 3 ton ~ 80 ton
Model NRF electric hoist is the Foot-Mounted Hoist, with capacity: 3 ton ~ 80 ton

Model NRL electric hoist is designed for low headroom single girder crane with capacity of 3 ton, 5 ton, 10 ton,

Model NRL (Low-Headroom Monorail Hoist) Capacity: 3 ton, 5 ton, 10 ton. Customized European style low headroom cranet maximize your workshop space.

Ask for Hoist Price

standard-headroom electric wire rope hoist

Model NRS (Standard-Headroom Monorail Hoist) Capacity: 3 ton, 5 ton, 10 ton, 16 ton, 20 ton. Customized for your single girder cranes with European style.

Ask for Hoist Price

double girder electric wire rope hoist trolley or crab trolley

Model NRT (Double-Rail Trolley or Crab)

Capacity / SWL: 3 ton - 80 ton. Popular for double girder cranes, customized desgin available. Ask for Hoist Price

Model NRF (Foot-Mounted Hoist)

Capacity / SWL: 3 ton, 5 ton, 10 ton, 16 ton, 20 ton, 32 ton, 50 ton, 80 ton, etc. Contact to get your custom design. Ask for Hoist Price

Applications:

European-style electric wire rope hoists are used in a wide range of industries, including manufacturing, construction, mining, and transportation， Foundry, metallurgy, hydropower, aerospace, shipbuilding, automotive, coal, petrochemical， etc. They are ideal for lifting heavy loads in a safe and efficient manner. Some common applications include:

Material handling
Assembly line operations
Maintenance and repair work
Warehouse operations

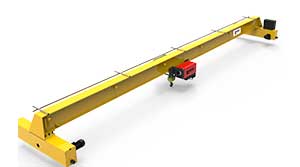

Single girder overhead crane Ask for Hoist Price

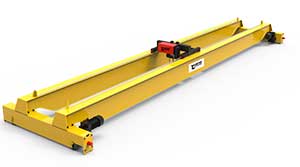

Double girder overhead crane Ask for Hoist Price

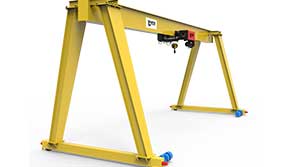

Single girder gantry crane Ask for Hoist Price

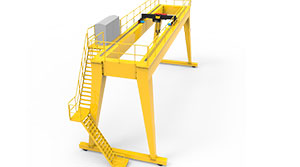

Double girder gantry crane Ask for Hoist Price

The European-style electric hoist has the following features:

It does not have reverse rollers/wheels.
It has a bilateral drive where the reducer directly drives the wheels.
The hoisting mechanism is easy and quick to connect and is also available for the trolley structure.
The lifting mechanism for 3t and 5t capacities has a fully closed structure, while other capacities have an open gear drive.
The capacity for 32 ton ~80 ton variable frequency hoisting mechanism has dual drive.
The lifting mechanism for 3t~16t capacity has a C-type structure, while the lifting mechanism for 20t~80t capacity has a Z-shaped structure.

Some advantages of European-style electric wire rope hoists include:

High lifting capacity
Smooth and stable lifting operation
Advanced safety features
Low noise and vibration levels

Some disadvantages of European-style electric wire rope hoists include:

Higher cost compared to CD/MD wire rope hoists
More complex design

Components Features:

1. Reel/Drum: Finished steel pipe (with ring gear for 10t above capacity hoists);
2. Wire Rope: 1960~2160 grade wire rope;
3. Hook Block: New hook set with beautiful appearance;
4. Fixed Pulley: MC nylon pulley, pulley shaft is overload sensor;
5. Rope Guide: Nylon rope guide;
6. Rope wedge: Standard wedge;
7. Wheel Group: Internal spline structure (without the torque support of the reducer), ductile iron.

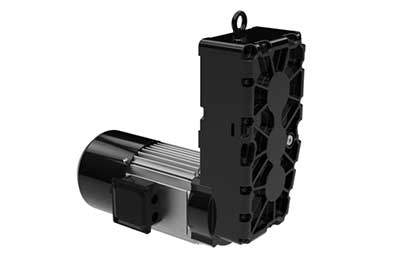

Lifting Gear Motor Features:

1. Lifting motor is a gear motor, the front cover of the motor is connected with the reducer, and motor shaft head drives the gears;
2. The motor case is stretched aluminum (6063), and the reducer case cover is cast aluminum alloy (ADC12);
3. Motor performance: S3-40%, Class F IP54, 2/12 pole dual speed, 4 pole frequency conversion;
4. Reducer: Hard tooth surface, 20CrMnTiH;
5. Brake: Electromagnetic disc brake.

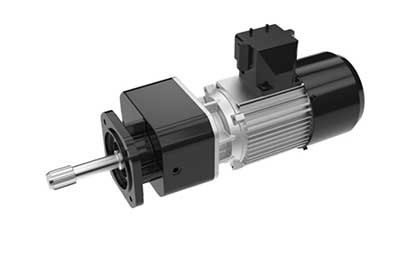

Traveling Gear Motor Features:

1. Coaxial structure;
2. Traveling motor is a gear motor, the front cover of the motor is connected with the reducer, and motor shaft head drives the gears;
3. The reducer is an output spline shaft structure with flanged connection;
4. The motor case is made from stretched aluminum (6063), reducer case covers are made from cast aluminum alloy (ADC12) or cast iron (HT250);
5. Trolley and hoist share the same running;
6. Motor performance: S3-40%, Class F IP54, 4 pole frequency conversion;
7. Reducer: Hard tooth surface, 20CrMnTiH;
8. Brake: Electromagnetic disc brake.

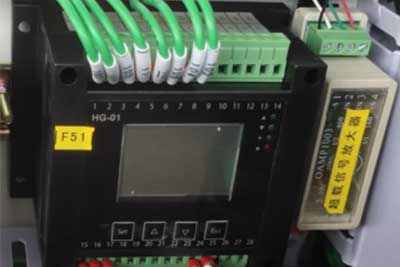

Overload limiter

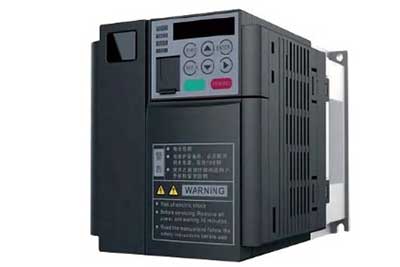

Frequency converter

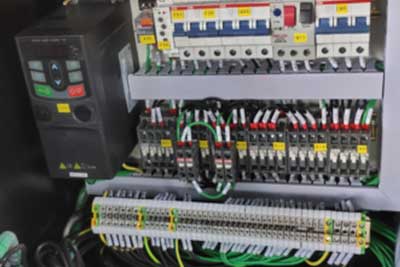

Electric panel

Wire rope & wire rope guide
