Rail Mounted Portable Gantry Crane,Small Rail Gantry Crane - PT5 Series

Rail travelling mobile gantry cranes are a type of small gantry cranes with motorized rail travelling design. They are widely used for light duty material handling in workshop or outdoor applications, such as,  small factories  for daily light duty material handling, warehouse storage and ship loading, and also they can be used for heavy parts handling for machinery maintenance, etc. They are very nicely designed and economical light duty rail gantry cranes .

Moreover, the small portable gantry cranes can be customized for your special requirements for  mold handling, automotive factory, mine, construction site and other industrial applications, etc.

Main parameters of mobile gantry crane with rail travelling crane

• Model： PT-5
• Max Capacity：20 tons
• Max Height ： 10 meters
• Max Span：15 meters
• Hoist Type： Electric hoist with motorized trolley
• Crane Travelling：Rail-mounted motorized steel wheels

The rail travelling mobile gantry crane is designed with rational gantry structure,  high mobility,and small footprint. The small gantry crane is typically used for loads handling from  500kg to 5000kg. With tailor gantry crane design, the rail gantry crane can be used for workshop equipment installation repair and debugging, etc. The portable rail gantry crane will help you to reduce manpower, lower your production and operating cost, and at same time,  improve work efficiency.Contact us to get your economical small rail gantry crane design now.

Features of portable rail gantry crane

• Easy operation,wireless controller and pendent controls are for selection.
• Motorized travelling, smooth travelling under load with soft starting and stopping
• Every steel tube is detachable, make gantry disassembly and assembly easy.
• Portable design allows for relocation for use in more than one facility or work area.

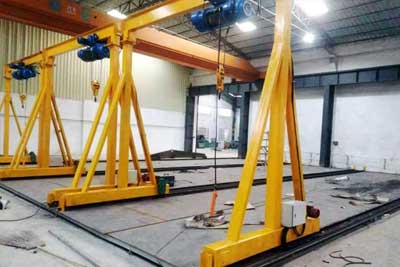

Rail travelling portable gantry crane with electric chain fall hoist

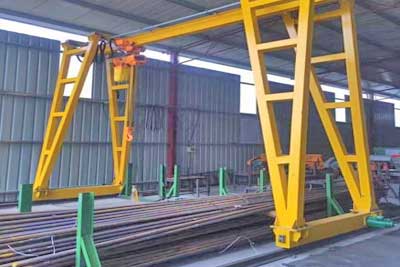

Light weight portable gantry crane rail travelling design

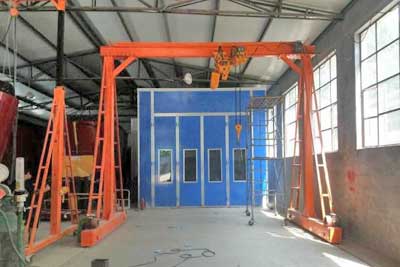

Truss leg portable rail gantry crane for steel handling

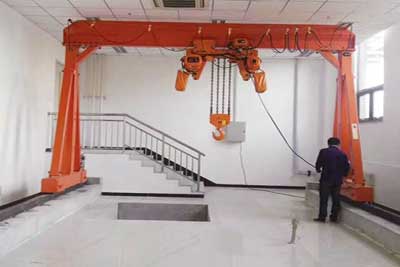

Light rail mounted portable gantry crane with wire rope hoist
