A frame crane for sale. 2 ton small gantry crane with roller travelling & rail travelling, customized gantry crane are available. Design your a frame gantry crane now!

A portable gantry crane, also known as a frame crane, is a economical, versatile and small gantry crane that is commonly used in light loads handling in small work areas. It is portable and suitable for a wide range of light weight lifting applications. Yuantai Cranes has the most comprehensive selection of A frame cranes for sale. .

A frame gantry cranes are so versatile and flexible that they can be designed based on the application conditions and lifting requirement of any worksite/workshop  either for indoor use or outdoor applications.

When not in use, the light duty a frame gantry crane on wheels can be pushed out of the way to free up space in the workspace. We are confident that by using our A Frame crane, we will be able to meet all of your lifting needs.

Design of a Frame Crane

Our A Frame cranes can be customized to be mounted on wheels or on the rail embedded in ground. The length and height of the A Frame cranes can be completely customized to meet your needs. For general use , the a frame gantry crane is available with 0.5 ton to 10 ton. When the load weight is above 10 tons, it is not recommended. But when it is required to be portable gantry crane, it can be designed with capacity up to 20 ton.

Travelling of portable A frame crane

There are two types of light and small A frame gantry cranes:

• The roller travelling gantry crane is designed with rollers or castors which can be moved in multiple directions on the road, and the castor or rolling wheels are equipped with brake  to make the portable gantry crane operation easy and simple.  Beside, the rolller a frame gantry cranes can be designed with motorized travelling and manual travelling. As for motorized a frame gantry, it can travel under full loading while the manual travelling gantry, it is not allowed to travel under loading.
• Rail travelling a frame gantry crane. The a frame crane is travelling on the rails which are installed  on the concrete floor or track. According to lifitng weight and lifting requirement, the small gantry cranes can be equipped with different types of electric hoists, chain hoist, or wire rope hoists. It can reduce human resources, reduce operating costs and improve efficiency.

Features of A frame gantry cranes

•  Lightweight and simple-The A Frame crane's simple and lightweight design ensures mobility.
• Easy to disassemble-Disassembly is available for easy transport and storage.
• Many hoisting options-There are several hoisting options for the A-Frame, including chain hoists and wire-rope hoists.

Working condition of a frame cranes

•  Working temperature during work: –30℃～50℃.
• Suitable for production workshops, warehouses, assembly plants, small and medium-sized processing plants and other applications, etc.
• The a frame gantry cranes is not allowed to use in the applications with the flammable and corrosive gas environment.

Types of a frame cranes available

The small a frame crane is suitable to used in the applications such as flat grounding worksites, warehouses, logistics distribution centers, assembly workshops, laboratories, clean rooms,etc.

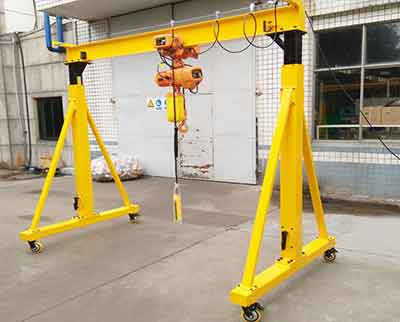

FT2 A frame gantry with winch adjustment - steel adjustable gantry crane

FT3 A frame gantry with Worm Gear adjustment

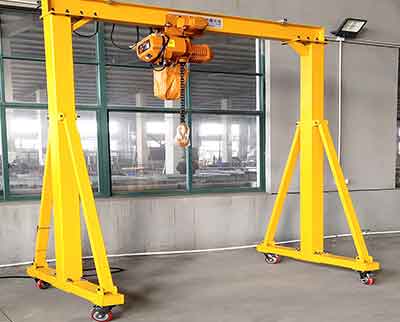

FT5 Fixed Height A frame Gantry Crane

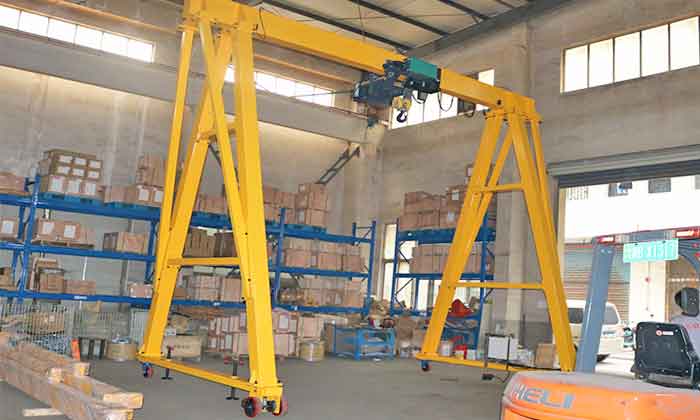

FT5 Fixed height A frame crane with European sytle wire rope hoist

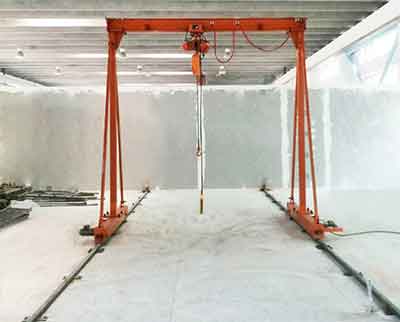

FT6 Rail/ track travelling A frame crane - rail travelling portable A frame crane

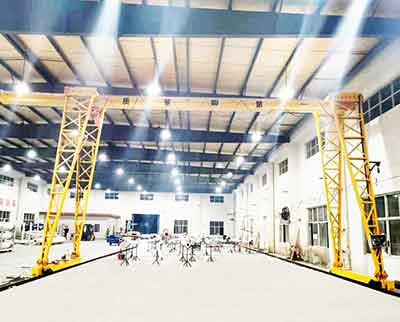

FT 6 Rail/ track travelling A frame crane with truss leg designs

Why choose YuantaiA frame crane ?

• Cost-effective - Yuantai A frame crane is one of the more affordable lifting solutions, as well as one of the simplest to deploy and store.
• Customized crane solution - Yuantai A Frame crane is the most flexible lifting equipment you can have in your workshop or workplace.
• Meticulously engineered- Yuantai engineers carefully design and calculate to ensure structural integrity and the best configuration for your needs.
• Manual / electrical options -There are manual and electrical options. When the crane is deployed in areas where electricity is not readily available, the manual type can be used. When the speed of the work flow is critical, the electrical option can be chosen.

Design a A frame gantry cranes with tailored specifications

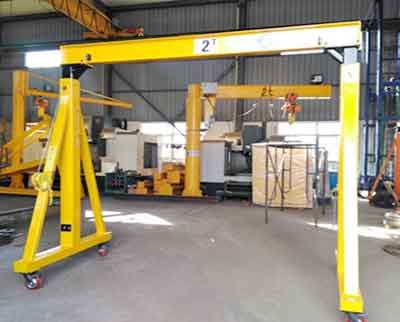

• 2 tons - 2 meters high - 2 meters wide (without hoist travelling trolley)
• 2 tons - 2.5 meters high - 2.5 meters wide (without hoist travelling trolley)
• 2 tons - 3.5 meters high - 3.5 meters wide (without hoist travelling trolley)
• 2 tons - 3 meters high - 2.5 meters wide (without hoist travelling trolley)
• 2 tons - 3 meters high - 3 meters wide (without hoist travelling trolley)
• 2 tons - 4 meters high - 3 meters wide (without hoist travelling trolley)
• 2 tons - 2.5 meters high - 2.5 meters wide (without hoist travelling trolley)

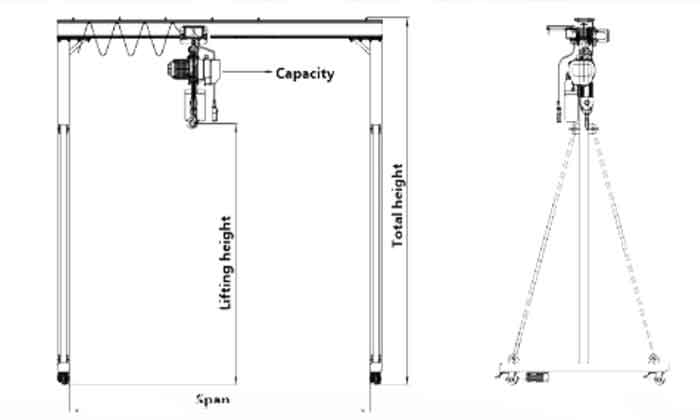

Customized A frame gantry crane with tailored specifications

• Capacity: 2 ton
• Span:_____meters.
• Lifting height/ Total height: ____?
• Hoisting type: manual hoist, electric chain hoist & electric wire rope hoist.
• Crane travelling； fixed supporting, manual travelling, motorized travelling>
• Control method: pendant control & remote control
