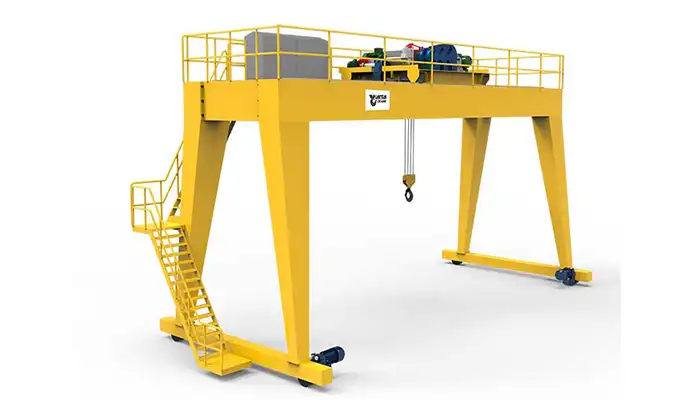

40 Ton Gantry Crane for Sale, Chinese 40 Ton Gantry Crane Maker & Supplier

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

40 ton gantry crane for sale. Double girder gantry crane 40 ton for indoor /outdoor use with A frame / U frame gantry, rubber tire / rail travelling for sale.

40 Ton Gantry Crane for Sale, Chinese 40 Ton Gantry Crane Maker & Supplier

Product Type:	40 Ton Gantry Crane
Lifting Capacity:	40 ton
Span:	As request
Lifting Height:	As your requirement
Working Class:	A3-A5
Ambient Temperature:	-20-+40 ℃
Crane Price Rangs	More Inquiry Form
$50,000 – $120,000
	[email protected] 008615038346929

40 Ton Gantry Crane

40 ton gantry crane for sale. Double girder gantry crane 40 ton for indoor /outdoor use with A frame / U frame gantry, rubber tire / rail travelling for sale.

40 ton gantry crane for sale. Double girder gantry crane 40 ton for indoor /outdoor use with A frame / U frame gantry design , rubber tire travelling / rail travelling design for your selection. Customized 40 ton gantry crane for particular application are available.

The 40 ton gantry crane are reliable and efficient for heavy loads handling in a variety of industries, including the manufacturing sector, the railroad, building sites, and ports. For 40 ton object handling, the gantry crane are typically designed with two girders to improve the productivity and security of your production lines. We offer a variety of 40 ton gantry crane designs to meet your particular materiel handling requirements and lifting conditions.

According to the frame construction, they can be split into A frame and U frame gantry cranes, and according to the running mechanism, rail mounted and rubber tyred gantry cranes. Each types has unique benefits and limitations and is designed for particular applications and work environments. We can help to custom the 40 ton gantry crane for your application based on your lifting requirements and application conditions.

MG double girder gantry crane, hot sale 40 ton gantry cranes

The most popular style of gantry crane for 40 ton loads handling is the MG type double girder gantry crane, with the A frame gantry design, double girder hoist trolley or open winch trolley for indoor and outdoor use.The A frame 40 ton gantry crane is a rail mounted and rail travelling gantry cranes, which enable the gantry cranes moves along rails on the ground in a designated place. With cantilever designs, the loads can move beyond the crane runway on either one end or both ends. The double girder gantry crane, designed for all-purpose use, is frequently used in open spaces like freight yards, shipyards, docksides, and sea ports.

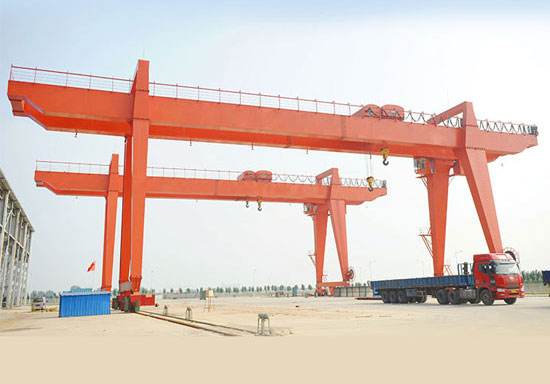

A Frame Double Girder Gantry Crane 40 Ton

Double girder 40 ton gantry crane parameters:

Span: 18-35m
Lifting height: 6-18m
Lifting speed: 1.5-11.5m/min
Trolley running speed: 10-40.1m/min
Crane running speed: 16-50m/min
Work duty: A3-A7

Send An Inquiry on MG A Frame Double Girder Gantry Crane 40 Ton

Box and truss type A frame gantry cranes are available to suit your specific needs with regard to various working environments. Besides 40 ton gantry crane, we we also offer gantry crane with capacity from 5 ton 320 ton.

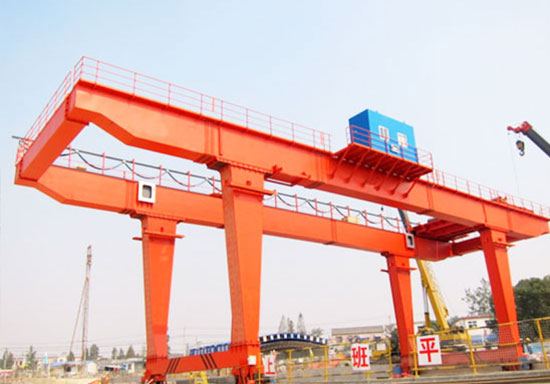

U frame gantry crane,40 ton gantry crane for containers and large loads handling

The U frme gantry crane is named after its U-shaped leg construction. When compared to gantry cranes of the A type, it has unique features like a larger space between the two legs, which makes it simple to load, unload, and move large-sized cargoes at either one end of cantilevers or both ends, such as containers, etc.

The primary outdoor workplaces where U frame gantry cranes are used are railroad freight yards, quaysides, shipyards, and ports. It has a lot of benefits, including a large carrying capacity, an optimized construction, smooth movement, and a big lifting area. Customized U frame gantry crane 40 ton are available. Contact us now.

U Frame Double Girder Gantry Crane 40 Ton

U frame 40 ton gantry crane parameters:

Span: 18-35m
Lifting height: 6-18m
Lifting speed: 5.9-13.3m/min
Trolley running speed: 31.3-40.1m/min
Crane running speed: 40.1-44m/min
Work duty: A5-A6

Send An Inquiry on U Frame Gantry Crane 40 Ton

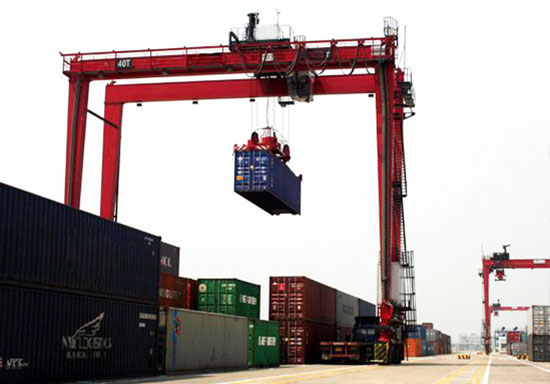

Rubber Tyree Gantry Crane -40 ton gantry crane with high flexibility

Rubber tyred gantry cranes are a practical and effective material handling solution for outdoor workplaces like ports, quays, freight yards, shipyards, and rail terminals to fit a variety of applications. It is a type of mobile gantry crane with rubber tyred wheels to move around your working sites which increases material handling flexibility, productivity, and safety in contrast to rail mounted and rail travelling gantry cranes . For different applications and uses, the rubber tyred gantry crane can be designed into various designs with different configurations. Please leave us your specific applications conditions and lifting requriements, the customized 40 ton gantry crane with rubber tyred wheels can be provided.

Rubber Tired Gantry Crane For Sale

Rubber tired gantry crane parameters:

Lifting Capacity: 30t~50t
Span Length: 22~28m
Lifting Speed: 12~46m/min
Crane Speed: 45-90m/min
Operating Temperature: -20℃~40℃
Provide Custom Option

Send An Inquiry on Rubber Tyred Gantry Crane 40 Ton

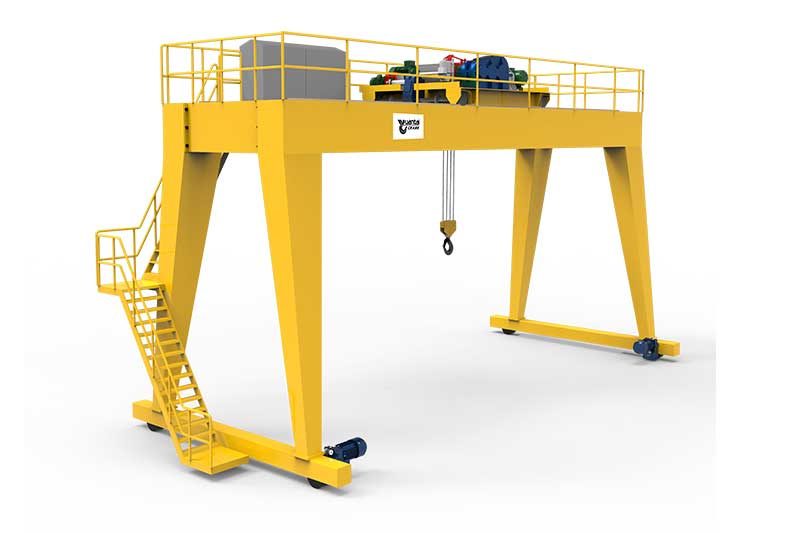

European style 40 ton gantry crane

The MGO series of gantry cranes are double girder gantry cranes designed with European style, equipped with imported parts and components, with more compact structure and can be used in low headroom application when indoor use. The MGO series is much more competitive in European market compared with other European supplier . Contact us to get 40 ton gantry crane price and compared your quotation to get the most suitable one for your application.

MG Series gantry crane

The MG series of gantry cranes are double girder gantry cranes designed with Chiense style, equipped with local parts and components, with cost-effective gantry crane price.

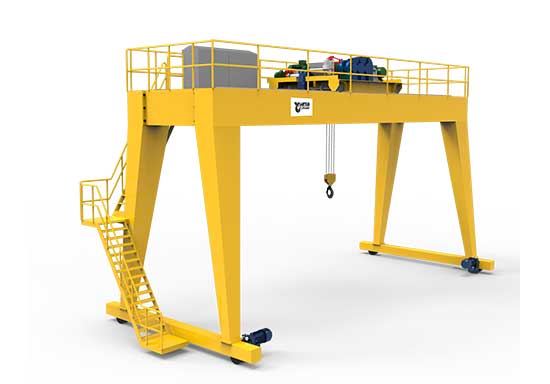

Brief introduction of MGO European style double girder gantry cranes

Yuantai MGO model double girder gantry cranes are designed with European style and is manufactured based on the FEM standard.The MGO series of gantry crane has a higher work duty and can achieve A5, A6, A7, A8; as well as large tonnage, such as 50 ton, 80 ton, 100 ton, 200 ton, 250 ton, 300 ton, 500 ton, 900 ton, and so on.It is main consisted of open winch crane trolleys bridge girders, support A frame legs, an electrical system, and other components, and features parts and components added based on your lifting requirement and application conditions.

For ease of upkeep, 3 in 1 geared motors are used in cross and long traveling mechanisms; SEW serial vertical type are primarily used for crane traveling.The control method can be cell, pendant, or remote. The cabin has a full field of vision and is suspended beneath the main girder.

It is primarily used in outdoor freight yards for basic material handling services such as loading, unloading, lifting, and transferring.

Features of MGO series gantry crane

The gantry crane system is variable speed via VFD Schneider electricals/Siemens main electric components, Schneider VFD, German brand geared motors, SEW/Siemens, ABM, Flender, and so on.
Main lifting speed: 0-10 m/min; auxiliary lifting speed: 0-15 m/min; CT speed: 0-25 m/min; LT speed: 0-40 m/min
Europe-style design with limited headroom, low deadweight, low noise, power savings, investment savings, and so on;
Including comprehensive safety measures such as wind-alert, break-proof shaft, toppling proof, and so on.
A smart anti-swaying device is optional; (f) We can reserve the Gateway for future automation, intelligent crane, or non-person workshop projects.

What to consider to customized your gantry crane?

Since there are \ a large selection of 40 ton gantry cranes for a variety of lifting uses application. It will be helpful to know what to consider before buying an overhead crane for your applications.

For indoor & outdoor gantry crane 40 ton

Use indoors or outdoors. The choice of crane materials and electrical components is influenced by the crane's operating environment. Consideration of extreme temperatures, weather exposure, and harsh working environments will assist us in selecting appropriate materials and processing methods.

For many years,Yuantai Crane has concentrated on the material handling sector and offered a variety of gantry cranes for a variety of industries. From this selection, you can choose the lifting system that is most appropriate for your particular purpose.

For indoor use

Indoor Gantry Crane

If your 40 ton gantry crane will be used for indoor application, its design will be largely affected by your facility dimensions. For workshop with large space, the cantilever gantry crane is possible and usually for indoor use, the gantry crane is with no cantilever for limited space.

It makes it simple to move loads from one location to another without requiring a lot of work. To meet the needs of different production lines and job specifications, indoor gantry cranes are available in light duty and heavy duty designs.

For outdoor use

Outdoor Gantry Crane

If your gantry crane needs to be operated outdoors such as storage yards, dock, port, railway, shipyard and construction site., the 40 ton gantry cranes needs special features to ensure outdoor application safety.

Optional features for 40 ton outdoor gantry cranes

Rain proof cover overhead hoist and trolley system
Windproof devices ,
For high humidity environment, special painting and crane parts and components are used.
Other special features based on your requirements and conditions.

Specification needed - crane span, lifting height & crane travelling length

The most basic parameters needed to confirm the design of the 40 ton gantry crane is the overall equipment height, span, trolley gauge and cantilever length. The main beam height of gantry crane is determined by lifting capacity whereas the crane span, and the cantilever length is determined by actual lifting requirements. The gauge of crane trolley is a key factor to determine the spacing between two girders of gantry crane bridge.

The way gantry crane travels - rail travelling or wheel travelling

You can choose a rail-mounted or rubber-tired gantry crane depending on your purpose, working environment, and facility conditions.

Below hook deviece or crane attachment for gantry crane - magnetic, grab or beam spreader

The lifting devices or crane attachment is selected based on the types of loads, sizes, and working requirements and conditions. A variety of hoisting devices are available from Yuantai Crane such as , hooks, grabs, and spreaders

Safety first, safety devices for gantry cranes

Considering safety hazards in the working environments and select proper safety devices for your gantry crane is vital for crane safety and operation safety. There are various safety devices are available to ensure safety , such as overload limiter, interlock protection device, alarms and anti-collision device.

Each working area or environment is different, so selecting the right gantry crane design is the most cost-effective solution. Need of 40 ton gantry crane? Contact us to get your design! 40 ton gantry crane will lift in your way!

Related

40 ton overhead cranes

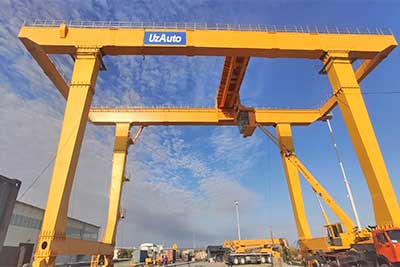

41 ton rubber tyred gantry crane project in Uzbekistan

Faqs on 40 Ton Gantry Cranes

A: 40 ton gantry cranes are essential in industries like manufacturing, shipping, construction, and steel production.

Manufacturing: For lifting heavy machinery, parts, and materials, especially in automotive or machinery assembly.
Shipping & Ports: Ideal for handling containers, bulk cargo, and equipment in busy ports and freight yards.
Construction: Crucial for moving steel beams, concrete structures, and large equipment at job sites.
Steel Mills: Used for lifting steel slabs, coils, and beams, where heavy-duty lifting is vital in harsh, high-temperature environments.

A: The selection should be based on lifting capacity, environment (indoor/outdoor), material types, and the crane's mobility.

Lifting Capacity: Choose a crane that can handle the heaviest load you expect to lift.
Working Environment: Consider if it's an indoor or outdoor application. Temperature, humidity, and exposure to harsh weather are factors to assess.
Material Types: The type of materials (containers, steel, machinery) will influence crane design, especially attachments like grabs, hooks, or spreaders.

A: The choice depends on whether your facility needs mobility or fixed operation; rubber-tired cranes are mobile, while rail-mounted ones offer more stability.

Rail-Mounted Gantry Cranes: Ideal for fixed industrial spaces like manufacturing plants, steel mills, or construction yards where the crane operates within a set path.
Rubber-Tired Gantry Cranes: Best suited for outdoor applications like ports, freight yards, or construction sites where flexibility and mobility are needed to move loads across large areas.

A: Weather, such as rain, wind, or extreme temperatures, impacts crane performance, particularly in outdoor industries like ports, freight yards, or construction sites.

Wind and Rain: In ports and outdoor construction, the crane must have weatherproof covers, windproof devices, and corrosion-resistant features to ensure smooth operation.
Temperature: Cranes used in steel mills or outdoors must be designed to withstand high temperatures or freezing conditions, using special lubricants or coatings for protection.

A: 40 ton gantry cranes handle heavy materials such as containers, steel beams, machinery, and concrete, often in ports, construction sites, and steel mills.

Shipping: Used for lifting shipping containers, bulk cargo, and heavy freight at ports.
Steel Production: Employed for lifting steel coils, slabs, and beams in high-demand, high-temperature environments.
Construction: Frequently used for lifting large concrete structures, steel beams, and heavy machinery at job sites.

A: The cost of a 40 ton gantry crane depends on the type, features, and customization required for your industry.

Shipping & Ports: Mobile, rubber-tired gantry cranes may cost more due to additional flexibility features and weatherproofing.
Steel Production: Cranes with heat-resistant components or specialized hoists for handling heavy materials in extreme temperatures may be more expensive.
Construction: Heavy-duty cranes for lifting large prefabricated parts or machinery can have a higher upfront cost due to robust construction and added safety features.

A: Essential safety features include overload limiters, anti-collision devices, emergency stops, and weatherproofing for outdoor conditions.

Overload Limiters: Prevent the crane from exceeding its capacity, which is crucial for construction and steel mills where heavy materials are handled.
Anti-Collision Devices: Ensure safety in busy environments like ports or manufacturing plants where multiple cranes may be operating simultaneously.
Weatherproofing: For outdoor cranes, features like rainproof covers, anti-corrosion coatings, and windproof devices are essential.

A: Opt for cranes with energy-efficient motors, variable frequency drives (VFDs), and high-efficiency components to minimize operational costs.

Variable Frequency Drives (VFDs): Allow cranes to operate more efficiently, reducing energy use by adjusting speed as needed.
Energy-Efficient Motors: These motors help reduce energy consumption, especially in environments with frequent starts and stops, such as in manufacturing plants.

A: Yes, 40 ton gantry cranes can be adapted for both indoor and outdoor use, but the design will depend on the specific application and environmental conditions.

Indoor Use: Cranes designed for factories or workshops may have more compact dimensions, with fewer weather-resistant features.
Outdoor Use: Cranes used in ports, freight yards, or construction sites must be equipped with weatherproofing, anti-corrosion coatings, and other outdoor safety features.

A: Focus on lifting capacity, crane mobility (rail or rubber tire), weather-resistant features, and specific material handling needs like steel beams or heavy machinery.

Steel Mills: Customize cranes for high temperatures and heavy steel material handling, ensuring features like heat-resistant parts and high-strength hoists.
Construction Sites: Select cranes that can lift large prefabricated parts, concrete beams, or heavy equipment, with a design suitable for confined spaces or rough terrain.

A: A-frame gantry cranes offer more stability and are suitable for fixed, heavy-duty lifting, while U-frame cranes are ideal for lifting large loads, such as containers, in ports.

A-frame Gantry Cranes: Typically used in open spaces like construction sites and steel mills, offering excellent stability and a strong lifting structure.
U-frame Gantry Cranes: Preferred for industries handling large, bulky loads like containers or oversized machinery, commonly used in ports and rail yards.

A: Choose based on the crane's type (A-frame vs. U-frame), mobility (rail-mounted vs. rubber-tired), and specific features like lifting speed, span, and lifting height.

Application: Determine whether your crane will be used for handling containers, heavy machinery, or steel materials, and select the appropriate frame and lifting mechanism.
Mobility Needs: If the crane needs to move across a large area, a rubber-tired gantry crane may be more suitable.
Lifting Specifications: Ensure the crane meets the required span, lifting height, and speed for your specific material handling tasks.
