40 Ton Overhead Crane & Bridge Crane

• Can lift up to 40 tons safely.
• Engineered to handle maximum loads with safety margins built in.
• Suitable for both individual heavy items and bundled loads.

• A3–A5: Covers light to medium industrial use.
• Optional higher duty classes available for more intensive operations.
• Helps buyers match crane performance to their operational frequency and load patterns.

• Adjustable hoist speed for delicate lifting or faster load handling.
• Trolley and bridge travel speeds can be selected based on operational needs.
• Variable speed options improve safety and workflow efficiency.

• Variable Frequency Drive (VFD): Smooth start and stop, energy-saving, and better control.
• Remote control operation: Improves safety and allows flexible operation from a distance.
• Anti-sway mechanism: Reduces load swing for safer handling of long or heavy items.

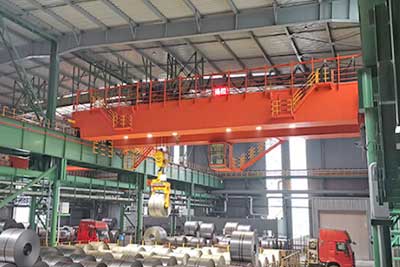

Cranes in steel mills handle some of the heaviest and hottest materials in industry.

• Lift and move steel billets, slabs, and coils safely.
• Use magnetic or clamp attachments for specific steel handling needs.
• Improve efficiency and reduce manual labor during production.

Workshops often require precision and flexibility when handling heavy equipment and parts.

• Move heavy machinery, dies, molds, and metal sheets.
• Position materials accurately for machining or assembly tasks.
• Adapt to confined spaces with single or double girder configurations.

Large components need careful handling during installation and maintenance.

• Lift turbines, generators, and structural steel safely.
• Suitable for indoor or outdoor heavy-lifting tasks.
• Supports long-term maintenance operations efficiently.

Cranes improve workflow in storage and logistics operations.

• Load and unload large containers, crates, and bulk materials.
• Streamline inventory management and material transport.
• Adaptable for temporary or permanent setups.

The crane is suitable for a wide range of industries beyond typical factories.

• Shipyards, construction sites, and logistics hubs.
• Indoor or outdoor use with protective options for harsh conditions.
• Select crane type and duty class based on operational demands.

• Choose the crane type based on facility layout and available space.
• Match attachments to load types for safe handling.
• Consider operational frequency to determine duty class and speed settings.

Before purchasing a 40 Ton Overhead Crane, you should evaluate the following practical points:

• Industrial Application:
  • Steel Mills: Often require open winch hoists or magnetic devices for slabs and coils.
  • Machining Workshops: Low headroom designs can maximize lifting height in tight spaces.
  • Heavy Engineering / Power Plants: May need reinforced bridges and heavy-duty trolleys.
• Lifting Requirements: Span, lifting height, and load type influence hoist selection and trolley structure.
• Operational Frequency: High-cycle operations require higher duty class cranes and stronger mechanical components.

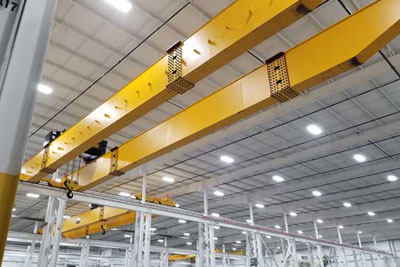

Even within double girder cranes, several design options exist to match different working conditions:

• Hoist Trolley: Standard option for general industrial lifting.
• Open Winch Design: Preferred in steel plants for uneven or oversized loads.
• Low Headroom Design: Helps maximize lifting height in buildings with limited ceiling space.
• Heavy Duty Structure: Suitable for high-frequency lifting and demanding environments.
• Custom Attachments: Including clamps, magnets, grabs, or lifting beams depending on material type.

Optional enhancements can improve safety, accuracy, and workflow efficiency:

• Variable Frequency Drive (VFD): Smooth acceleration and deceleration for better load control.
• Remote Control Operation: Allows safer control from a distance, especially in narrow or hazardous areas.
• Anti-Sway Systems: Reduces swinging and helps position long or awkward loads more accurately.

Choosing a 40 Ton crane involves balancing safety, cost, and long-term value:

• Double girder cranes cost more upfront but deliver superior stability, safety, and performance.
• Selecting the proper design from the beginning helps prevent modifications and downtime later.
• Consider the total investment: installation, optional systems, operational efficiency, and maintenance.

Always discuss your facility layout, load characteristics, and lifting frequency with your supplier. The right combination of double girder design, trolley configuration, and optional features will ensure safe, efficient, and long-lasting performance for 40-ton operations.

Selecting the right crane starts with understanding your facility and operational needs. For 40-ton loads, a double girder design is standard to ensure stability and safety.

• Facility layout: Check the span between runway beams and the available lifting height.
• Load type: Determine if you are lifting slabs, coils, machinery, or bundled loads. This may affect hoist type and attachments.
• Operational frequency: Continuous heavy lifting requires a higher duty class.
• Environmental factors: Indoor or outdoor use, temperature, dust, or corrosive conditions.
• Optional features: Decide if you need VFDs, anti-sway devices, or remote operation.

Speed options and duty classes are crucial for balancing efficiency and safety:

• Hoist speed: Typically 8–25 m/min depending on load and application.
• Trolley speed: Usually 20–45 m/min, adjustable for precise load placement.
• Bridge travel speed: Around 15–40 m/min depending on facility layout.
• Duty classes: Most 40 Ton cranes fall into A4 or A5 for heavy industrial use; higher classes available for continuous operations.

With proper installation, regular maintenance, and correct usage:

• Typical lifespan is 15–25 years.
• High-quality components and double girder construction ensure structural integrity over time.
• Duty class and operational frequency affect lifespan—high-frequency use requires stricter maintenance.

Customization ensures the crane fits your exact operational needs:

• Provide facility details: Span, lifting height, headroom, and structural constraints.
• Specify load types: Slabs, coils, machinery, or specialized items.
• Indicate operational requirements: Frequency of use, environment, and safety features.
• Discuss optional features: Remote operation, VFD, anti-sway, or specialized attachments.
• Submit this information to your supplier to receive a tailored quotation and technical drawing.
