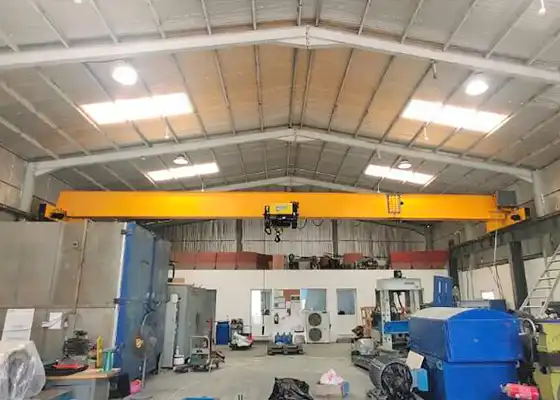

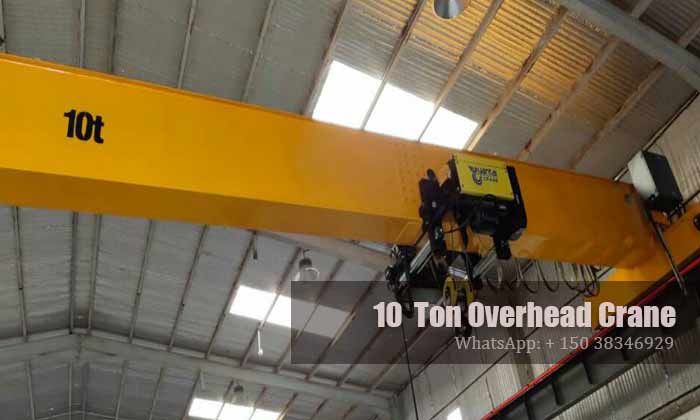

10 Ton Single Girder Overhead Crane Specifications

Product Type:	10 ton Single Girder Overhead
Lifting Capacity:	10 t
Span:	7.5~31.5m
Lifting Height:	as your requirement
Working Class:	A3 -A7
Ambient Temperature:	-20~40℃
	Inquiry

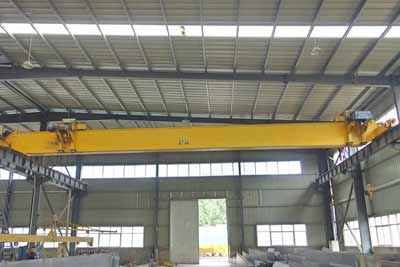

10 ton single girder overhead cranes

As the most common type of overhead crane, a single girder overhead crane is an excellent choice for material handling. In contrast to double girder overhead cranes, single girder overhead cranes are considered light duty lifting equipment that can be used with CD1, MD1 type electric hoists. Single girder overhead crane types are designed to meet productivity and safety requirements. Single girder overhead cranes are commonly used in workshops, warehouses, and yards.

Because only one beam girder is required to move the trolley and hoist, the single girder overhead crane is less expensive.
Lower freight costs.
Easy to install.
It is simpler to design a hoist and trolley than a double girder overhead crane.

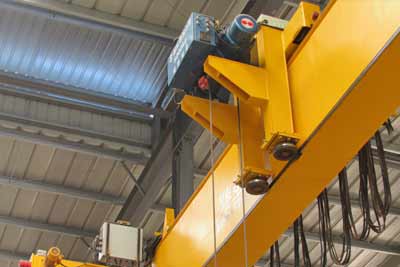

10 ton single girder overhead crane hd type

FEM electrical hoist single girder overhead crane 10 ton
FEM hoist single girder overhead crane is designed with features of Sturdy quality, economical overhead crane price, One year quality assurance, Full set of after sales service.
European electric hoist single girder overhead crane specification:

Crane type: HD single girder overhead crane,
European Crane Lifting capacity: 10 ton
Span length: ≥6m,
Lifting height: As your request
Hoisting system: European style low headroom wire rope hoist
Working class: A5,

HD type single girder overhead crane 10 ton specification

HD Series European Type Single Girder Overhead Crane 10 Ton
Working Class		A5-A7
Capacity	t	1~25
Span	m	3~35
Lifting Height	m	3-100
Lifting Speed	m/min	0.8/5,dual speed
Trolley Travelling Speed	m/min	3~30,VFD control
Crane Travelling Speed	m/min	3~30,VFD control
Control Method		Ground or Cab Control
Power Supply		380V 50HZ 3PHASE or Customized
Temperature	℃	-20~60
Protection Grade		IP54~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

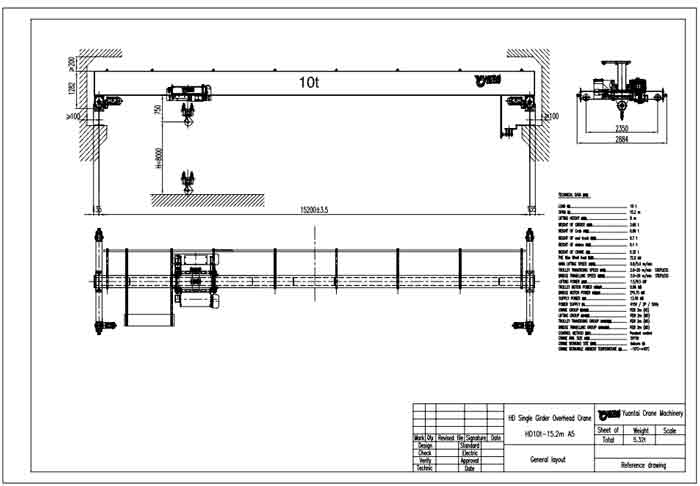

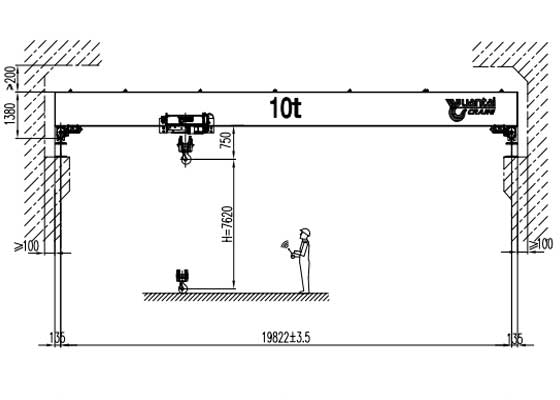

HD type single girder overhead crane 10 ton specification drawing

HD type 10 ton overhead crane drawing

Main specifications: Model:HD type, Capacity: 10 ton , Crane Span :15.2 m , Working Duty: A5
Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications today!

HD type single girder overhead crane 10 ton project

10 ton overhead bridge crane for sale Saudi, good bridge crane price. Single girder bridge crane, with wire rope hoist & pendent ground control. Check now.

Project info of 10 ton single girder overhead crane for sale Saudi

Brand ：Yuantai Crane
Types of Cranes:Single girder overhead crane
Date of Placing Order： 2020-08-31
Date of delivery ： 2020-09-29
Transportation ：BY sea, 40GP container
Destination portCIF Dammam
Destination country：Saudi

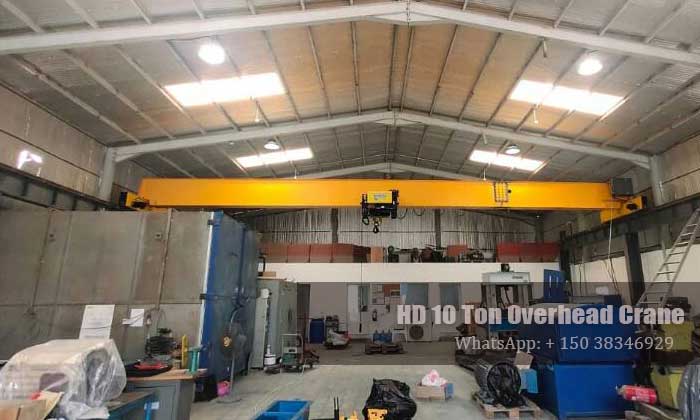

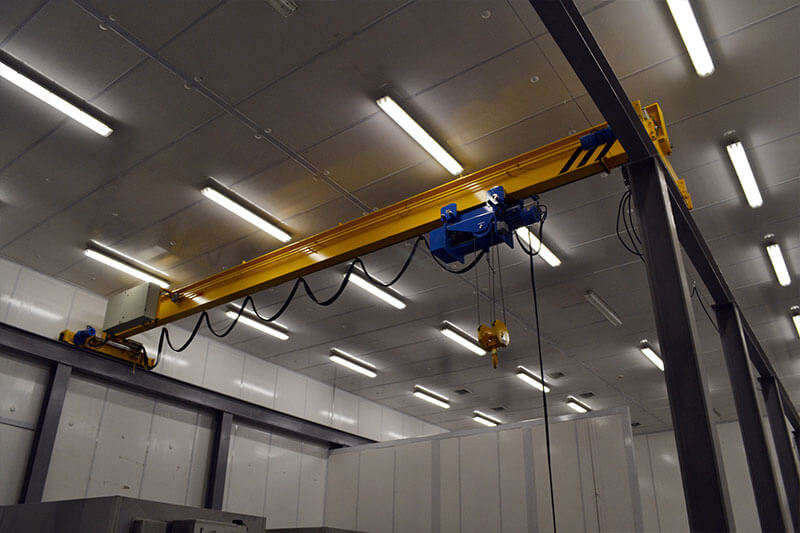

feedback picture of Saudi client 10 ton single girder overhead crane

Feedback picture of Saudi client on the 10 ton single girder overhead crane - 10 ton overhead crane can be designed into single girder & double girder designs. Check Double Girder Overhead Crane 10 ton design.

Main Specifications of 10 ton single girder overhead crane for sale Saudi

Quantity	1 set
Product Name	Single Girder Overhead Crane
Crane Model	HD
Lifting capacity	1.5 ton
Crane span	4.795 m
Lifting height	2.1 m
Working class	A5
Power supply	400V,50HZ,3P
Crane control	Ground control
Color	Standards

Customized features of 10 ton top running single girder overhead crane

Track + sliding line: P22 track 2x20.5 meters, including clamping plates and pressure plate, 20.5 meters of seamless sliding line 8mm².
Steel structure: Rail bearing beam 2x20.5m, model: HN450*200*9*14 82kg/m
Columns: 10 pieces, each 4.15 meters high, model: HN400*200*8*13 80kg/m, the column spacing is 5 meters, Includes diagonal braces and bolts.
Accessories: 1 contactor, 1 lifting limit, 4 buffers, 1 rope guide, 1 electronic scale to show the tonnages of the loads.
The detailed drawings of steel structure construction and installation instructions are required by the Saudi Client.
Chain hoist is required equipped with manual travelling trolley, the track width is 400mm, used on box beams
Add a 3×4mm²+6×1.5mm² to the HD type 10 ton crane , with a length of 38 meters, and ten C-shaped steel trolleys (including the head and tail).

Customs declaration & registration information

The actual Chinese and English name of the goods: 桥式起重机overhead crane
Chinese and English name of cargo declaration:桥式起重机overhead crane
Inland transportation cost from factory to port: 600 USD
Port Charges: 700USD
Sea freight: USD 1500

Gallary of 10 ton single girder overhead crane for sale Saudi

Main girder of 10 ton overhead crane for sale Uganda

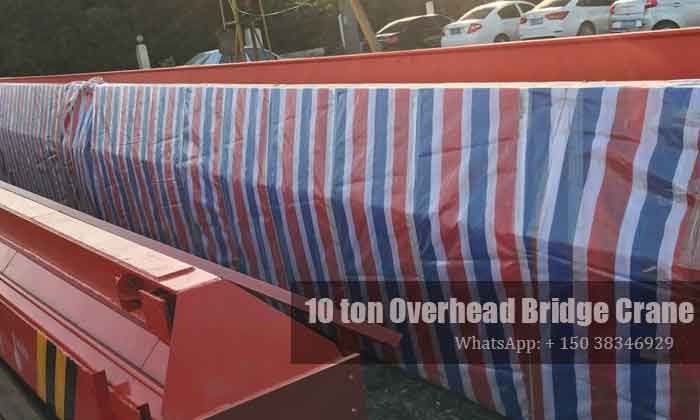

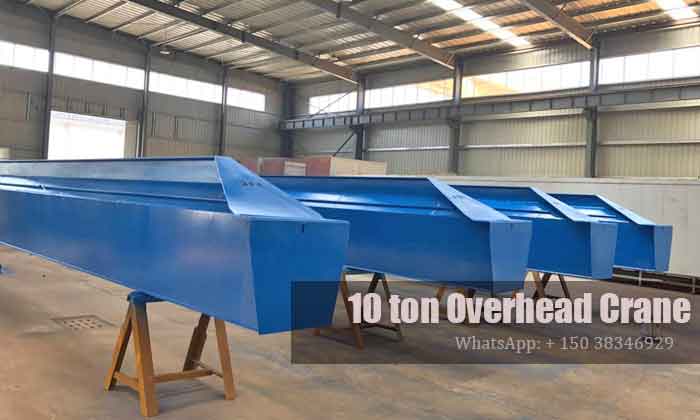

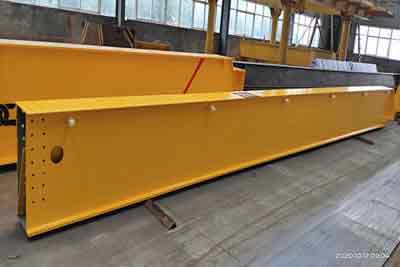

Main girder of 10 ton overhead crane for sale Saudi

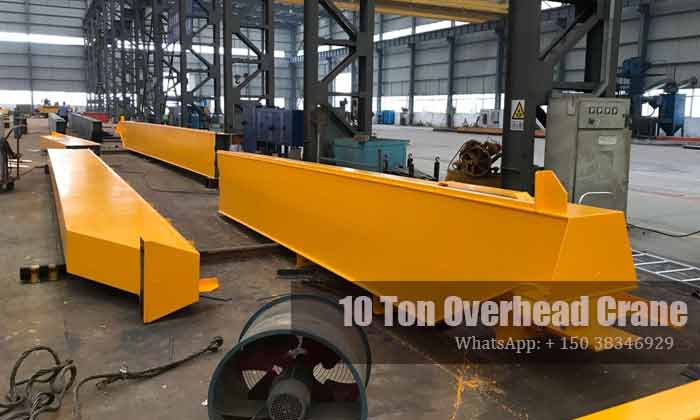

Main girder painted of 10 ton overhead crane for sale Uganda

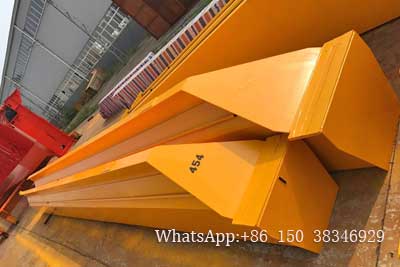

Main girder painted of 10 ton overhead crane for sale Saudi

10 ton overhead crane loaded into truck for delivery

Parts and driver's cabin loaded into truck for delivery

10 ton overhead crane ld type with cd/md electric wire rope hoist

Traditional cheap electrical hoist single girder overhead crane 10 ton

China Traditional cheap electrical hoist single girder overhead crane is widely used in the factory, ware house, stockyard, etc.

Ld types of overhead crane specification

Overhead crane type: ld
Lifting capacity: 10 ton
Span length: 7.5~28.5m,
Lifting height: As your request
Hoisting system: cd/md electric wire rope hoist / Electric chain hoist
Working class: A3,A4,

More crane specifications of ld type overhead crane 10 ton

LD typ Single Girder Overhead Crane 10 ton specifications
Span of overhead crane	S(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5

Lifting height	m	9	9	9	9	9	9	9	9
Lifting speed	m/min	7	7	7	7	7	7	7	7
Trolley speed	m/min	20	20	20	20	20	20	20	20
Crane speed	m/min	20	20	20	20	20	20	20	20
Lifting motor	kw	13	13	13	13	13	13	13	13
Trolley motor	kw	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8

Total weight	t	3.26	3.76	4.4	5.17	5.92	7.48	9.71	14.05
Max Wheel Load	KN	51.3	55.3	58.4	61.3	63.9	68.2	74.2	85.4
Track of hoist crane		P24	P24	P24	P24	P24	P24	P24	P24

Main dimension	mm	7.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5
Rail top to main top	H1	720	720	820	875	875	925	1100	1200
Rail top to hook centre	H2	1850	1850	1850	1900	1940	2000	1920	1920
Wheel base	W	2000	2000	2000	2500	2500	3000	3500	4000
Crane width of hoist crane	B	2500	2500	2500	3000	3000	3500	4000	4700
Hook left limitation	S1	1293	1293	1293	1293	1293	1293	1293	1293
Hook right limitation	S2	1893	1893	1893	1893	1893	1893	1893	1893
Main girder height	H3	900	900	1000	1100	1140	1250	1350	1450

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

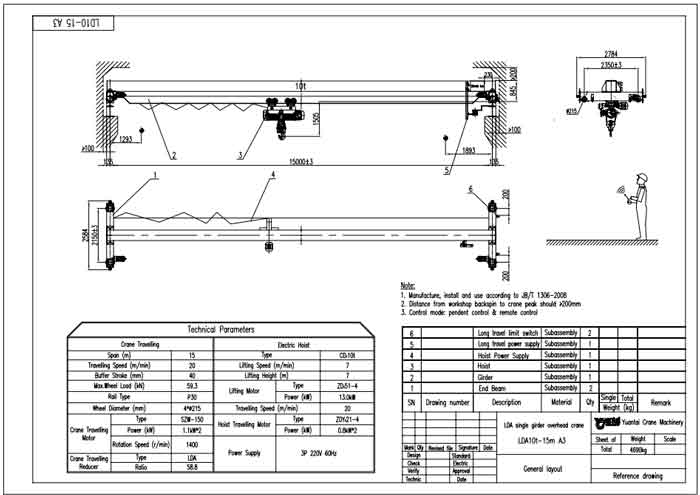

Sample drawing of LD type single girder overhead crane 10 ton

Get your customized overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

LD type 10 ton single girder overhead crane projects for your reference

10 ton overhead electric hoist crane for sale Bangladesh, simple structure, economical price, efficient electric hoist crane. Check specifications now.

Project info of 10 ton single girder overhead crane for sale Bangladesh

Brand ：Yuantai Crane
Types of Cranes:LD type single girder overhead crane 10 ton
Date of Placing Order： 2020. 07.01
Date of delivery ： 2020.08.20
Transportation ：By sea, 40GP container
Payment: 100% L/C
Destination port： CFR Chittagong port
Destination country：Bangladesh

10 ton single girder overhead crane for sale Bangladesh

Main Specifications of overhead electric hoist crane 10 ton for sale Bangladesh

Quantity	1 set	1 set
Gantry crane type	LD Single girder overhead crane 10 ton	Single girder gantry crane with European style
Lifting capacity	10 ton	5 ton
Crane span	17.35m	15.5m
Lifting height	10.05 m	3.8 m
Working class	A3	A5
Power supply	3Ph400V 50Hz	3Ph 380V 50Hz
Hoist control	Pendant control + remote control	Pendant control + remote control
Color	Standard	Standard

Customized features of 10 ton overhead crane for sale Bangladesh

The main girder of the LD type single girder overhead crane needs to be cut into two sections for loading into container.
All the electrics of the 10 ton overhead crane is required to be Schneider Electric.
The 16 ton electric hoist trolley has a gauge of 1.8M, and the trolley track is 60*40 square steel. The trolley electrics need to be provided, and the electric brand is Schneider;
The power supply line of the LD type 10 ton overhead crane is seamless slide line of 10 mm2, running length of 19M, 1 collector;
4, The track of the 10 ton overhead crane is P24, running length of 19M, and the total length of the track is 38M, with 127 clamps and 5 pairs of clamps;
The hoist trolley and bridge crane need to be declared separately according to the description of the customer's letter of credit;
Requirements for the packaging of goods marks: each packaging box of the goods must be written in English with the product name, gross net weight, country of origin of the goods, exporter name, importer name and tax number;
Detailed information on the weight of the packaged goods is required, and the name, quantity and gross net weight of the products contained in each box should be listed. The packing list should be submitted to the customer together with the original documents;

Customs declaration & registration information

The actual Chinese and English name of the goods: 桥式起重机overhead crane
Chinese and English name of cargo declaration:桥式起重机overhead crane
Inland transportation cost from factory to port: 735 USD
Port charge : 700 USD
Sea freight: 1200USD

Gallary of 10 ton single girder overhead electric hoist crane for sale Bangladesh

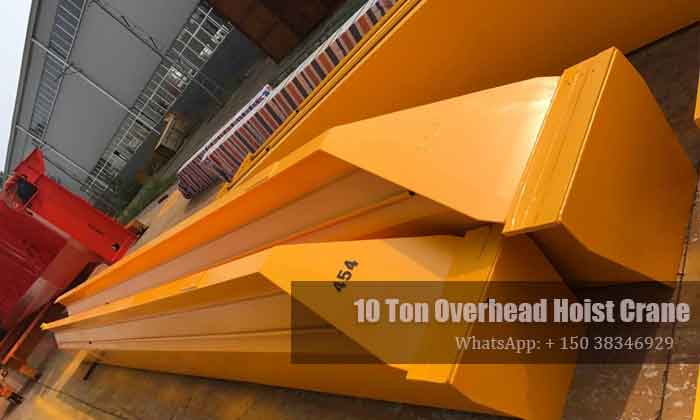

Main girder of 10 ton overhead electric hoist crane for sale Bangladesh

10 electric hoist for sale Bangladesh

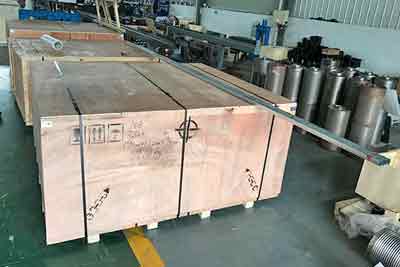

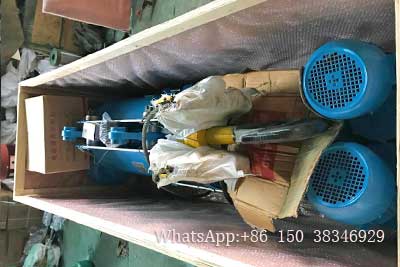

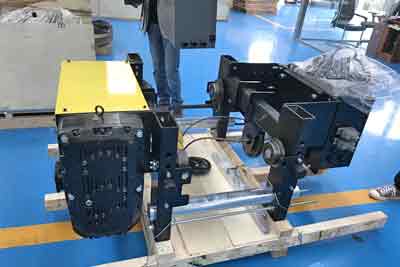

10 ton overhead crane hoist packed into wooden box for delivery

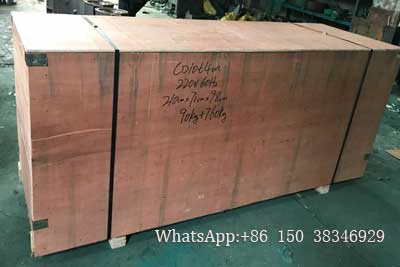

Parts and hoist parts packed for delivery to Philipinnes

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Explosion proof single girder overhead crane 10 ton

Explosion proof single girder overhead crane 10 ton is designed for hazardous environment, such as, gas, dusty environment to enhance safety.
Explosion proof single girder overhead crane specifications:

Overhead Crane type: LB single girder eot crane,
Lifting capacity: 10 ton
Span length: 7.5~28.5m,
Lifting height: As your request
Hoisting system:
Working class: A3,

LB type Single Girder Overhead Crane Specifications


LB Explosion-proof Single-girder Crane with Electric Hoist 10 ton
Span(S)	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5

Liftng speed(nomal)	m/min	7（0.7）
Trolley speed	m/min	20
Crane speed	m/min	20
Lifting motor	kw	13/1.5
Trolley motor	kw	0.8
Ground control
Body weight	t	3.26	3.76	4.4	5.17	5.92	7.48	9.71	14.05
Max wheel load	KN	51.3	55.3	58.4	61.3	63.9	68.2	74.2	85.4
Min wheel load	KN	6.1	7.2	8.7	10.5	12.3	16.2	21.7	32.6

Main dimension	mm	7.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5
Wheel tread to Main girder top	H1	720	720	820	875	875	925	1100	1200
Wheel tread to Hook centre	H2	1850	1850	1850	1900	1940	2000	1920	1920
Main girder height	H3	900	900	1000	1100	1140	1250	1350	1450
End truck wheels' distance	W	2000	2000	2000	2500	2500	3000	3500	4000
End truck length	B	2500	2500	2500	3000	3000	3500	4000	4700
Hook left limitation	C1	1293	1293	1293	1293	1293	1293	1293	1293
Hook right limitation	C2	1893	1893	1893	1893	1893	1893	1893	1893

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

LB type Single Girder Overhead Crane Drawing

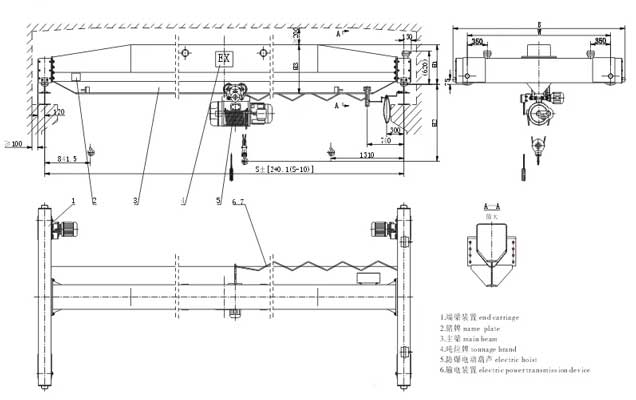

Explosion proof electric overhead crane 10 ton drawing

LB type Single Girder Overhead Crane Main Parts & Components

The LB explosion-proof single girder overhead crane 10 ton was designed, manufactured, installed, and operated in accordance with the JB/T 10219 standard. It is used in conjunction with HB explosion-proof electric hoists. The explosion proof bridge crane is a light duty overhead crane. With an explosion-proof grade of ExdIIBT4 or ExdIICT4, this electric wire rope hoist can work in workshops or applications with initiation abilities lower than IIB or IIC, and danger areas 1 or 2. (according to GB3836.1-2000). The explosion-proof performance of the motor and all electric equipment meets GB3836.2-2000.

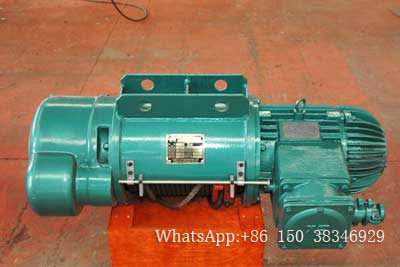

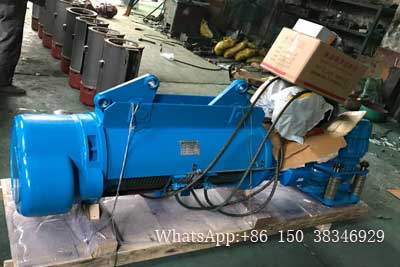

explosion proof electric wire rope hoist

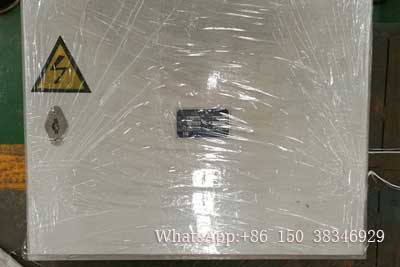

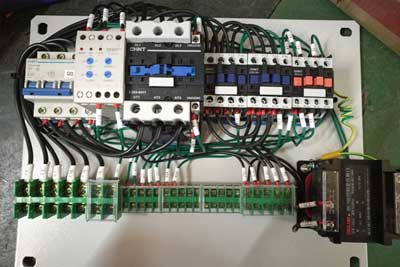

Electric boxs

electrics

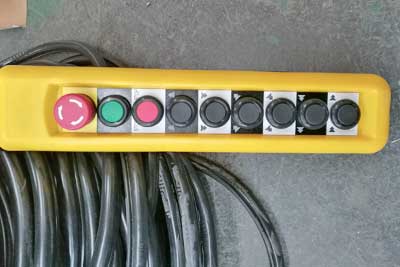

pendent control

Turnkey overhead crane 10 ton project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Low headroom single girder overhead crane 10 ton

Low headroom single girder overhead cranes are designed for low height plant and factory, where the lifting room is limited but lifting height is high.
Low headroom single girder overhead crane specifications:

Overhead crane type: LDP single girder eot crane,
Lifting capacity: 10 ton
Span length: 7.5~22.5m,
Lifting height: As your request
Working class: A3, A4,

LDP type Single Girder Overhead Crane Specifications

LDP typ Single Girder Overhead Crane 10 ton specifications
Span of overhead crane	S(m)	7.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5

Lifting height	m	9	9	9	9	9	9	9	9
Lifting speed	m/min	7	7	7	7	7	7	7	7
Trolley speed	m/min	20	20	20	20	20	20	20	20
Crane speed	m/min	20	20	20	20	20	20	20	20
Lifting motor	kw	13	13	13	13	13	13	13	13
Trolley motor	kw	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8

Total weight	t	3.26	3.76	4.4	5.17	5.92	7.48	9.71	14.05
Max Wheel Load	KN	51.3	55.3	58.4	61.3	63.9	68.2	74.2	85.4
Track of hoist crane		P24	P24	P24	P24	P24	P24	P24	P24

Main dimension	mm	7.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5
Rail top to main top	H1	720	720	820	875	875	925	1100	1200
Rail top to hook centre	H2	1850	1850	1850	1900	1940	2000	1920	1920
Wheel base	W	2000	2000	2000	2500	2500	3000	3500	4000
Crane width of hoist crane	B	2500	2500	2500	3000	3000	3500	4000	4700
Hook left limitation	S1	1293	1293	1293	1293	1293	1293	1293	1293
Hook right limitation	S2	1893	1893	1893	1893	1893	1893	1893	1893
Main girder height	H3	900	900	1000	1100	1140	1250	1350	1450

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

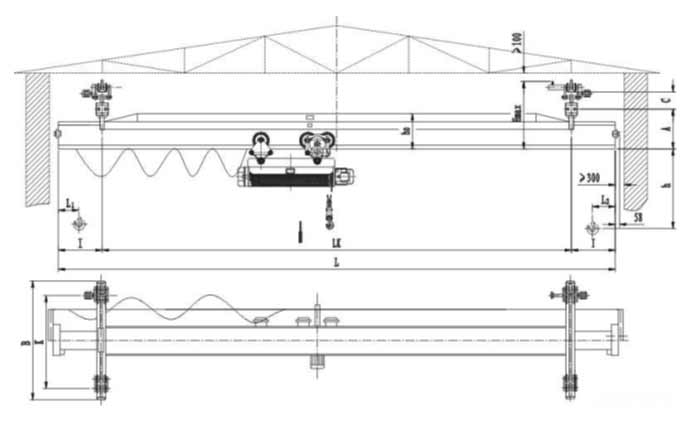

LDP type Single Girder Overhead Crane Drawing

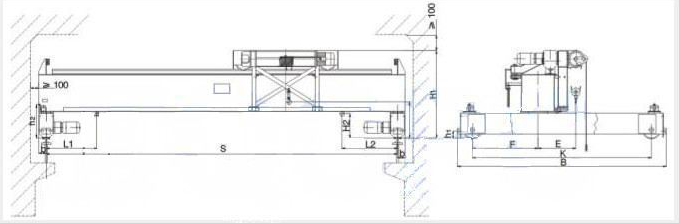

LDP single girder overhead crane low headroom design 10 ton drawing

LDP type Single Girder Overhead Crane Project

Low headroom single girder overhead crane 10 ton

Turnkey low headroom overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

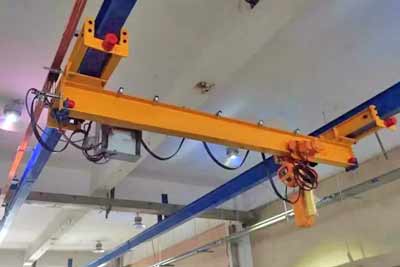

Underrunning overhad crane up to 10 tons

Underhung cranes are made for flexibility and functionality. They are also known as underslung cranes or under running overhead cranes. A underhung overhead crane can be directly hung in the building structure without any support because it is often lighter than top running overhead crane systems. Underhung cranes are more suited for factories with restricted height than top running overhead cranes.

For under running cranes, a ceiling-supported runway system will maximize the amount of available floor space.
Most frequently utilized in applications with a light to medium duty cycle.
The places where under running overhead cranes are most frequently utilized include manufacturing facilities, fabrication shops, and assembly lines.
The underhung is made to carry objects weighing 10 tons or less (but some overhead cranes can lift loads of up to 25 tons).

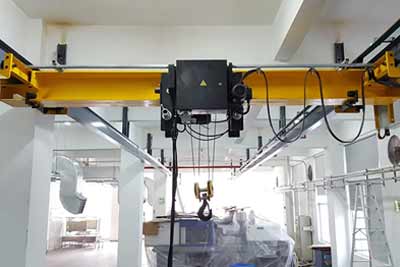

European underslung single girder overhead crane 10 ton
European underslung single girder underslung crane is installed on the roof of the workplace without bracket, saving space and lowering cost.
Underslung single girder overhead crane specifications:

Crane type: NLX single girder eot crane,
Lifting capacity: 10 ton
Span length: ≥ 6m,
Lifting height: As your request
Hoisting system: European style advanced electric hoist
Working class: A5,

NLX type Single Girder Overhead Crane Specifications

NLX Series Suspension Single Girder Overhead Crane 10 ton
Working Class		A3,A4
Capacity	t	0.5~10
Span	m	3~20
Lifting Height	m	3~50
Lifting Speed	m/min	0.33~8,Single or Dual Speed
Trolley Travelling Speed	m/min	2~30,Single or Dual Speed
Crane Travelling Speed	m/min	2~30，Single or Dual Speed
Control Method		Ground or Cab Control
Power Supply		380V 50HZ 3Phase or Customized
Temperature	℃	-20~60
Protection Grade		IP44~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane with cusotmized specifications.

NLX type Single Girder Overhead Crane Drawing

Get your customized 10 ton overhead crane drawing for your workshop or facility, please feel free to contact us by leaving a message below or by WhatsApp: + 150 38346929. Get your 10 ton overhead crane drawing for free today!

NLX type Single Girder Overhead Crane Project

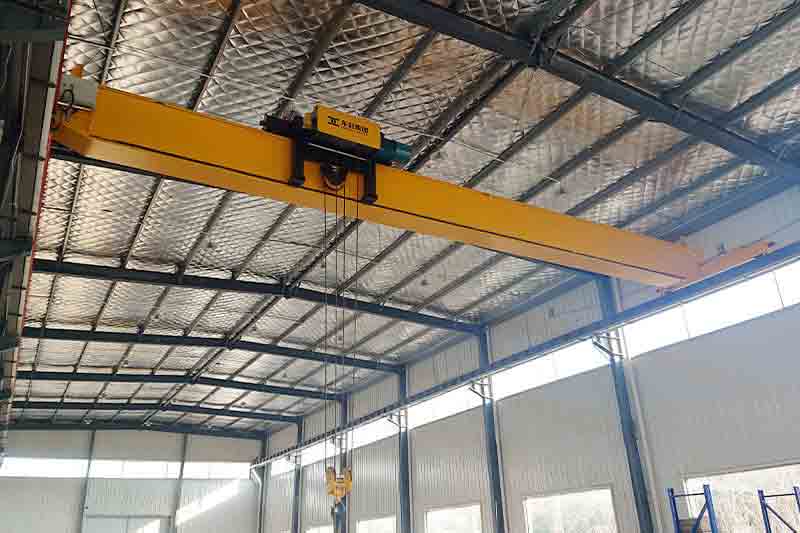

European style underhung single girder overhead crane with European stype electric wire rope hoist.

European type under runnning single girder overhead crane with European style electric chain hoist

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Traditional suspension single girder overhead crane 10 ton

China Traditional suspension single girder overhead crane is a small light lifting equipment, economical price, which is widely used in the factory, warehouse, stockyard, etc.
Suspensions single girder overhead crane specifications:

Crane type: LX single girder eot crane,
Lifting capacity: 10 ton
Span length: 3~15m,
Lifting height: As your request
Hoisting system : cd/md electric cable hoist/ electric chain hoist
Working class: A3,

LX type Single Girder Overhead Crane Specifications

LX Series Suspension Single Girder Overhead Crane 10 ton
Working Class		A3,A4
Capacity	t	0.5~10
Span	m	3~20
Lifting Height	m	3~50
Lifting Speed	m/min	0.33~8,Single or Dual Speed
Trolley Travelling Speed	m/min	2~30,Single or Dual Speed
Crane Travelling Speed	m/min	2~30，Single or Dual Speed
Control Method		Ground or Cab Control
Power Supply		380V 50HZ 3Phase or Customized
Temperature	℃	-20~60
Protection Grade		IP44~65
The above are standard parameters, and customized solutions and designs are provided according to your actual needs.

Detailed crane specification information, please feel free to contact us. WhatsApp: + 150 38346929. Contact us to get specially designed overhead crane 10 ton with cusotmized specifications.

LX type Single Girder Overhead Crane Drawing

LX type underhung overhead crane single girder 10 ton drawing for your reference.

LX type Single Girder Overhead Crane Project

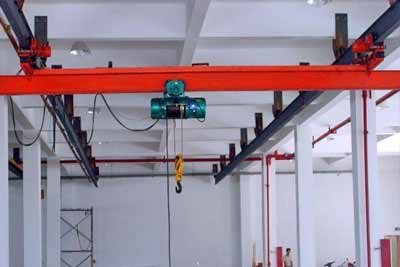

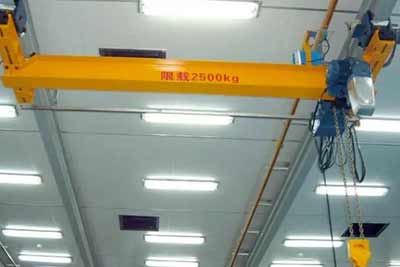

Underhung crane with economical electric chain hoist

Underhung crane with electric wire rope hoist

Turnkey overhead crane project are available from us. One source services from crane design, manufacturing, installation and future upgradation. Or contact us to get our performance list now.

Comparison Table of 10 ton Overhead Bridge Crane

Overhead Crane	Capacity	Span	Height	Coverage Area Type	Coverage Area	Motorization
Single Girder Overhead Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Electric HoistDouble Girder Overehad Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Double Girder Overhead Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Low Headroom Single Girder Overhead Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
European Single Girder Overhead Crane	10 ton	6m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
European Double Girder Overhead Crane	10 ton	6m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Ceiling-mounted Workstation Bridge Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Explosion-proof Single Girder Overhead Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Explosion-proof Double Girder Overhead Crane	10 ton	7.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Grab Bucket Overhead Crane	10 ton	10.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Electromagnetic Overhead Crane	10 ton	10.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Insulation Overhead Crane	10 ton	10.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Double Trolley Overhead Crane	10 ton	10.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes
Ladle Overhead Crane	10 ton	10.5m ~ 31.5m	customize	Square/Rectangle	31.5m x Unlimited Length	Yes

Tonnages & Specifications

10 Ton Single Girder Overhead Crane Specifications
