Single Girder Bridge Crane with European Type Low Headroom Hoist- HD Series

Box Girder Single Girder Overhead Crane with Low headroom Hoist

Yuantai Better Crane's single girder overhead crane with European style low headroom hoist is an advanced single girder eot crane developed with New Zealand crane design concept and technology, in accordance with international standards such as DIN, FEM, and ISO. As a specially designed material handling overhead crane, a low headroom single girder overhead crane has the advantages of high rigidity, light dead weight, and outstanding design, among others. A low headroom single girder eot crane system can save your factory's working space while also lowering your investment costs, making it the best choice.

Applications of Low headroom hoist single girder overhead crane

Low headroom hoist single girder overhead cranes are commonly used for material handling in machinery, metallurgy, petroleum, petrochemical, ports, railways, civil aviation, electricity, food, paper, building materials, electronics, and other industries. They are also widely used in situations requiring precise material handling and precise assembly of large scale parts, and other loads, etc.

Advantages of European style Low Hearoom Single Girder Overhead Crane

• Advanced crane design, low profile & low dead weight
• Smaller wheel load pressure and a more compacted size,
• Good driving capacity, twice the lifting speed
• Frequencey control of electric Hoist trolley and eot crane
• Eot crane traveling is smooth and stable.

Features of low headroom single girder overhead crane

European series overhead crane with hook is a new generation crane, it has the following advantages:

• Light dead weight, light wheel load, small boundary dimensions, dependable performance, easy operation.
• Light wheel load and small boundary dimensions can reduce the cost of plant construction, save capitol in vestment of lighting, heating and so on.
• Using high-quality components can reduce failure rate and maintenance costs.
• On the other hand, the total installed power(power consumption), low consumption of total power can reduce the costs.
• All the weld line should have non-destructive test.
• All the raw material have to pass shot blasting.

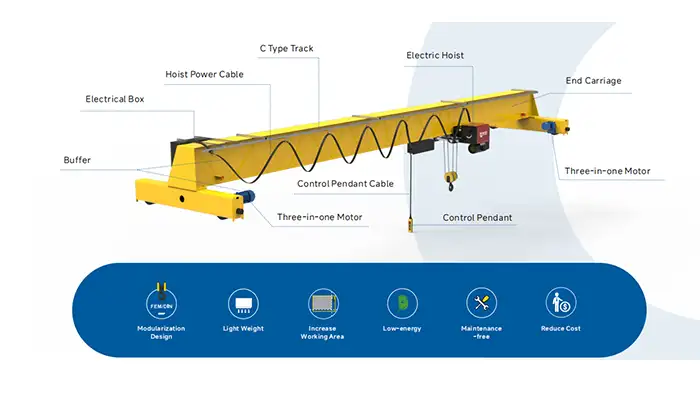

Overhead crane components

On main girder

• Single main girder of the eot crane, adopting box structure and camber meeting national standards.
• The box girder of low headroom overhead crane is made of Q235 or Q345B steel plate, equivalent to Fe3 or Fe52 steel plate in foreign country. .
• All welding joint adopts union melt welding, nondestructive inspection.
• Main girder and end girder or end carriages adopts bolted connection to ensure strength and accuracy of the whole eot crane set.
• Epoxy zin-rich paint, a long service life, beautiful outlook and lustre.
• Crane buffer block and anti-derail end plate are installed to ensure safety.

Main girder - low single girder eot crane component

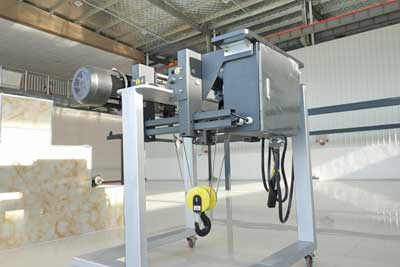

Electric hoist - low headroom single girder overhead crane component

On low headroom hoist trolley

• The electric low profile hoist trolley and eot crane adopt three-trinity driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.
• Crane driving IP55, F class insulation, contact continuity up to 40% ED

For your convenience, the low profile overhead crane has several operation methods to choose from, including pendent control, remote control, and crane cabin control. Ground operation or crane control is simple, and no professional crane operator is required, giving the eot crane operator more freedom.

Protection devices

Overload warning, secondary class anti-clamp, sound and light alarm devices, circuit self-check protector, and flow phase lack protection are all included in the European style electric hoist low headroom overhead crane.

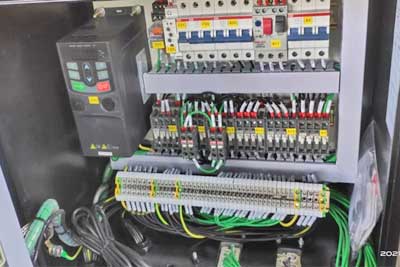

Crane electrics- Low headroom single girder overhead crane component

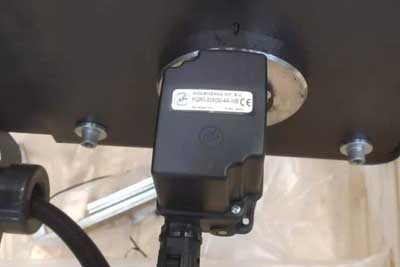

Crane height limiter- Single girder overhead crane safety devices

On operation devices

• Ground control and cabin control
• The cable have open style and close style, can fixed on left or right
• The open direction include end open, side open or top open
• The cabin has special small room and the capsule cabin.
• Ground control has handle and remote control, do not need to set up special driver

Features of of LD types top running single girder overhead crane with overhead electric hoist

• This crane lifting capacity is 500kg-20ton, span 3m-31.5m, lifting height 3m-30m.
• Standard lifting& travelling speed is single speed, also can be designed with double speed.

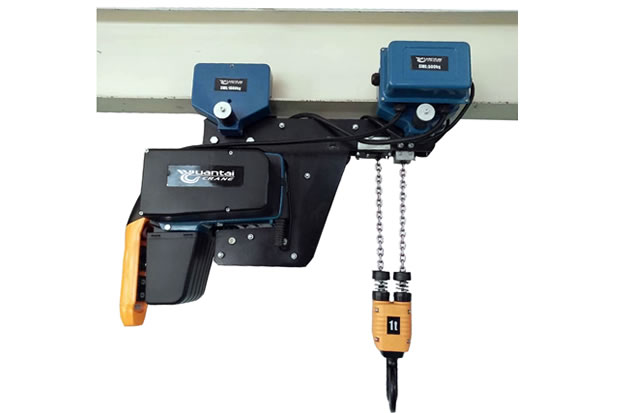

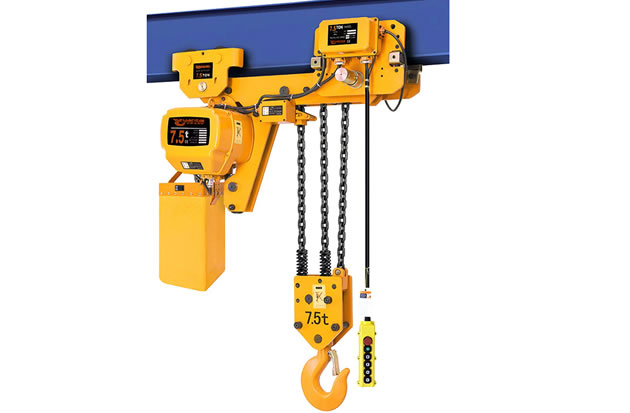

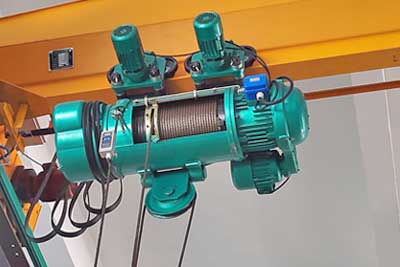

• The electric hoist is usually CD MD electric wire rope hoist, also can be replaced by electric chain hoist.
• For there are different standard power supplies in different countries, the crane can be designed according to the power supply in client's workshop, eg: China standard power is 380 voltage 50Hz 3phase. (Single phase is not available.)
• There are some necessary protecting devices on LD single girder overhead crane, eg: lifting & travelling limit switch, overload limiter, anti-collision buffers, etc.
• Lifting limit switch is for lifting protecting, prevent the hook from knocking the hoist.
• Travelling limit switch is from crane travelling protecting, prevent the crane from knocking the rail end.

Application of single girder electric hoist crane

The top running single girder overhead crane is used to for general material handling in various environment, such, as, factory, ware house, stockyard, etc. However, the LD series of top running overhead cranes are banned to be used in some dangerous environment, such as, combustible environment and explosive environment, where the LB type explosion proof top running single girder overhead crane will be adopted instead.

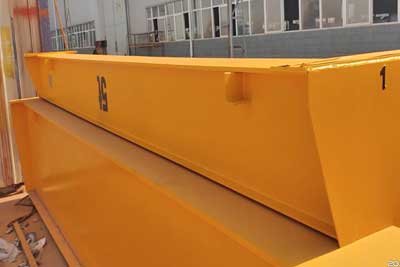

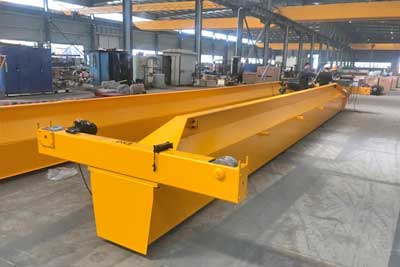

Main girder of 5 ton low headroom single girder eot crane for sale Bangladesh

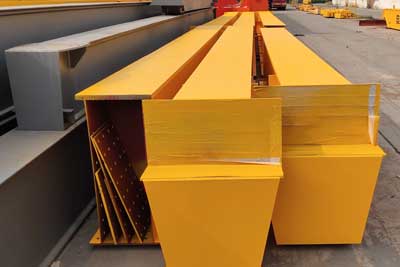

End carriages and end trucs of 5 ton low headroom single girder eot crane for sale Bangladesh

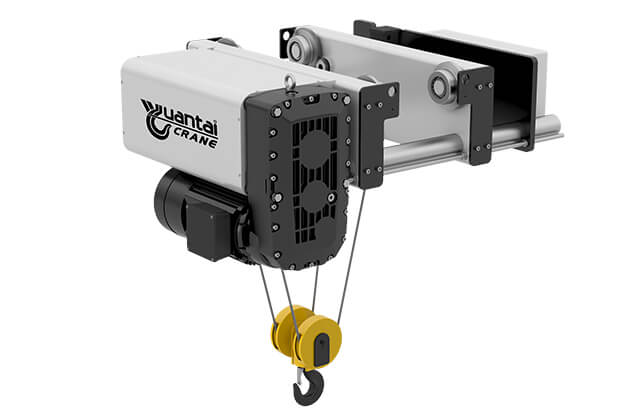

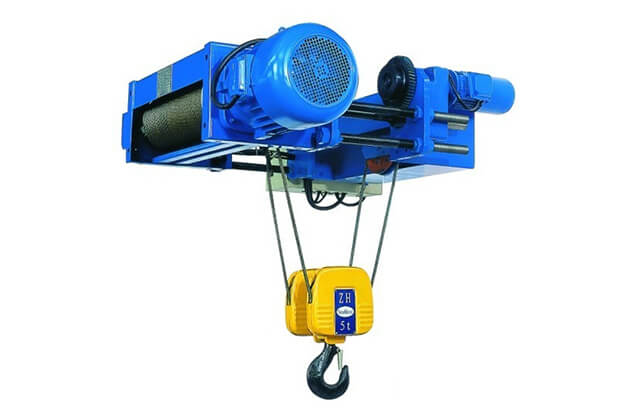

Low headroom wire rope hoist of 5 ton low headroom single girder eot crane for sale Bangladesh

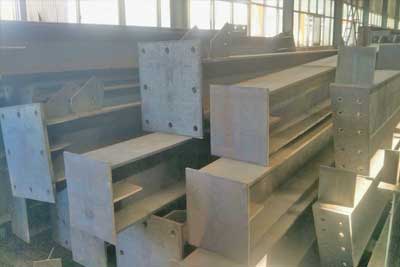

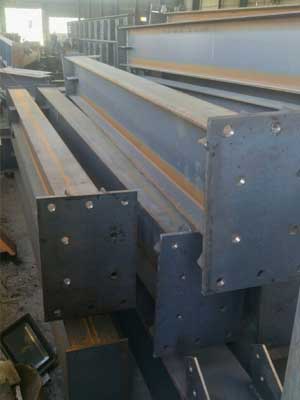

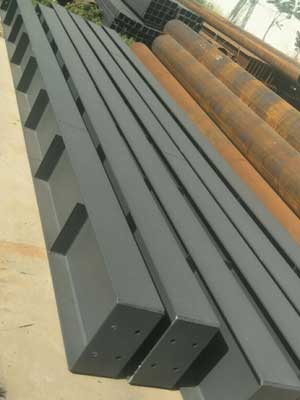

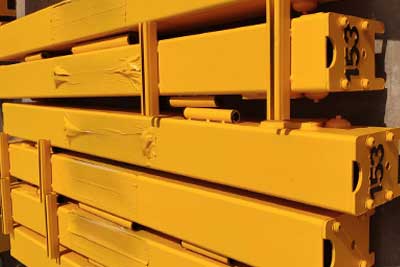

Steel structure of 5 ton low headroom single girder eot crane for sale Bangladesh

Steel structure of 5 ton low headroom single girder eot crane for sale Bangladesh

Steel structure of 5 ton low headroom single girder eot crane for sale Bangladesh
