10 Ton Overhead Crane for Sale Bangladesh Good Crane Price
Double girder overhead crane for sale Bangladesh, 10 ton capacity, low headroom design, European style, good overhead crane price. Check now.
Project info of 10 ton double girder overhead crane for sale Bangladesh
- Brand ：Yuantai Crane
- Types of Cranes: 10 ton double girder overhead cranes
- Date of Placing Order： 2017.3.6
- Date of delivery ：2017.4.10 (last shipment date 5.5)
- Transportation ：40GP Container *1
- Payment: 100% Letter of Credit
- Transaction and destination：Chittagong, Bangladesh
- Destination country：Bangladesh
10 ton double girder overhead crane for sale Bangladesh- double girders divided into four sections
Main Specifications of 10 ton double girder overhead crane for sale Bangladesh
|
Quantity |
1 set |
|
overhead crane type |
Double girder overhead crane with European style |
|
Lifting capacity |
10 ton |
|
Crane span |
17.7 m |
|
Lifting height |
10 m |
|
Working class |
M6 |
|
Power supply |
415V,50HZ,3P |
|
Crane control |
Pendant control + driver's cabin control |
|
Color |
Standard |
Customized features of the 10 ton double girder overhead crane for Bangladesh
- SZW motors are equipped for the hoisting and crane travelling of the 10 ton double girder overhead crane, motor class F insulation, Schneider Electrics
- The all the crane travelling and hoist travelling of the 10 ton overhead crane is frequency-converted. The crane travelling speed is up to 0-40, the hoist trolley can run up to 0-30, and the hoisting speed is 1/4.
- The main beam of the 10 ton overhead crane is 17.7m which needs to be cut into 10.7M and 7M. It can be determined according to the situation during production. The final beam dimensions should be able to load into a container and cannot exceed 11.8M.
- In addition, send the customer an overload, contactor, running limit for free.
- The total value includes the cost of installation, 7 days
Customs declaration & registration information
- The actual Chinese and English name of the goods: 桥式起重机overhead crane
- Chinese and English name of cargo declaration: 桥式起重机overhead Crane
- Sea freight:USD 1480
- Premium: USD 0
- Port charges: 9000RMB
Gallary of 10 ton overhead crane for sale Bangladesh

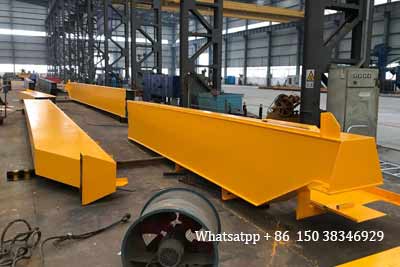

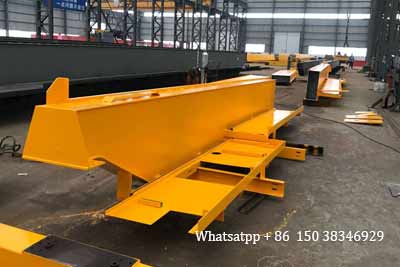

Main girder of 10 ton overhead crane for sale Bangladesh

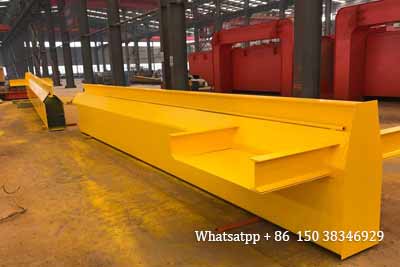

Main girder painted of 10 ton overhead crane for sale Bangladesh
Main girderof 10 ton double girder overhead crane for sale Bangladesh
17.7 m long main girder of 10 ton overhead crane divided into 2 sections for delivery to Bangladesh

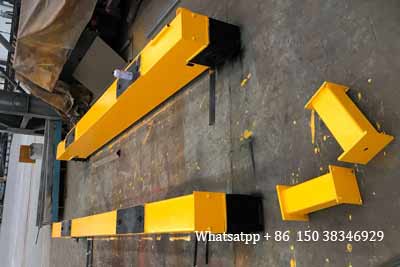

End carriages or end beams of 10 ton overhead crane Bangladesh project

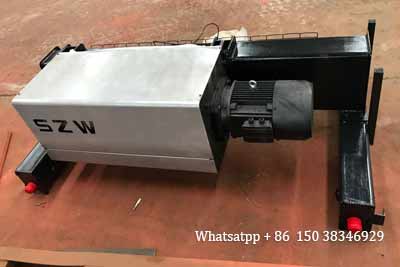

10 ton electric wire rope hoists for sale Bangladesh project

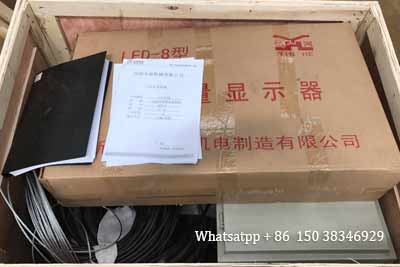

Parts and compoents of 10 ton overhead crane project
10 ton electric wrie rope hoist crane parts and componets for delivery to Bangladesh

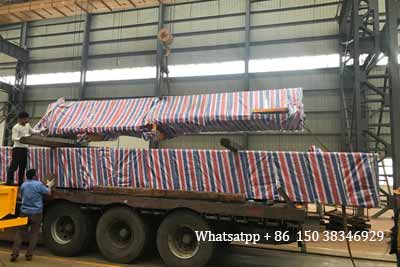

10 ton overhead crane loaded into truck for delivery

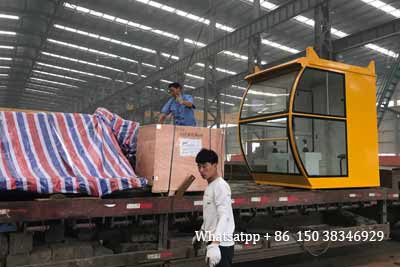

Parts and driver's cabin loaded into truck for delivery
