Magnetic Overhead Crane,Steel Mill Cranes

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

Overhead crane with magnetic chuck or magnetic beam spreader beam for steel, iron metal scrap, hot billets, steel coil, plate, pipe & other types of steel products, etc.

Magnetic Overhead Crane,Steel Mill Cranes

Product Type:	QC /QL
Lifting Capacity:	1~32 ton
Span:	As request
Lifting Height:	as your requirement
Working Class:	A3-A5
Ambient Temperature:
Crane Price Rangs	More Inquiry Form
$10,000-$95,000+， Magnet type, duty cycle, and material handling conditions affect pricing. Contact us to get the latest price.
	[email protected] 008615038346929

Magnetic Overhead Crane for Lifting Steel Scraps,Coil, Plate & Pipe

Overhead crane with magnetic chuck or magnetic beam spreader beam for steel, iron metal scrap, hot billets, steel coil, plate, pipe & other types of steel products, etc.

Electromagnetic overhead cranes are ideal for handling steel mill magnetic materials such as formed metal scraps, hot billet, finished products such as steel bars, steel plates, billets, and pipes. The magnetic overhead crane are widely used in steel rolling lines, finished product warehouses, steel yards, blanking workshops, and so on. For different loads handling, the electromagnetic overhead crane can be equipped with different magnetic chucks or magnetic beam spreaders for efficient material handling. Electromagnetic overhead cranes also have normal temperature and high temperature types, etc. Contact us to get your customized magnetic overhead crane design today!

Types of Magnet overhead cranes

Overhead crane with electromagnetic chuck

Electromagnetic chuck overhead crane for sale. An electric overhead crane with a magnet chuck attachment that can handle metal loads weighing 5 ton to 32 tons is known as a magnetic overhead crane, which is usually to handling steel scrap in steel mill or scrap handling yard, etc. Electromagnetic overhead cranes and magnetic cranes can be tailored to your specific needs.

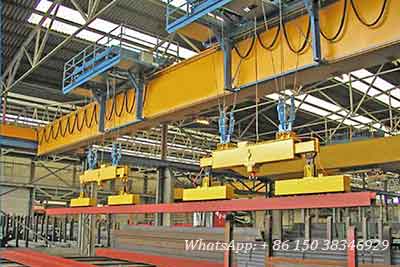

overhead crane with magnetic beam spreader

Carrier beam overhead cranes are overhead cranes with an electromagnetic carrier beam spreader, which are classified as upper rotating electromagnetic carrier-beam overhead cranes and lower rotating electromagnetic carrier-beam overhead cranes. Tailored magnetic beam overhead cranes are available.

Magnetic overhead cranes are essential for increasing productivity, safety, and streamlining workflow. It is designed to work with cast iron ingots, steel balls, scrap metals, and other metal products and materials. The weight of the magnetic chuck is included in the crane's lifting capacity. Our overhead cranes are available in a variety of designs and configurations to meet a wide range of lifting needs. You can speak with one of our crane experts to determine the best crane system for your company.

These magnetic overhead cranes, also known as electromagnetic cranes, are used to handle and move metals such as steel and iron. Magnet overhead cranes are commonly found in recycling plants and scrap yards. They work by creating a magnetic field with an electric current that flows through windings around the magnet. The electric current turns on and off the magnet as needed. The electrical current flows through an electromagnet, which is made up of an iron core with a wire wrapped around it.

These metal handling magnetic crane have a simple task to move metals from one working site to another. The overhead crane electro-magnet holds the steel or iron metals, moves them to where they are supposed to go, and the magnet current is cut off, releasing the metals. Because of the constant current that runs through these cranes, as well as the fact that it is frequently turned on and off and subjected to hard usage, a dependable power and automation cable is required.

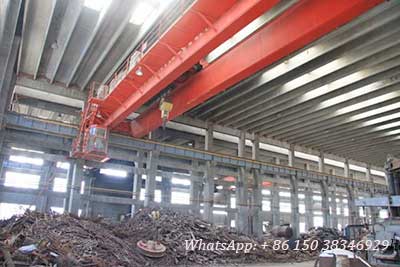

Overhead crane with magnetic chucks for scrap handling up to 32 ton

Magnetic crane and electromagnetic crane for steel scrap handling - Double girder overhead crane of Yuantai Crane Crane

An electromagnetic crane is a type of double-girder overhead crane with a detachable electromagnetic chuck and corresponding operating system for handling and lifting metal objects. The electromagnetic crane's lifting capacity, including the weight of the electromagnetic, ranges from 5 to 32 tons. A5 and A6 are the working classes of electromagnetic cranes. The magnetic retention time ranges from 10 to 30 minutes.

Crane bridge, trolley, crane traveling mechanism, driver's cabin, electrical system, electromagnetic system, including electromagnetic chuck, rectification control equipment, cable connectors, and other components comprise an electronic magnetic crane.

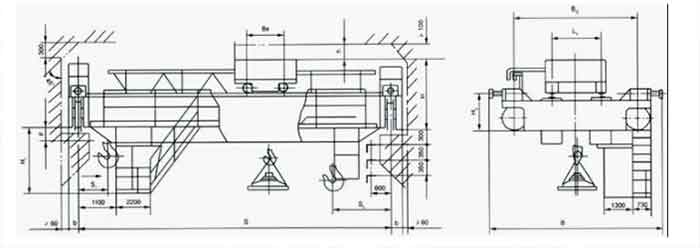

Electromagnetic crane drawing

The electromagnetic overhead crane can be used for handling and transporting indoor and outdoor black metal products and materials, such as ingots, structural steel, iron, scrap iron, steel and others.

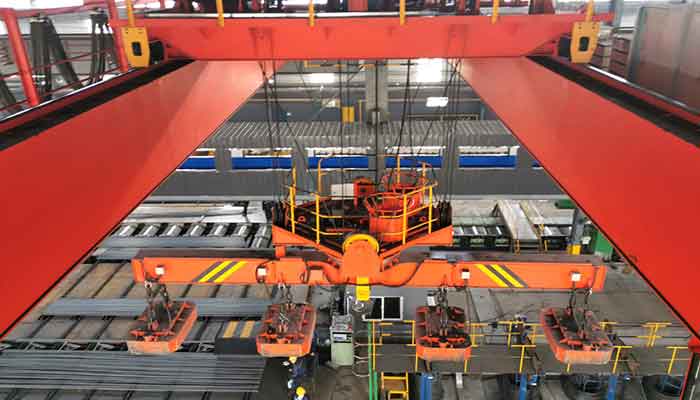

Carrier beam overhead crane

Carrier beam overhead crane is an electromagnetic overhead crane with a spreader of electromagnetic carrier beam, and the carrier-beams with electromagnetic chuck under it, through electromagnetic chuck adsorbs and carries loads and materials.

The carrier beam overhead crane is mainly used in steel mills, ports, shipyards, and warehousing, etc. for handling and transporting steel coil, steel tube, steel billets, sheet, long containers and other materials.

Carrier beam overhead crane is the same type with carrier-beam crane, which can be divided into general electromagnetic carrier-beam crane, upper rotating electromagnetic overhead crane and lower rotating electromagnetic carrier-beam overhead crane. Here mainly describes the electromagnetic chuck section of Carrier beam overhead crane.

Electromagnetic carrier-beam

Electromagnetic carrier-beam mainly consists of beam and electromagnet.

The main structure of electromagnetic carrier-beam is beam body, is welded by the upper and lower cover, webs, ribs, lifting lug and other plates made of box beam structure. Electromagnetic carrier-beam is through overall processing, to ensure its machining and assembly accuracy.

Upper rotating electromagnetic carrier-beam crane: the upper part of its lifting mechanism is rotating trolley, the lower spreader is the same with general electromagnetic carrier-beam crane, electromagnetic carrier-beam with lifting lugs, which are detachable.

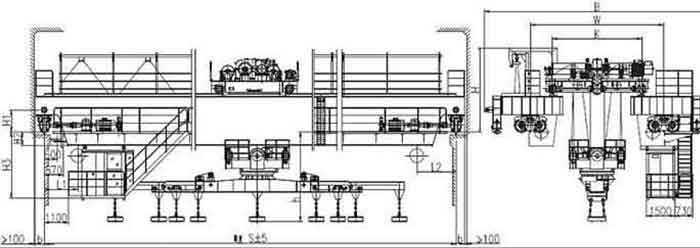

Carrier beam overhead crane drawing

Lower rotating electromagnetic carrier-beam overhead crane

Lower rotating electromagnetic carrier-beam consists of electromagnet, beam body, telescopic mechanism, slewing mechanism, lifting pulleys and other components.

Electromagnetic carrier-beam

Electromagnetic carrier-beam mainly consists of beam and electromagnet.

Electromagent:By electromagnet change the current, to make the electromagnetic chuck generate magnetic attraction force, leaving the various types of metal to the bottom of the suction plate and then moved to the predetermined position and complete the purpose of moving loads.
Lifting pulley block: with hoist composed of trolley lifting mechanism for lifting and lowering of electromagnetic carrier-beam.
Slewing mechanism: relying on 'three-in-one' gear motor drive slewing bearing, and then control the rotation angle of rotation carrier-beam, which can be rotated 0 ~ 270 °.
Telescopic mechanism: drive chain wheel by ' three-in-one' gear motor, through the chain drive system, drive retractable telescopic carrier-beam moves along the track.

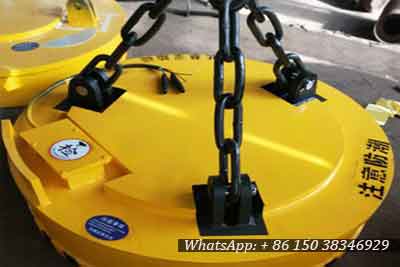

Electromagnets

Overhead crane magnet is the application of electromagnetism to the handling of ferro crane magnet materials. The bridge crane magnets are used in conjunction with various cranes to provide an ideal material handling solution for materials such as steel, iron, ship manufacturing, heavy machinery, steel warehouses, ports, and railways, among others.

Crane magnets are an excellent choice for lifting ferro crane magnet materials. It will liberate people from hazardous, dreary, and taxing working environments such as extremely high or low temperatures, highly toxic environments, underwater, dusty environments, and so on. Yuantai Crane can provide you with customized services to meet your specific needs in a variety of applications. Yuantai Crane Crane, as a professional material handling solution provider, guarantees to provide the best material handling equipment for your application at the most affordable price.

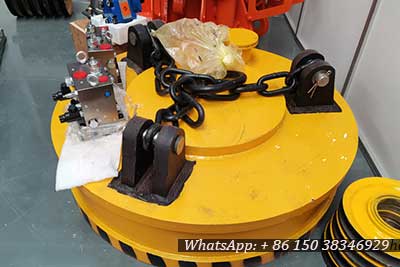

Scrap iron lifting electromagnetic chuck

Scrap iron lifting electromagnetic chuck, lifting electromagnet, scrap iron electromagnet, many names, but the only purpose is to lift the scrap iron. Except for lifting weight, lifting scrap iron is not the same as lifting the material. In addition to the body's quality, the density of the material must be considered. The greater the density, the greater the hoisting, and the lesser the density, the lesser the hoisting.

Electromagnetic carrier-beam

General use electromagnetic carrier-beam crane is made up primarily of a carrier-beam, an electromagnet, and a hook. The electromagnet spacing can be adjusted as needed, and the orientation of the electromagnetic carrier-beam can be adjusted perpendicular to or parallel to the main beam.

Electromagnetic overhead crane for lifting steel bar

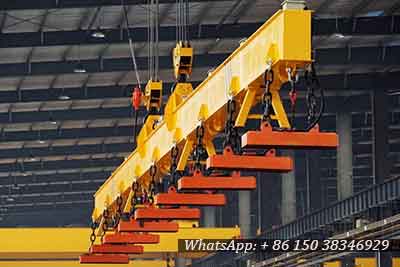

Beam magnetic spreader for long steel bar handling

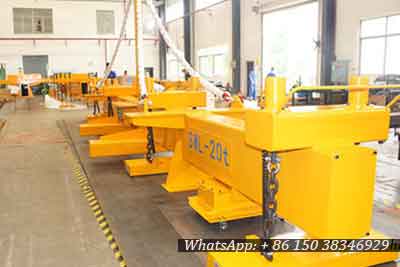

Magnetic beam spreader for steel sheet and steel plate handling

Advantages of Electromagnetic Overhead Crane

Heavy lifting capacity and high work efficiency, wide application for different loads handling
Suitable for hazardous applicatin such as, dusty, high temperature, explosion-proof, etc.
Durable quality, Long service life;
Reasonable structure and strong rigidity, reliable performance,
Frequency conversion speed regulation;
cabin control and remote control are available.
Customized crane features are available to meet your specific lifting requirements and application conditions.

Applications / Industries

Our double girder magnetic overhead cranes are designed to safely and efficiently handle a wide range of ferrous materials across various industrial applications. These cranes are fully customizable to suit the specific needs of each industry, ensuring streamlined operations, improved safety, and reduced downtime.

Magnetic cranes in steel mills are built to handle the heavy-duty lifting of steel slabs, billets, and plates, often in harsh environments. These materials require precision and powerful lifting systems to maintain safety and efficiency.

Typical Crane Capacity: 5–32 tons, depending on the material size and the frequency of lifts.

Main Parameters for Tailoring:

Load Type: Steel slabs, billets, or plates, which can range from 5 to 30 tons or more.
Load Dimensions: Slabs typically range from 2 to 8 meters in length, with widths and thicknesses varying based on production needs.
Frequency of Lifting: High-frequency operation, with cranes needing to lift multiple loads per shift in fast-paced production environments.
Heat Resistance: Cranes should be equipped with heat-resistant components, as steel may be hot when handled.

Application Conditions:

Ideal for use between steel casting lines, rolling mills, and storage areas.
Precision is required when handling large steel slabs to avoid damage or accidents.
High lifting speeds are crucial to meet the demands of fast-paced manufacturing operations.

In scrap metal yards, magnetic cranes must handle irregularly shaped metal objects, scrap bundles, and other challenging materials. These cranes speed up the loading and unloading process while minimizing risks associated with handling sharp, uneven scrap.

Typical Crane Capacity: 5–20 tons, with heavier capacities for larger metal bundles or heavier scrap.

Main Parameters for Tailoring:

Load Type: Loose scrap, scrap bundles, and metal parts ranging from small steel bars to larger metal pieces.
Load Dimensions: Typically irregular shapes, ranging from small scrap pieces (less than 1 ton) to larger bundles that may exceed 20 tons.
Frequency of Lifting: High-frequency lifting in a busy yard, often with several lifts per minute.
Load Handling: The crane should be adaptable to various load sizes and capable of picking up and placing materials quickly and accurately.

Application Conditions:

Scrap yards often have cluttered environments, requiring cranes with precise control and stability.
Heavy lifting and fast cycle times are common, as metal is constantly being loaded into presses or transport trucks.
Cranes need to operate reliably in dust-heavy or hazardous environments.

Magnetic overhead cranes are perfect for warehouses and material yards where steel bars, coils, and plates need to be moved, stored, or organized efficiently. These cranes reduce labor costs by automating material handling and improving organization.

Typical Crane Capacity: 3–15 tons, depending on the weight of the materials being handled.

Main Parameters for Tailoring:

Load Type: Steel bars, coils, plates, or other magnetic materials commonly found in storage.
Load Dimensions: Steel bars can range from 3 to 12 meters in length, while coils and plates may vary from 1 to 4 meters wide and weigh between 1–15 tons.
Frequency of Lifting: Medium-frequency lifting, where loads are moved regularly but with lower frequency than in scrap yards or mills.
Storage Considerations: Cranes should be designed to maneuver through aisles or narrow spaces efficiently, with high lifting heights for stacking materials in racks.

Application Conditions

Application Conditions:

Cranes should be capable of precise positioning when lifting and stacking materials, especially in compact or confined spaces.
Reduce labor by automating the movement and storage of steel products.
Ideal for warehouses with mixed-use spaces that handle a variety of steel types and sizes.

Magnetic cranes are built to perform reliably even in extreme working conditions such as steel mills, foundries, or scrap yards, where heat, dust, or hazardous materials are present. These cranes are designed to handle the challenges of high temperatures, debris, and volatile environments.

Typical Crane Capacity: 5–32 tons, depending on the material being lifted and the environment.

Main Parameters for Tailoring:

Load Type: Typically steel, scrap metal, or molten material (in cases of high-heat environments).
Load Dimensions: Varies depending on the application, from small steel parts to large, heavy slabs or molten metal containers.
Environmental Resistance: Crane components should be designed to withstand high heat, dust, or the presence of sparks and chemicals.
Work Environment: Cranes must be capable of handling extreme temperatures (up to 500°C or more) and operate without malfunctioning due to dust or debris.

Application Conditions:

Ideal for environments such as steel mills and foundries where the risk of exposure to extreme heat is high.
Cranes must feature special insulation or protective coatings to prevent heat damage.
Use in hazardous areas where sparks or fumes may be present, requiring additional safety features.

Technical Specifications & Custtomization Options

Our double girder magnetic overhead cranes are designed with clear technical parameters so you can choose the right configuration for your facility. Each crane is built to handle heavy loads safely, operate reliably in industrial environments, and be customized for your specific span, lifting height, and magnet type.

Below is a detailed specification table that gives a clear overview of the key parameters. You can use it as a reference for planning, procurement, or requesting a quotation.

Feature	Specification
Model	Magnetic Overhead Crane
Capacity Range	1–32 t
Span	Custom (based on facility layout)
Lifting Height	Custom (based on workflow requirements)
Duty Class	A3–A5
Voltage	380 V / 3 Phase
Ambient Temp	-20 °C ~ +40 °C
Magnet Type	Electromagnet / Permanent Magnet

Practical Note: These specifications are adjustable to fit your operation. For example, if your warehouse has a longer span, we can design the crane accordingly. Similarly, magnet types can be selected based on material type and lifting frequency.

Customization Options

No two facilities are exactly alike, and the right crane setup can make a big difference in safety and efficiency. Our magnetic overhead cranes can be customized to fit your exact needs, from building layout to material type. Below are the key customization options we offer:

Cranes can be tailored to match your facility's dimensions, ensuring full coverage across your workspace without compromises.

Select the right class (A3–A5) depending on how often the crane will be in use and the weight of your materials.

Electromagnets offer on/off control for flexible lifting, while permanent magnets provide consistent holding power. Sizes are adjusted based on load weight and shape.

Choose between remote control or cabin control to match your workflow and operator preference. Both options prioritize safety and efficiency.

Cranes can be adapted for high heat, dusty, or hazardous environments, ensuring reliable operation even in tough industrial conditions.

Our team can assist with assembly, commissioning, and operator training, so your crane is ready to perform safely and efficiently from day one.

With these options, you get a crane that fits your workflow, handles materials safely, and keeps operations running smoothly every day.

How to Choose the Right Magnetic Crane

Selecting the right crane for your facility isn't just about lifting capacity. You need to consider the types of materials you handle, the frequency of lifts, the working environment, and your workflow. Magnetic cranes are especially effective for steel handling and scrap operations, while other types like hook or grab cranes may suit different tasks or budgets. By understanding the strengths of each type, you can make a choice that improves efficiency and safety without overspending.

Feature	Magnetic Crane	Hook Crane	Grab Crane
Best for Steel	✔	✘	✘
Scrap Handling	✔	✘	✔
Price	Medium	Low	High
Speed	Medium	High	Medium

Practical Tip:
If your operation mainly involves lifting steel slabs, billets, or plates, a magnetic crane is often the most efficient and safe choice. For irregular scrap or mixed materials, you might combine a magnetic crane with a grab crane for maximum flexibility. Always consider the balance between cost, speed, and material handling requirements before making a final decision.

FAQ Section – Magnetic Overhead Cranes

A: Choose a crane rated slightly above your heaviest expected load.

Explanation:

Consider the maximum weight of individual materials, bundles, or irregular scrap.
Add 20–30% safety margin to account for dynamic lifting and future workload increases.

A: Yes, cranes can be configured for high-temperature environments.

Explanation:

Electromagnets and permanent magnets can be adapted with heat-resistant coatings or cooling systems.
Ensure proper spacing and operator training for safe handling of hot materials.

A: Primarily ferrous materials like steel plates, slabs, bars, and scrap.

Explanation:

Non-magnetic materials require hooks or clamps instead.
For mixed material handling, combination cranes or separate lifting equipment may be needed.

A: It depends on the span, lifting height, and workspace layout.

Explanation:

Measure the workshop or yard width, building height, and obstruction clearance.
Longer spans may require reinforced structures and higher duty class cranes.

A: Yes, customization is standard for these cranes.

Explanation:

Spans and lifting heights are designed to fit your facility layout and workflow.
Duty class and magnet type can also be adjusted to match load frequency and operational conditions.

A: They are designed to operate safely in dusty, hot, or industrial conditions.

Explanation:

Optional protective enclosures and dust shields can enhance performance.
Regular inspections are recommended to maintain reliability in challenging environments.

A: Magnetic cranes excel in steel handling, hook cranes are flexible for various loads, and grab cranes are better for irregular scrap.

Explanation:

Magnetic cranes lift slabs and bars efficiently with minimal manual labor.
Grab cranes are ideal for scrap yards or mixed material piles, but may be slower and more expensive to operate.

A: Lead time typically ranges from 6 to 12 weeks.

Explanation:

Custom span, lifting height, magnet type, and duty class affect production time.
On-site installation support can shorten commissioning and training time.

A: Standard industrial supply is usually sufficient, but exact requirements depend on magnet type and crane capacity.

Explanation:

Electromagnets need a stable 3-phase voltage supply.
Permanent magnets consume no energy while holding a load, reducing operational costs.

A: Perform regular inspections and keep maintenance records.

Explanation:

Check magnet wiring, insulation, and lifting surfaces periodically.
Inspect mechanical components, brakes, and control systems to prevent downtime.

A: Consider the types of materials, lifting frequency, and facility size alongside initial price.

Explanation:

Higher-capacity cranes with larger spans cost more upfront but reduce labor and improve efficiency.
Evaluate total operational savings over time, not just purchase price.

A: Yes, they can be integrated with existing hooks, trolleys, or grab systems.

Explanation:

Careful planning of workflow and crane paths prevents collisions and maximizes efficiency.
Using magnetic cranes for steel while retaining hook cranes for other loads can optimize material handling.

Why to Select Yuantai Better Cranes?

Yuantai Crane Hoist and Crane provides various sizes of electromagnets to meet the needs of your electromagnetic overhead cranes. Yuantai Crane manufactures custom overhead crane for customers with particular designed crane electromagnets for handling steel scraps, billets, girders, slabs, wire (coiled bar), bundled rebar, round steel pipe, heavy rail, steel plate, coiled steel, and other materials.

Electromagnetic overhead cranes are electric overhead cranes that use a magnet to lift metal loads. It is designed and built to lift and move magnetic metal products and materials such as steel bars and steel plates in your workshop. It's also common in steel rolling mills, warehouses, material storage yards, and workshops.

Crane Electromagnets are classified into two types: ordinary electromagnets and strong electromagnets. We will provide you with the overhead crane and magentic that are well meet your needs.

More professional service: If you are not sure how to customize, our sales manager will help you choose the most suitable product for you;
Best for you: professional engineers customize products according to your user environment;
Better price: According to your user environment, etc., we will give you the most suitable product, save unnecessary functions, and help you save money;
Customized lifting height: According to your needs, the lifting height can be customized for you, which can be extended, reduced, etc., which is most suitable for you;
Customized function: wireless remote control can be installed, which is more convenient to use;
More professional service: If you are unsure how to customize, our sales manager will assist you in selecting the best product for you.
Best for you: professional engineers tailor products to your specific user environment.
Better price: Based on your user environment, we will provide you with the most appropriate product, eliminate unnecessary functions, and assist you in saving money.
Customized lifting height: The lifting height can be customized for you based on your needs, which can be extended, reduced, and so on.
Customized function: a wireless remote control can be installed, making it easier to use.
Change the power supply: You can change the power supply (voltage, frequency, etc.) to suit your needs.
On-site installation: If you are concerned about installation errors, we can perform installation and commissioning on-site.
.Help: We provide instructional videos and detailed maintenance manuals.
Vulnerable part replacement: more vulnerable parts are provided so that your crane can be replaced the first time it wears out.
Parts are processed separately: if some parts are damaged after long-term use, we will process them for you and ship them to you.

Magnetic Overhead Crane,Steel Mill Cranes

Magnetic Overhead Crane for Lifting Steel Scraps,Coil, Plate & Pipe

Types of Magnet overhead cranes

Overhead crane with magnetic chucks for scrap handling up to 32 ton

Carrier beam overhead crane

Electromagnetic carrier-beam

Electromagnetic carrier-beam

Electromagnets

Advantages of Electromagnetic Overhead Crane

Applications / Industries

Application Conditions

Technical Specifications & Custtomization Options

Customization Options

How to Choose the Right Magnetic Crane

FAQ Section – Magnetic Overhead Cranes

Why to Select Yuantai Better Cranes?

Product Detail

Support

Inquire Yuantai Crane Now
