Overhead Clamp Crane for Ingot, Billet & Slab Handling
Yuantai Solution
Overhead Clamp Crane for Ingot, Billet & Slab Handling
Clamp crane is a special used overhead crane for steel mill and rolling mill for semi products such as, ingot, billet, and slab handling, which is specially efficiency for high-temperature semi-steel handling . The overhead crane can be used to handle slabs with temperature more than 650 ℃ when lifting high-temperature slabs. The clamp cranes are usually process designed overhead cranes for unique steel mill application. Contact us to get your customized designed steel mill cranes for your application.
Ingot , slab & billet cranes
A slab and billet crane is a highly maneuverable electric overhead crane or bridge crane that transports large and heavy pieces of slabs and billets, a types of hot and soft metal, from the melt shop to their next procedures. Because the melt shop is so dangerous, it is usually located some distance away from the other production site or workshops. The slab and billet crane with special designed clamps feeds slabs and billets into shaping rollers, transports the metal to be reheated in another furnace before shaping, transports the shaped steel to another conveyor for further processing, or transport it to a storage area.
Crane Type |
Overhead Clamp Crane / Bridge Crane for Ingot, Billet & Slab Handling |
Crane Structure |
Double Girder Overhead Crane with Heavy-Duty Slewing Trolley |
Reference Capacity Range |
5–50 ton for billet / slab; customized according to ingot weight and handling frequency |
Reference Span Range |
Customized to melt shop, rolling mill and storage bay layout |
Reference Lifting Height |
Customized to furnace charging, roller table and stacking height requirements |
Working Duty |
A6–A7 depending on continuous casting, hot transfer and production line frequency |
Hoisting System |
Electric Wire Rope Hoist with Heavy-Duty Slewing Trolley; Voltage Regulation of Lifting Stator and Frequency Conversion of Traveling |
Lifting Attachments |
Horizontal & Vertical Clamping Tongs / Hydraulic Tongs / Magnets / Coil Grabs / Customized Lifters for Rectangular and Circular Ingots |
Control System |
Cab Control / Radio Remote Control / PLC / VFD; Anti-Sway Control, Slack Rope Prevention and Target Positioning; Semi-Automatic or Full-Automatic Options |
Safety Systems |
Overload Protection, Limit Protection, Emergency Stop, Anti-Sway Control, Slack Rope Prevention and Target Positioning |
Operating Environment |
Melt Shops, Rolling Mills, Continuous Casting Lines, Slab & Billet Storage Areas; High-Temperature, Dusty and Open-Flame Conditions |
Power Supply |
380V / 50Hz / 3Ph or customized |
Typical Applications |
Ingot Handling, Billet Handling, Slab Handling, Hot & Soft Metal Transfer, Furnace Charging, Roller Table Feeding, Scalping, Slab & Billet Storage and Loading / Unloading |
Final Configuration |
Customized according to material type, ingot / billet / slab dimensions, temperature, load capacity, span, lifting height, working duty and site layout |
Share your material type, ingot / billet / slab dimensions, temperature, load capacity, span, lifting height and working duty with our engineering team. We can help configure an overhead clamp crane for your steel mill or rolling mill application. Get an Ingot, Billet & Slab Handling Crane Solution
To address the challenges of handling either hot and soft metal or cooler slab or billet, the clamp crane employs a number of Smart Features such as Anti Sway Control, Slack Rope Prevention, and Target Positioning, which enable overhead crane operators to perform complex handling with ease operation. The slab and billet handling overhead cranes can be tailored with your specifications, with semi automation or full automation according to your lifting requirements and application conditions.
Yuantai clamp cranes are designed for steel mill material handling, i.e, billet, ingot, block, slab, etc. The overhead crane with specially desinged lifters, with horizontal and vertical clampping tongs to handle rectangular and circular ingots. And also, a complete steel mill material handling solution are available from vertical drop casting, continuous casting, slab and billet storage, scalping, and furnace loading, etc.

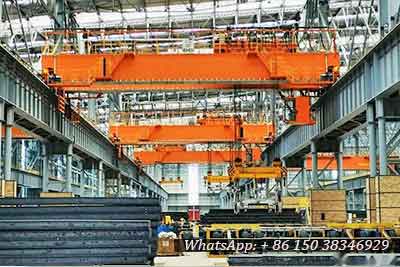

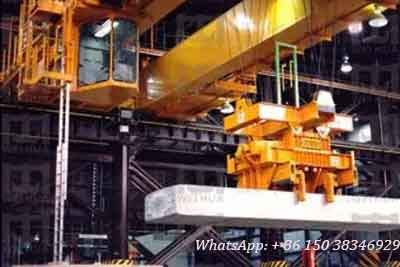

overhead clamp crane for steel mill and rolling mill

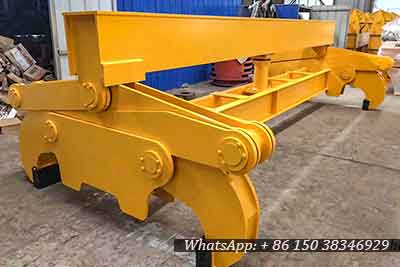

overhead crane attachment for ingot, billet, and slab handlingClamp crane for ingot
IngotIngot

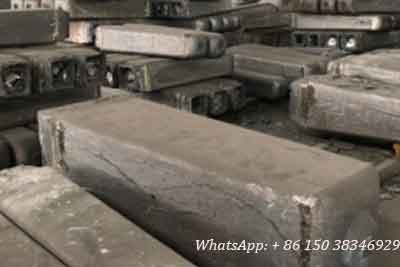

Ingots are large rough castings metal, which are designed for efficienty storage and transportation. Typically, the form is square or rectangle-shaped with wide fillets. The big end is typically pointing downward as they taper.
A piece of relatively pure material, usually metal, that has been cast into a shape suitable for additional processing is called an ingot.
It is the first stage of the semi-finished casting products used in the production of steel. To generate a functional end product, ingots typically require a second shaping process, such as cold/hot working, cutting, or milling.
Ingot crane & overhead ingot handling crane
hot ingot normal temperature ingoClamp crane for billet handling
billetBillet

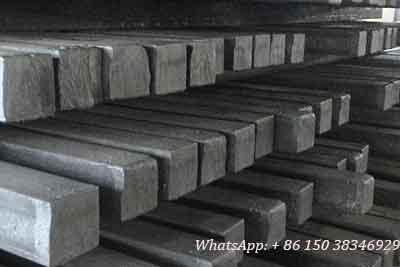

A billet is a length of metal with a round or square cross-section that has a surface area of less than 36 in2 (230 cm2). Billets can be produced immediately through continuous casting, extrusion, or hot rolling an ingot or bloom. The subsequent processing of billets involves profile rolling and drawing. The finished goods include wire and bar stock.
Billet crane & overhead billet handling crane normal temperature billet

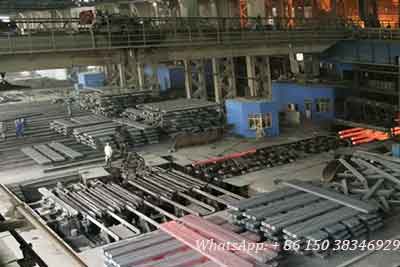

hot temperatuere billet handling craneClamp crane for slab handling
SlabSlab

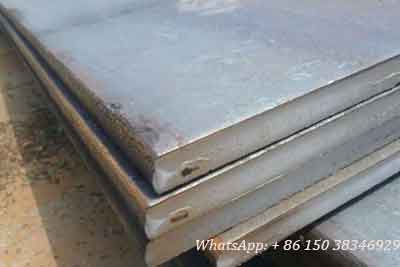

A slab is a rectangular-cross-section length of metal. The slab is formed either directly through continuous casting or indirectly through rolling an ingot on a slabbing mill. Slabs are typically processed further through flat rolling, skelping, and pipe rolling. Sheet metal, plates, strip metal, pipes, and tubes are common end products. Slab is primarily produced in blast furnaces. One reason to preferentially produce slab via the BF route is to get high quality.

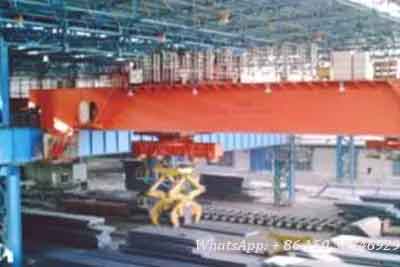

Slab crane & overhead slab handling crane Cold slabs

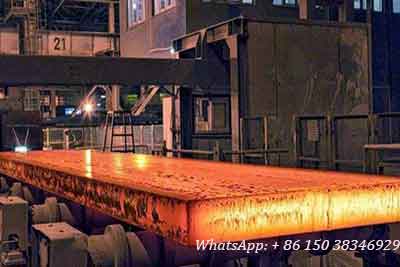

Hot temperature slab handling craneFeatures of ingot, billet & slab handling crane
- We are aware of how important lifting technology is to the manufacture of steel. Additionally, optional features are available depending on your lifting needs and applications, and our clamp cranes are built with the following features.
- Heavy-duty slewing trolley with special customization.
- a wide variety of lifting attachment for handling various materials or loads.
- a broad vision smart cabin (Optional).
- Depending on your needs, semi- and completely automated functions can be realized.
- Inventive Features.
- Voltage regulation of lifting stator, frequency conversion of traveling, stable operation, and small impact;
- To guarantee a comfortable working environment and temperature, the primary electrical equipment is installed inside the main girder and furnished with an industrial cooling fan;
- To ensure accurate installation, the structural components are manufactured together.
Advantages of clamp crane for ingot, billet & slab handling
- Heavy duty overhead crane will be equipped with special, tailored slewing trolley.
- Wide range of crane attachment or below hook devices are available such as magnets, coil grabs, hydraulic tongs can also be attached to the hooks to optimize load handling as per specific needs.
- Semi- and fully automated functions are possible to reduced cycle times and improve your production efficiency.
- Continuous operation of the overhead cranes systems are available with 24 hours per day.
- Simplified and minimized maintenance costs.
- Durable crane equipment, reliable operation in harsh environmental conditions.
Overhead crane design for your ingot, billet & ingot handling
We consider the severe environment of the steel-making process while including dependability, safety, and ease of maintenance into all of our steel mill cranes. Our lifting and control equipment is designed to work at its peak even in the presence of open flame, dust, and extreme heat.
For your steel businesses, Yuantai Crane can offer you an tailored overhead crane solution for your steel mill and rolling mill. We have so far sold various kinds of overhead cranes to countries like Brazil, Nigeria, Singapore, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, and others. We have developed long-term commercial relationships with well known companies in various countries and regions world-widely. Yuantai Crane will be the ideal answer for your material handling needs in the steel industry.
Do not hesitate to contact us if you need a ingot, billet or slab handling crane.
