Steel pipe handling crane is an overhead crane with tailored pipe handling spreader for single large pipe & bulk pipes handling to improve efficiency & safety. For different types of pipe handling, the customized pipe handling cranes and crane attachments are available.

Are you looking for an overhead crane to handle pipes? From lifting plates to lifting pipes, we are specialized is various steel product handling, especially in steel pipe handling, including the coated pipes. We handle your steel pipes no matter it is huge pipe or bulk pipes safely and effectively during manufacture, storage, transhipment, transport, and offshore, regardless of weight or material.

Slings are commonly used for pipe lifting. Manual labor is required for both sling attachment and removal. Attaching a single pipe at ground level is simple, but pipes are sometimes stacked several meters high in a pyramid shape. To attach and detach the slings, someone has to climb the stack of pipes, that poses a serious risk to life and limb! Each and every pipe handling crane is made to eliminate this risk.

Overhead pipe handling cranes for higher efficiency & safety

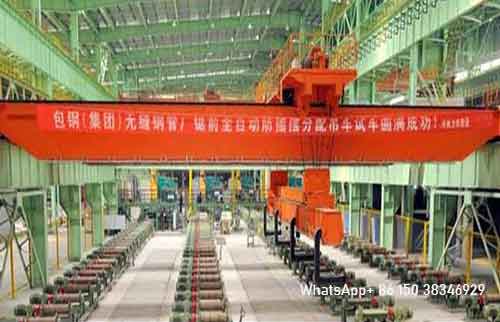

A steel pipe handling overhead crane is a steel mill overhead crane, particularlydesigned for steel pipes handing, equipped with tailored steel handling lifters or spreader such as C-hooks, magnetic blocks, clamps, etc. In the production line, steel pipes are also distributed by the overhead crane before being sawed. To achieve the distribution of steel pipe, we developpted the intelligent overhead cranes that can autonomously move steel pipes from one roller table to any specified locations.

Features of steel pipe handling overhead crane

• 1. To achieve automatic and precise positioning, the encoder inputs the position signal into the PLC. The speed is calculated by the PLC, and the swing is prevented by a steel wire rope with a V-shaped structure. This increases the crane's production efficiency and safety while reducing swing amplitude.
• 2. Steel pipe distribution and transportation are fully automatic, quick, and intelligent thanks to the anti-sway and automatic accurate placement technology.
• 3. The pipe handling overhead crane adopts a redundant design scheme. A standby system is installed in the hoisting mechanism, trolley traveling mechanism, and electrical components to ensure the continuously operation and reliability.

Types of pipe handling crane attachment

Yuantai Crane offers types of overhead cranes for pipe handling , such as, hook crane, clamp crane, and magnetic crane, which are good price and efficient for pipe handling. The different types of pipe handling cranes and spreaders can well meet your lifting requirements and application conditions. Contact us to get your tailored steel pipe handling cranes.

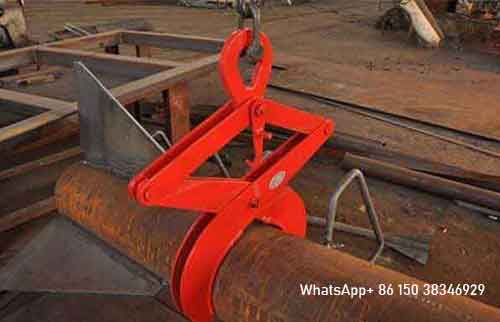

Pipe handling crane with crane clamp

Pipe handling crane: clamp crane, clamp overhead crane

Yuantai Steel Mill Crane Series offers types of overhead cranes and gantry cranes with types of crane clamps for different types of steel pipe handling. If you want to improve your steel pipe handling efficiency and safety,please feel free to contact us. Besides, Yuantai Crane offer custom crane clamps and other lifting devices.

Industrial magnets for pipe handling crane

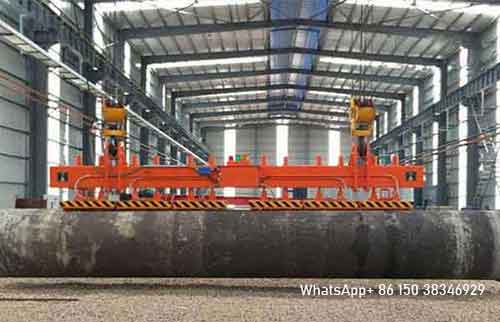

Besides the pipe clamps, the electro-magnet is also one of the most frequently used steel pipe handling spreader for overhead cranes.

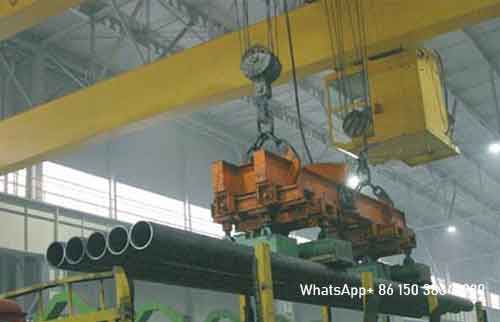

Pipe handling crane: magnetic crane, electric magnetic overhead crane

Carrier beam crane for pipe handling

Pipe handling crane with customized hook lifting spreader

Pipe handling hook cranes is a type of overhead crane, equipped with tailored beam spreader with C hooks as the lifting devices which are designed to handle pipes in factory, workshop, and workstation, etc.

Pipe handling crane: hook crane, hook overhead crane

Pipe handling crane cases - 5 ton overhead crane for steel pipe handling Saudi Arabia

To fulfill the needs of diverse industries, Yuantai Crane Hoist and Crane has provided numerous crane and hoist types for the Saudi Arabian market. The 5 ton overhead crane for the Saudi Arabian workshop that manufactures steel pipes is shown below for your reference in order to have your custom made overhead crane.

Saudi Arabia client profile

The Saudi Arabian customers opened a new workshop for the manufacture of steel beams and pipes as a result of the expansion. For steel pipe handling in the workshop after the workshop is finished, an overhead crane is required. His top option is Yuantai Crane Hoist and Crane, and in exchange, Yuantai Crane provides him with top-notch overhead crane services.

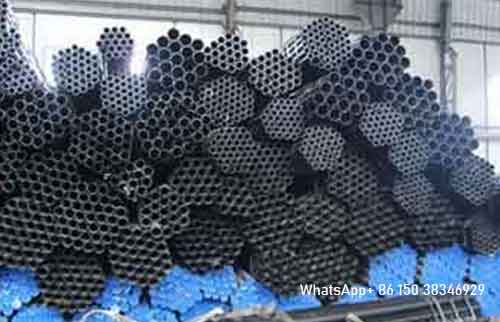

The steel pipes of the Saudi Arabian clients who need the 5 ton overhead crane

Lifting requirements for the overhead pipe handling crane

The steel pipe workshop's construction is now complete, thus a specially made overhead crane is needed to go along with the designs of the workshop. The pipe handling overhead crane engineer discovered that the workshop's overhead clear room is constrained based on the dimensions of the building, while the lifting height must also be ensured. As a result, the Saudi Arabia client is suggested with a 5 ton overhead crane , equipped with a European style low headroom hoist design for steel pipe handling.

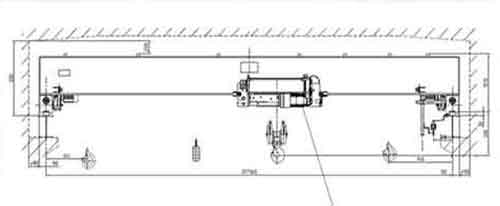

5 ton overhead crane design drawing for the Saudi Arabian clients

Due to the limited space, the main girder of the general use overhead crane may collide the workshop, the flat top girder is designed for the 5 ton pipe handling crane.

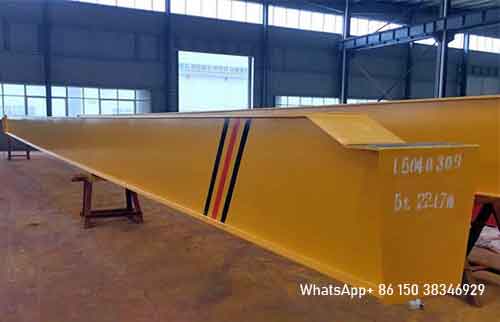

Flat girder design for the 5 ton overhead crane

The 5 ton overhead crane could meet the work requirements and match the workshop better with the special crane design, where the main beam and the end truck are connected.

Pipe handling crane inspection after production

The 5 ton overhead crane was completed in half a month, and the Saudi clients came to our overhead crane workshop for inspection. The quality of the two sets of five-ton overhead cranes won Yuantai Crane's client satisfaction.

Saudi Arabian clients with Yuantai Crane overhead crane workshop - Flat girder design for the 5 ton overhead crane for low headroom workshop steel pipe handling

Saudi Arabian clients with Yuantai Crane overhead crane workshop

Winning points of 5 ton overhead cranes

The flat top overhead crane girder, bucket design, and cost-effective overhead crane price are three obvious features of the 5 ton overhead crane for the Saudi Arabia client.

To meet the needs of the customer, a special design and overhead crane rail are used.Because the low point of the roof is low, we use flat steel crane rail and specifications design the connection that main beam and end truck to allow the overhead crane to travel smoothly.

Do you want to know if a pipe handling crane can help you improve your handling process? Please contact us so that we can discuss the options. Do you want to handle not only pipes but also plates? The multifunctional overhead cranes can help you solve the problem Contact us today to get your customized overhead crane.
