Casting crane for sale. Customized casting crane,high precision & reliable safety, double separating braking. Casting crane design for your steel mill.

Casting overhead cranes are used for transporting, pouring, and charging hot metal during the smelting process of liquid metal, among other things. Yuantai Crane's casting crane is a specially designed steel mill crane for the steel industry.

Ladle overhead cranes are classified into three types based on their crane structure: Double Girder Double Rail casting crane, Four Girder Four Rail Casting Crane, and Four Girder Six Rails Casting Crane. The first two types are used to lift medium and large scale ladles, while the latter is used to lift extremely large scale ladles. Yuantai Better Crane can provide customized ladle overhead cranes with unlimited lifting capacity.

QDY type 5 ton -74 ton casting crane

• Product Type of casting crane QDY
• Lifting Capacity of casting crane 5~74t
• Span Length  of casting crane 10.5~31.5m
• Working Class of casting crane A7
• Ambient Temperatureof casting crane -10~60℃

5 ton - 320 ton YZ  casting crane

• casting cranetype: YZ
• Lifting Capacity of casting crane: 5~320t
• Span Length of casting crane: 10.5~31.5m
• Working Class of casting crane: A6, A7
• Ambient Temperature of casting crane: -10~50℃

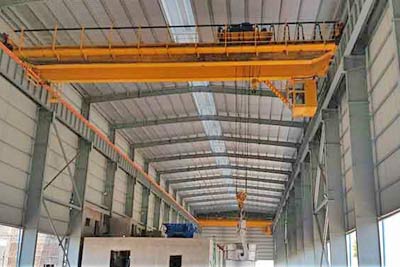

The casting crane will be designed with different configurations depending on its capacity. When the capacity is less than 75 tons, double girder overhead crane designs are utilized, whereas multiple crane girder such as 4 girder designs are employed when the capacity is greater than 75 tons.

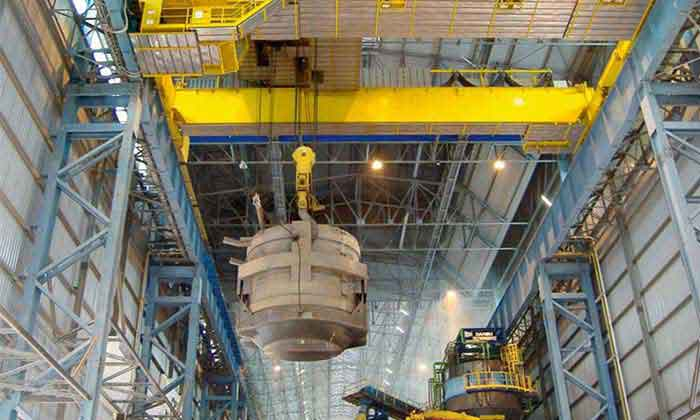

Ladle hook of heavy duty casting crane

The main grabbing device is the main hook, a fixed-spacing hook also known as a ladle hook that is used to lift foundry ladles; the auxiliary hook is used in conjunction with the main ladle hook to dump molten iron and perform other subsidiary lifting operations.

Advantages of Yuantai casting crane

High levels of safety and dependability. Advanced technology and high-quality products ensure high safety and dependability.

• State-of-the-art casting mill crane design.
• Modern design meets and exceeds international standards.
• Tailored steel mill overhead crane design is your cost-effective solution.
• Yuantai Better Crane's cost-effective crane price is achieved through technological innovation and unrivaled resources.
• Simple to use and maintain.
• Human and safety-oriented design to make the operation and maintenance of the ladle overhead crane simple and easy.

Features of casting cranes

Reliable casting crane with high precision and safety, as well as a double brake and separating braking system to ensure the safety of your crane operation.

• ·Strong beam girders. The casting crane beams are welded together. As a result, the dead weight is reduced while maintaining a high degree of vertical and horizontal rigidity and smaller wheel loads. Outstanding heat resistance thanks to the addition of a thermal-protective coating at the bottom of the main beam!
• Cabin control: A modern cabin control with an air conditioner to keep operators safe from the harsh environment!
• Electrical equipment: Siemens or Schneider brand electric systems!
• Position precision is very high. The casting crane can be equipped with a rotating trolley to properly position the product in relation to the conveyor.
• High accessibility. The casting crane is outfitted with a variety of redundant features and technical solutions, including dive and network units.
• Running smoothly and safely. To start steadily and safely, the traveling motor can be a soft start motor or a frequency adjustable-speed motor.
• 2 distinct braking systems We always make two brakes for each mechanism of the casting crane to make it safer. High-quality hydraulic thrusters are also essential for the brake's proper operation! Stopper safety limit switches will be provided to prevent overtravel in all motions.

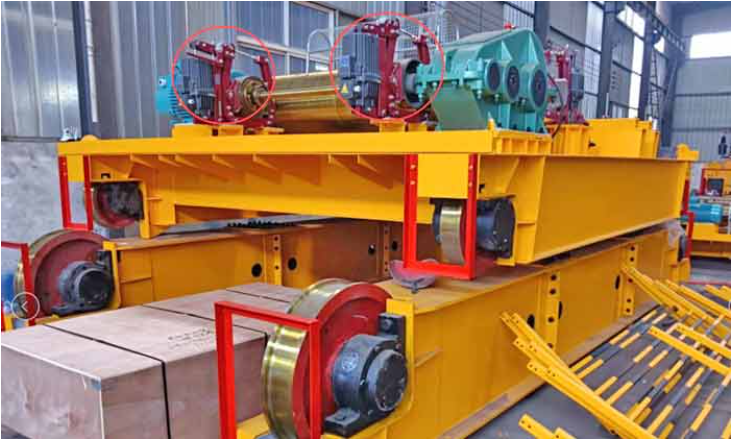

Double brakes on casting cranes

Features on casting crane safety

The most important consideration for a casting crane is safety. The following safety devices are installed in the casting crane to ensure its safety.

• Overhead protection: If the material exceeds the capacity, the casting crane will sound an audible warning to protect itself.
• Emergency brake: If the operation staff encounters an emergency situation, we can activate the emergency brake system to protect the related treasure.
• Crane control: To avoid any injuries to the operation staff, use room control or remote control.
• Hooks with a latch: to keep goods from falling down.
• Lifting motor: The main lifting motor has thermal and currency protection.

After-sale service for casting cranes

Yuantai Hoist and Crane can provide process crane for your steel industries due to its extensive experience in producing hundreds of casting cranes. Our crane company's reputation has been built on the satisfaction of our customers due to the high quality of our process cranes. Yuantai Hoist and Crane manufactures a variety of process cranes for use in the steel industry.

• One-year warranty on entire overhead crane system
• When the warranty expires, there is a low charge for continuing maintenance.
• Exclusive assistance engineer
• Spare parts are available at a reasonable cost.
