Ladle crane 10 Ton for Small Steel Mill & Small Steel Plant
Yuantai Solution
For small steel mill plant, the single girder ladle cranes is developed to meet the needs of ladle handling at very cost-effective price. The single girder casting ladle crane is designed for metallurgy and steel industry for lifting molten metal in foundry plants. The small ladle crane is equipped with specially designed electric wire rope hoist with high safety and Heat Insulation plate to ensure safety of crane operation with a lifting capacity≤10t.
Small ladle crane, single girder design for steel mill ladle handling
Crane Type |
LDY Model Single Girder Overhead Crane for Ladle Handling / Small Ladle Crane |
Crane Structure |
Single Girder Overhead Crane with Heat Insulation Plate on Main Beam Bottom |
Reference Capacity Range |
1t, 2t, 3t, 5t, 10t; lifting capacity ≤ 10t |
Reference Span Range |
7.5–28.5 m |
Reference Lifting Height |
6–20 m |
Working Duty |
A5 (LDY design); A3 for matched YHII metallurgical electric hoist |
Hoisting System |
YH / YHII Metallurgy Wire-Rope Electric Hoist with Capacity up to 10 ton |
Lifting Attachments |
Lifting Hooks or Other Picking Devices; Ladle Hook / Ladle Beam Available |
Control System |
Pendant Control / Remote Control |
Safety Systems |
Heat Insulation Treatment on Girder Bottom, Two Rope Clamps at Wedge Connection (200mm Remaining Rope Head), Hook Height < 2 m After Use, Reducer Oil Pumping Before Startup |
Operating Environment |
Metallurgy, Foundry and Casting Plants; Working Temperature -10–+60 °C (or -20–60 °C); Relative Humidity ≤ 50% under 40 °C |
Power Supply |
3-Phase AC 380V / 50Hz |
Traveling Mechanism |
Traveling Speed 20 m/min; Power 0.8kW×2 / 1.5kW×2 / 2.2kW×2; Wheel Diameter Φ270 / Φ400; Steel Track 37–70 |
Typical Applications |
Molten Metal Lifting and Transfer in Small Steel Mills, Foundries and Casting Facilities; Non-Molten Metal and High-Temperature Solid Metal Handling |
Final Configuration |
Customized according to ladle capacity, span, lifting height, working duty, working temperature and site layout |
Share your ladle capacity, span, lifting height, working duty, working temperature and site layout with our engineering team. We can help configure a single girder small ladle crane for your small steel mill or foundry application. Get a Small Ladle Crane Solution
The LDY small ladle overhead crane can be also used to handle the non-molten metal and high-temperature solid metal, and other loads handling, which will make the best return of your investment.
Parameters of small ladle crane, signle girder
LDY type small ladle crane is designed purposefully for hoisting and transfering molten metal in steel mill foundries. The ladle hoist is YH metallurgy wire-rope electric hoist with capacity up to 10 ton.
- Crane type : LDY Model Single Girder Overhead Crane for ladle handling
- Lifting Capacity: 1t, 2t, 3t, 5t,10t
- Working Duty: A5
- Working Temperature ﹣10℃~﹢60℃
- Relative Humidity: ≤ 50% under 40℃
The LDY Single Girder Overhead Crane 10 ton is mostly used in metallurgy to hoist foundries and liquid metal. The lifting hoist is YH metallurgy wire-rope electric hoist with lifting capacity reaching 10t. The small ladle crane is developed based on the LD types electric single girder overhead crane and equipped with metallurgical electric hoist, which can meet your safety needs, material handling requirements and at same time satisfy your financial requirements, which is much economical compared with double girder ladle crane. Contact us to get your customize designe ladle crane .
Features of 10 ton ladle cranes
Heat Insulation:
The bottom of the girder is given a heat-insulation treatment with an operating temperature range of -10°C to +60°C and relative humidity of 50% or less below 40°C.
For Safety:
- It is completely prohibited to stand underneath the ladle crane during operation.
- To seal and lock the steel wire rope at the wedge connection, two rope clamps are placed, and the remaining length of the steel wire rope head is 200mm;
- The height of the hook from the ground must be less than 2 meters after utilizing the crane (including the hoist);
- Before commissioning and startup, the user must pump oil into the reducer.

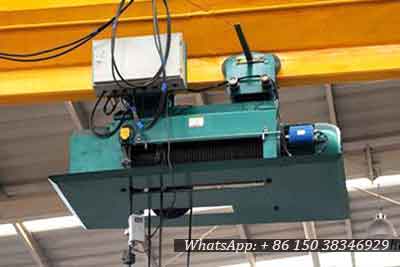

Ladle hoist for single girder overhead crane

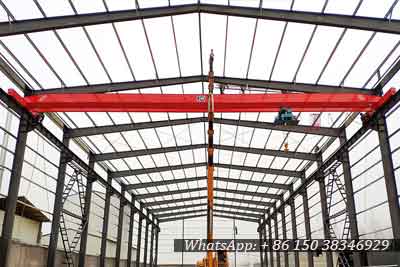

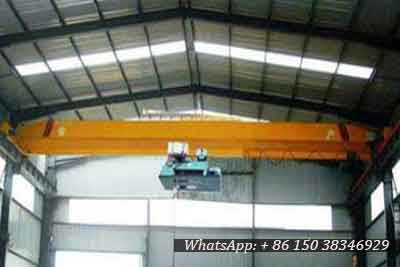

single girder ladle overhead crane

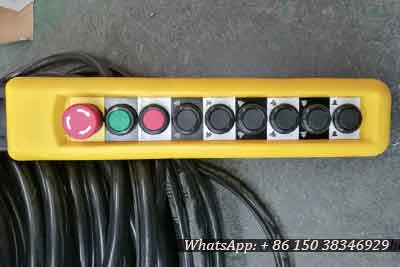

Pendent control

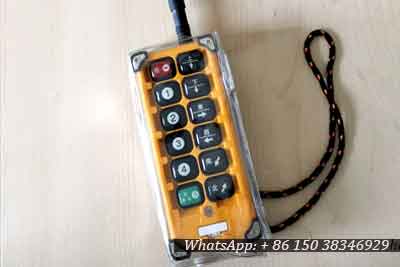

remote control for ladle handling overhead crane

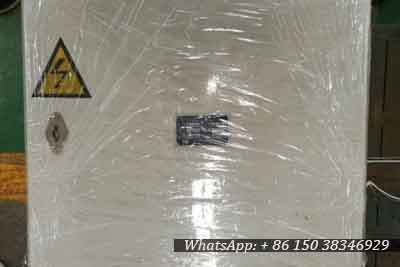

electric boxs

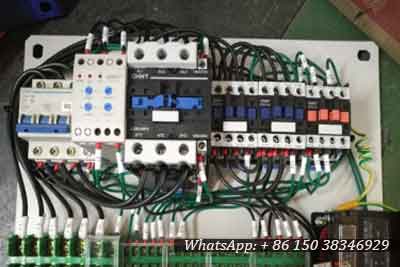

wiring Specifications of single girder ladle crane 10 tons
LDY metallurgical single girder cranes is used for lifting of melting metal sites of metallurgy, casting, its matching lifting mechanism is YHⅡ metallurgy electric hoist, the weight is less than 10 t. The bottom of main beam using special insulated heat . Working ambient temperature is -20℃- 60℃, humidity no more than 50%.
The YHII metallurgical electric hoist, which is matched to LDY metallurgical single girder cranes as its lifting mechanism, is used to lift melted metal from metallurgy and casting facilities. Specially insulated heat plate is used in the main beam's bottom. Working temperatures range from -20 to 60 degrees Celsius, with a maximum humidity of 50%.
|
Capacity(t) |
2t,3t,5t,10t |
|
|
Span(m) |
7.5m~28.5, |
|
|
Lift height(m) |
6m~20m |
|
|
Working System |
A3 |
|
|
Power Source |
3-Phase AC 380V 50HZ |
|
|
Crane Traveling mechanism |
Traveling speed |
20m/min |
|
Power |
08kw*2 1.5kw*2 2.2kw*2 |
|
|
Wheel Diameter |
Φ270，Φ400 |
|
|
Steel track |
37~70 |
|
Get your customized single girder ladle crane 10 ton
The LDY type metallurgical electric single-girder overhead crane is used to work intermittently and periodically in the process of metallurgical production to complete the displacement of materials for lifting and transporting in a timely and rapid manner using lifting hooks or other picking devices.
It is a critical tool and piece of equipment for increasing labor productivity in metallurgy and casting operations in modern industrial enterprises. Contact us to get your customized ladle crane design for your steel mill and plant.
