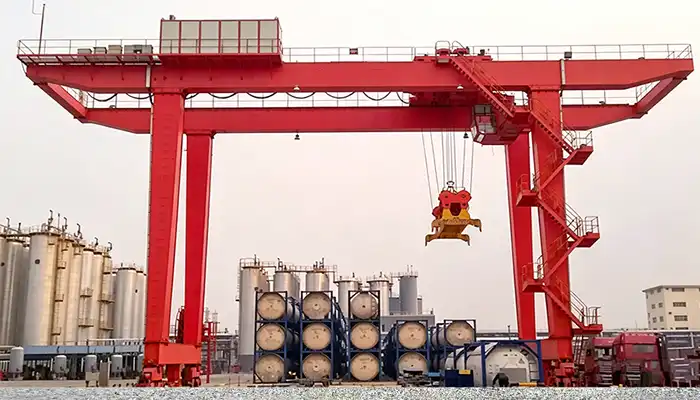

Rail Mounted Gantry Cranes 20–320 Ton for Industrial Use

Rail mounted gantry cranes are commonly used in intermodal freight terminals where containers move between rail wagons, trucks, and stacking yards. The work is repetitive, and timing matters, so the crane needs stable travel on rails and smooth positioning.

In daily operation, it is mainly about fast handling of standard ISO containers, not complicated lifting actions. Operators expect steady cycles and predictable performance.

• Container stacking in rail yards and depot storage areas
• Loading and unloading between rail wagons and trucks
• Yard logistics handling for 20ft and 40ft containers
• Suitable for high-frequency container handling operations
• Often paired with terminal operating systems (TOS) for coordinated yard flow

In steel production and service centers, rail mounted gantry cranes are used for moving heavy and dense materials that cannot be handled with light-duty lifting systems. The loads are usually irregular, and temperature conditions can be demanding.

These cranes support continuous internal logistics between processing lines and storage areas.

• Steel coil handling in coil yards and storage bays
• Lifting and stacking of steel slabs and billets
• Transfer of heavy fabricated steel components
• Feeding material between cutting, rolling, and processing stations
• Designed for heavy duty gantry crane rail systems in industrial steel yards

Precast production yards rely heavily on rail mounted gantry cranes because the loads are large, repetitive, and must be placed with accuracy. This includes structural elements used in bridges, buildings, and infrastructure corridors.

In many cases, the crane works alongside casting beds and curing areas, moving elements step by step through production stages.

• Lifting precast concrete beams and columns
• Handling bridge segments and large structural panels
• Moving tunnel lining segments for infrastructure projects
• Supporting modular construction assembly workflows
• Common in precast yard crane systems for construction material handling

In metro and tunnel construction environments, rail mounted gantry cranes are often installed in segment storage yards or tunnel portal areas. Space is usually limited, and headroom is restricted, so the crane structure is designed accordingly.

The lifting work is straightforward but must be precise because tunnel segments are heavy and must be placed correctly during assembly.

• Handling TBM tunnel segments and lining rings
• Lifting equipment and backup system components
• Working in low headroom gantry crane configurations
• Supporting metro subway construction logistics
• Used in confined space rail mounted crane applications

Shipbuilding yards use rail mounted gantry cranes for assembling large structures that are too heavy and wide for mobile equipment. The crane moves components across large fabrication zones on fixed rails.

Work here is slow but heavy, and stability is more important than speed.

• Lifting ship blocks and hull sections
• Moving marine structural modules and assemblies
• Supporting offshore fabrication and dockyard operations
• Handling oversized steel structures in controlled lifting zones
• Common in shipyard gantry crane systems for heavy fabrication work

In energy projects such as hydropower stations and dam construction sites, rail mounted gantry cranes are used for handling equipment that is large, expensive, and difficult to install.

The lifting tasks are usually planned in advance, and precision positioning is important during installation.

• Installation of turbines and generator components
• Handling large valves and gate structures
• Moving heavy mechanical and electrical equipment
• Supporting hydropower plant construction and maintenance
• Used in energy sector heavy lifting crane applications

Rail mounted gantry cranes are also used in storage yards where long and bulky materials are handled on a regular basis. These materials are not always heavy, but they require stable lifting over long spans.

The crane helps organize storage and improves material flow within the yard.

• Handling steel pipes and structural tubing
• Lifting timber bundles and lumber stacks
• Moving long structural steel sections and profiles
• Organizing outdoor material storage yards
• Used in long material handling gantry crane systems for industrial storage operations

When the materials are very heavy or dense, the crane must have strong structural integrity and precise control. Steel mills, bridge construction, and industrial machinery installation are typical cases. These loads require stable lifting and careful positioning.

• Steel plates and slabs in production or storage yards
• Bridge segments and precast structural elements
• Large industrial machinery and fabrication modules
• Heavy components for hydropower or shipbuilding projects
• Often paired with wire rope hoists or open winch systems for extra lifting strength

Medium-weight items need a balance of speed and strength. These are common in container yards, precast yards, and modular construction sites. Rail mounted gantry cranes handle these efficiently with repetitive lifting cycles.

• Standard containers (20ft, 40ft) in freight terminals
• Precast concrete panels and building modules
• Bridge sections of moderate weight
• Industrial equipment that is heavy but manageable
• Typically handled with wire rope or semi-automatic hoist systems

Long or elongated materials, like pipes, beams, and timber, require stability along the full span. The crane must lift evenly to avoid sagging or material damage.

• Steel pipes, tubing, and structural profiles
• Timber bundles and lumber stacks
• Long precast beams or girders
• Often handled with spreader bars or dual hoist configurations
• Rail mounted gantry cranes provide precise movement along the rails for safe storage and placement

For industrial production lines or storage areas with smaller items, cranes focus on speed, repeatability, and efficiency rather than extreme lifting capacity.

• Packaged industrial components
• Small machinery parts or assembly modules
• Bags, boxes, or pallets in warehouse operations
• High-cycle, automated or semi-automated operation is common
• Lighter hoist systems and precise positioning tools are usually sufficient

Cranes installed near the sea or in port facilities face constant exposure to salt-laden air and humidity, which can cause corrosion and reduce component life if not properly addressed. Rail mounted gantry cranes for these environments are built with marine-grade steel coatings and anti-corrosion finishes. Electrical components are also protected with salt-resistant insulation and IP-rated enclosures to maintain reliability.

• Anti-corrosion paint and coatings on steel structure
• Salt-resistant electrical and control systems
• Marine-grade hoists and rail components
• Suitable for container terminals, port yards, and coastal industrial sites

In areas with low temperatures or harsh winters, standard cranes may experience reduced hydraulic efficiency, brittle materials, or electrical failures. Rail mounted gantry cranes for cold climates are designed with low-temperature steel, winterized hydraulic systems, and electrical components rated for sub-zero operation. Safety features also account for icy rails and reduced traction.

• Winterized steel and crane structure for low temperatures
• Cold-resistant hydraulic and electrical systems
• Safety design for icy rails and reduced friction
• Ideal for outdoor yards in northern climates and industrial facilities

Some industrial environments are prone to high temperatures, dust, or debris that can affect crane performance. In these conditions, rail mounted gantry cranes are equipped with dust-proof enclosures, heat-resistant electrical systems, and reinforced cooling for motors and hoists. This ensures continuous operation without overheating or contamination.

• Dust-proof electrical enclosures and control panels
• Heat-resistant motors and hydraulic components
• Reinforced cooling systems for extended operation
• Used in steel yards, cement plants, or dry industrial storage areas

Underground projects, metro depots, or tunnels often have limited headroom and restricted working space. Rail mounted gantry cranes designed for these areas feature low headroom configurations, compact girder designs, and precise positioning capabilities. These cranes allow safe handling of heavy loads where space is tight, without compromising load stability.

• Low headroom crane design for restricted vertical clearance
• Compact double or single girder systems for tight spaces
• Precise positioning for tunnel segments or metro infrastructure
• Suitable for TBM yards, underground stations, and precast storage areas

The structural design determines the crane's lifting stability, span capability, and long-term durability. It also directly affects cost and maintenance requirements in daily operation.

• Double girder rail mounted gantry crane Light Duty
  Used for lighter to medium-duty applications where cost efficiency and simpler structure are preferred. Common in small precast yards, general fabrication areas, and light industrial storage handling.
• Double girder rail mounted gantry crane- Heavy Duty
  The most common configuration for heavy industrial use. It provides better rigidity and higher lifting capacity, especially suitable for precast concrete handling, steel coil yards, and container operations.
• Heavy-duty box girder or reinforced structural systems
  Designed for high-capacity and long-span applications. Often used in bridge segment yards, shipyard fabrication zones, and large infrastructure projects where lifting stability is critical.

Different lifting tools are selected based on material type. Rail mounted gantry cranes can be adapted to handle almost all industrial load categories with the right hoisting system.

• Wire rope hoist systems
  The most widely used solution for general industrial lifting, including precast components, containers, and steel structures. Stable, flexible, and easy to maintain.
• Open winch systems
  Designed for heavy-duty lifting applications where high load capacity and slow, controlled movement are required. Common in steel mills and large infrastructure projects.
• Magnetic lifting systems
  Used mainly in steel handling environments where steel plates, scrap, or coils need to be lifted without slings or hooks.
• Grab bucket systems
  Suitable for bulk materials such as aggregates, coal, or loose industrial materials. Often used in ports and material storage yards.

Modern rail mounted gantry crane systems are increasingly integrated into automated or semi-automated workflows, especially in logistics terminals and large industrial yards.

• Manual control systems
  Basic operation using cabin or pendant control. Suitable for small-scale operations or low-frequency lifting tasks.
• Semi-automatic positioning systems
  Improves efficiency by assisting operators with positioning, alignment, and repetitive movement tasks. Common in precast and storage yards.
• Fully automated rail mounted gantry crane systems
  Used in smart ports, container terminals, and automated logistics centers where cranes are integrated with yard management systems and real-time tracking platforms.

Safety design is a core requirement in rail mounted gantry crane operation, especially in high-load and high-cycle environments.

• Windproof and anti-sway systems
  Helps stabilize loads during movement, especially important in outdoor yards and port environments with strong wind conditions.
• Overload protection and intelligent load monitoring
  Ensures the crane operates within safe load limits, reducing risk of structural stress or lifting failure.
• IP-rated electrical enclosures for outdoor use
  Protects electrical systems from dust, moisture, and environmental exposure, ensuring stable long-term operation in harsh industrial sites.
