Double Girder Semi Gantry Crane & Half Crane 5 Ton,10 Ton,32 Ton

Overveiw of Double Girder Semi Gantry Crane

Semi gantry crane & semi portal crane for sale. Customized double girder design for indoor & outdoor use. Featured semi coker gantry crane for reference.

Double girder semi gantry cranes are a special design of gantry crane that combines the design of a bridge crane with that of a motorized rail travelling gantry crane.  One end of gantry crane bridge is supported by an elevated runway as with an end carriages, and the other end of the crane bridge is supported by a freestanding crane supporting legs, with wheels travelling on ground beams and rails. In the single leg crane design,  the power is typically provided by a power bar and collector assemblies along the elevated runway side of the semi portal crane and distributed by a festoon system to the hoist trolley.

Semi Gantry Cranes also called the semi portal crane, and they can be controlled either by a wired pendant control or with an optional crane radio remote control system.

Technical parameter s of double girder semi gantry cranes

Features  of Double Girder Semi Portal Crane

Double Girder Semi Gantry Crane , commonly used for factories, warehouses within or close to the factory outside, the no leg side is under factory railway, the right side located on the ground railway, used for transporting general goods. Double Girder Semi Gantry Crane, frequently used for factories, warehouses within or near the factory for general material handling.

• Rated lifting capacity of semi portal crane  is 5~32t, level is A5,A6, span 10 ~ 40m
• T hree-in-one driven motor and variable frequency control are optional feature for the semi gantry .
• Control method is ground pendant control and wieless remote control
• Higher working speed,High functionality, flexibility and ease of operation
• Simple structure, easy installation and maintenance.
• Customized crane designs are availble and wide additional features can be easily added based on requirements.

Optional Features:

• Variable speed control through VVF Drive
• Soft starter
• Waterproof, explosion proof , anti-corrosion
• Remote control

Safety Equipment

• Alarm movement
• Flashlight start
• Emergency button
• Motion limit Switch
• Rubber bumper end stop
• Electro Mechanical load limiters (optional)
• Walkway Maintenance (optional)

Equipment options

• Grap
• Lifting Tools
• Crane Scale
• Operator Cabin
• Radio Remote Control

Advantages:

•  There is no need for a runway construction and concrete foundations, saving your construction cost.
• Simple and compact semi gantry crane design and structure
• Quick and easy semi portal crane installation.
• Lightweight and consumes little energy.
• Consistent performance and ease of maintenance.

Applications of Semi Gantry Cranes

This single leg double girder semi gantry crane is mainly used for heavy loads handling, compared with single girder semi-gantry cranes, which are widley used in steel stockyards, mines, the concrete industry, warehouses, factories, port and ship building, etc.

A semi-gantry crane (half gantry crane) is often used when a full-span crane is simply not necessary. In many workshops, lifting is only needed along one side—near a wall, production line, or storage area. Instead of installing a full bridge crane across the entire span, buyers choose a semi-gantry design to cover only the working zone that actually needs lifting.

One side of the crane runs on the existing building runway beam, while the other side is supported by gantry legs traveling on ground rails. This setup is especially common in large-span workshops or buildings connected to outdoor yards, where extending lifting coverage fully across would increase cost without adding real value.

Typical Application

• Large-span workshops with partial lifting demand
  When lifting is concentrated on one side of the workshop, a semi-gantry crane avoids the need to install a full overhead crane system across the entire span.
  This helps reduce steel structure cost and installation complexity.
• Workshops connected to outdoor yards
  The crane can move materials from indoor production areas directly to outdoor storage or loading zones.
  One side uses the building structure, the other runs on ground rails outside.
• Production lines along walls or edges
  Ideal for workshops where machines, fabrication lines, or storage racks are arranged along one side.
  The crane follows the workflow instead of covering unused space.

Why Buyers Choose This Design

• Cost saving
  No need for full-span runway beams or dual ground rails. Less steel, less foundation work, and shorter installation time.
• Space saving
  The crane only occupies the working area where lifting is required. The rest of the workshop remains open for equipment, storage, or vehicle movement.
• Energy saving
  Smaller coverage area means shorter travel distance and lower power consumption during operation. Over time, this makes a noticeable difference in running costs.

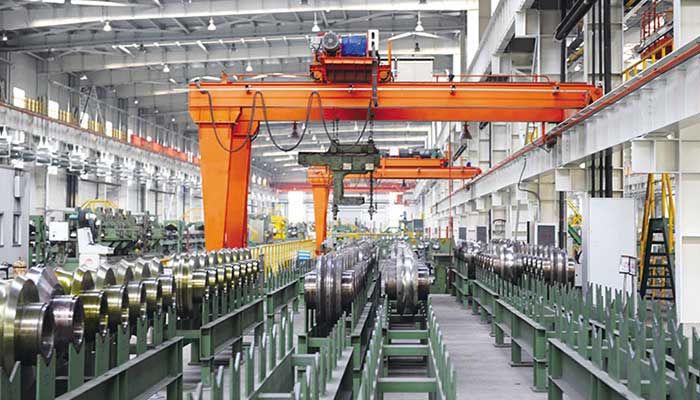

20 Ton Semi Gantry Crane with Double Girder Design Used In Machining Workshop

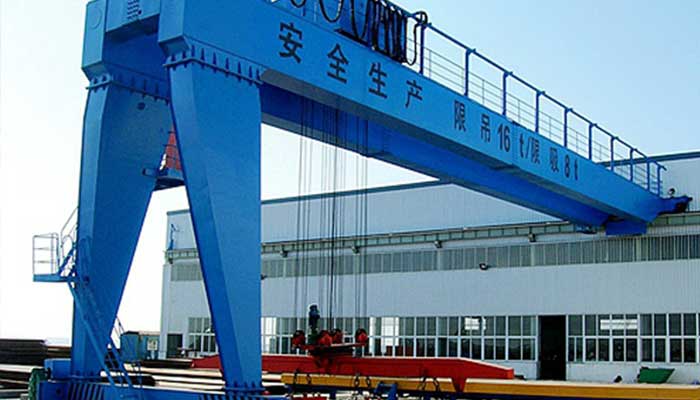

16 ton semi gantry crane for outdoor steel plate handling in steel machinery factory

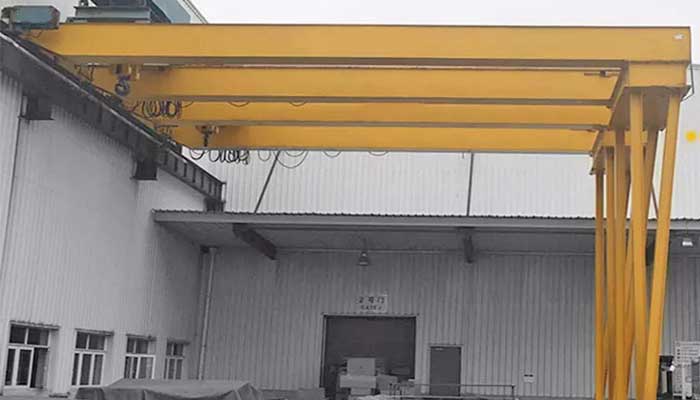

Coker crane- Semi Gantry Cranes

Single Leg Semi Gantry Coker Crane

The double girder semi gantry crane is a type of Coker Cranes, which refers to the coker handling cranes, including full gantry crane or grab bucket bridge crane. The semi gantry coker cranes are designed with a clamshell grab for efficient coker handling.

Key Benefits & Buyer-Centric Overview

When buyers compare a semi-gantry crane (half gantry crane) with a full gantry crane, the decision usually comes down to one thing:
How much of the workshop really needs lifting—and how much are you paying for structure you won't use?

A full gantry crane covers the entire span and requires two ground rails plus a complete steel structure. That means more materials, more foundation work, and longer installation time.

A semi-gantry crane takes a more practical approach. One side runs on the existing building runway beam, and the other side travels on ground rails. You only build what you actually need.

For workshops with large spans or layouts connected to outdoor yards, this setup often makes more sense. It keeps the system simple, reduces unnecessary investment, and gets the crane into operation faster.

Practical Benefits for Real Projects

• Reduces installation and foundation costs
  Only one side needs ground rail and foundation. This means less concrete work, fewer anchor points, and easier alignment. In many projects, this is where a clear cost saving comes from.
• Saves space in large-span workshops
  The crane does not need to cover the full width of the building. You keep more usable floor space for machines, storage, or vehicle movement, especially in wide workshops.
• Ideal for indoor and outdoor operations
  Materials can be moved directly from inside the workshop to the outdoor yard using one crane. This avoids duplicate equipment and simplifies daily handling.
• Energy saving in daily operation
  Since the crane typically works within a smaller, defined area, travel distance is shorter. Over time, this helps reduce power consumption and wear on traveling mechanisms.
• Customizable lifting capacities (5–32 t)
  The crane can be sized based on actual load requirements. Whether it's 5 tons or 32 tons, you select what fits your operation instead of oversizing.
• Compatible with standard hoists and control systems
  It works with commonly used wire rope hoists, electric chain hoists, and standard control panels, making maintenance straightforward and spare parts easier to source locally.
• CE, ISO, and third-party inspection certified
  Certified manufacturing and inspection help ensure the crane meets project requirements and reduces risk during installation and long-term use.

Tailored semi- Gantry Cranes  and Half Gantry  Crane design

Yuantai Crane designers use cutting-edge computer technology to personalize each semi gantry crane system to the task at hand. We have experience designing semi gantry cranes and full gantry cranes of all sizes, any capacity, and for usage in a variety of sectors and industries, whether you are an end user with a specific requirement for your workplace or a trade client delivering a semi gantry crane for a third party.

Semi Gantry Crane Variants & Options

A double girder semi-gantry crane is rarely a one-size-fits-all product. The basic structure stays the same, but the details change depending on your workshop conditions, load type, and working frequency.

Some buyers already know what they want. Others only have a rough idea like "we need to lift steel beams in a limited space". In both cases, the final configuration should match how the crane will actually be used—not just standard specs.

Yuantai can manufacture and supply all the main components of your semi gantry crane  and portal crane including the bridge girder beam and travelling gantry rails. We also offer a series of semi gantry crane extras, such as walkways, floodlights, beacons and alarms. If you need a custom double girder semi gantry crane, please feel free to contact us by leaving a message below.

Frequently Asked Questions (FAQ) – Semi Gantry Crane Applications & Selection

Below are common questions from crane buyers when selecting a double girder semi-gantry crane for workshop and outdoor use. These answers focus on real application concerns such as cost, layout, installation, and long-term operation.
