Overhead crane magnets are one of the most efficient and safest ways to move semi-finished products or finished steel or iron products around your shop without causing damage. Overhead crane magnets are also useful for moving machine parts, which is why they are commonly used in general manufacturing. When steel machine components are replaced with magnets, precise placement becomes easier and safer for all parties involved. Yuantai Crane provides a variety of lifting overhead crane magnets to accommodate any job size.

The stronger the magnet, the more weight it can lift. Types of overhead crane magnets are low-cost, long-lasting, and effective. They are also typically lighter, so your crane will have less overhead.

Why use overhead crane magnets ?

For most of the overhead cranes, the magnet used is a device having an iron core and using a current-carrying coil to make it magnet. The core should be made of soft iron or silicon steel, which is easily magnetized and disappears. When powered on, such an electromagnet becomes magnetic and then dissipates. Electromagnets have a wide range of applications in everyday life. The invention of the overhead crane magnet also greatly increased the generator's power.

Overhead crane magnets have many advantages are as following:

The overhead crane magnet magnetism can be controlled by changing the size of the resistance control current; the magnetic can be controlled by the strength of the current or the number of coil turns; and it can also be controlled by changing the size of the on-off current. Magnetic size and magnetic pole can be controlled by changing current direction, and so on. That is, the strength of magnetism can be changed, as can the presence or absence of magnetism, and the direction of the magnetic pole.

And also, the retention design of electromagnetic can ensure the safe operation when the power failure occurs. The retention time can be designed according about 15 minutes or 30 minutes.

Applications of overhead crane magnet

Coal preparation, power plant coal transportation, metallurgy and iron and steel, metal mines, cement and building materials, petrochemicals, shipbuilding, port transportation, brick ceramics, glass, papermaking, grain, oil, food, and railway logistics are some of the applications for overhead crane magnets.

Yuantai Crane provides customized electromagnet cranes with customer overhead crane magnets for handling steel scraps, billets, girders, slabs, wire (coiled bar), bundled rebar, round steel pipe, heavy rail, steel plate, coiled steel, and other materials. Types of electromagnets and magnetic overhead cranes are available from Yuantai Crane.

Types of overhead crane magnet for vairous types of steels Handling

Plate electromagnet for overhead crane and gantry crane for steel scraps handling

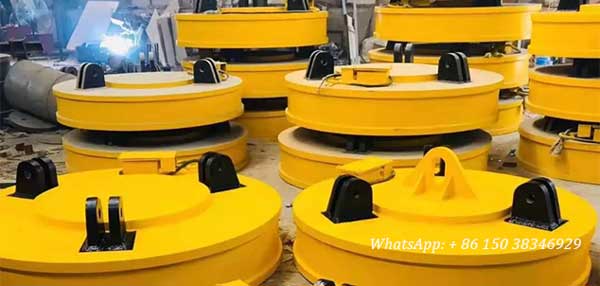

Round overhead crane magnet for cranes

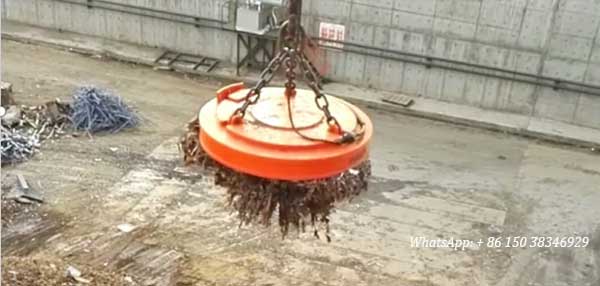

Round crane magnet for steel scraps handling

• Normal temperature overhead crane magnet: rated voltage DC-220V, duty cycle TD-60%
• High temperature overhead crane magnet: ( Under 700℃) rated voltage DC-220V, duty cycle TD-60%
• High frequency overhead crane magnet: rated voltage DC-220V, duty cycle TD-75%

Oval overhead crane magnet

Oval overhead crane magnet for cranes good price

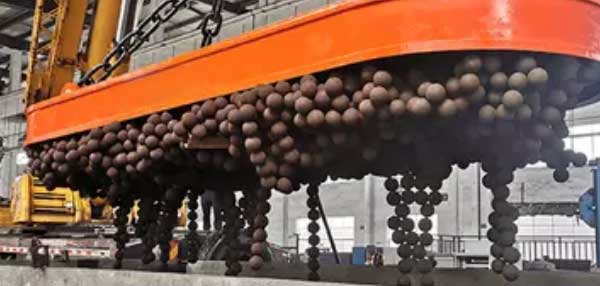

Oval lifting magnet for steel balls & scrap hanlding

The overhead crane magnet is widely used for handling cast iron ingots, steel balls, and steel scrap. Simple structure, it's convenient to install. Various types of oval crane magnets are available for your selection. They are widely selected because they can increase the excitation speed and the lifting capacity by about 10%. Long service life and low power consumption.

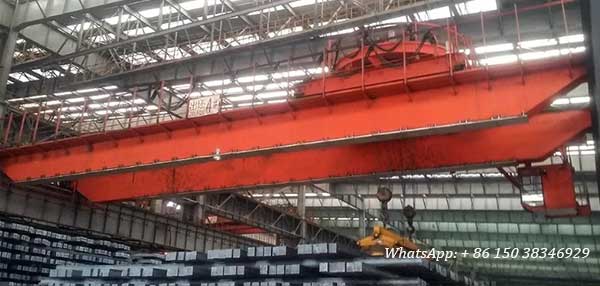

Overhead crane magnet for billet, girder, billet and slab handling cranes

Overhead crane magnet for billet, girder, billet, and slab handling cranes

• Normal temperature overhead crane magnet: rated voltage DC-220V, duty cycle TD-60%
• High temperature overhead crane magnet: (Under 700℃) rated voltage DC-220V, duty cycle TD-60%

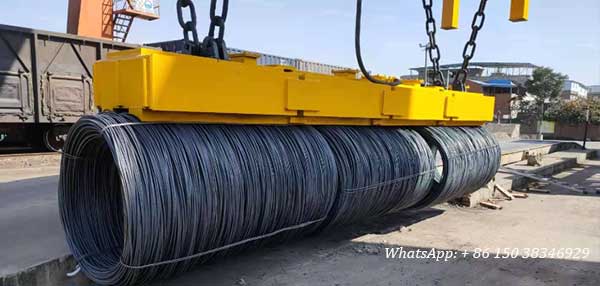

Overhead crane magnet for high speed wire ( coiled bar) handling cranes

Overhead electromagnet crane for coiled bar handling

• Normal temperature overhead crane magnet: rated voltage DC-220V, duty cycle TD-60%

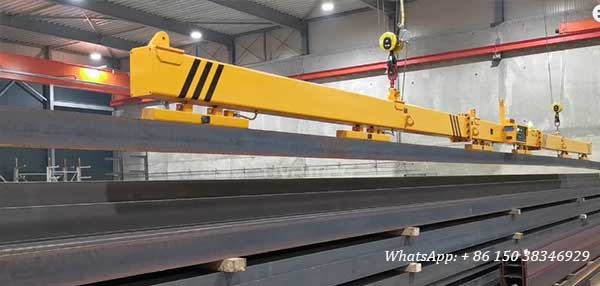

Overhead crane magnet for bundled rebar and profiled steel

Carrier beam crane with lifting magnet- Yuantai Crane electromagnetic crane

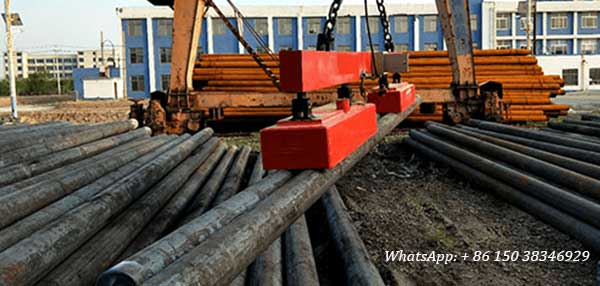

Overhead crane magnet for round and steel pipe handling

Overhead electromanget crane for steel pipe handling

• Normal temperature overhead crane magnet: rated voltage DC-220V, duty cycle TD-60%
• High temperature overhead crane magnet: (Under 700℃) rated voltage DC-220V, duty cycle TD-60%

The Electromagnetic Lift i ng Magnet is a widely used rectangular electromagnet, mainly suitable for lifting round billets, steel pipes, etc., and can also be used for lifting billets, steel ingots, large-scale preliminary rolling billets, section steel, etc. Contact us for a specific model.

• Deep magnetic penetration, safe and energy saving, simple operation;
• The magnetic field is strong and has good waterproof performance;
• Reasonable structure, light weight, high suction power, low energy consumption;
• Long service life.

The overhead crane electromagnet is a widely used rectangular electromagnet that is primarily used for lifting round billets, steel pipes, and so on, but can also be used for lifting billets, steel ingots, large-scale preliminary rolling billets, section steel, and so on. Please contact us if you require a specific model.

Deep magnetic penetration, safe and energy-saving operation; The magnetic field is strong and has good waterproof performance; Reasonable structure, light weight, high suction power, low energy consumption; Long service life

Overhead crane magnet for heavy rail and profiled steel handling cranes

Electromagnet crane for heavy rail and profiled steel

• Normal temperature overhead crane magnet: rated voltage DC-220V, duty cycle TD-60%
• High temperature overhead crane magnet: (Under 700℃) rated voltage DC-220V, duty cycle TD-60%

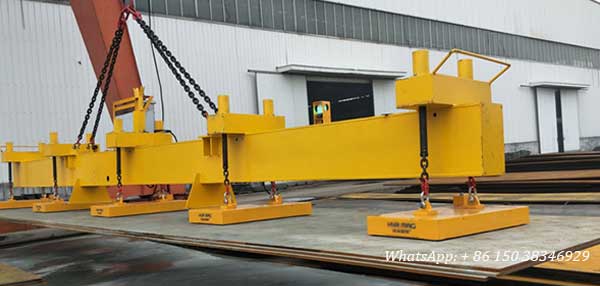

Overhead crane magnet for steel plate handling cranes

electric crane magnet for steel plate and electric crane

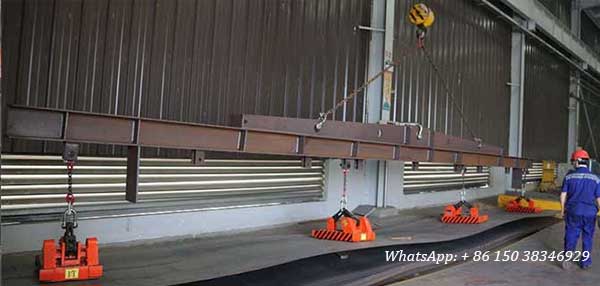

Lifting magnets for steel sheet handling - Yuantai Crane Crane sheet lifter

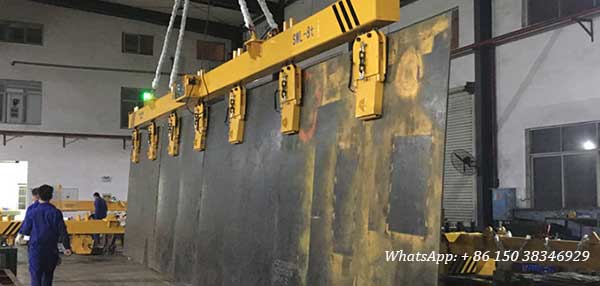

Overhead crane magnet for steel plate turning and side hung

Vertical Plate Lifting Magnet Clamps are ideal handling solutions for vertical or horizontal lifting of steel plates/sheets without compressing and/or deforming the steel plate/sheet.

The ultra-slim magnet modules fit perfectly between the vertical uprights of your steel sheet warehouse due to their compact design. The electronic control unit includes a selector switch that allows several magnet modules to be activated based on the length of the steel sheet. The "PICK-UP" cycle ensures the lifting of a single steel sheet. The lifting operation can be controlled using the integrated digital push buttons or the standard supplied radio remote control.

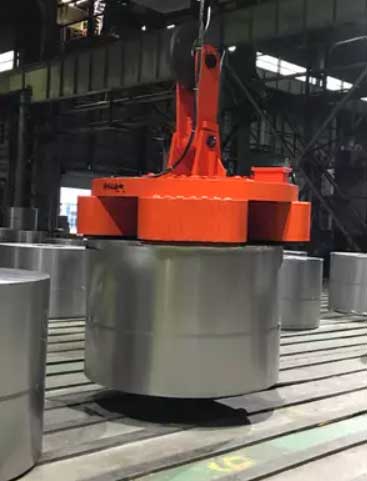

Steel coil handling crane magnet

Overhead crane magnet for coiled steel handling crane

Round Lifting Magnet with High Absorption for Coiled Steel Strip

The series lifting magnets are designed for coiled steel strips and have high absorption and magnetic permeability.

The lifting crane electromagnet series is used to handle coiled steel strips. Vertical and horizontal lifting of the coiled steel strips is possible.

There are two types of temperature: high temperature and normal temperature.

Steel strips can be lifted safely and accurately thanks to their strong suction, deep magnetic permeability, and large lifting capacity.

Get your overhead crane magnets at good price

Types of overhead crane magnets for sale. Yuantai Crane provides customized electromagnet cranes with tailored overhead crane magnets for handling steel scraps, billets, girders, slabs, wire /coiled bar, bundled rebar, round steel pipe, heavy rail, steel plate, coiled steel, and other materials. Yuantai Crane sells electromagnets and overhead crane magnets. In addition to the electromanget overhead crane, we provide other types of steel mill cranes such as grab overhead cranes, ladle overhead crane, maintenance crane, gantry cranes, workstation cranes, monorail cranes, jib cranes, and so on. If you have any problem or need, please feel free to contact us.
