Scrap charging crane
Scrap charging cranes are heavy-duty crane which are typically used in the steel mills to charge steel scrap and metal scrap into furnaces. Besides, the charging cranes also can be used to handle molten metal. In this case, safety is one of the most important factor for scrap charging crane design, production and operation. Usually, the charging overhead crane is made up of a Double Girder or double beam crane with a main hoist and an auxiliary hoist, which not only can be used for scrap charging but also for maintenance and slag removal. For large scale steel mill plant, four girder charging cranes are used to ensure productivity and safety.
Because the ambient temperature is usually high due to heat emitted from the furnace, a heat shield against the flames is considered, and the steel mill charging crane is designed to operate in high temperatures.
Crane Type |
Scrap Charging Crane / Furnace Charging Crane for Steel Mill |
Crane Structure |
Double Girder Single Trolley or Double Girder Double Trolley; Four Girder Charging Crane for Large Scale Steel Plants |
Reference Capacity Range |
20+20 ton to 110+110 ton, 180/50 ton, 240/80 ton, 260/80 ton and 300/80 ton |
Reference Span Range |
30 m, customized to smelting workshop layout |
Reference Lifting Height |
30 m, customized to furnace charging and maintenance requirements |
Working Duty |
A7 / A8 heavy duty for continuous scrap charging and molten metal handling |
Hoisting System |
Main Hoist and Auxiliary Hoist; Redundant System Design for Lifting Liquid Metal; Frequency Control for Smooth Lifting and Reduced Impact |
Lifting Attachments |

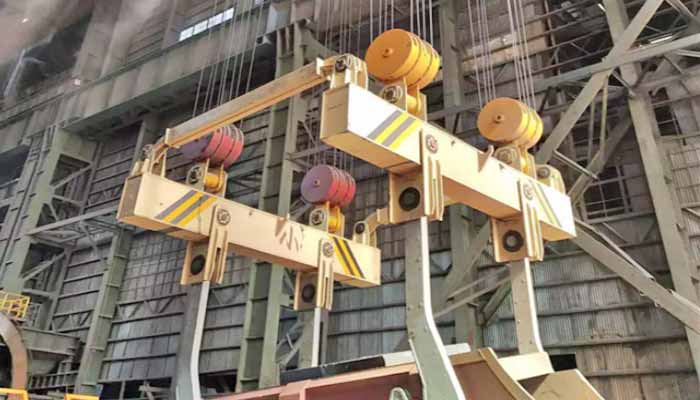

Scrap Grab / Charging Bucket / Ladle Hooks / Lifting Tongs / Customized Below-Hook Devices |
Control System |
Siemens PLC and Inverter / Cab Control / Radio Remote Control; Communication Detection Function for Real-Time Station Status |
Safety Systems |
Overload Protection, Emergency Stop Bypassing PLC, Derailment Supports, End Limit Switches, Sway Control, End Positioning and Protected Areas Systems; Heat Shield Against Flames |
Operating Environment |
Smelting Workshops, Converters and Electric Furnaces; High Ambient Temperature due to Furnace Heat |
Power Supply |
380V / 50Hz / 3Ph or customized |
Typical Applications |
Scrap Charging, Metal Scrap Handling, Molten Metal Handling, Converter and Electric Furnace Feeding, Maintenance and Slag Removal |
Final Configuration |
Customized according to capacity, span, lifting height, working duty, approaches, headroom, plant facility conditions and site layout |
Share your capacity, span, lifting height, working duty, furnace type and plant facility conditions with our engineering team. We can help configure a scrap charging crane for your steel mill application. Get a Scrap Charging Crane Solution
Based on your actual application and the plant facility conditions, a thorough inspection and analysis will be conducted and then we customize and recommend the best overhead crane solution for our clients, in term of many factors such as approaches, headroom, and so on.
The charging crane is a key product for steel mills. With more than 30 years of development, our customers have spread all over the world and become a reliable charging crane manufacturer. Our steel mill cranes include scrap charging crane,Ladle Crane & Teeming Crane, Slag handling Crane, Billet & Tudish Crane, Coil Handling clamp cranes, and many types of magnetic cranes and grab cranes, etc. Tailored scrap charging cranes and complete material handling solution turn key services are available for you. Contact us to get free consultation.

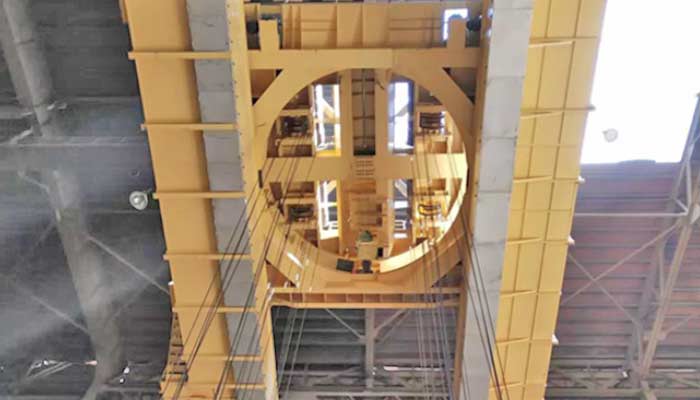

Main specifications of overhead bridge charging crane

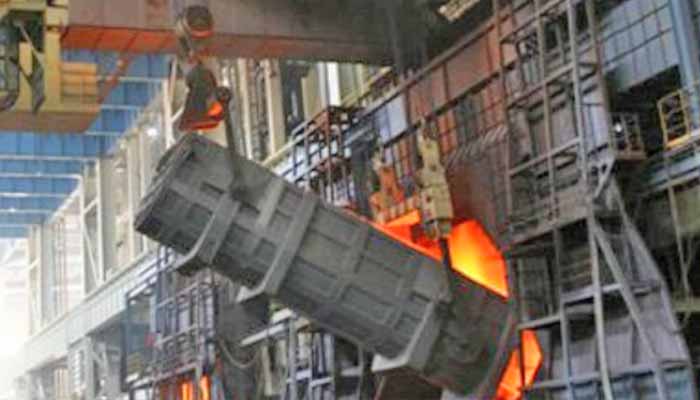

The scrap charging crane or furnace charging crane is used for lifting and transport scrap, liquid steel and other auxiliary materials to the converters and electric furnace in smelting workshop.
Yuantai charging crane structure forms mainly consist of double beam single trolley and double beam double trolley. we can also design, manufacture, install and commissioning customized feeding cranes according to customer specific needs. For heavy duty four girder overhead crane, please feel free to contact us.
- Lifting Capacity of Bridge Crane: 20+20ton To 110+110ton, 180/50ton, 240/80ton, 260/80ton And 300/80ton
- Span of Bridge Crane : 30M
- Lifting Height of Bridge Crane: 30M
- Work Classifications of Bridge Crane: A7 \ A8
The scrap charging crane, also known as the furnace charging crane, is used in the smelting workshop to lift and transport scrap, liquid steel, and other auxiliary materials to the converters and electric furnace.Yuantai charging crane structure are generally include double girder single trolley and double girder double trolley. We can also design, manufacture, install, and commission customized scrap feeding overhead cranes based on the needs of the customer. Please contact us if you require a heavy duty double girder or four girder overhead crane.
Main featrues and benifits of overhead charging cranes
- Siemens PLC and an inverter for safe and reliable crane control and drive. It has a communication detection function that can detect the operational status of each station in real time.
- A monitoring system is installed to monitor the overhead crane's operational status in real time.
- The charging crane's hoisting mechanism uses a redundant system design to ensure the safety and reliability of lifting liquid metal.
- Real-time communication of the weight of liquid metal is made possible via wireless transmission and electronic scales.
- To ensure the safe and dependable operation of the electrical equipment, each crane is constructed with an electric room and an electric fan mounted in the electric room.
- Main and auxiliary trolley to create an automated hanging ladle without a worker and reduce costs.
- The overall construction is streamlined and lightweight.
- Small hook limit, light self-weight, and wide working range.
- Long-lasting, safe, and durable parts of high quality.
- Lower expenditures for upkeep and repairs.
- Low energy usage and a small total crane power.
- Smooth lifting, reduced impact, and frequency control.
Advanced features of charging cranes
- Emergency stop -Yuantai Crane addresses safety concerns without affecting output. The equipment comes equipped as standard with overload protection, an emergency stop system that bypasses the PLC, derailment supports, and end limit switches.
- Automation - Modern automation function not only increase safety but also improve output. Sway Control, End Positioning, and Protected Areas systems are some examples of these functions.
- Easy replacement parts and components - The mechanical and electrical equipment is made up of parts that can all be easily adjusted, lubricated, inspected, maintained, and repaired from permanent service platforms. The emphasis is on quick replacement of faulty or worn crane parts and component rather than repair.
- Enhanced reliability -Detailed real-time measurement and diagnostics data can lead to increased crane availability and reliability. The most advanced version of the diagnostic tool offers concise information for examining the crane's utilization and production.
