Ladle Crane,Steel Mill Ladle Crane, Casting Ladle Crane - QDY Series

Overview

Ladle crane with double girder overhead crane design for ladle, liquid metal hoist in steel mill, casting foundry, smelting furnace. Ladle Crane for sale. Ladle crane with double girder overhead crane design for ladle, liquid metal hoist in steel mills, casting foundries, and smelting furnaces. The main hoist of hot metal ladle crane is operated at a high speed to accommodate high heat handling and heat transport productivity. The auxiliary hook works in tandem with the main hook to perform pouring of molten steel and steel slag, as well as other auxiliary hoisting. For main mechanisms such as hoisting, trolley traversing, and crane travel, use a variable speed system with a speed ratio of 1:10. We can also select the appropriate speed based on the customer's specifications.

Double Girder Ladle Crane for Molten Metal Handling — Steel Mill & Foundry Applications

Handling molten metal is tough work. Your ladle crane needs to be strong, safe, and reliable. Our double girder ladle cranes are built for steel mills and foundries, able to handle high temperatures and heavy loads, day after day.

These cranes move large molten ladles smoothly and safely, helping your team work faster while reducing risks. You get a stable, precise, and durable crane that fits your operation.

Key Features

• Heat-Resistant Design: Insulated beams and special cables protect the crane from high temperatures.
• Heavy-Duty Performance: Built to A7 duty class for continuous use in demanding steelmaking conditions.
• Flexible Capacity: Standard cranes lift up to 74 tons, with custom sizes available.
• Safety First: Dual brakes, extra motors, and load-limiting devices keep both people and equipment safe.
• Custom Options: Choose PLC control, remote operation, anti-sway systems, and more.

No matter if you're handling ladles in a steel mill or pouring in a foundry, this crane keeps your work safe and steady. It's not just strong — it makes your operation smoother.

Get a Quote Today

Ready to improve safety and efficiency in your plant? Click below to get a custom quote for your project.

Types of Ladle Cranes- Double Girder & Four Girder

Ladle overhead cranes are categorized as Double Girder Double Rail Ladle Cranes, Four Girder Four Rail Ladle Cranes, and Four Girder Six Rails Ladle Cranes based on their crane structure. The first two are used to hoist middle and big scale ladles, while the rest two types of ladle craneis used to lift extremely large scale ladles. Yuantai Crane can provide a customized ladle overhead crane with no restrictions on lifting capability.

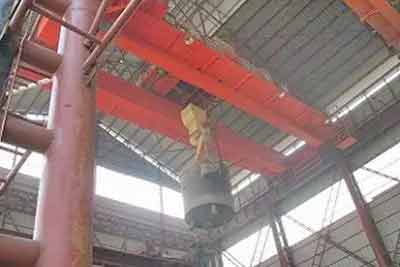

Double girder ladle crane

Four girder ladle crane

The steel mill ladle crane designed with safety and reliability, advanced technique, rigid structure, good economy and durability, and easy maintenance. The ladle overhead crane is built with safety and dependability in mind, as well as innovative technology, a rigid structure, good economy and durability, and ease of maintenance.

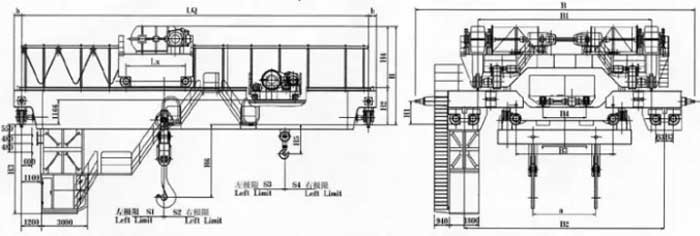

QDY type 5 ton -74 ton ladle crane working class A7 for metallurgy

Production Features of Ladle Overhead Crane

Ladle cranes are designed with special safety features to ensure the efficiency and safety of the crane system due to the high risk level. Ladle cranes have the following characteristics：

• The lifting mechanism is equipped with two sets of independent action brakes.
• When the crane hoisting height exceeds 20 meters, heavy hammer and rotary lifting position limiters are installed, and a down position limiter is installed.
• The overspeed protection equipment has stopped working.
• 4.Fault protection devices, such as positive and negative contactors, are installed to prevent danger in the event of a power outage.
• An insulating layer is installed at the bottom of the main girders to prevent molten steel thermal radiation and ensure the main girders' long service life.
• A special designed metallurgy motor with insulation class H and motor protection grade IP54 is used.
• A cast steel pulley is used to ensure the safety and long life of the machine.
• A steel core wire rope with a safety factor of 7.1 is used, which is suitable for high temperature environments.
• The trolley's power supply is powered by a high temperature resistant cable.
• The cabin has a thermal insulation layer and air conditioning.

Main Parts & Components of Hot Metal Overhead Crane

QDY Type 5 Ton 74 Ton Ladle Crane Working Class A7 For Metallurgyis composed of boxed bridge frame, hook, crane travelling mechanism and electric system.

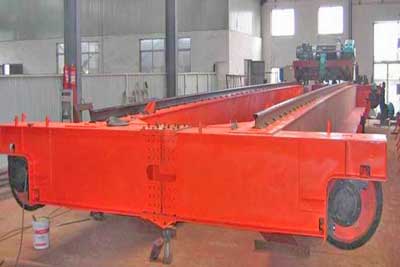

Main girder -  Main parts of ladle overhead crane

Open winch trolley-  Main parts of ladle overhead crane

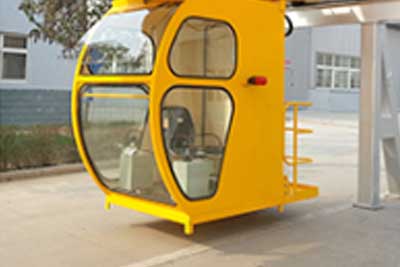

Crane driver's cabin  -  Main parts of ladle overhead crane

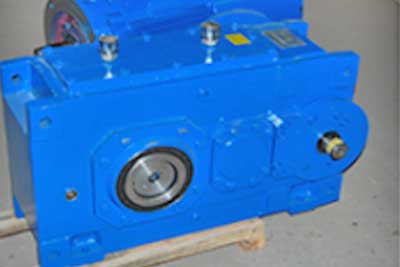

Reducer -  Main parts of ladle overhead crane

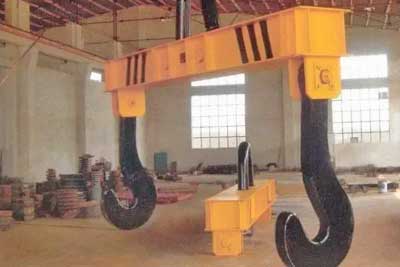

Ladle hook -  Main parts of ladle overhead crane

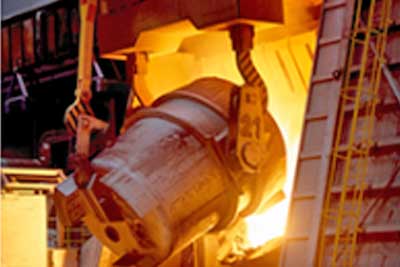

Ladle bucket-  Main parts of ladle overhead crane

Optional Equipment & Upgrades

To get the most out of your ladle crane, especially in demanding steel mill or foundry operations, optional equipment and upgrades can make a big difference. These features improve safety, efficiency, and control, and help you tailor the crane to your plant's unique requirements.

The following choices are available with ladle overhead cranes.

• 1. Each mechanism of hot metal ladle crane has a variable speed control.
• 2. A rotary lifting device
• 3Warming display and overload limit
• 5. Weighing and displaying the load;
• 6. Location and display of three-dimensional lifted points
• 7. System for PLC control and fault detection, as well as display, recording, and printing
• 8. Impact protection for cranes in the same bay;
• Simply provide us with your ladle overhead crane specific requirements, and customized overhead crane will be custom-made for your needs.

Working condition:

• The ladle overhead crane's power is three-phase AC, with a rated frequency of 50 Hz and a rated voltage of 380 volts.
• The working environment is at a temperature of -10°C+60°C.
• When the temperature is above 40°C, the relative humidity is less than 50%;
• If the needs are greater than those listed above, it must carry out the criteria in the purchase contract as requested by the user.

Customization Options

Every steel mill and foundry has its own layout, workflow, and production needs. Our double girder ladle cranes are designed to be flexible so you can get exactly what your plant requires. Customization ensures that the crane fits your space, handles the right loads, and works safely in your environment.

• Feature: Adjustable crane span and lifting height.
• Benefit: Ensures the crane covers the full working area, from furnace to casting line, without limiting workflow or requiring extra equipment.

• Feature: Configurable load capacity up to 74 tons (or higher if needed).
• Benefit: Matches the size of your molten ladles or other heavy loads, avoiding overloading and improving operational efficiency.

• Feature: Options include operator cabin, remote control, or PLC integration.
• Benefit: Lets your operators work safely and efficiently. Choose cabin operation for full control, remote operation for hard-to-reach areas, or PLC automation for precise, repeatable movements.

• Feature: Heat-resistant cables, insulated beams, and protective covers.
• Benefit: Protects electrical components and structural elements from the extreme heat of molten metal, extending crane lifespan and reducing maintenance.

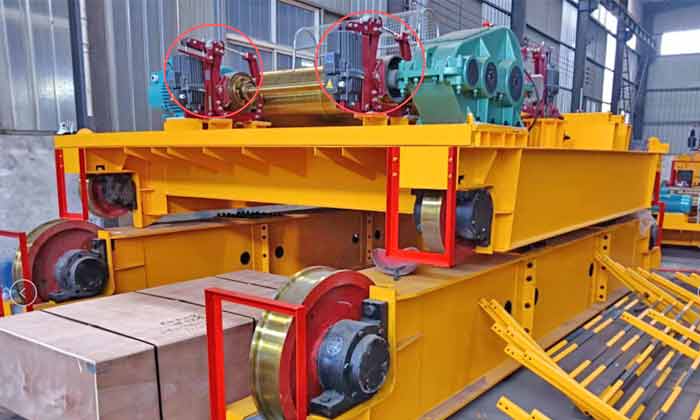

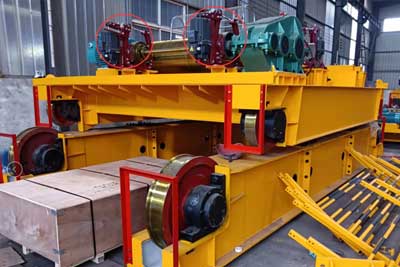

Double brake for hot metal ladle overhead crane to ensure safety

Safety & Compliance

Working with molten metal is one of the most demanding and dangerous tasks in any steel mill or foundry. That's why our double girder ladle cranes are designed with safety and compliance at the forefront. From structural strength to electrical systems, every component meets strict industrial standards to protect operators and equipment.

Duty Class A7 Rating

• Feature: A7 duty class design for continuous heavy lifting.
• Benefit: Guarantees the crane can handle frequent, high-capacity loads in demanding conditions without premature wear or failure. This is essential in steel mills where operations run 24/7.

CE / ISO Compliance

• Feature: Manufactured to meet CE and ISO standards.
• Benefit: Ensures the crane meets international safety and quality regulations, providing confidence for both local and global operations. Compliance also simplifies inspection and approval processes in your plant.

Industrial Safety Features for Molten Metal Handling

• Heat Protection: Insulated beams and heat-resistant wiring reduce the risk of structural or electrical damage.
• Emergency Brakes & Dual Motors: Offer backup in case of system failure, preventing accidents during lifting or lowering of molten ladles.
• Load Monitoring & Limit Switches: Automatically stop operations if limits are exceeded, protecting operators and preventing damage to the crane or ladle.
• Operator Safety: Remote control and PLC integration allow operators to manage loads from safe distances, away from high-temperature areas.

Safety feature:

• a. Protection against overload , the hoisting upsystem will beshut eddown and only lowering motion is possible.
• b. Long and cross travel are restricted by preliminary and final limit switches or a wireless anti-collision device.
• c. The anti-falling protection is used on the ladle cranetrolley andThree-in-One electric motor topreventsaccidental falling.
• d. By activating the emergency-off switch at the control station via a main contact, all movements can be turned off immediately.
• e. High-quality, long-lasting polyurethane materials buffer fixed at the end of trolley and crane travel to prevent overtravel
• e. High-quality, long-lasting polyurethane materials buffer fixed at the end of trolley and crane travel to prevent overtravel
• f. The hook safetylatch is used to keep the lifted material from falling off the hook.
• g. An audible and visual alarm device to warn people not to approach the moving ladle crane.
• h. Rain cover for outdoor crane lifting mechanisms, electric cabinet, and driving mechanism
• i. A protective earth conductor is standard.
• j. Voltage reduction protection system
• k. Current overload protection system

Typical Applications / Industry Use Cases

Double girder ladle cranes are built to handle the toughest jobs in steel mills and foundries. They’re not just lifting machines — they keep production moving safely and efficiently in high-temperature, heavy-duty environments.

These cranes are used wherever molten metal needs to be moved with precision and reliability. From casting lines to continuous operations, they provide consistent performance shift after shift.

Common Applications

• Steel Mill Casting Lines: Move molten steel from furnaces to molds safely and efficiently.
• Foundries and Metallurgical Plants: Handle ladles with molten metal or other high-temperature materials.
• Continuous Casting Operations: Support uninterrupted workflows in modern steel production.
• Heavy Molten Ladle Handling: Lift and transport large ladles with high accuracy, reducing risk to operators and equipment.

At a mid-sized steel mill, a QDY double girder ladle crane was installed to handle 50-ton molten steel ladles. The crane’s heat-resistant design and precise controls allowed operators to reduce ladle transfer time by 15%, while also minimizing wear and tear on the equipment.
