Double Girder Overhead Crane with European Standard Hoist Crane Trolley- NLH series

European Standard double girder overhead crane & eot Crane with FEM standard Hoist Crane Trolley, 5 ton to 80 ton.Low profile double girder eot hoist trolley crane for sale.

Concerned with meeting customers' overhead material handling requirements, Yuantai Crane is constantly focusing on quality and product innovation to provide you with high- quality,and reliable overhead lifting equipment to ensure your material handling safety and efficiently , to achieve our long-term goal , that is, to be world wide material handling solution provider and creating values for customers continuously. The European style double girder overhead crane with hoist crane trolley is a new series of European standard double girder overhead crane which is newly designed advanced double girder overhead crane with low headroom electric wire rope hoist winch for material handling with capacity from 3 ton to 80 ton.

Advantages of double girder hoist trolley overhead crane

The European style electric hoist trolley overhead crane is the most updated version of a double girder overhead crane, designed based on FEM standards and built on the foundation of a traditional double girder bridge crane. As a result, the double girder hoist trolley overhead crane has unrivaled advantages, such as unparalleled performance, tight structure, light dead weight, high safety and reliability, high perform efficiency, and widespread applications in a variety of industries.

Because of the design advantages, the double girder hoist trolley overhead crane could assist you in lowering the initial investment for factory construction, increasing productivity, reducing daily maintenance efforts, lowering energy consumption, and obtaining a higher return on investment.

Features of the double girder hoist trolley overhead crane

With the design concept of cutting down customer’s loss caused by crane problems and downtime, Yuantai Crane has developed the the double girder hoist trolley overhead crane with the main features as follow:

1. Cutting-edge crane technology and stable and reliable crane performance.

Yuantai Crane, as a pioneer in the development of overhead material handling equipment, can innovate advanced overhead crane based on advanced technology and valuable manufacturing experiences from the industries. New type of overhead cranes will be developed and launched after countless tests and improvements, and their quality and safety can be guaranteed. The purpose of the double girder hoist trolley overhead crane is to assist customers in increasing productivity, lowering maintenance costs, extending crane working life, and making the best out of your crane investment.

2. Tight crane structure and modular crane design, your best return investment

Due to its tight structure, low dead weight, low wheel pressure,, even load distribution, and other advantages, , the double girder hoist trolley overhead crane can significantly reduce building construction and heating costs, as well as make maintenance easier. When compared to traditional double girder hoist overhead cranes, the European overhead crane allows for a 10% to 15% reduction in dimension, depending on the weights of the loads. The greater the weight of the loads, the greater the reduction in dimension allowed by European style overhead cranes, and the greater the savings on investment and the higher the investment return.

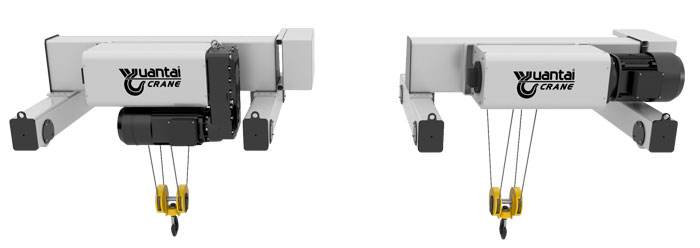

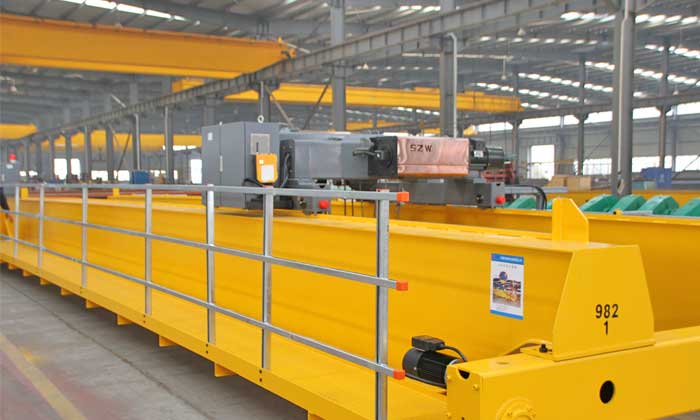

European style double girder hoist trolley

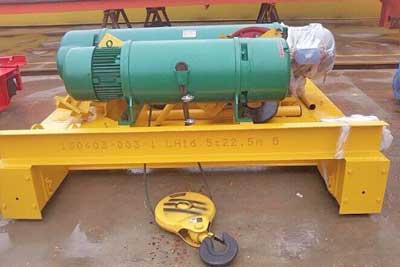

CD/MD double girder hoist trolley for traditional double girder overhead crane

3. The green concept dominates overhead crane innovations for reducing space and energy consumption.

• The compact & low profile overhead crane structure maximizes the working space's usability.
• The eot crane parts' and crane's durability eliminates the need for frequent maintenance.
• Low energy consumption is resulted from low dead weight and low wheel pressure.

4. High safety and dependability, as well as ease of maintenance

The advanced technology, advanced processing crane equipment, and strict quality control measures and inspections ensure the quality of the double girder hoist trolley overhead crane, which ensures the bridge crane's high safety. The design concept of Maintenance Free and Easy Maintenance gives overhead material handling crane a competitive advantage over others while also making them simple to repair and operate.

5. Customized configurations and a wide range of options

Customized configurations of European style double girder overhead cranes with lifting capacities ranging from 5 to 80 tons are available. Customization is possible for turning over hoists, anti-sway devices, automatic positioning devices, winch servicing and monitoring devices, and remote diagnostic tools. With our advanced techniques and experiences, Yuantai Crane can also provide personalized and professional solutions to clients.

European double girder hoist trolley crane components and features

European style double girder hoist trolley crane possess the advantages such as the light dead weight, compact structure, how noise, low energy consumption and smoothly traveling etc. Compare to the traditional crane, the limit distance from the hook to the wall is more smallest and the clearances height is lowest also, which actually increases the effective working space of the existing plant; Due to the light dead weight and small wheel pressure characteristics, the new plant space can be designed to be smaller, more complete function. The smaller plant means that the initial construction investment, as well as long-term heating, air conditioning and other maintenance costs can save a considerable amount of money.

Parts and componets of double girder overhead crane with hoist trolley

The advantages of a European style double girder hoist trolley crane are, as such, a light dead weight, a compact crane structure, low noise, low energy consumption, and smooth travel, among other things. In comparison to traditional double girder cranes, the limit distance from the hook to the wall is smaller, as is the clearance height, which actually increases the effective working space of the existing plant; the new plant space can be designed to be smaller, with a more complete function, due to the light dead weight and small wheel pressure characteristics. Because the plant is smaller, the initial workshop or facility construction investment, as well as long-term heating, air conditioning, and other maintenance costs, can be significantly reduced.

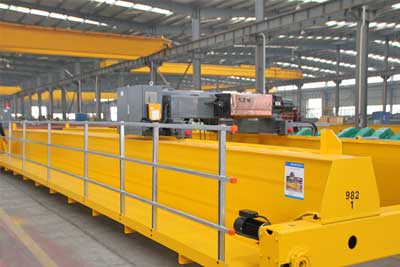

Main Girder of European Hoist Trolley Crane

The main girder of the double girder overhead crane uses a square box H-shaped steel structure design and is heavier than a traditional double girder overhead crane;

Main Girder of European Hoist Trolley Crane

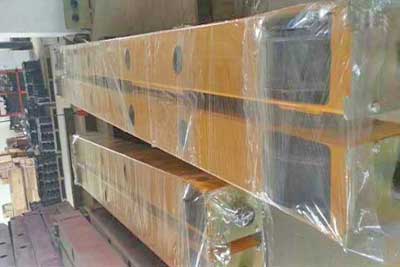

End Carriages of European style double girder hoist crane

End Carriages of European style double girder hoist crane

The end carriages is welded or shaped by rectangular steel pipe or steel plate. Equipped with the double flange wheels, buffers and derailment protection devices; High strength bolts to ensure the accuracy and smooth running of the whole machine.

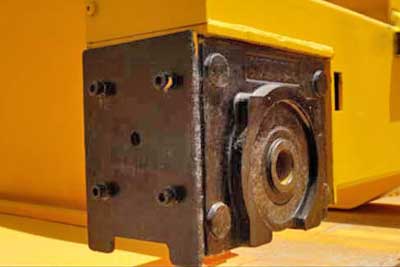

Wheel Block of fem overhead hoist trolley crane

• Wheel block material: nodular cast iron (High strength cast iron material)
• Very durable, without regular maintenance,Simple structure, low manufacturing cost,Easy to achieve high manufacturing accuracy

Wheel Block of fem overhead hoist trolley crane

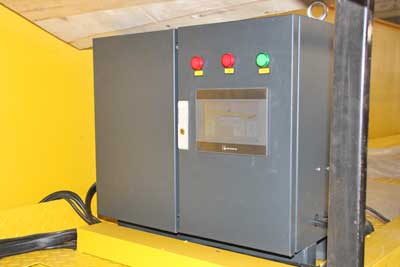

Electric control of double girder overhead crane with hoist trolley

Crane control of double girder overhead crane with hoist trolley

Ergonomic design, patent-pending push button technology, a comfortable feel, and a clear step; CPU with high speed, corresponding time of 20ms; Secondary packing adhesive technology prevents shattering and falling down. When impacted, the system automatically shuts down, and there is a three-level safety guarantee. It is accurate to within 0.1 second of data records.

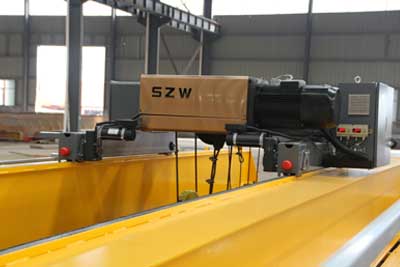

European style electric hoist crane trolley

• The maximum lifting capacity of a single girder hoist trolley is 20 tons, and the maximum lifting capacity of a double girder hoist trolley is 80 tons.
• High efficiency and maximum utilization of warehouse space
• Precise load positioning, efficient crane operation, and improved material handling efficiency
• Safety and reliable, crane operation monitoring, and simple crane maintenance
• Modular crane design, low maintenance costs, and exceptional after-sales service, no worries.
• Safety monitor-Intelligent monitoring system that is both safe and practical, as well as human-friendly.
• Motor-Aluminum shell, high performance motor with disc brakes and maintenance-free design
• Rope guide of electric wire rope hoist -Made of engineering plastic, light weight, and excellent wear resistance
• Four-stage screw-type limit control hook on upper and lower limits, as well as he sequence operation and phase sequence control

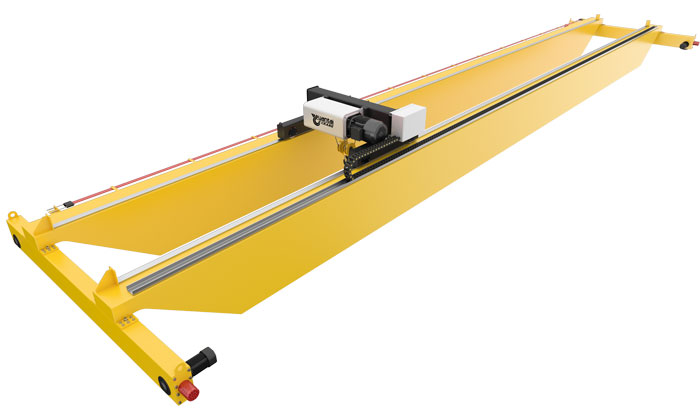

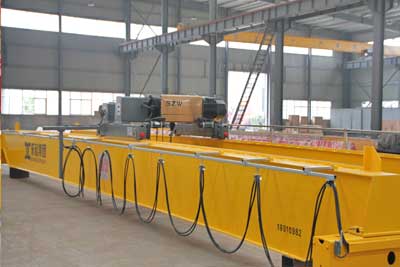

Double rail hoist trolley crane

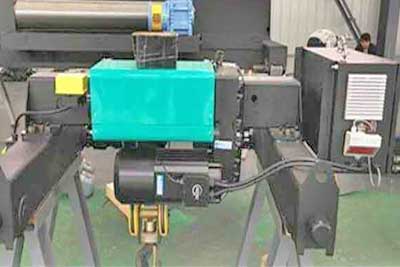

Double girder hoist crane trolley
