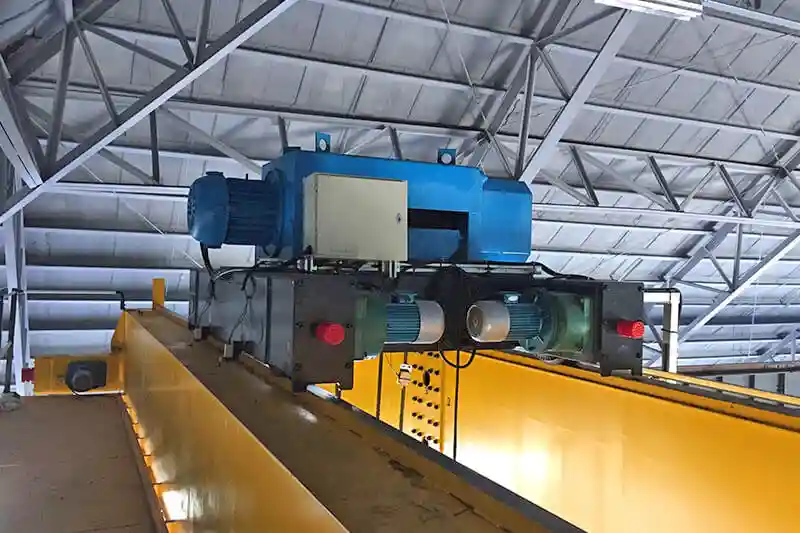

Double Girder Overhead Crane with CD/MD Double Rail Hoist Trolley- LH Series

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

Double girder overhead crane with electric hoist trolley for 5 ton - 63 ton material handling in workshop, storage,power plant, textile & food industry,etc.
√Overhead Crane Type: LH, √ Capacity : 5~63 ton, √ Span: 8m~32m, √ Working Class: A3~A5

Double Girder Overhead Crane with CD/MD Double Rail Hoist Trolley- LH Series

Product Type:	LH
Lifting Capacity:	5~63 ton
Span:	8m~32m
Lifting Height:
Working Class:	A3~A5
Ambient Temperature:	-20~40℃
Crane Price Rangs	More Inquiry Form
$5000-60000+， Economical option; price influenced by hoist type, span, and working duty. Contact us to get the latest price.
	[email protected] 008615038346929

Overview

Double Girder Overhead Crane with Hoist Trolley – Maximize Lifting Efficiency & Safety

Our double girder overhead cranes with hoist trolley are designed for heavy-duty industrial lifting while saving space and enhancing operational safety. With a compact design and high rigidity, these cranes provide reliable performance in warehouses, fabrication workshops, steel mills, and other industrial environments.

Double girder overhead crane with electric hoist trolley for 5 ton - 63 ton material handling in workshop, storage,power plant, textile & food industry,etc. Double girder hoist trolley overhead crane is an double girder overhead crane with the double rail hoist trolley as the lifting mechanism, with the lifting capacity from 5 ton to 63 ton, widely used for general material handling and lifting. The working class of the double girder overhead crane is A3 to A5.

Key Facts:

Capacity range: 5–63 tons
Span: customizable based on your workshop
Ideal for: warehouse, steel mill, fabrication, automotive, machine shops
Available with CD/MD wire rope or electric chain hoists
Control options: pendant, radio remote

Key Benefits & Features

High Hook Travel Height – Maximize vertical working range for lifting tall molds, large assemblies, or stacked materials.
Improved Load Stability – Dual girders reduce deflection and vibration, improving safety and precision.
Low Clearance Option – Fits workshops with restricted headroom without compromising capacity.
Energy Efficiency – Compact design lowers dead weight and reduces energy consumption.
Durable Components – High-quality hoist trolley, end carriages, wheels, and bearings ensure long-term reliability.
Customizable Options – Choose span, lifting height, duty class, and control type to suit your operation.

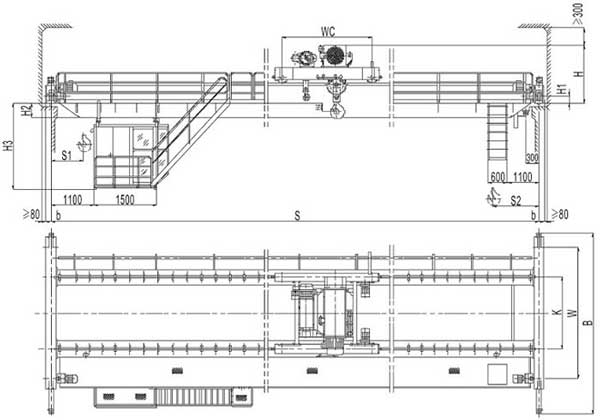

Crane drawing of double girder overhead crane with double rail hoist trolley

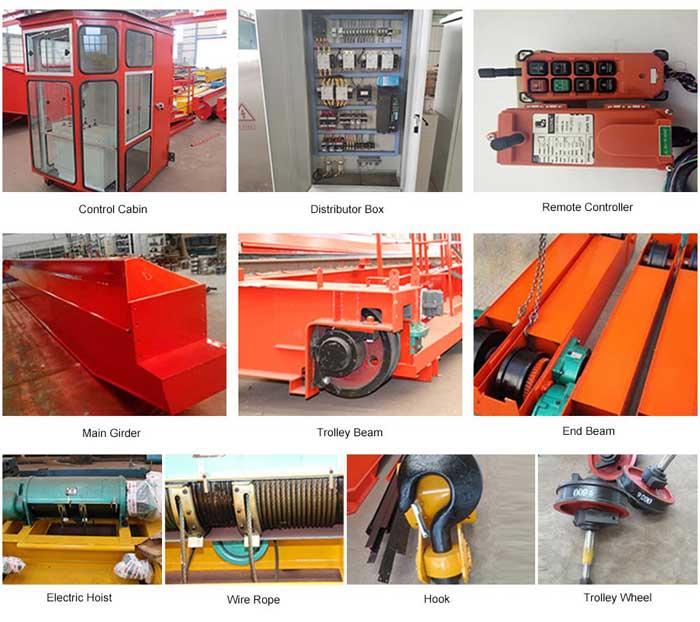

Components of Electric Hoist double girder overhead cane

The double girder overhead crane with hoist trolley is mainly consisted of the following crane components, such as, bridge frame, trolley, crane travelling mechanism, and electrical control system.

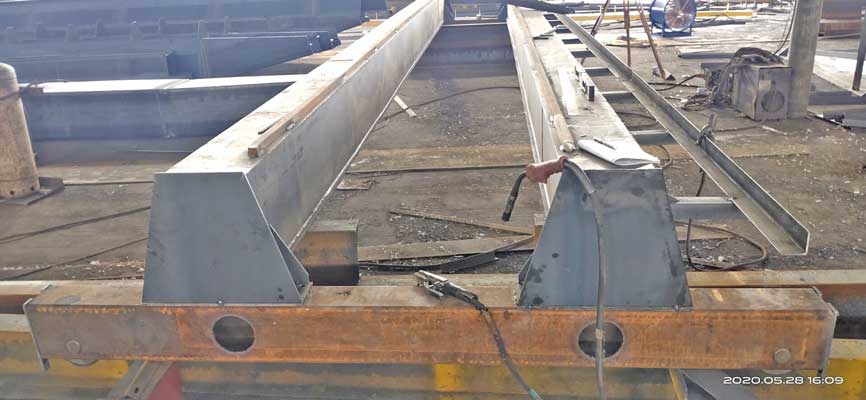

Main girder - Double girder crane parts

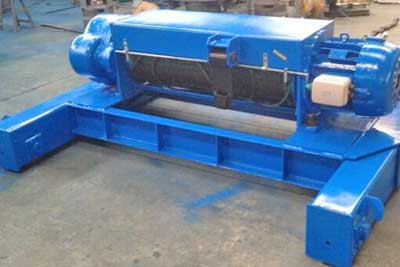

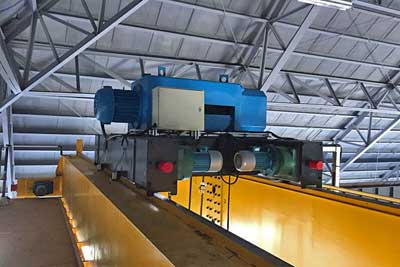

Electric wire rope hoist trolley for double girder overehad crane

Advantages of double girder overhead crane with hoist trolley

compact structure, good rigidity,
easy operation, low noise,
low building height clearance,
light weight and small wheel pressure,
safe and reliable,
Attractive appearance, etc.

Application of double girder overhead crane with hoist trolley

The double girder overhead crane with hoist trolley is a type of common material handling equipment that is widely used in machinery processing workshops, warehouses, yards, plants, and other locations, among others. It can also be used as an alternative to a double-girder overhead crane, which is commonly found in textile and food manufacturing workshops.

The LH Series double girder overhead crane is a versatile and cost-effective lifting solution designed for general material handling. It offers lifting capacities from 5 to 63 tons, spans 8m to 32m, and working classes A3–A5, operating reliably in ambient temperatures from -20°C to 40°C. Its durable design, smooth operation, and flexible configuration make it ideal for a wide range of industries.

Workshops handling steel and metal materials require a crane that can safely and efficiently move heavy loads. The LH Series is perfect for general material handling tasks in fabrication plants.

Lifting steel plates, beams, and fabricated components
Loading and unloading hot or cold rolled materials
Supporting frequent lifting tasks up to 63 tons

Efficient material handling is critical in warehouses and logistics centers. The LH Series simplifies the movement, stacking, and storage of heavy or bulky items while improving workflow.

Stacking and storing pallets, containers, or large equipment
Reducing labor time and streamlining material flow in high-density areas

Assembly lines often require accurate and smooth lifting of heavy components. The LH Series supports general material handling in automotive and machinery production.

Lifting engines, chassis, or machine subassemblies
Ensuring precise positioning for assembly operations

Shipyards and marine workshops need cranes capable of moving large components efficiently. The LH Series provides a cost-effective solution for general handling in indoor or dockside settings.

Lifting hull sections, engines, and shipboard machinery
Suitable for workshops with limited headroom

Factories producing precast elements and construction components benefit from a crane that handles heavy loads reliably. The LH Series is ideal for general material handling in these environments.

Moving precast concrete elements, molds, and formwork
Supporting efficient workflow for heavy construction components

Maintenance and material handling in mining or energy operations often involve large, heavy equipment parts. The LH Series ensures safe and efficient handling.

Lifting equipment parts, turbines, and generator components
Suitable for workshops, maintenance bays, and industrial depots

Even in steel mills or foundries, the LH Series is ideal for general material handling of billets, ingots, and coils, offering reliability in challenging environments.

Lifting steel billets, ingots, coils, and molds
Performing consistently under variable ambient conditions

Moving heavy machinery parts between stations requires reliable, smooth operation. The LH Series supports general material handling tasks efficiently.

Transporting machinery parts between assembly stations
Reducing downtime during machine installation and maintenance

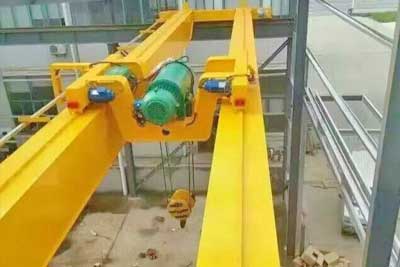

Double girder overhead crane with customized electric hoist trolley frame, placed between the two girder

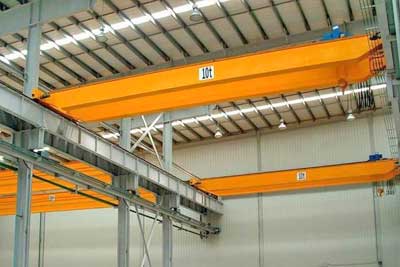

General use double girder overhead crane with electric hoist crab trolley

Features of double girder overhead crane with hoist trolley

The crane bridge's double girder structure provides sufficient strength, rigidity, and stability.
The rail-in-middle box girder design satisfies the requirements for strength, rigidity, and stability.
Simple-structured end beams can be easily installed with the main beam of the double girder crane by using high-strength bolts.
As for the lifting mechanism, a high quality CD or MD wire rope electric hoist is used, which also can be designed with your lifting retirements.
Soft starting motors with low current are used in conjunction with ground overhead crane control.
A dual-motor independent drive device is used to reduce rail gnawing wear and the possibility of wheel climb off track faults. etc.
The motor is directly controlled by a contactor, which allows for single and double speed control as well as reversing.
A frequency converter is used to change the frequency and voltage of motor power in order to realize the function of motor speed control.
A multi-level safety protection system is used, which includes short circuit protection, no-voltage protection, emergency power off switch protection, overload limit protection, travel limit protection, zero and chain protection, ground protection, and other features.

5 ton hoist trolley with two hoist

Electric hoist crab trolley with double speed wire rope hoist

Double girder hoist trolley with square electric wire rope hoist

Double beam hoist trolley with single speed electric wire rope hoist

3 ton + 3 ton Double Girder Overhead Crane with Hoist Trolley for Sale Maldives

Main specifications of double girder hoist trolley overhead crane
Capacity of double girder crane： 3 ton + 3 ton
Crane span of double girder crane: 9.093 m
Lifting height of double girder crane: 5.2 m

And customized steel structures are also provided. If you want to get your customzied double girder overhead crane with hoist trolley , please feel free to contact us.

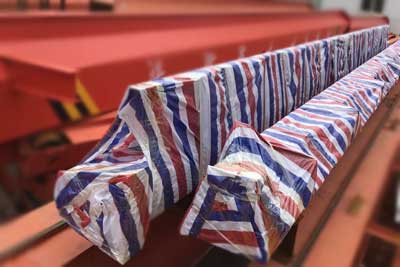

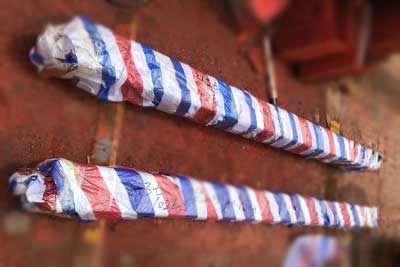

3 ton + 3 ton Double Girder Overhead Crane with Hoist Trolley for Sale Maldives

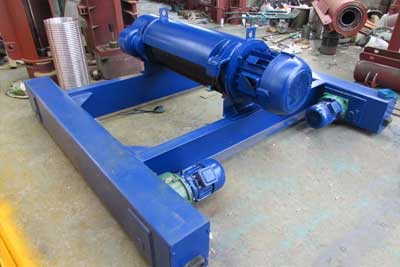

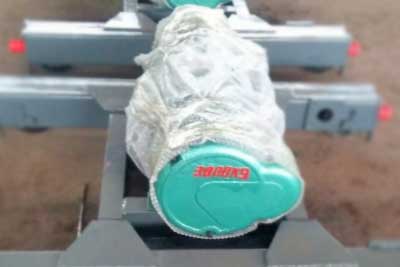

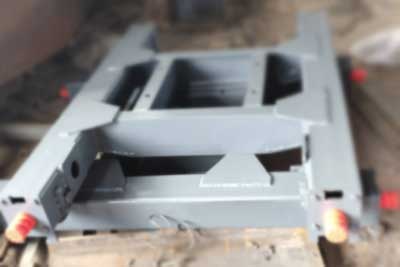

Electric wire rope hoist trolley frame

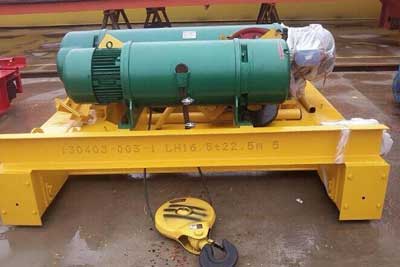

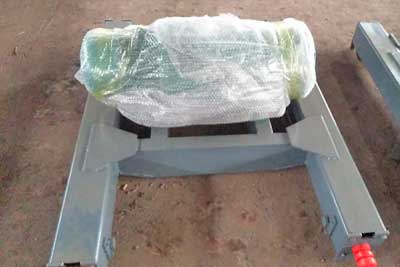

3000kg wire rope hoist trolley for 3 ton + 3 ton double girder overhead crane

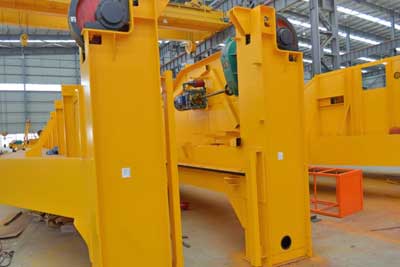

Crane parts for 3 ton overhead crane

3 ton double girder overhead crane parts

Frequently Asked Questions – LH Series Double Girder Overhead Crane

This FAQ addresses common concerns of crane buyers, covering industrial applications, typical loads, workshop conditions, energy efficiency, maintenance, purchasing decisions, and cost considerations for general material handling.

It is designed for general material handling across multiple industries.

Ideal for workshops, warehouses, steel fabrication plants, automotive assembly lines, precast concrete factories, and shipyards.
Works well in both indoor facilities and partially sheltered yards, depending on protective options.

It can lift anything from 5 to 63 tons, depending on the model.

Common loads include steel plates, beams, billets, ingots, pallets, concrete molds, engines, and machinery parts.
Confirm load weights and dimensions to ensure proper hoist selection and duty class.

You need to measure both the building span and headroom for safe operation.

Ensure the crane span fits your workshop width and length, and the lifting height clears overhead obstructions.
Check space for endcarriage travel and load swinging; tight spaces may require low-headroom designs.

Yes, it is rated for ambient temperatures between -20°C and 40°C.

Suitable for dusty or moderately hot indoor workshops, steel mills, or foundries.
For outdoor or corrosive environments, consider weatherproof hoist covers or protective coatings.

It is designed to reduce energy use while maintaining stable performance.

Dual girders improve load stability and reduce vibration, lowering wasted energy.
CD/MD hoists operate smoothly with minimal power consumption, especially under moderate lifting cycles.

Regular inspection and lubrication of hoist trolleys, wheels, bearings, and endcarriages are recommended.

Duty class A3–A5 determines inspection intervals based on lifting frequency.
Proper maintenance prevents downtime and prolongs crane lifespan.

Match capacity, span, and lifting height to your typical loads and workshop layout.

Assess maximum and average load weights, lifting frequency, and dimensions.
Decide on hoist type, control options, and optional automation for precision or remote operation.

Choose a model that fits your lifting needs without over-specifying capacity.

Oversized cranes increase cost unnecessarily, while undersized cranes risk overloading.
Consider energy use, installation costs, and maintenance when comparing options.

Provide detailed specifications and clarify optional features.

Include lifting capacity, span, lifting height, duty class, hoist type, and control method.
Ask about optional accessories like limit switches, weatherproof covers, or remote control systems.
Confirm warranty, delivery, and installation support.

It adapts well to indoor workshops, maintenance bays, and partially covered yards.

Check runway beam strength, floor capacity, and headroom clearance.
Outdoor installations may require anti-corrosion treatment or hoist covers.

CD hoists are suitable for moderate, intermittent lifting; MD hoists are for heavier, more frequent loads.

CD hoists are cost-effective for lighter or occasional lifts.
MD hoists are robust for continuous heavy-duty operations, reducing wear and downtime.

Space, load variations, energy supply, and installation feasibility are common concerns.

Ensure the crane can handle varying load sizes and weights safely.
Verify that the facility layout allows smooth endcarriage travel and sufficient hook clearance.
Check if energy supply meets operational requirements for frequent lifting cycles.

By combining durability, energy efficiency, and low maintenance needs.

Dual-girder construction reduces deflection, extending component life.
Customizable spans and heights avoid oversizing and save on installation and operating costs.
