Coil Handling Crane & Steel Coil Lifter

Types of coil handling cranes, i.e, overhead cranes & gantry cranes with types of steel coil lifters for horizontal & vertical steel coils hoisting.

Yuantai Hoist and Crane's coil handling crane is a specialized designed coil lifting equipment for the steel industry. Coil handling cranes are used to transport material between different machines in rolling mills. They may include a rotating trolley to properly position the steel coils in relation to the conveyor. Yuantai coil lifting equipment and coil lifters for sale.

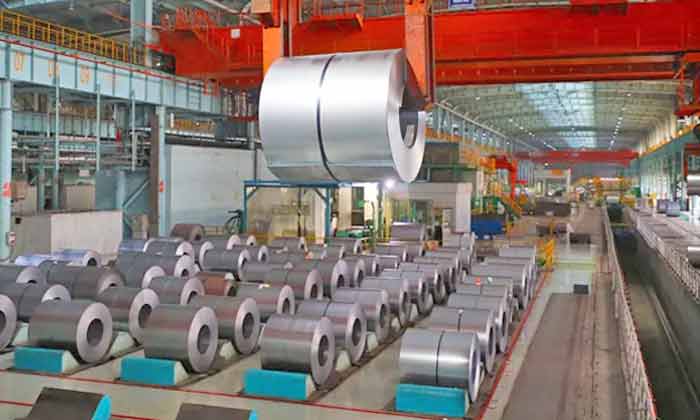

Overhead crane for coil and plate handling

The coil handling cranes can be utilized indoors or outdoors, with capacities ranging from 5 to 250 tons and spans ranging from 10.5 to 31.5 meters. It can be an overhead crane with hook, overhead crane with grab, overhead crane with magnet, overhead crane with magnet and carrier-beam, depending on the needs of the user.

Coil handling crane & tong cranes - Overhead crane with coil lifter

Main crane specifications of coil handling overhead cranes

• Capacity of coil handling crane: 2-250 tons
• Span of coil handling crane: ≥10m
• Lifting height of coil hoisting crane: : ≥5m
• Work duty of coil lifting crane: ≥FEM 1M
• Inverter of coil handling crane: : Schneider,
• Motor: China famous brand or European brand
• Fully customized coil lifting equipment solutions are available ahead standard configurations.

Our steel coil handling crane is built with particular characteristics to deal with the greater risk working environment. When there is an emergency, the emergency brake can stop the crane to protect the operator and the goods. Outstanding heat resistance thanks to the addition of a thermal-protective coating on the main beam's bottom! Cabin control with air conditioning to keep operators safe from the elements. The crane beams are made of welded steel.

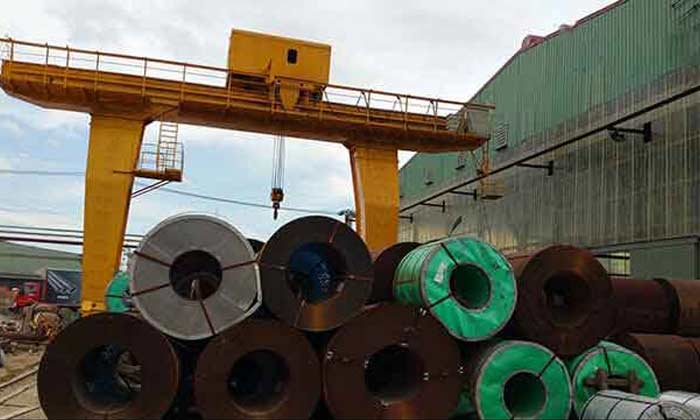

Gantry cranes for steel coil handling

As for outdoor steel coil handling, there are various types of gantry cranes are available to meet the needs of different coil handling requirements and applications. Mainly, the single girder gantry crane, double girder gantry crane, and L leg gantry crane for your selection.

• Single girder gantry crane for steel coil handling
• Double girder gantry crane for steel coil handling
• L leg single girder gantry crane for steel coil handling
• Truss girder gantry crane for coil handling

Types of steel coil handling lifters

According to your lifting requirement and working application condition, different types of steel coil lifters are available for your selection.

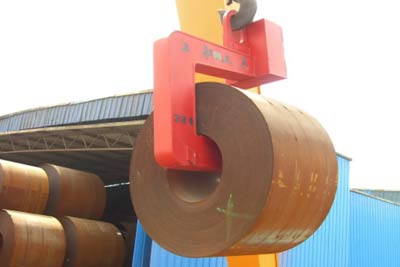

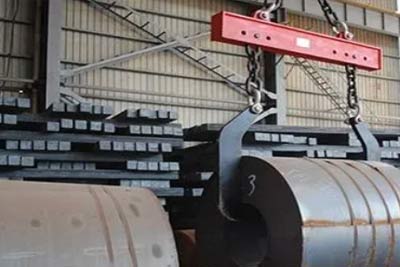

C hook coil lifter

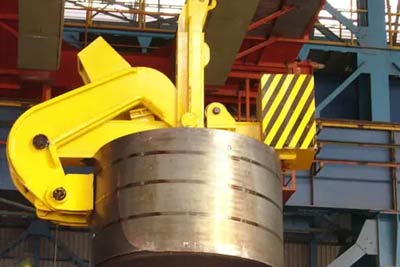

Tong coil lifter

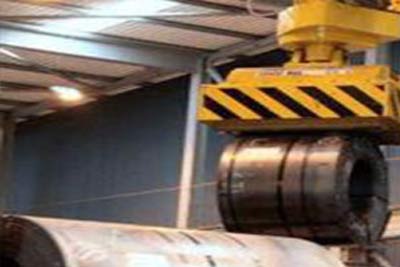

Electromagnetic coil lifter

Horizontal coil lifter

Vertical coil lifter

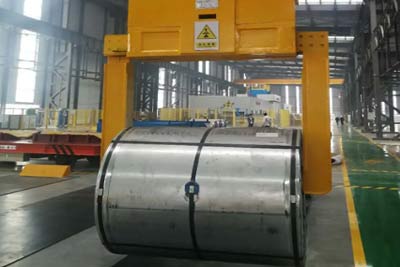

Clamp coil lifter

Features of coil handling crane

Coil handling cranes can also be used to precisely and safely handle metal bars, plates, and coils during all machining processes. Coil handling cranes are often designed with a double girder or double beam design for both indoor and outdoor material handling. Thet can be equipped with a variety of unique features, such as:

• Different below the hook devices: Standard hooks, grabs, magnets, C-hooks, hydraulic tongs, and carrier beams, among other above below-the-hook solutions
• Remote control options include programmable logic controllers, which allow the crane to monitor its own conditions and provide smart features and maintenance alerts, as well as remote and cabin control.

Main parts of Coil Handling Cranes

• All of our coil handling cranes are produced and developed in accordance with ISO9001 2000, ISO9001 2004 and OHSAS 18001.
• In compliance with ISO9001 2000, the 3-phase asynchronous motor can provide smooth operation in intermittent, short-term, frequent starting, braking, and load conditions, and the motor may be tuned to variable speed as required by the customer. For hoisting, insulation class F and IP 54 protection are required.
• Hardened reducer wheel gear is made by carburizing and quenching high strength low carbon steel alloy, resulting in high precision, efficiency, stable running, low noise, small volume, and high bearing capacity.
• Breaks: Independent Hydraulic Breaks ensure that the crane is safe and easy to operate.
• Pendant control, cabin control, and remote control are all available.

Steel coil handling crane projects

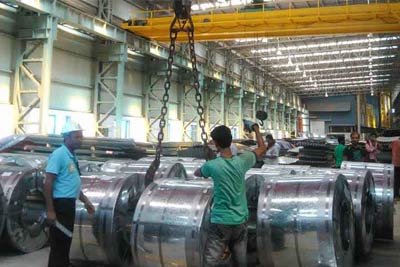

Coil handling cranes used in Bangladesh steel coil plant—Yuantai Overhead crane project

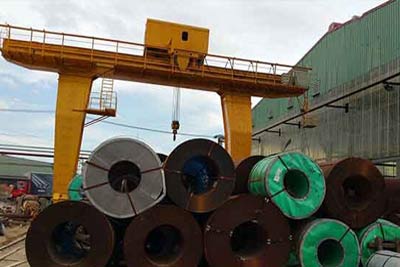

Steel coil handling crane: L leg gantry for steel coil handling in Dhaka, Bangladesh

Get your customized coil handling crane

With more than 30 years experiences in crane design and manufacturing, Yuantai Crane has provided numerous tailored crane solution for customized around world. As for your particular coil handling application and coil lifting requirements, Yuantai Crane will work out the most suitable coil handling crane for your applications. If you need a tailored coil handling crane, please feel free to contact us.

Parameters needed for customized coil handling crane

• Types of cranes needed: Generally, Overhead crane for indoor use , Gantry Cane for outdoor application
• Main parameters of coil crane: Crane capacity, Crane Span, Lifting Height & Power supply
• Steel coil size: Inner diameter, Outer diameter & Coil length
• Any other requirement.

More information to get your customized coil handling crane, please feel free to contact us. Yuantai Crane is here to provide you optimal coil handling solution for your application.
