Hook suspension hoist design electric chain hoist for vertical hoisting light loads 0.25 ton, 500kg, 1 ton, 2 ton, 3 ton & 5 ton. Get your hook suspension hoist design.
Hook suspension electric chain hoist 500kg-5tons
Hook suspension hoist design electric chain hoist for vertical hoisting light loads 0.25 ton, 500kg, 1 ton, 2 ton, 3 ton & 5 ton. Get your hook suspension hoist design.
An electric chain hoist is a type of compact, light lifting apparatus that comprises of a motor, drive system, and sprocket. Produced in compliance with international standards is the chain electric hoist. The body is in excellent form and has qualities that make it sturdy and long-lasting. All internal gears undergo high-temperature quenching to increase their durability and wear resistance. Incorporating cutting-edge technology from around the world, exquisite craftsmanship, and a precise fit between gears. Advanced performance and construction, compact size, light weight, dependable operation. The operator of the electric chain hoist can operate it using a pendant button on the ground or a wireless remote control.

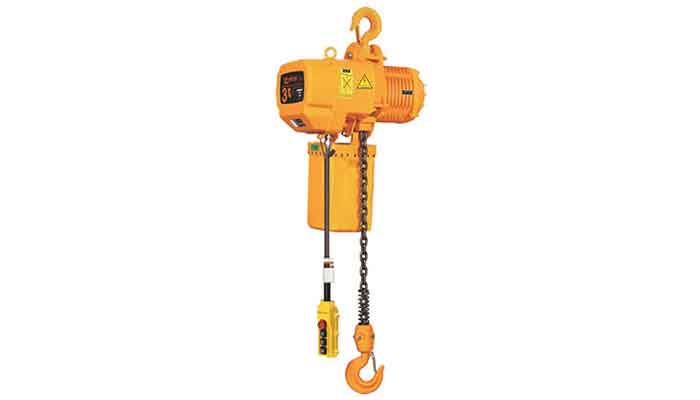

Overview of Hook suspension electric chain hoists 250 kg ,300kg, 500kg - 5 ton
Hook suspension hoists are one type of electric hoist that is commonly used with overhead cranes, gantry cranes, and jib cranes, which are the most commonly used material handling solutions. We can lift and move heavy objects and loads with the proper hook suspension hoist at the touch of a button.
We can work more efficiently with a proper hook suspension hoist, saving energy, time, and money to some extent.
- With a proper hook suspension hoist, we can create a safe working environment and save lives, allowing us to live a more enjoyable life.
- Capacity ranges of hook hoist：300kgs -5tons
- G80 Load chain and imported load chain 3. 3, 4，5 and 6 m as standard lift heights. Customized lifitng height is available.
- Single or two-speed hoisting options
- Inverter or two-speed controlled trolley options
- Low noise of hook electric chain hoist : 81db
- Insulation grade of hook mounted chain hoist : F class
- Hook suspension hoist compact size and easy installation
- Hook suspension hoist working temperature: -40℃ – +40℃
Top 4 Hook Suspension Electric Chain Hoist Characteristics
The following are the top four hook suspension electric chain hoist characteristics in motor brake, hook and hook latch, limit switch, friction clutch for smooth load, and lift material.
Motor Brake: The motor brake is unique. It is equipped with a rotor brake system. Because of its strong braking power. The hoist is capable of safely supporting its loads. The motor brake is made of non-asbestos materials.
- Hook & Hook Latch: The hook is forged with carbon steel, so it will not break but will gradually come apart if overloaded. A hook latch, installed on the hook, keeps the load in the hook when the Load sling fails.
- Limit Switch: If the hoist is lifted too far, it will stop automatically and immediately. When the hoist becomes overly tight, it will automatically and abruptly stop lifting or falling.
- When the hoist is overloaded or excessively tight, the friction clutch mechanism can stop the motor racing to avoid lineages. The friction clutch is made of non-asbestos materials.
Techincal Specifications of Hook Suspension Hoist
|
Type |
Capacity(ton) |
Lifting Height(m) |
Lifting Speed(m/min) |
Lifting motor |
|
Power(kw) |
Rotation Speed(r/min) |
Phases |
Voltage(V) |
Frequency |
|
HHBB0.5-01S |
0.5 |
3/9 |
7.2 |
1.1 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB01-01S |
1 |
3/9 |
6.8 |
1.5 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB01-02S |
1 |
3/9 |
3.6 |
1.1 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB02-01S |
2 |
3/9 |
6.6 |
3 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB02-02S |
2 |
3/9 |
3.4 |
1.5 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB03-01S |
3 |
3/9 |
5.6 |
3 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB03-02S |
3 |
3/9 |
3.3 |
3 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB03-03S |
3 |
3/9 |
2.2 |
1.5 |
1440 |
3 |
220-440 |
50/60 |
|
HHBB05-02S |
5 |
3/9 |
2.8 |
3 |
1440 |
3 |
220-440 |
50/60 |
Features of Hook suspension hoists
- Hook suspension hoist shell:The cooling fin is especially designed to ensure quick heat dissipation with rate up to 40% and continuous service. The shell of the hook suspension hoist is made of die-cast aluminum alloy, light but hard.
- Hook suspension hoist motor:Yuantai hook suspension hoist adopts the Side Magnetic Series YEP Braking Motor.
- Chain hoist gear:The hoist gear of the hook suspension hoist is made of alloy steel by carburizing quenching treatment. Thus transmission with low noise and high efficiency is guaranteed.
- Inverse phase sequence protecting device:Invers phase sequence protecting device is used to cut the circuit of the hook suspension hoist in case of wiring error in the power supply.
- ·Side magnetic braking device: When the power is turned off, the hook suspension hoist instantly brakes. As a result, braking safety while loading is ensured.
- Electromagnetic contactors : It can be used safely at high frequencies.
- Control switch: A waterproof push button is used to operate the hook suspension hoist. It is both lightweight and long-lasting.
- Limit switch:A limit switch device is installed where the weight is lifted on and off to cause the motor to stop automatically, preventing the chains from being overloaded for safety.
- Chain bag:The chain bag of Yuantai hook suspension hoist is light, attractive and durable.
- Lifting Chain:The lifting chain of Yuantai hook suspension hoist usually adopts FEC G80 ultra heat-treated alloy steel chain, which also can be safety in poor environment such as rain, sea water and chemicals.
- Hoist Hook:The lifting hook of Yuantai hook suspension hoist is forged with perfect strength which is hard to break.
- The lower hook's operation safety is ensured by its 360-degree rotation and safety.
- Support frame: The loading support frame is made of two steel plates that are extremely strong.
Transformer: a transformer device that operates at 24 V/36 V/48 V. This device is used to prevent unexpected accidents caused by electrical leakage and to ensure safe operation while it is raining.
Yuantai hook suspension hoist and hoist drawing for your reference

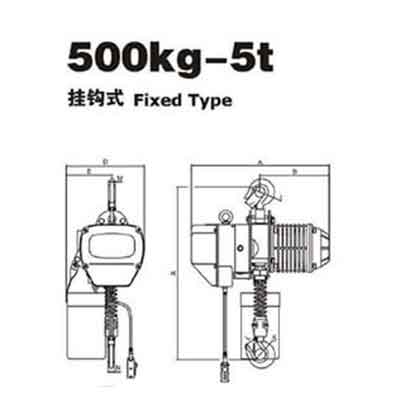

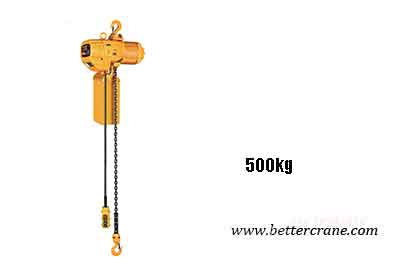

500kg- 5 ton hook suspension hoist

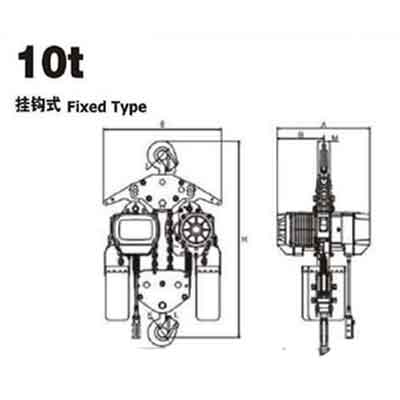

10 ton hook suspension hoist

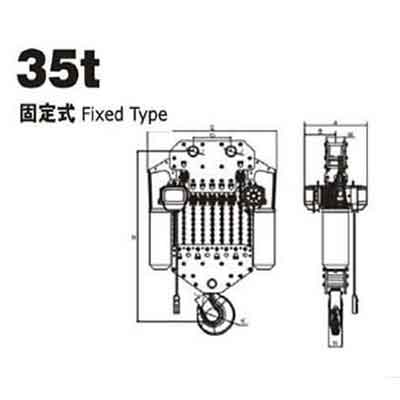

35 ton Hook suspension hoist
Get your Hook suspension electric chain hoist
Electric chain hoist with hook for sale. Fixed hook suspension hoists with lifting capacities ranging from 300 kg to 50 tons, as well as various fixed type chain hoist designs, are available for purchase at a reasonable price. Hook suspension hoists can be customized. If you require any hook suspension hoist, please contact us today to obtain your hook suspension hoist design tomorrow.
