Hook Suspension Electric Chain Block 10 Ton

Yuantai Crane for Better Solutions:

Energy-Saving | Space-Saving | Cost-Efficient | CE/ISO/EX

Hook mounted electric chain block 10 ton for sale. Pendant control & remote control electric chain hoist 10 ton, your economical electric hoist for sale.

Hook Suspension Electric Chain Block 10 Ton

Product Type:	Electric chain hoist hook moun
Lifting Capacity:	10 ton
Span:	/
Lifting Height:	As your requirement
Working Class:	M3,M4
Ambient Temperature:	-20-+40 ℃
Crane Price Rangs	More Inquiry Form
PRICE RANGE: $3,000 – $5,500 +/ set (for reference only) NOTE: Pendant or remote control options. Economical heavy-duty hook hoist for vertical lifting. Contact us to get the latest price.
	[email protected] 008615038346929

10 Ton Electric Chain Block, Economical Electric Chain Hoists

Hook mounted electric chain block 10 ton for sale. Pendant control & remote control electric chain hoist 10 ton, your economical electric hoist for sale.

10 Ton Electric Chain Block, upper hook to support hoist & lower hook to carry loads. Cheap true vertical lifting, dual speed & variable speed optional. Check electric chain block now.

An electric chain block is a type of compact, light lifting apparatus that comprises of a motor, drive system, and sprocket. Produced in compliance with international standards is the chain electric hoist. The body is in excellent form and has qualities that make it sturdy and long-lasting. All internal gears undergo high-temperature quenching to increase their durability and wear resistance. Incorporating cutting-edge technology from around the world, exquisite craftsmanship, and a precise fit between gears. Advanced performance and construction, compact size, light weight, dependable operation. The operator of the electric chain block can operate it using a pendant button on the ground or a wireless remote control.

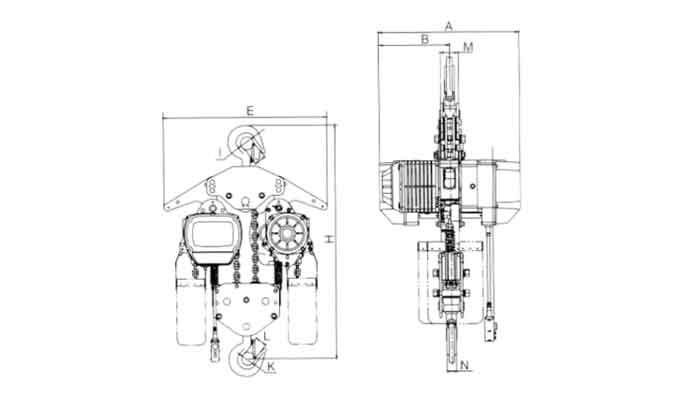

10 ton electric chain block with suspension hook hoist design drawing

Main Specifications of electric chain block 10 ton

Hook suspension electric chain blocks are one type of electric hoist that is commonly used with overhead cranes, gantry cranes, and jib cranes, which are the most commonly used material handling solutions. We can lift and move heavy objects and loads with the proper electric chain blockat the touch of a button.
We can work more efficiently with a proper motorozied chain hoist saving energy, time, and money to some extent.

With a proper motorozied chain hoist we can create a safe working environment and save lives, allowing us to live a more enjoyable life.
Capacity ranges of electric chain block：10 ton
G80 Load chain and imported load chain 3. 3, 4，5 and 6 m as standard lift heights. Customized lifitng height is available.
Single or two-speed hoisting options
Inverter or two-speed controlled trolley options
Low noise of hook electric chain block : 81db
Insulation grade of hook mounted chain hoist : F class
Hook hoist compact size and easy installation
Hook hoist working temperature: -40℃ – +40℃

Main Parts and Components of Hook Suspension Electric Chain Hoist 10 ton

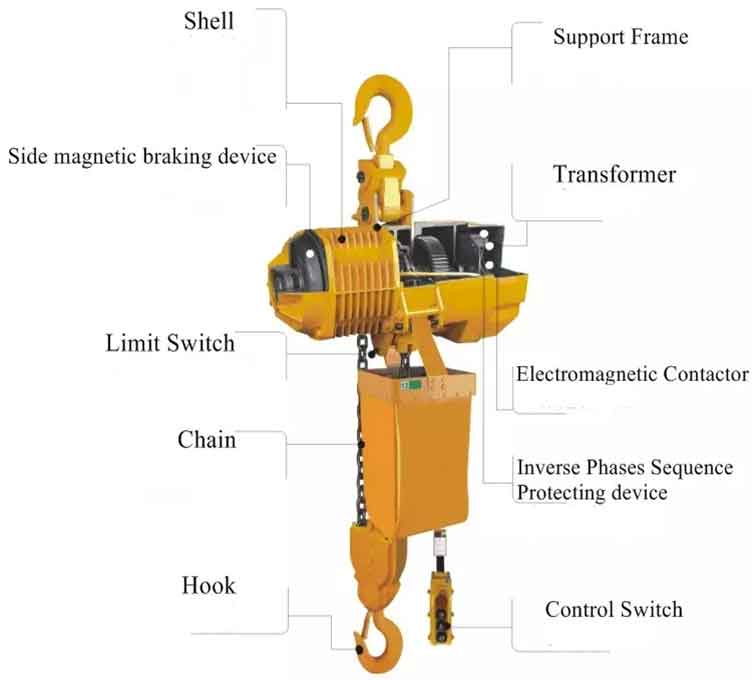

hook mounted electric chain block main parts and components

Motor	Adopt advanced magnetic cone brake to provide reliable stopping
Chain Wheel	Increase the number of load sheave pockets helps reliable vibrations produced by revolving polygonal sheave on the hoist's body and load chain.
Safe Brake	Electric brake is designed for easy access and simple adjustment. It allows instant brake as soon as the electric power is cut off. Thus the braking safety while loading is guaranteed.
Electric Control Box	Upper and lower Limit Switch	The limit switch will cur off the motor circuit and prevent the damage to hoist structure and load chain when over-lifting or over-lowering happens.
	Inverse phase sequence protecting device	It's the special electrical installation of controlling the circuit not work in case wiring error in the power supply.
	Contactor	Schneider/Eaton Brand
	Transformer	Available for voltage 220V, 380V, 440V etc.
Hook & Hook Latch	High strength forged alloy steel hook with safety latch, allows 360° rotation in smooth and easy.
Control Switch	Protection class：IP55
	Emergency stop button
	Longer working life
Chain	high strength FEC G80 chain, good abrasion resistance.
Chain Bag	Light , attractive and durable.

Yuantai electric chain block 10 ton video and hoist drawing for your reference

Video of 10 ton electric chain hois wih hook mounted type

500kg electric chain block with electric chain fall hoist design

Hook suspension electric chain block 500kg

1 ton electric chain block with electric chain fall hoist design

Hook suspension electric chain block 1 ton

2 ton electric chain block with electric chain fall hoist design

Hook suspension electric chain block 2 ton

3 ton electric chain block with electric chain fall hoist design

Hook suspension electric chain block 3 ton

5 ton electric chain block with electric chain fall hoist design

Hook suspension electric chain block 5 ton

10 ton electric chain fall hoist with hook suspension design

Hook suspension electric chain block 7.5 ton

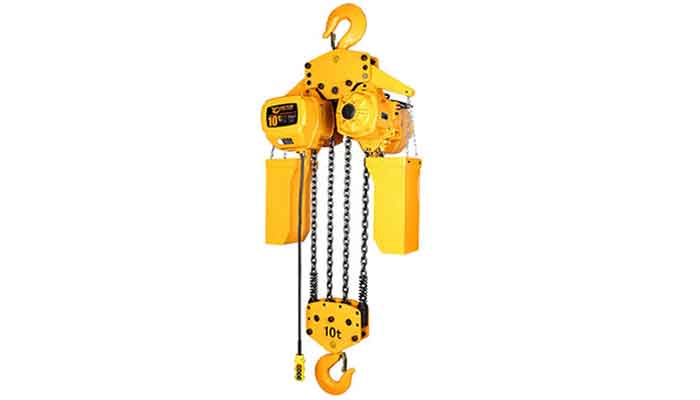

Hook suspension electric chain block 10 ton

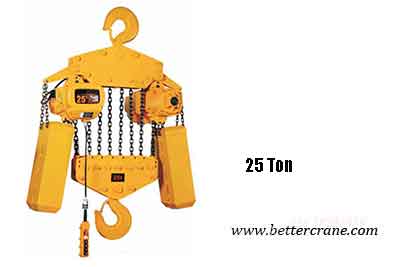

25 ton electric chain hoist with hook mounted design

Hook suspension electric chain block 30 ton

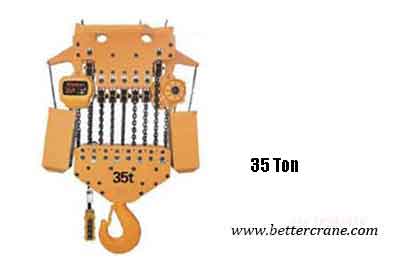

35 ton electric chain hoist with hook mounted design

Hook suspension electric chain block 35 ton

500kg- 5 ton electric chain block

10 ton electric chain block

35 ton electric chain block

Get your customized electric chain block

Electric chain hoist with hook for sale. Fixed electric chain fall hoists with lifting capacities ranging from 300 kg to 50 tons, as well as various fixed type chain hoist designs, are available for purchase at a reasonable price. Hook hoists can be customized. 10 ton electric chain block with hook suspension design can be customized based on your lifting requirements and application conditions

If you require any motorozied chain hoist please contact us today to obtain your electric chain blockdesign tomorrow.
