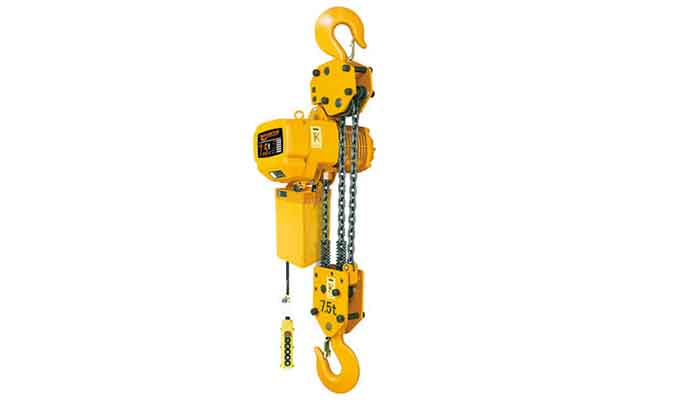

7.5 Ton Hook Hoist, Electric Chain Hoists for Hook Crane

7.5 Ton Hook Hoist, Electric Chain Hoists for Hook Crane

7.5 Ton Hook Hoist, upper hook to support hoist & lower hook to carry loads. Cheap true vertical lifting, dual speed & variable speed optional. Check hook hoist now.

7.5 Ton Hook Hoist, upper hook to support hoist & lower hook to carry loads. Cheap true vertical lifting, dual speed & variable speed optional. Check hook hoist now.

An electric chain hoist is a type of compact, light lifting apparatus that comprises of a motor, drive system, and sprocket. Produced in compliance with international standards is the chain electric hoist. The body is in excellent form and has qualities that make it sturdy and long-lasting. All internal gears undergo high-temperature quenching to increase their durability and wear resistance. Incorporating cutting-edge technology from around the world, exquisite craftsmanship, and a precise fit between gears. Advanced performance and construction, compact size, light weight, dependable operation. The operator of the electric chain hoist can operate it using a pendant button on the ground or a wireless remote control.

Main Specifications of electric chain fall hook hoist 7.5 ton

Hook hoists are one type of electric hoist that is commonly used with overhead cranes, gantry cranes, and jib cranes, which are the most commonly used material handling solutions. We can lift and move heavy objects and loads with the proper hook hoistat the touch of a button.
We can work more efficiently with a proper hook hoist, saving energy, time, and money to some extent.

• With a proper hook hoist, we can create a safe working environment and save lives, allowing us to live a more enjoyable life.
• Capacity ranges of hook hoist：7.5 ton
• G80 Load chain and imported load chain 3. 3, 4，5 and 6 m as standard lift heights. Customized lifitng height is available.
• Single or two-speed hoisting options
• Inverter or two-speed controlled trolley options
• Low noise of hook electric chain hoist : 81db
• Insulation grade of hook mounted chain hoist : F class
• Hook hoist compact size and easy installation
• Hook hoist working temperature: -40℃ – +40℃

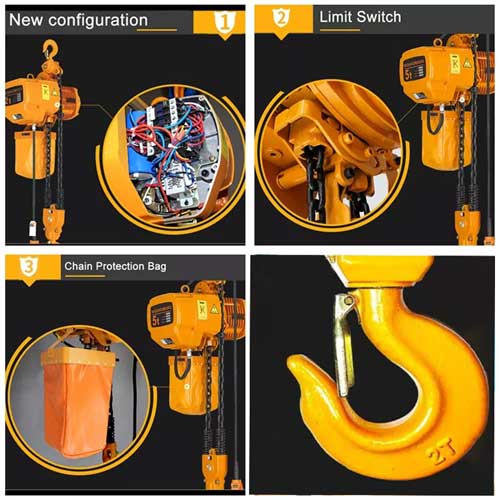

Main Parts and Components of Hook Suspension Electric Chain Hoist

Comparison of Electric Chain Hoist & Electric Wire Rope Hoist

Both an electric chain hoist and an electric wire rope hoist are heavy-duty lifting equipment that use electricity to lift objects that are heavier than human limits. The application also includes situations where the lifting height is greater or a frequent requirement. The performance of electric chain hoists and wire rope hoists has been significantly improved by modern design and advanced mechanisms.

What is the difference between a chain hoist and a wire rope hoist when both are electrically powered and controlled by a remote pendant? What are the applications for chain hoists or wire rope hoists in particular?

• A wire rope hoist, as the name implies, uses wire rope (made of wire fiber) as a lifting element.
• whereas a chain hoist uses chains (linked-together pieces of metal) as a lifting element.
• In wire rope hoists, the wire rope is wrapped around a grooved drum as it lifts, which means the wire rope follows the spiral groove on the drum and moves left and right as well as up. This is not a big deal in most cases, but in some cases where precise lifting is required, this will not work.
• A chain hoist raises objects by pulling the chain through sprockets and depositing it in a chain container. This mechanism provides actual vertical lift and is best suited for precise lifting needs.

Consider using an electric chain hoist in the following situations:

• 8 to 10 hours per day
• 20-30 lifts per hour are possible.
• A high proportion of lifts operate at full capacity.
• No additional charge for true vertical lift.
• Low cost, high durability.
• Reduced maintainance.
• There should be more room for side pulling (Side pulling not recommended for any kind of hoists)

Consider using an electric wire rope hoist in the following situations:

• Adjustable lifting speed is required.
• At least 30 lifts per hour.
• At least 30 minutes of motor on time per hour.
• Ease of interchangeability and maintenance of components such as motors and limit switches

Yuantai hook hoistand hoist drawing for your reference

hook hoist design electric chain hoist 500kg

hook hoist design electric chain hoist 1 ton

hook hoist design electric chain hoist 2 ton

hook hoist design electric chain hoist 3 ton

hook hoist design electric chain hoist 5 ton

hook hoist design electric chain hoist 7.5 ton

500kg- 5 ton electric chain fall hook hoist

10 ton electric chain fall hook hoist

35 ton electric chain fall hook hoist

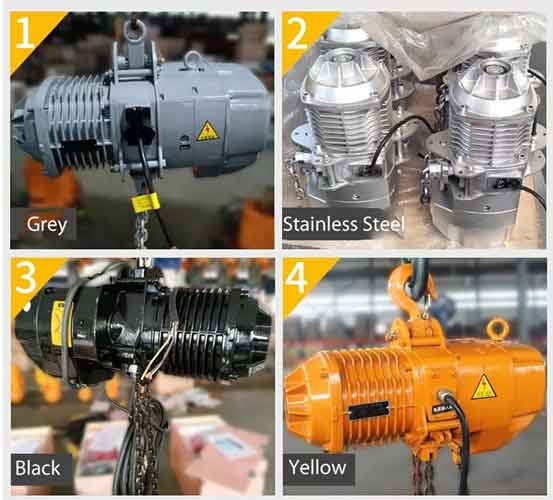

Get your customized electric chain fall hook hoist

Electric chain hoist with hook for sale. Fixed electric chain fall hoists with lifting capacities ranging from 300 kg to 50 tons, as well as various fixed type chain hoist designs, are available for purchase at a reasonable price. Hook hoists can be customized.

If you require any hook hoist, please contact us today to obtain your hook hoistdesign tomorrow.
