Manual Trolley Electric Chain Hoist

Manual Trolley Electric Chain Hoist

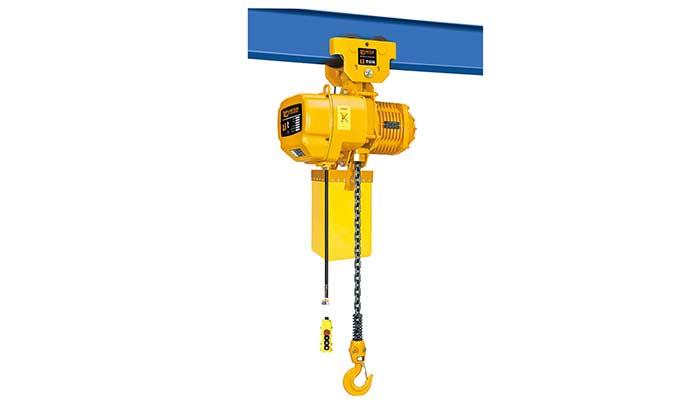

5 Ton Electric Chain Hoist with Manual Trolley, Good 5 Ton Hoist Price

5 Ton Electric Chain Hoist with Manual Trolley, Good 5 Ton Hoist Price

Product Type: Electric chain hoist
Lifting Capacity: 5 ton
Span: /
Lifting Height: as your requirement
Working Class: M3,M4
Ambient Temperature: -25-40℃
Inquiry

Manual trolley electric hoist is a small and light lifting equipment. Its horizontal travelling trolley is manually controlled. Widely used for lifting, loading and unloading, repairing equipment, hoisting goods, lifting heavy objects installed on suspended I-beams, curved rails, boom rails and fixed lifting. Under normal circumstances, the electric chain hoist lifting capacity: 0.5 ~ 50 tons, lifting height: 3 ~ 130m, lifting speed: customized, power supply: 220 ~ 690V, 50/60hz, one, two, three-phase, also according to your Request for customization.

Overview of manual trolley electric chain hoist 5 ton

Capacity

5 Ton

Lifting height

3 ~ 30 mor customized

Hoisting speed

Single speed: 6.6 m/min;or customized

Frequency speed: 0.66 ~ 6.6 m/min;or customized

Working duty

M3 ~ M7

Temperature

-20 ~ 40 ℃

Powersupply

AC-3Phase-220//230380/400 cm/415 cm/440V-50/60Hz

Control voltage

DC-36 / 48V

Protection of Motor

IP54 IP55 IP65

Hoist Control

Ground pendent control, remote control, wire control

Safety divices

Buffer, over-current protection, overload limit, off-power protection devices

Applications

Factory, workshop, warehouse, power station, logistic, etc.。

Color

yellow, red or customized

Applications of 5 ton electric chain hoist with manual trolley

  • Factories, workshops, warehouses, stores;
  • Logistics, wharf, port, freight yard;
  • Construction, mining, etc.

Features of manual trolley electric chain hoist

  • The standard lifting height is 3m, and the rated lifting weight is 0.5t-35 ton.
  • The motor and gear box are made of high-quality die-casting aluminum alloy, which is light and strong, and has good heat dissipation.
  • The gears of the deceleration mechanism are made of high-quality alloy steel to ensure the low noise and high efficiency of the gear transmission.
  • Reverse protection device: when the three-phase wiring of the power supply is wrong, the control circuit cannot work
  • There are limit switch devices on the lifting and lowering of heavy objects to make the motor stop automatically to prevent the chain from exceeding and ensure safety.
  • The side magnetic brake can realize instant braking when the power is cut off to ensure safe and reliable use
  • Braking is light, beautiful and durable.
  • The chain adopts imported FEC80 super heat-treated alloy steel chain

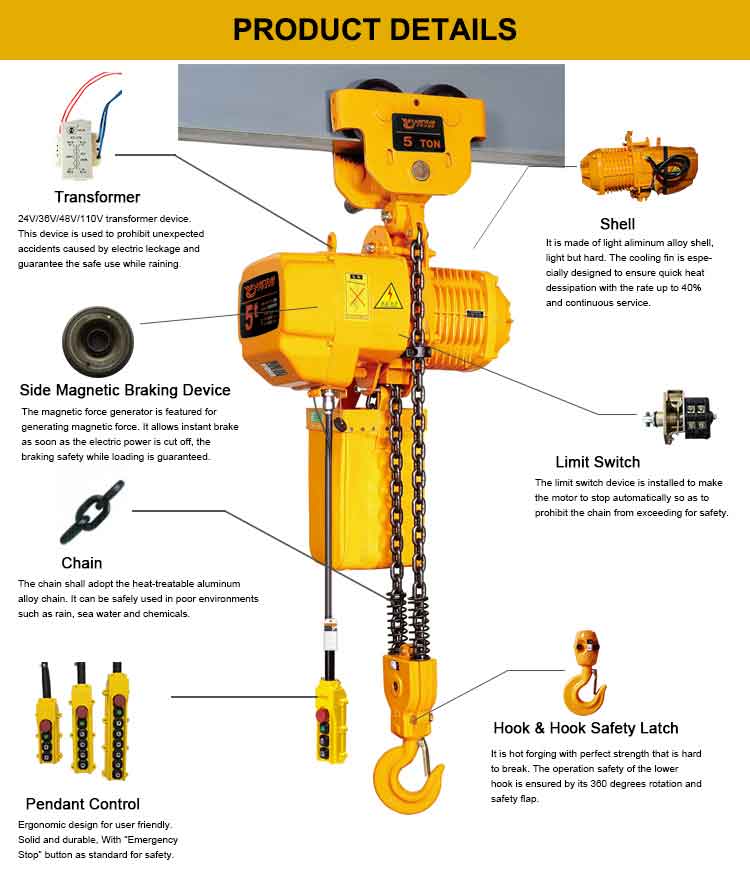

Main parts and components of manual trolley electric chain hoists

Main parts and components of manual trolle electric chian hoist 5 ton

Geared Trolley & Plain Manual Trolley for Electric Chain Hoists

Manual trolleys can be adjusted to fit the various beam sizes by simply moving the spacing washers inside or outside the frame. Heat-treated drop-forged steel trolley wheels with precision bearings provide smooth and easy travel.

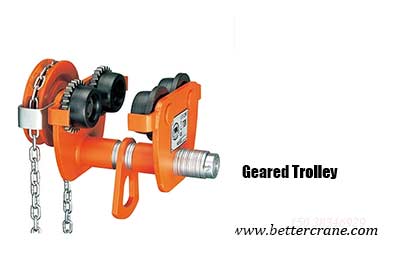

Geared Trolley , Gear Manual Trolley

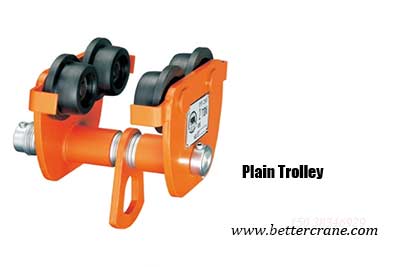

Plain Trolley , Manual Trolley

Specifications of manual trolley for 5 ton electric hoist with chain fall designs

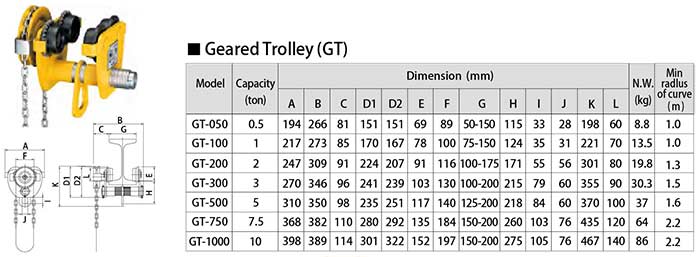

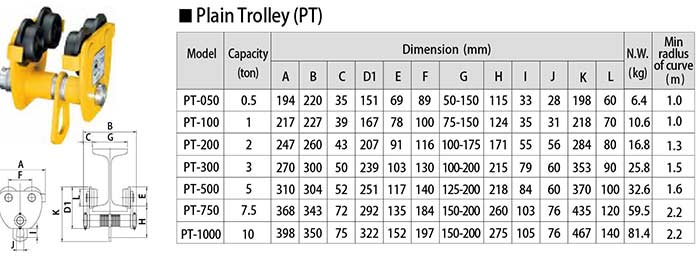

Geared manual trolley specifications for your reference Plain manual trolley specifications

How to get your customized 5 ton electri chain hoist with manual trolley

To get your customized 5 ton manual trolley electric chain hoist, we need to confirm the information as following:

  • Lifting capacity? (Ton)
  • Lift height? (m)
  • Working voltage? (V, Hz, phase)
  • Work environment?
  • How many hours a day does the crane work?
  • Do you need any other requirements?

To get the most cost-effective 5 ton electric chain hoist, the tailored one will be the choice. Contact us today to confirm the main parameters of the trolley chain hoist and get the specific electric chain hoist tommorrow.
