Manual Trolley Electric Chain Hoist

Manual Trolley Electric Chain Hoist
Electric Chain Hoist with Manual Trolley

Electric Chain Hoist with Manual Trolley

Product Type: Electric chain hoist
Lifting Capacity: o,5t-35t
Span: /
Lifting Height: 3m-50m
Working Class: M3,M4
Ambient Temperature: -20~40℃
Inquiry

Electric Chain Hoist with Manual Trolley

Electric chain hoist with manual trolley is a kind of common lifting equipment, which mainly consists of electric motor, transformer, shell, chain and pendant control. The electric chain hoists trolley from Yuantai are manufactured in strict accordance with international standards. They are easy to operate and efficient. Compared with other lifting equipment, the chain hoist with trolley has smaller size, lighter weight, lower noise and higher precision.

Electric chain hoists are usually used to take the work out of lifting heavy objects. Electric provide all power for itself to lift the loads high enough so that hoist can move or transfer the load to another place more conveniently. It contributes greatly to strengthen productivity and efficiency when you are working. When the hoist begins to run, trolley helps a lot in moving your load very far. And trolleys has many sizes and types, according to the difference of trolley, the manual trolley can be mainly divided into geared trolley and push trolley.

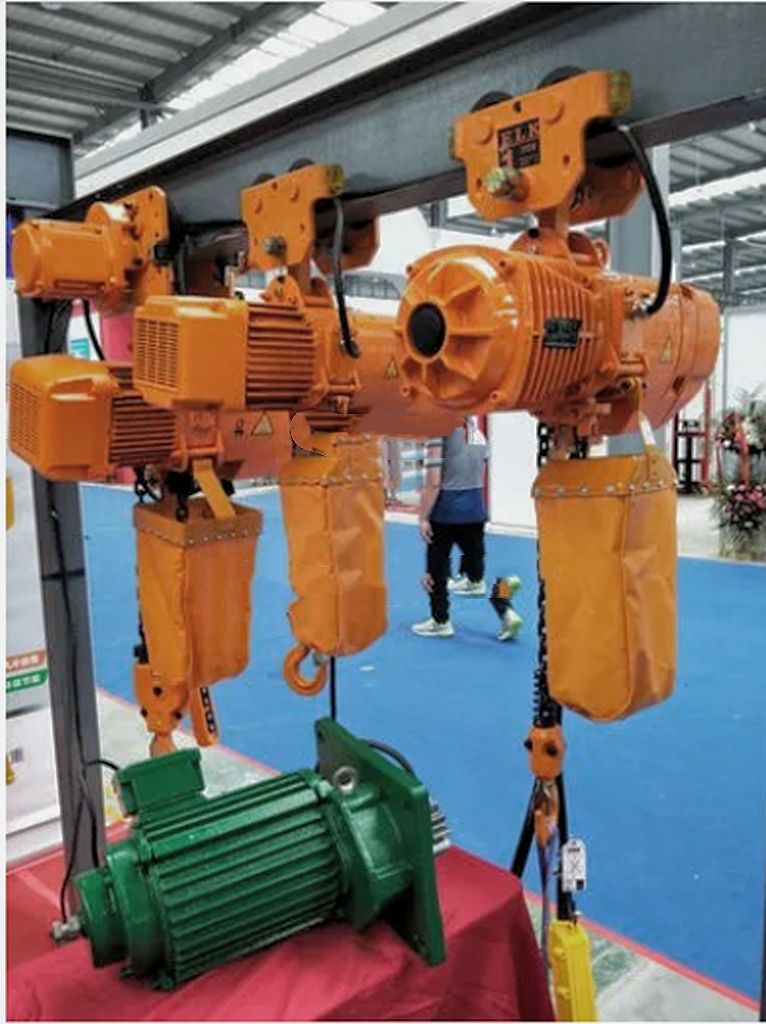

Electric chain hoist with manual trolley
Electric chain hoist with manual trolley
Electric chain hoist with motorized trolley
Electric chain hoist with motorized trolley

Electric Chain Hoist with Geared Trolley

Electric chain hoist with geared trolley is operated by an electric motor. Its trolleys feature universal gears that can provides precision placement along a beam. The hoists ride along the trolleys, and include quick disconnect plugs on the pendants and power cords. The hoists from are suitable for high-volume handling in steel warehouses, machine shops, fabricating plants, mills, factories and so on.

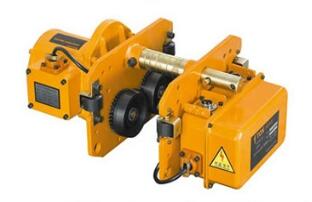

Electric motorized trolley for electric chain hoist
Electric motorized trolley for electric chain hoist

Electric Chain Hoist with Push Trolley

Electric chain hoist with pushed trolley helps to provide extra mobility when moving heavy weighty objects. The trolleys feature all-steel wheels with sealed ball bearings run on flat and tapered beams. The hoist from Yuantai is suitable for high-volume handling in steel warehouses, machine shops, storage areas, mills and factories.

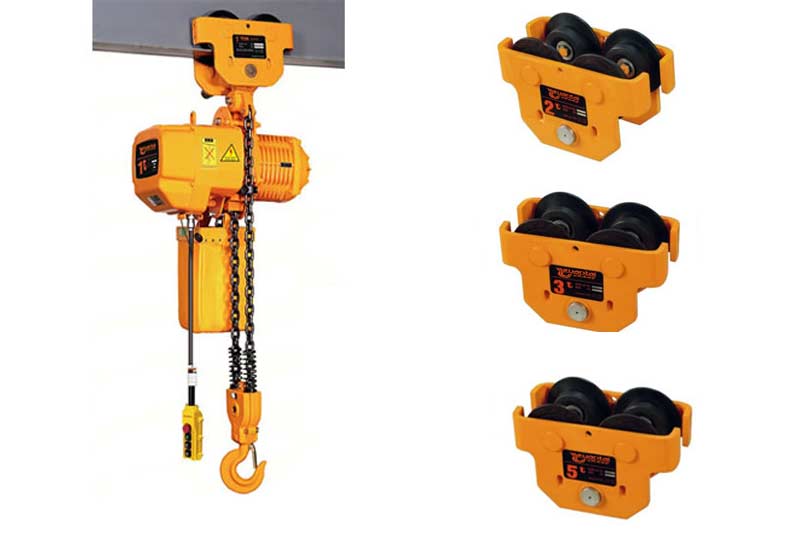

Manual trolley for electric chain hoist
Manual trolley for electric chain hoist

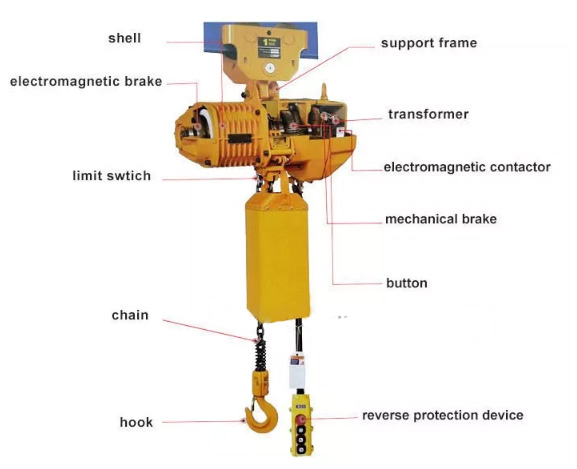

Main Parts and Components of Electric Chain Hoist with Manual Trolley

Manual trolley electric chain hoist are mainly consited of electric motor, transformer, shell, chain and pendant control, which is just like the motorized trolley electric chain hoist. What makes the two types of electric chain hoists different with each other is the type of travelling trolley adopted, namely, the electric motor driving trolley and the hand power trolley. Typically, the manual trolley electric chain hoists are widely used when the horizontal movement is not requred frequently or when the load is not so heavy.

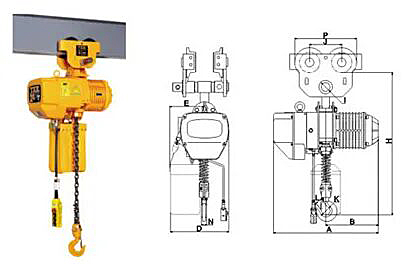

Manual trolley electric chain hoist parts and components drawing

How does electric chain hoist work?

A chain hoist with trolley uses manual labor to move the loads along the support member the trolley rolls on. Push trolleys are equipped with sturdy wheels which are specially manufactured to carry heavy objects and to roll smoothly under great downward force. This makes the trolley easier to push under load, and helps workers to finish their work quicker and easier than having to physically haul the loaded object on a cart or hand truck, or, even worse, just by back breaking manpower alone. Besides, the chain hoist with trolley is very simple to operate, just attach heavy objects you want to lift on the steel hook, and press the up and down buttons where you can find them on the pendant controller, than you can raise or fall your loads according to your requirements.

Capabilities to Count On

  • Pendant Controls--ergonomic pendant design for operator comfort. Lift and lower load easily with integrated emergency stop
  • Compact Aluminum Body--robust and lightweight die-cast aluminium housing of compact and modern industrial design
  • Sealed case and motor protect hoist from dust and dirt out
  • Motor of chain hoist from Yuantai is especially customized from by Dedong Motor factory for more dependable and longer service life
  • Chain with high strength can ensure smooth and quiet operation as well as great and long lasting durability especially when carrying heavy loads. And the length of your chain can be customized
  • Hookis hot forged with perfect strength , hard to break
  • Pendant control with 2 push-buttons is ergonomic design
  • Double brake system makes you control the hoist easily and ensure your safety
  • Transformer--24V/36V/48Vtransformer device, the device is used to prohibit unexpected accidents caused by electric leakage and guarantees the safety while raining.
  • Geared trolley can provides precision placement along a beam
  • Steel trolley wheels run on flat and tapered beams

How to Maintain Chain Hoist with Trolley?

  • If the electric hoist is newly installed or installed after inspection, it should be tested several times. Before the completion of the installation, do not power trial.
  • The dynamic load test is based on the rated load weight, repeated lifting and left-right movement test. After the test, check whether the mechanical transmission part, electrical part and connecting part are normal and reliable.
  • When you use your hoist, it is absolutely prohibited to use in an environment where it is not allowed.
  • It is not allowed to press two pendant controlbuttons that make the electric hoist move in opposite directions at the same time.
  • After the work is finished, the main switch of the power supply must be opened and the power supply must be cut off.
  • The operator should be trained until he can totally grasp the safety operation rules
  • In use, it is necessary to check the electric hoist regularly by specialized staffs, and take timely measures to find faults and record them carefully.
  • To protect the parts of chain hoist with trolley, don't suspend loads in the air when the electric hoist is not working
  • Operator is supposed to cut off the main power supply at once if something goes wrong during using
  • Pay more attention to wearing parts when using the hoist

Attention: Are you looking for suitable lifting equipment?How to select a electric chain block? Just feel free to connect us by leaving a message below, we will give you the best answer, and you can customize your hoist.
