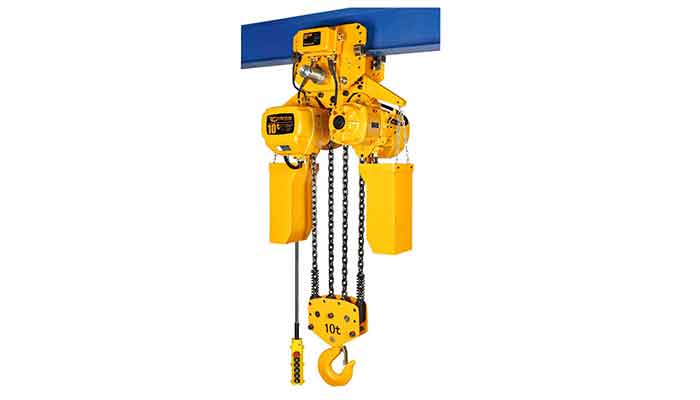

10 Ton Electric Chain Hoist with Electric Trolley & 4 Chain Falls
| Product Type: | Electric chain hoist |
|---|---|
| Lifting Capacity: | 10 ton |
| Span: | / |
| Lifting Height: | as your requirement |
| Working Class: | M3,M4 |
| Ambient Temperature: | -20~40℃ |
| Crane Price Rangs | More Inquiry Form |
|
Price Range: $5,500 – $7,500+ (for reference only) Note: 4-chain falls design for heavy-duty lifting; motorized trolley included. Get Latest Price: Contact us to confirm current pricing. |
|
| [email protected] 008615038346929 | |
10 ton chain hoist electric hoist with electric trolley
10 ton electric chain hoist for sale. 10 ton electric hoist with 4 chain falls & electric trolley for sale, good price. Check 10 ton electric chain hoist with electric trolleys specifications.
Electric chain hoist are operated by electric motors. the hoists are suitable for light machine shop fabricating, service, and maintenance. the hoist also suitable for general machine shop fabricating, assembly, storage, and warehousing.
The Electric Chain Hoist was developed for handling loads quickly and safely with only one hand. The Electric Chain Hoist is based on the lifting unit of the chain hoist and the control unit. Thanks to the control unit which is rigidly connected to the load handling attachment, the operator only needs one hand to operate the hoist and guide the load.
Main specifications of 10 ton electric chain hoists with electric trolley
|
Speed Type |
Single speed |
|
Capacity |
10 ton |
|
Lifting Speed |
8.8 FPM (2.7 m/min) |
|
Motor Power |
3 kW*2 |
|
Rotation Speed |
1440 r/min |
|
Standard Lifting Length |
3m, contact us for other length |
|
Protection Grade |
IP54 |
|
Insulation Grade |
F |
|
Power Supply (Optional) |
3 phase 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V |
|
Control Voltage (Optional) |
24V/ 36V/ 48V |
|
No. of Chain |
4 |
|
Diameter of Load Chain |
11.2 mm |
|
Net Weight / Gross Weight |
300 kg / 320 kg |
Chain fall designs for electric chain hoists with electric trolley 10 ton
|
Rated hoisting weight |
Type |
Lifting speed （m/min） |
Power(KW) |
Chain specification (m) |
Two-speed frequency conversion fare increase($) |
Chain price increase per meter($) |
|
0.5T single chain |
0.5-01 |
6.8 |
0.75 |
6.3 |
138.46 |
3.85 |
|
1T single chain |
01-01 |
6.8 |
1.5 |
7.1 |
153.85 |
4.62 |
|
2T single chain |
02-01 |
6.6 |
3.0 |
10 |
184.62 |
6.15 |
|
2T double chain |
02-02 |
3.4 |
1.5 |
7.1 |
153.85 |
7.69 |
|
3T single chain |
03-01 |
5.4 |
3.0 |
11.2 |
184.62 |
7.69 |
|
3T double chain |
03-02 |
3.3 |
3.0 |
10 |
184.62 |
12.31 |
|
3T Triple chain |
03-03 |
2.3 |
1.5 |
7.1 |
153.85 |
10.77 |
|
5T double chain |
05-02 |
2.7 |
3.0 |
11.2 |
184.62 |
13.85 |
|
7.5T Triple chain |
7.5-3 |
1.8 |
3.0 |
11.2 |
184.62 |
20.77 |
|
10T Four chains |
10-04 |
2.7 |
3.0*2 |
11.2 |
369.23 |
27.69 |
|
15T Six chains |
15-06 |
1.8 |
3.0*2 |
11.2 |
369.23 |
43.08 |
|
20T Eight chain |
20-08 |
1.4 |
3.0*2 |
11.2 |
369.23 |
58.46 |
|
25T Ten chains |
25-10 |
1.0 |
3.0*2 |
11.2 |
369.23 |
73.85 |
|
30T Twelve chains |
30-12 |
0.9 |
3.0*2 |
11.2 |
369.23 |
89.23 |

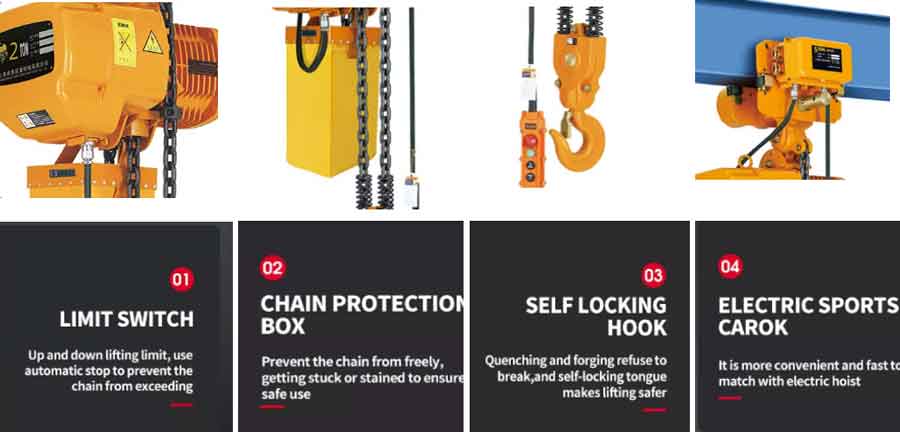

Further strengths of 10 ton electric chain hoists with electric trolley
- Convenient operation and load guidance with one hand
- Simple replacement thanks to quick-change coupling
- Suitable for right-hand and left-hand operation.
- Limit switch - Up and down lifting limit, use automatic stop to prevent the chain from exceeding
- Chan protection box - prevent the chain from freely getting stuck or stained to ensure safe use.
- Self locking hook - Quenching and forging refuse to break and self -locking tongue makes lifting safer.
- Electric trolley - it is more convenient and fast to match with electric hoist

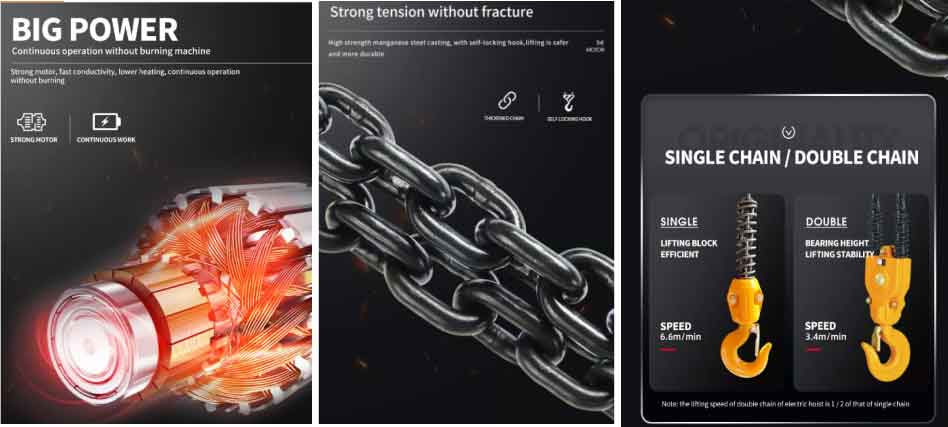

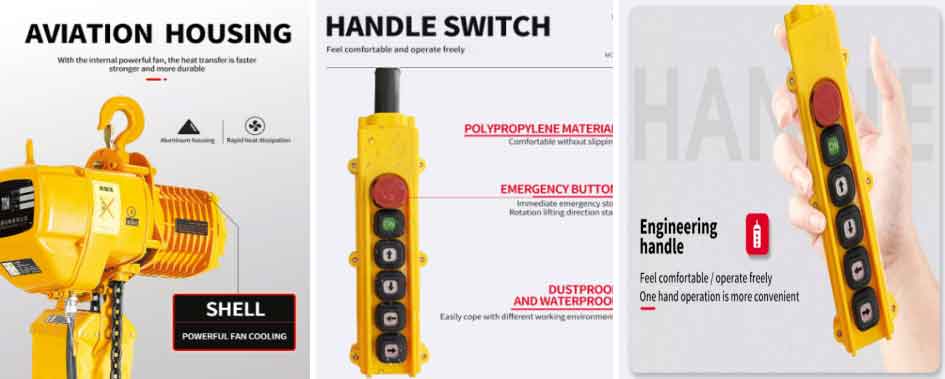

Advantages of 10 ton electric chain hoists
- Strong motor, continuous work, pound porcelain brake
- Manganese steel chain, Water proof switch, Self locking hook
- High safety and reliability
- 24 V contactor control
- FEM classification from 1Am to 4m
- Slipping clutch with speed monitoring
- No brake adjustment
- No load dropping thanks to slipping clutch arranged in front of the brake
- Operating limit switches

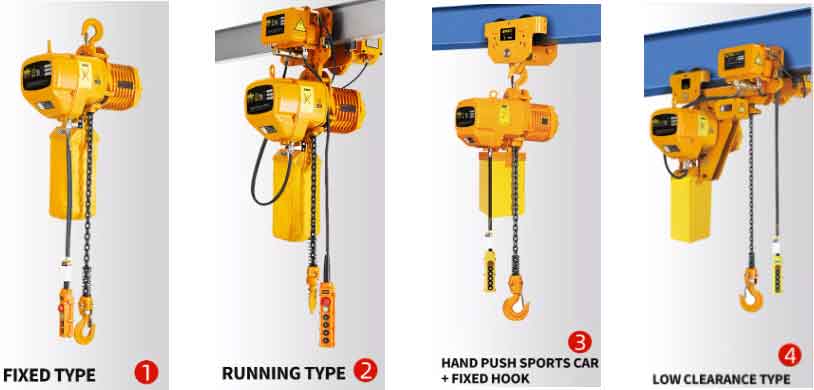

Types of 10 ton electric chain hoists
Besides mounting on the trolley， the 10 ton electric chain hoists can also be designed with the following style, including the fixed types, manual trolley and low headroom design, etc. It will be designed based on your lifting requirements and applications conditions. If you want to know more about electric chain hoist, please feel free to contact us.
