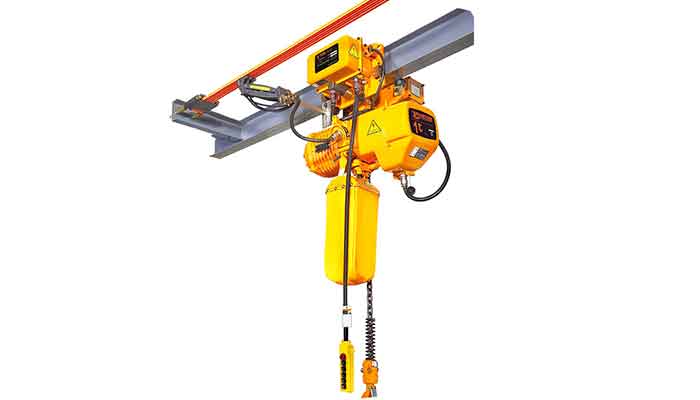

1 Ton Electric Chain Hoist with Motorized Trolley

1 ton electric chain hoist with motorized trolley for light duty loads handling. Single phase & Three phase 1 ton motorized trolley hoists available.

A high performance motorized trolley electric chain hoist from Yuantai Better Crane is a cost-effective solution for lifting applications that require positive load engagement at multiple lift points. 1 ton electric chain hoist with motorized trolley for light duty loads handling. Single phase & Three phase 1 ton motorized trolley hoists available. According to your lifting requirments, the small 1 ton electric chain fall hoist can be designed with single chain fall & double chain fall.

Overview of 1 ton motorizied electric chain hoist with motorized trolley

Electric Chain hoist with motorized trolley is a kind of light and small lifting equipment, which consists of motor, drive mechanism and sprocket. The chain electric hoist is produced in accordance with international standards. The body is beautiful in shape with strong and durable characteristics. Internal gears are all quenched at high temperatures, increasing the wear resistance and toughness of gears. Adopt international advanced technology, fine workmanship, tight fit between gears. Advanced structure and performance, small size, light weight, reliable performance, easy operation. The electric chain hoist can be controlled by the operator with pendant button on the ground or by wireless remote control.

• Capacity of electric chain hoist :1 Ton
• Lifting height: as per customer demands
• Trolley travel: electric travelling trolley / motorized trolley
• Ambient temperature: -20℃~45℃
• Application: Crane beam /I-beam steel/kbk rail as hoisting mechanism
• A single-phase motorized trolley electric chain hoist can be plugged into standard electrical outlets, making it ideal for mechanics and smaller machine shops.
• Three-phase electric hoists are typically found in larger industrial operations where they are required to handle heavy loads on a daily basis.
• Contact us to get your customized motorized trolley electric chain hoists.

Features of 1 ton electric chain hoist with motorized trolley

• In stock, capacities ranging from 0.5 to 20 tons. Additional capacity is available upon request.
• Shell: A light aluminum alloy shell is used, which is light but hard and suitable for use in a harsh work environment, with a high heat dissipation rate and an all-tight design.
• Inverse phase sequence protecting device: A special electrical installation that prevents the circuit from operating in the event of a wiring error in the power supply.
• Limit switch: A limit switch device is installed where the weight is lifted on and off to cause the motor to stop automatically, preventing the chains from being overloaded for safety.
• 24v/36v device: It is used to prevent emergencies from occurring in the event of a switch leak.
• Side magnetic braking device: This device must provide an instant brake in the event of a power outage.
• Chain bag: must be appropriate, attractive, and long-lasting.
• Chain: Durable, wear-resistant load chain. The imported FEC G80 ultra heat- treatable aluminum alloy chain shall be used.
• Environment of operation: Sealed body suitable for both indoor and outdoor applications, including harsh environments.

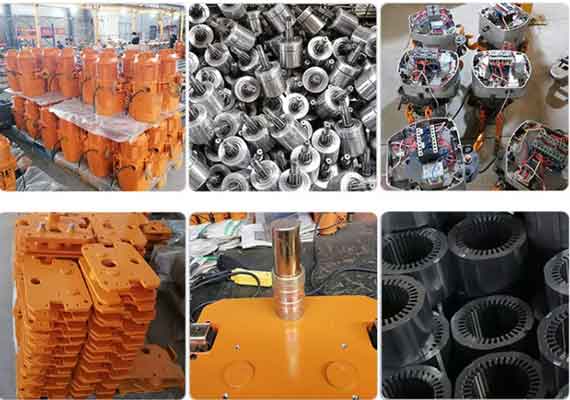

High quality hoist parts and components of electric chain hoist with trolley

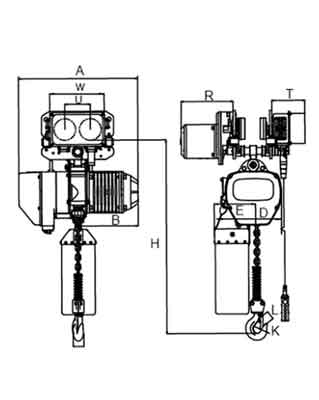

Data sheet of motorized trolley electric chain hoist 1ton ~5 Ton single speed :

Data sheet of motorized trolley electric chain hoist 1 ton ~5 ton double speed :

Hot Sale Electric Chain Hoists

Electric chain hoist with motorized trolley is a light and small lifting equipment. Consisted with motor, transmission mechanism and chain wheel. Beautiful out-looking, Solid Durable. Inside gears are hot-quenched then increase the wear resistance of the gear and toughness. Adopt international advanced technology, fine workmanship, gear wheel tight fit.

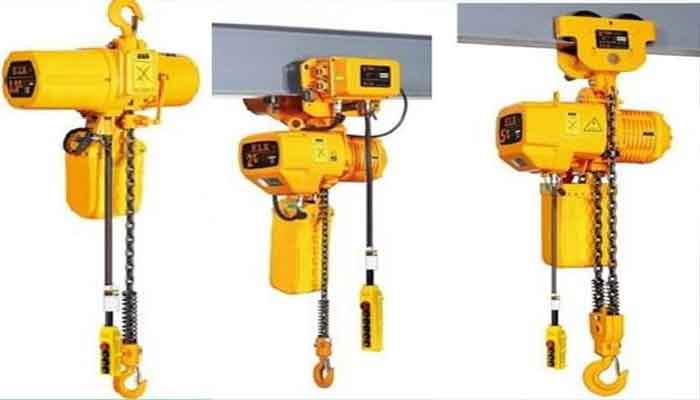

Main types of electri chain hoists

Supply scope of motorized chain hoist

• Lifting capacity of electric chain block:0.1~100t（0.1t 0.25t 0.5t 1.5t 1t 2t 3t 5t 10t 20t 25t 30t 50t 60t 100t），
• lifting height of motorized hoist with chain falls is 3~120m.

Usage & Application of motorized chain hoists

• Widely used in factory, storage, wind-power station, logistics, port and construction field.
• Usd for lifting or loading. Or lifting heavy objects for working or respiration.
• It can be controlled by handle on ground or wire(no-wire) remote control.
• It can be suspended and fixed for using, or matched with monorail electric trolley(as following pictures.)
