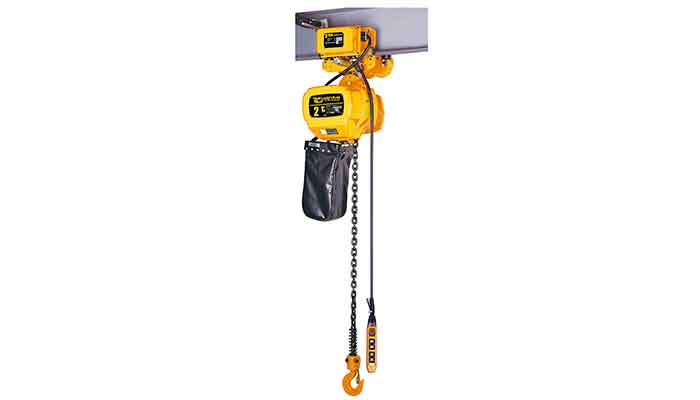

Overview of 2 ton electric chain hoist with trolley
2 ton electric chain hoist with trolley and 2 ton chain hoist trolley for sale, best priced. Economical & efficiency material handling electric chain hoist with electric trolley for sale. Customized electric chain hoist with trolley available with capacity from 500kg to 50 ton. Contact us to get more information. Electric chain hoist with motorized trolley is a type of light duty trolley hoist with lifting capacity from 2 ton to 50 ton, with 1 chain fall design, 2 chain fall design, etc.
Main specifications of 2 ton electric chain hoists with trolley
2 ton electric chain hoist with motorized trolley is featured as Light, robust, efficient, and economical. Check motorized trolley electric chain hoist specifications as below now:
|
Capacity |
2 ton electric chain hoist with trolley |
|
Lifting speed (m/min) |
6.6 |
3.3 |
|
Motor power (Kw) |
3.0 |
1.5 |
|
Rotation speed |
1440 r/min |
1440 r/min |
|
Insulation grade |
F |
F |
|
Power supply |
3P 220V~690V |
3P 220V~690V |
|
Control voltage |
24V/36V/48V |
24V/36V/48V |
|
No. of chain |
1 |
2 |
|
Spec. of load chain |
Φ10.0 |
Φ7.1 |
|
Net weight (kg) |
115 |
73 |
Double Speed of 2 ton electric chain hoist with trolley
|
Capacity |
2 ton electric chain hoist with trolley |
|
Lifting speed (m/min) |
6.9/2.3 |
3.3/1.1 |
|
Motor power (Kw) |
3.0/1.0 |
1.8/0.6 |
|
Rotation speed |
2880 / 960 r/min |
2880 / 960 r/min |
|
Insulation grade |
F |
F |
|
Power supply |
3P 220V~690V |
3P 220V~690V |
|
Control voltage |
24V/36V/48V |
24V/36V/48V |
|
No. of chain |
1 |
2 |
|
Spec. of load chain |
Φ10.0 |
Φ7.1 |
|
Net weight (kg) |
150 |
86 |
Main structure of 2 ton electric chain hoist with trolley
main structure of powered trolley chain fall hoist for your reference

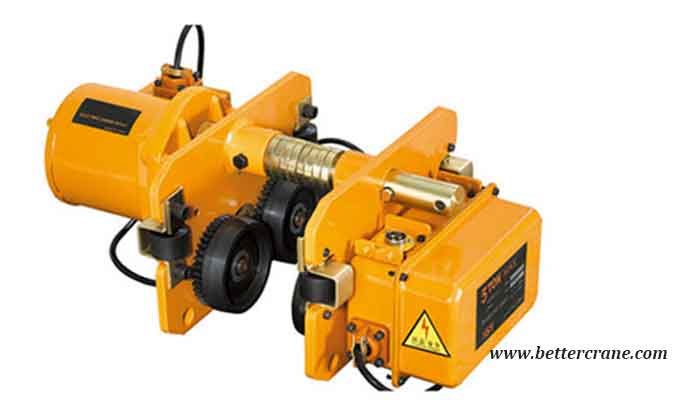

2 ton chain hoist trolley
2 ton electric chain hoist, motorized travelling type
Yuantai 2 ton chain hoist trolley is one of our most popular hoist trolley . Our monorail chain hoist trolley drives smoothly due to its unique side guide system. There is frequency control of motor speed, which can be used to match various working situations and environments. Characteristics of the chain hoist trolley : Gearbox with simple structure, Lightweight and well-balanced self-weight motor.
Technical parameter of chain hoist trolley
|
Model |
Capacity(t) |
Unit(t) |
Speed(m/min) |
Motor(kw) |
Minimum radius of turn |
|
W |
U |
R |
T |
|
DPC-0.5 |
0.5 |
315 |
212 |
142 |
231 |
21m/min or 11m/min |
0.4 |
0.8 |
|
DPC-01 |
1 |
315 |
212 |
142 |
231 |
0.4 |
0.8 |
|
DPC-02 |
2 |
325 |
220 |
142 |
231 |
0.4 |
0.9 |
|
DPC-03 |
3 |
340 |
250 |
142 |
231 |
0.75 |
1.0 |
|
DPC-05 |
5 |
400 |
291 |
142 |
231 |
0.75 |
1.5 |
|
DPC-7.5 |
7.5 |
400 |
291 |
142 |
231 |
0.75 |
1.8 |
|
DPC-10 |
10 |
500 |
371 |
142 |
231 |
0.75 |
2. |
Parts and components of 2 ton electric chain hoist with trolley
The main parts of 2 ton electric chain hoist with trolley are consisted of hoist body shell, motor, chain hoist hook, and crane controls, usually pendant control. 2 ton electric hoist with remote control are optional based on your requirements.

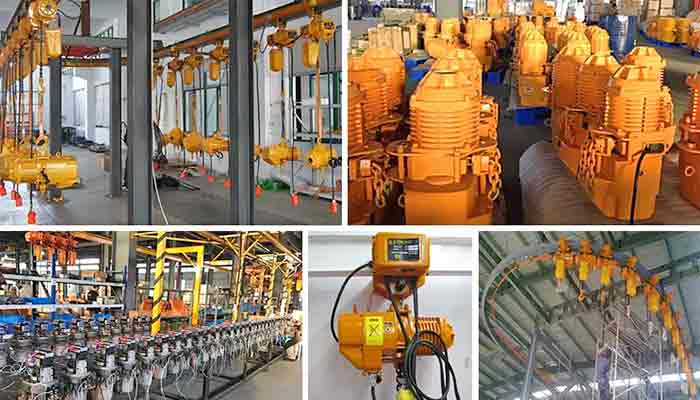

Production workshops of 2 ton electric chain hoist with trolley

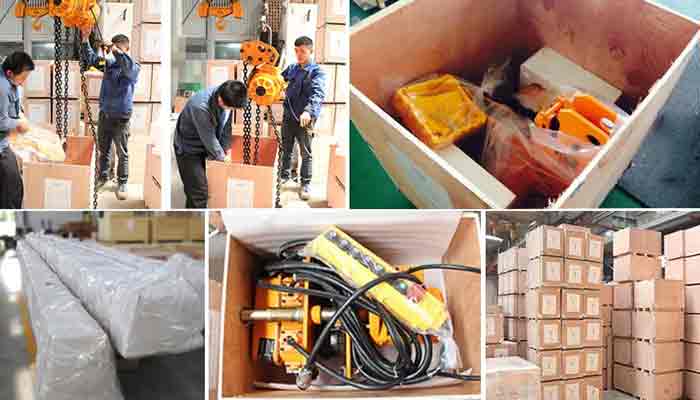

Packaging and delivery of 2 ton electric chain hoist with trolley
The electric chain hoist with trolleys are usually packed separately into two wooden boxes. The main body of the electric chain hoist will be packed in a box and the chain hoist trolley and other parts and components such as pendant controls will be packed into anther wooden box to ensure safety.
Applications of 2 tons electric chain hoist with trolley
A 2 ton electric chain hoist is a robust and durable hoisting equipment that is used to move heavy loads. It is required in construction, docks, warehouses, assembly-line production operations, factories, and many other places. Material handling with an electric chain hoist is a safe method. Hiring a human worker to lift heavy loads is risky. As a result, it is recommended that automated lifting equipment such as electric hoists, overhead cranes, and others types of cranes and hoists be used for this task.
You can quickly move heavy goods from one location to another with the help of an motorized chain hoist. It is made of high-quality materials and is suitable for a wide range of industrial applications such as unloading and loading goods, repairing machines, and lifting workpieces.
Why to select 2 ton electric chain hoist with trolley?
- Affordable, silent, and versatile is the main features of electric chain hoist with trolley. This lifting equipment allows you to easily lift various types of loads, making them more popular and effective.
- When compared to hydraulic hoists, the electric chain hoist is more durable for lifting heavy objects. By pressing the button, you can easily lifting up the heavy goods.
- The 2 ton electric hoist can help to alleviate the problem of lifting and moving heavy loads. Using the tool on a regular basis helps to keep it in good condition.
- It can catalyze the operation greatly while reducing the overhead expenses with the prominent loading ability. The small hoist helps in increasing business production and seizing numerous opportunities to increase income.
- The motorized chain blocks are more efficient and capable. The electric chain block works smoothly if it is properly maintained. Furthermore, the electric hoist reduces the number of human resources in your company, allowing you to save money on labor costs.
- Electric chain hoists can transport objects more easily than wire rope hoists. You can use it in construction at various sites and reap numerous benefits.
