12-Ton Portable Gantry Crane Case Study – UAE Buyer Benefits
Project Background
The project took place at an industrial zone in the UAE, where daily operations involved moving heavy equipment and fabricated components outdoors. The site did not have fixed crane runways, and adding permanent infrastructure was not an option due to space limits and cost control.
The selected equipment was a 12-ton rubber-tyred wheeled portable gantry crane, chosen for its ability to work reliably in open-air conditions while remaining easy to install and relocate.
Basic project parameters:
- Equipment: 12-ton rubber-tyred wheeled portable gantry crane
- Location: UAE industrial zone
- Application: Outdoor material handling and equipment movement
- Power supply: 415V / 50Hz / 3-phase (local UAE standard)
The main goal was straightforward. Lift heavy loads safely, move them where needed, and do it without pouring concrete or building crane runways. The client also needed a solution that could be put into use quickly and still perform well in heat, dust, and daily site wear.

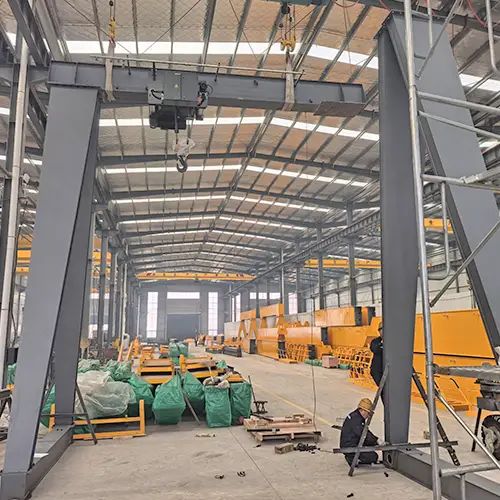

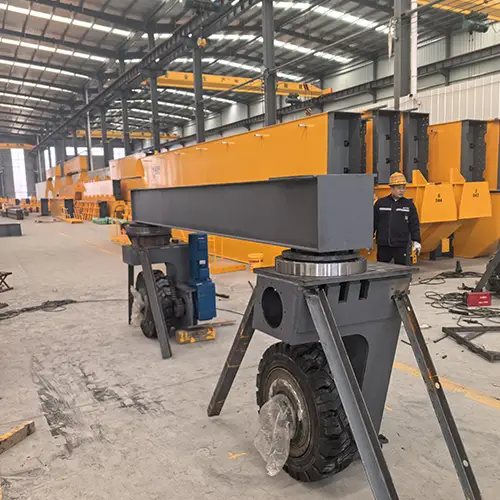

12 ton gantry crane grounb beam with rubber tyred wheels - small portable gantry crane for sale and a frame rubber tyred gantry cranes
Buyer Requirements (What the Client Needed)
Before selecting the crane, the buyer clarified several practical requirements based on real working conditions on site. These requirements shaped the final crane selection and are common concerns for many crane buyers in the UAE, especially those operating on leased land or managing outdoor industrial yards.
- Lift loads up to 12 tons on a regular basis
- Maintain stable performance during repeated daily lifts
- Allow a safety margin for rigging and uneven load distribution
- Cover a medium-width working zone without constant repositioning
- Handle wide equipment and steel assemblies in a single lift span
- Reduce unnecessary movements that slow down operations
- Operate under high ambient temperatures common in the UAE
- Continue working in dusty and sandy environments
- Avoid frequent breakdowns caused by heat or airborne particles
- Eliminate the need for runway beams or embedded rails
- Avoid foundations, trenching, or long site shutdowns
- Keep installation simple and reversible
- Use 415V / 50Hz / 3-phase power already available on site
- Avoid transformers or electrical modifications
- Ensure fast connection and commissioning
- Allow the crane to be relocated if the site layout changes
- Support temporary or expanding operations
- Protect the investment beyond a single project phase
Selected Solution
After reviewing the site conditions and lifting needs, the client selected a 12-ton rubber-tyred wheeled portable gantry crane configured for outdoor use and fast deployment. The specification was kept practical, matching the actual loads and available power on site without unnecessary upgrades.
Configuration summary:
- Rated capacity: 12 tons
- Clear span: 6 m
- Lifting height: 6.96 m
- Travel system: Heavy-duty rubber-tyred wheels for movement on yard surfaces
- Power supply: 415V / 50Hz / 3-phase (UAE standard)
Key Features and How They Delivered Real Benefits
The crane was designed for a full 12-ton safe working load, supported by overload protection. This rating was selected based on the client's real lifting needs rather than theoretical maximums.
How it helped on site:
- Covered all regular steel structures and equipment lifts
- Removed the need to rent mobile cranes for daily handling
- Kept a clear safety margin for dense and uneven loads
Buyer insight:
For many industrial yards in the UAE, 12 tons is a practical upper limit that balances lifting capability with equipment cost and ease of operation.
Instead of rails or embedded tracks, the crane uses heavy-duty rubber tyres designed for concrete and asphalt yard surfaces. This directly addressed the site's lack of permanent infrastructure.
How it helped on site:
- No rails, foundations, or civil works were required
- The crane was moved easily between different work zones
- Overall project cost was reduced by avoiding construction work
Buyer insight:
On UAE sites with firm, level ground, rubber-tyred gantry cranes provide flexibility without the long lead time and expense of fixed systems.
The crane was supplied with a 6-meter clear span, selected to match the width of common loads and storage layouts on site.
How it helped on site:
- Handled wide fabrications and skids in a single lift
- Reduced side pulling and repositioning during operation
- Improved lifting safety and daily work efficiency
Buyer insight:
A 6 m span fits most fabrication and yard operations. Oversizing the span adds cost without improving productivity.
The crane provides nearly 7 meters of effective hook height, which was a key factor for handling loads with varying dimensions and rigging setups in the yard.
How it helped on site:
- Allowed direct lifting onto flatbed trucks and trailers
- Supported vertical stacking, saving valuable yard space
- Avoided clearance problems when handling bulky or tall loads
Buyer insight:
When specifying lifting height, buyers should account for load height plus rigging height, not just the advertised hook height.
The electrical system was configured to match standard UAE industrial power, eliminating the need for additional electrical equipment or site changes.
How it helped on site:
- Connected directly to existing power distribution
- Reduced commissioning time
- Avoided delays caused by electrical modifications or transformer installation
Buyer insight:
Confirm power supply details during the quotation stage to prevent costly changes and installation delays later.
The gantry frame was designed with a modular structure, allowing sections to be disassembled and relocated when required.
How it helped on site:
- Allowed the crane to be repositioned as the yard layout evolved
- Made the crane usable for future projects or locations
- Helped protect the buyer's equipment investment over the long term
Buyer insight:
Portability is especially valuable for UAE buyers working on leased land or managing multiple project sites.
The crane was built with a heavy-duty steel structure and protective coatings, specifically to handle the harsh outdoor conditions common in the UAE.
How it helped on site:
- Maintained stable performance even in high daytime temperatures
- Reduced wear caused by dust and sand exposure
- Lowered routine maintenance needs during the hot summer months
Buyer insight:
For outdoor operations in the UAE, cranes should always be specified to handle both heat and dust. Neglecting this can lead to frequent breakdowns and higher maintenance costs.
The crane comes with a set of built-in safety devices designed to protect both operators and equipment.
Features included:
- Overload protection
- Upper and lower limit switches
- Emergency stop system
How it helped on site:
- Minimized the risk of operator error and accidental overload
- Made the crane compliant for site safety audits
- Improved overall lifting safety during daily operations
Buyer insight:
Safety features are not optional for industrial use. Any crane operating in a busy yard should include overload protection, limit switches, and emergency stops as standard.
Practical Results for the Client
The deployment of the 12-ton rubber-tyred portable gantry crane delivered measurable benefits on site, proving its value in a real-world UAE industrial setting.
Key outcomes:
- No civil works required – eliminated the need for runway beams or foundations, saving time and cost
- Faster deployment – the crane was operational quickly, much faster than fixed gantry systems
- Lower total cost – avoided expensive runway-based infrastructure and reduced overall project expenditure
- Improved yard flexibility and productivity – one crane could serve multiple work zones without relocation delays
- Reduced reliance on rentals – the client no longer needed to hire mobile cranes for daily lifting tasks
These results highlight how a well-specified portable gantry crane can solve practical lifting challenges while keeping operations simple, efficient, and cost-effective.
Buyer Tip
Before placing an order, UAE buyers should verify a few practical details to ensure the crane performs safely and efficiently on site.
Essential checks:
- Ground bearing capacity – confirm the surface can support the crane’s wheel loads and movement
- Actual load size and rigging height – account for the full height of the load plus slings or attachments
- Required lifting frequency and duty cycle – match the crane to daily operational demands to avoid overuse or wear
- Local safety and inspection requirements – ensure compliance with UAE regulations and site-specific safety standards
These checks help prevent costly modifications, downtime, or safety issues once the crane is installed.
