Foundationless Jib Crane, Save Your Time & Cost

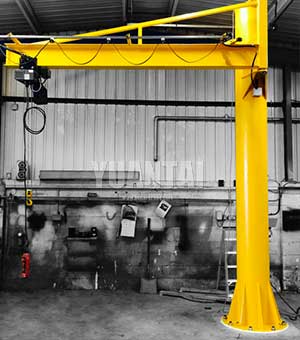

Foundationless jib crane 500kg

A foundationless jib crane is a type of crane that does not require a concrete foundation for support. Instead, it is mounted on a base plate that can be bolted to an existing concrete floor.Foundtionless jib crane for sale up to 500kg. Floor mounted jib crane with no concrete foundation for light load handling save your time & cost. Check now.

Foundationless jib crane

• Capacity: It is used for load handling no heavier than 500kg.
• Arm length : no longer than 4 m
• Floor requirement:  concrete floor with thickness no less than 20 cm.

Foundation jib cranes up to 16 ton

• Capacity : It can be used for handling loads with capacity of 0.25 t -16 ton .
• Arm length : 3-6m
• Foundation： customized concrete foundation.

Advantages of using a foundationless jib crane

• Foundationless jib cranes have several advantages over traditional cranes that require a foundation to be built. Some of the advantages include:
• Cost savings: Since a foundationless jib crane does not require a foundation, it can be installed more quickly and at a lower cost than a traditional crane.
• Flexibility: Foundationless jib cranes can be easily moved to different locations within a facility, allowing for greater flexibility in material handling
• Space-saving: Since foundationless jib cranes do not require a large foundation, they take up less space in a facility and can be installed in areas where traditional cranes cannot.
• Easy installation: Foundationless jib cranes can be installed on any level surface that is capable of supporting the weight of the crane and its load, making installation quick and easy.
• Reduced downtime:Foundation-less jib cranes offer a quick and efficient installation process, reducing downtime and increasing productivity. Unlike traditional foundation jib cranes, which require poured foundations that can take weeks to cure, foundation-less jib cranes can be installed and put into operation much faster.

FAQ on Floor Mounted Foundation-less Jib Crane 500kg

Floor mounted jib crane is one of the most frequently used material handling equipment used in workshops and workstation. For years of designing and manufacturing of floor mounted column mounted jib cranes. The one of the frequently asked questions are  regard the foundation of the jib cranes, such as,

 Usually, according to the relevant standards for column-mounted jib cranes, a foundation is required, and the size of the foundation varies for different specifications of column-mounted jib cranes.

However, some customers really do not want to make a foundation, so can this step be skipped?

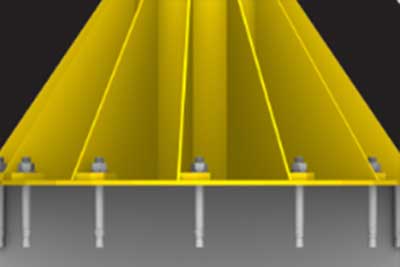

Generally speaking, column-mounted jib cranes below 500kg can use chemical bolts instead of making a foundation, provided that the thickness of the existing concrete is not less than 20cm and the length of the jib crane arm does not exceed 4m. The installation of a column-mounted jib crane can also be assisted by nearby walls or columns, using angle steel welded firmly to increase its safety. For column-mounted jib cranes above 500kg, a foundation must be made, and laziness may bury unnecessary safety hazards!

What are the weight and height limitations of a foundation-less jib crane?

Foundationless jib cranes are designed to be installed without the need for a concrete foundation. The weight and height limitations of a foundationless jib crane depend on several factors, such as the crane's capacity, boom length, and the specific manufacturer's specifications.

Typically, foundationless jib cranes have a maximum weight capacity of 500kg , and arm length no more than 4 meters. However, it is important to consult with the manufacturer or a qualified engineer to determine the specific weight and height limitations of the crane based on your specific application and requirements.

It is also important to note that foundationless jib cranes are typically designed for lighter loads and shorter heights compared to traditional jib cranes that require a concrete foundation. Therefore, it is crucial to ensure that the crane is used within its specified weight and height limitations to ensure safe and efficient operation.

Can a foundationless jib crane be relocated to a different location?

Yes, a foundationless jib crane can be relocated to a different location. Since it doesn't require a foundation, it can be easily dismantled and moved to a new location. However, it's important to ensure that the new location meets the necessary requirements for the crane's installation and use, such as adequate space, appropriate load-bearing capacity, and compliance with local regulations and safety standards. Additionally, it's recommended to have the crane reinstalled and tested by a qualified professional to ensure proper functioning and safety.

What types of industries commonly use foundationless jib cranes?

Foundationless jib cranes are commonly used in industries where the installation of a foundation is not feasible or desirable. Some examples of industries that commonly use foundationless jib cranes include:

• Warehousing and distribution: Foundationless jib cranes are often used in warehouses and distribution centers to move heavy loads around the facility.
• Manufacturing: These cranes are also commonly used in manufacturing facilities to move heavy materials and equipment.
• Automotive: Foundationless jib cranes are used in the automotive industry to move heavy parts and components during the manufacturing process.
• Construction: These cranes can be used on construction sites where a traditional foundation is not practical or possible.
• Mining: Foundationless jib cranes can be used in mining operations to move heavy equipment and materials.

Overall, any industry that requires the movement of heavy loads in a space where a traditional foundation is not an option can benefit from using a foundationless jib crane.

Selection your jib cranes

When sizing a jib crane, it is important to consider factors such as weight capacity, Height Under Boom (HUB), Overall Height, Working Span, and Boom Rotation. These factors will help determine the right size jib crane for your shop or project.

The size and thickness of the supporting concrete is also important when setting up a jib crane. We recommend using concrete that is at least 6 inches thick to safely support the jib crane and prevent tipping. Proper sizing of the jib crane is also crucial to ensure it can handle the weight of the load being lifted.

At Yuantai Crane, our expert team is available to provide guidance and support for all your jib crane needs. Whether you need help finding the right size or advice on setup, we are here to assist you.

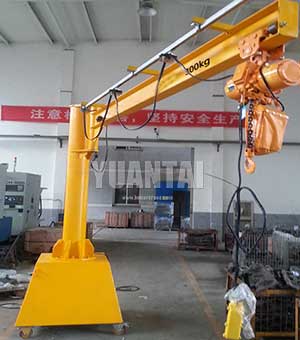

Portable jib cranes up to 2000kg

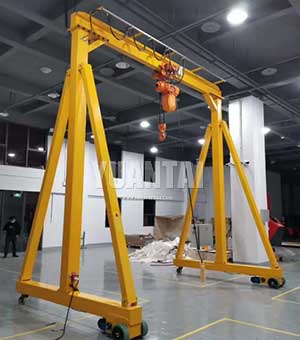

Portable gantry cranes up to 10 ton

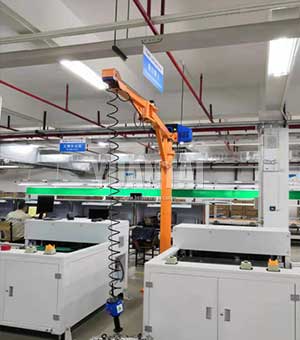

Folding arm jib crane up to 500kg
