Floor Jib Crane

Floor Jib Crane
Floor jib cranes: Floor mounted jib cranes & Hoists for Sale - BZ Series

Floor jib cranes: Floor mounted jib cranes & Hoists for Sale - BZ Series

Product Type: Floor jib cranes: Floor mounte
Lifting Capacity: 0.5~16 ton
Span: 3~12m
Lifting Height: According your demands
Working Class: A3
Ambient Temperature: -20~40℃
Inquiry

In the lifting industry, a floor-mounted jib crane is a popular lifting equipment. Because of its simple structure and ease of operation, it is widely used for loading and unloading material in a variety of work environments.
Yuantai Crane, one of China's most well-known and experienced jib crane manufacturers, offers high-quality jib cranes at an accessible price! Our jib cranes have a practical design, great security, and excellent performance, making them an excellent choice for lifting work!

Wide application of floor mounted jibcrane?

Construction sites, mold manufacturing enterprises, mining, automobile factories, logistics factories, machinery processing, warehouses, railway engineering, material departments, open storage yards, and other sites use floor mounted jib cranes to reduce labor resource, increase efficiency, save energy and cost, and improve working conditions.
When employed in short range or serried applications, the floor mounted jib crane excels.

They are, however, prohibited from being utilized in hazardous applications such as those that are combustible, explosive, or corrosive. Furthermore, molten metal, toxic and flammable items, and explosive materials cannot be handled by a general use floor mounted jib crane.

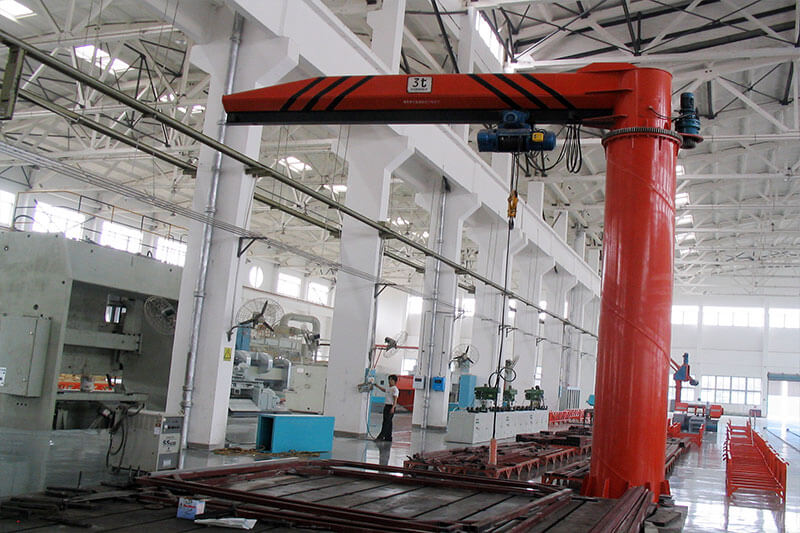

Floor moutned jib crane Floor moutned jib crane
Floor jib crane with fem electric chain hoist Floor jib crane with fem electric chain hoist
Ploor mounted jib crane - Yuantai Floor jib crane series Ploor mounted jib crane - Yuantai Floor jib crane series
Floor mounted jib crane with electric wire rope hoist - Yuantai Crane Floor crane Floor mounted jib crane with electric wire rope hoist - Yuantai Crane Floor crane

Features of floor mounted jib crane

  • Three-phase AC power supply with a 50Hz rated frequency and a 380V rated voltage.
  • The crane installation site is less than 2000 meters above sea level.
  • A strong steel pipe is used as the support pillar or post.
  • Antifriction bearings swivel the crane jib.
  • Slewing motions are offered in both manual and motorized versions.
  • Under or over braced jib structure is possible.
  • The wide base plate at the bottom of the jib distributes the loading equally uniformly on the foundation.
  • Other lifting equipment include a manual chain hoist, geared trolley, electrical chain hoist, motorized trolley, and others.
  • For remote crane operation, radio remote control is offered.

Advantages of Floor mounted jib crane

The advantages of a floor mounted jib crane include a unique structure, excellent safety, reliability, high operating efficiency, energy and time savings, and flexible operation.

Compact Design Style-The compact structure design makes the Floor mounted jib crane low in dead weight and outstanding in job performance, increases space utilization rate, and reduces hook operating distance to the maximum intently. The most appropriate material handling solution for your needs.

Smooth, quick loading, and outstanding performance-The floor crane and trolley are equipped with a stepless frequency converter control system, which allows the jib crane to brake steadily, locate properly, perform reliably, travel steadily, position rapidly, and solve the problem of load swing.

Safer, more reliable, and maintenance-free design-The latest technology is used, making regular procedures both safe and efficient.Perfect braking systems may greatly increase the safety and dependability of a floor mounted jib crane. When equipped with a dustproof design, the working life can be extended to 1 million times.The hardened and polished tooth surface of the crane provides trouble-free operation.

Floor mounted design of free standing jib cranes

Floor Base Plate Mounted Jib Crane

Floor Base Plate Mounted Jib Crane

The jib crane column assembly is connected to a pre-poured concrete base with integrated anchor bolts in this form of mounting. With under clearances up to 20′-0′′ and normal boom lengths up to 20′-0′′, this form of jb crane installation allows for 360° boom rotation.

Foundation Mounted Jib Crane

Foundation Mounted Jib Crane

The column of floor jib crane is bolted to a pre-poured concrete base in this manner of mounting. A second concrete pour completes the jib crane foundation and embeds the jib crane column in the foundation once the jib crane column is plumb and attached to the footer. The rest of the jib is identical to that of the base plate mount jib crane.


Sleeve Mounted Jib Crane

Sleeve Mounted Jib Crane

The Foundation Mount and a sleeve mounted jib crane are comparable. A steel sleeve is anchored to the concrete footer and incorporated in the concrete foundation, rather than the jib crane column. The jib crane column is then put into the sleeve, plumbed, and secured in place with split collars welded to the column and the embedding sleeve.
