Case Study Outline: 5-Ton Jib Crane with Chain Hoist Project – Maldives

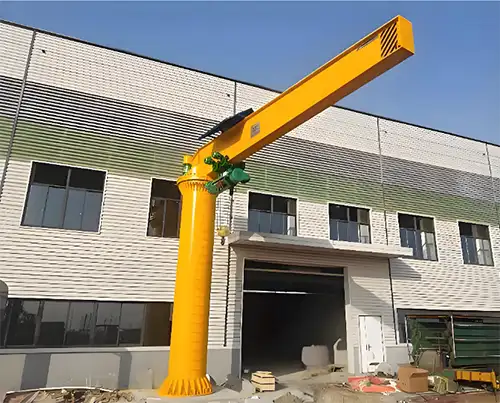

floor jib crane 5 ton for your reference

Case Study Overview

Project Date: 2025/9/7
Order Date: 2025/8/13 (CIF)
Client Location: Maldives
Product: BZ Floor Jib Crane + Ring Chain Hoist, 5T-6M H3M, 380V, 50Hz, 3-phase
Quantity: 1 unit
Delivery Terms: CIF
Project Highlights: Fast lead time, pre-embedded component shipment, painting inspection before final dispatch
Relevant Crane Types: 5 ton jib crane, 5 ton floor jib crane, 5 ton rotary jib crane, 5 ton cantilever jib crane

Client Background

The client is based in the Maldives, an island nation with a tropical maritime environment. While the specific industry wasn’t explicitly detailed, the crane was intended for applications where reliable lifting is essential—such as construction, resort infrastructure, or marine-related operations. Operations in this region often face high humidity, salt-laden air, and limited onsite installation resources, which requires careful planning and equipment designed to withstand these conditions.

Key Client Requirements:

Reliable lifting solution: The client needed a crane and hoist system capable of handling daily lifting tasks safely and efficiently.
Environmental suitability: Equipment had to resist corrosion and perform reliably in the tropical, coastal climate of the Maldives.
Electrical compatibility: The hoist needed to work with the local power supply: 380V, 50Hz, 3-phase, without the need for extensive modifications.
Integration with 5-ton jib cranes: The solution had to be adaptable, ready to install on 5 ton jib cranes, including floor jib cranes, rotary jib cranes, and cantilever jib cranes, depending on the client’s future needs.
Quick deployment: The client preferred a solution that could be shipped and installed quickly, minimizing downtime for ongoing operations.

Product & Crane Details

The solution provided for this project was a BZ electric chain hoist paired with a 5-ton jib crane. It was designed to handle the lifting demands of the client while being durable enough for the tropical, coastal environment of the Maldives. The hoist and crane were compact, easy to install, and compatible with several types of 5-ton jib cranes.

Key Hoist Specifications:

Hoist Model: BZ Floor Jib Crane + Electric Chain Hoist
Capacity: 5 tons
Lifting Height: 6 meters
Duty Class: H3M
Voltage & Phase: 380V, 50Hz, 3-phase

Special Features:

Durable for tropical environments with salt resistance and corrosion protection
Pre-painted for quality assurance and long-term reliability
Compact design, making installation simple and fast

Crane Compatibility:

Can be mounted on standard 5 ton jib cranes
Suitable for 5 ton floor jib cranes, 5 ton rotary jib cranes, and 5 ton cantilever jib cranes

Project Timeline

The project was completed in a short timeframe, from order placement to final delivery. Careful planning and coordination ensured that the 5-ton jib crane with the BZ ring chain hoist arrived on time and met all client requirements.

Key Milestones:

August 13, 2025: Client placed the order under CIF terms
August 25, 2025: Pre-embedded components shipped to the site, allowing groundwork and foundation preparation in advance

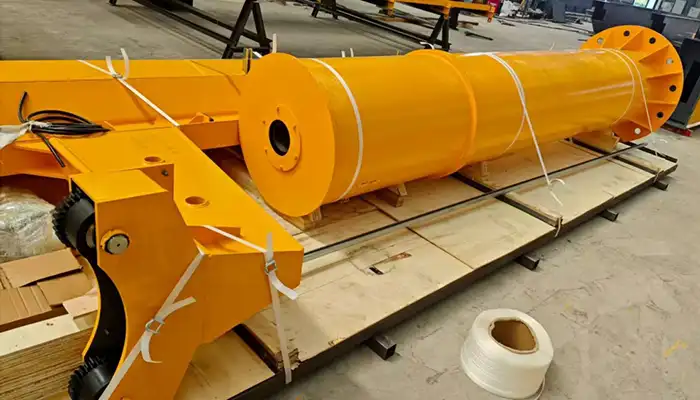

August 30, 2025: Photos of the painted hoist shared with the client for inspection and approval
September 7, 2025: Final delivery confirmed; hoist ready for immediate use

This timeline highlights the importance of pre-shipment checks, early component delivery, and clear communication, ensuring smooth installation and fast operational readiness for the 5-ton jib crane solution.

Challenges & Solutions

This project presented several challenges, from environmental conditions to logistics and crane compatibility. Each challenge was addressed with practical solutions to ensure the 5-ton jib crane and BZ ring chain hoist performed reliably for the client in the Maldives.

Challenge 1: Tropical Maritime Environment

The humid, salt-laden air posed a risk of corrosion to the crane and hoist.

Solution: Applied high-quality paint and pre-treatment to all exposed surfaces, ensuring long-term protection against rust and corrosion

Challenge 2: Quick Project Timeline

The client required the crane to be ready as quickly as possible.

Solution: Shipped pre-embedded components early, allowing civil works to be completed while the main crane was being prepared, reducing overall installation time

Challenge 3: Remote Location (Maldives)

Shipping to an island nation required careful planning.

Solution: Used CIF shipping and coordinated closely with local agents to track delivery and avoid delays

Challenge 4: Compatibility with Different 5-Ton Jib Crane Types

The client needed flexibility for different crane setups.

Solution: Designed custom hoist mounting options compatible with 5-ton floor jib cranes, rotary jib cranes, and cantilever jib cranes, ensuring the hoist could be installed efficiently on any configuration

Results & Benefits

The project was successfully completed, providing the client with a ready-to-use lifting solution that met all expectations. The combination of the 5-ton jib crane and BZ ring chain hoist delivered both reliability and flexibility, making it suitable for the tropical environment of the Maldives.

Key Results and Benefits:

On-time delivery: The crane and hoist were delivered within 3–4 weeks, keeping the project on schedule
Client satisfaction: Pre-shipment photos and quality checks ensured the client was confident in the product before it even left the factory
Reduced installation time: Pre-embedded components allowed faster setup on-site, minimizing downtime
Safe and reliable operation: The crane system is designed to perform efficiently in tropical coastal conditions, resisting corrosion and wear
Versatile compatibility: The hoist can be mounted on 5-ton jib cranes, floor jib cranes, rotary jib cranes, and cantilever jib cranes, giving the client flexibility for different lifting setups and future needs

Key Takeaways for Buyers

This case study highlights several important lessons for buyers considering a 5-ton jib crane or related hoist solutions. Following these practical steps can save time, reduce installation issues, and ensure long-term reliability, especially for projects in remote or challenging environments like the Maldives.

Key Points for Buyers:

Early shipment of pre-embedded components: Sending essential parts in advance allows civil works and foundation preparation to proceed smoothly, reducing onsite installation time
Pre-delivery inspections: Sharing photos or performing visual checks of painted and assembled components improves client confidence and avoids surprises during installation
Compatibility with multiple 5-ton jib crane types: Ensuring the hoist works with floor jib cranes, rotary jib cranes, and cantilever jib cranes maximizes flexibility and future operational options
Tailor to local conditions: Select hoists and cranes that match local voltage, phase, and environmental conditions to ensure long-term performance and safety

FAQs: Buying a 5 Ton Jib Crane in the Maldives

When selecting a 5-ton jib crane for a workshop or project in the Maldives, clients often have questions about types, specifications, and environmental considerations. Here’s a practical guide.

1. What types of 5-ton jib cranes are available?

The main types to consider:

Floor Jib Crane: Mounted on a strong base or pillar; suitable for workshops or outdoor areas with solid foundations
Rotary Jib Crane: Can rotate 180°–360°, ideal for moving loads within a circular workspace
Cantilever Jib Crane: Supports overhanging loads without a floor obstruction; best for tight or constrained spaces
Wall-Mounted Jib Crane: Fixed to a wall or column, suitable for limited floor space

2. What key specifications should be confirmed?

Before ordering, verify these main details to ensure safe and efficient operation:

Lifting Capacity: Confirm 5 tons is sufficient for all expected loads
Lifting Height / Radius: Ensure the hoist and jib span meet your workflow requirements
Duty Class / Usage: H3 or H4 depending on operation frequency
Voltage & Phase: Typically 380V, 50Hz, 3-phase; confirm compatibility with local power supply
Environmental Protection: Corrosion-resistant paint or stainless steel for tropical, coastal conditions

3. How to prepare for tropical coastal conditions?

Use high-quality corrosion protection to withstand humidity and salt air
Inspect pre-painted components before shipment
Choose materials and coatings suitable for marine environments

4. Can the crane be customized for site requirements?

Yes, cranes can be tailored:

Mounting options for floor, rotary, cantilever, or wall-mounted setups
Adjustable lifting height and jib span
Optional pre-embedded bases for faster installation

5. How long is the typical delivery and installation time?

Delivery: Usually 3–4 weeks for standard 5-ton jib cranes and hoists
Installation: Can be faster if pre-embedded components are shipped in advance

6. How to ensure safe and reliable operation?

Match the hoist and crane capacity to your maximum load
Verify all specifications before ordering
Maintain regular inspections, especially in high-humidity or marine environments
