H Beam Hoist for Sale Argentina, 10 Ton Electric Wire Rope Hoist

Electric wire rope hoist for sale Argentina from China. Trolley travelling H beam hoist, pendant control electric hoist. Check electric hoist specifications now.

Project info of 10 ton H beam hoist for sale Argentina

• Brand ：Yuantai Crane
• Types of Cranes:H beam travelling electric wire rope hoist
• Date of Placing Order： 2022-04-02
• Date of delivery ： 2022.6.5
• Transportation ：By sea
• Payment: 100% TT
• Destination port：FOB qingdao
• Destination country：Argentina

H beam electrirc hoist 10 ton for sale Argentina

Main Specifications of 10 ton H beam electric hoist for sale Argentina

Custom features of 10 ton H beam hoist

• H-Beam rail and flat wheels for hoist trolley, rail width 200mm;
• The H beam hoist is required to have a double lifting speed from 0.7/7m/min, and frequency conversion speed for trolley travelling around 2-20m/min;

Customs declaration & registration information

• The actual Chinese and English name of the goods: Electric H Beam Hoist
• Chinese and English name of cargo declaration: Electric H Beam Hoist
• Inland transportation cost from factory to port: RMB16210
• Port charge: RMB800

Gallary of 10 ton H beam hoist for sale Argentina

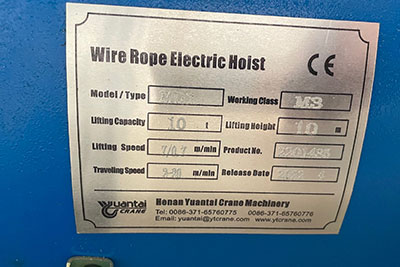

Name plate of electric double speed electric hoist 10 ton 10m

Electric wire rope hoist for sale Argentina

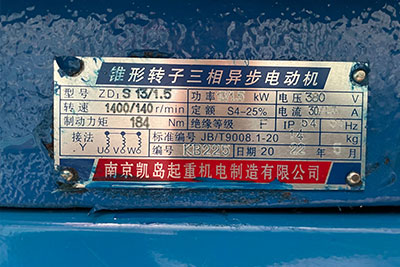

Electric motor name plate for the H beam hoist

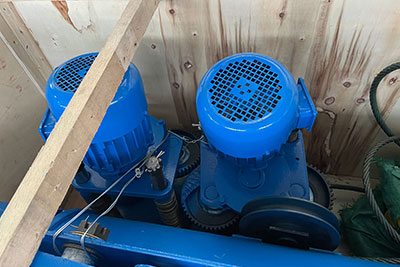

Motorized travelling electric hoist trolley for sale

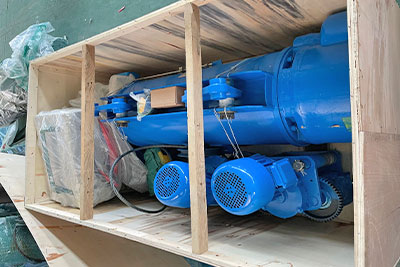

10 ton electric wire rope hoist for sale Argentina

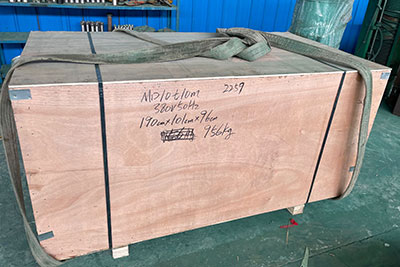

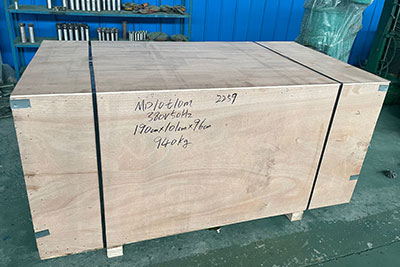

10 ton electric hoist packed for delivery to Argentina

H Beams

Sometimes termed an I-Beam, due to its trademark form, they are also known as H-Beams, W-Beams, and S-beams dependant on differences in design (usually, standard I-Beams aren’t utilized in lifting systems but since it is what most people think of when the term beam is mentioned we’ll start there).

Beams come in a variety of shapes and sizes for various applications, as explained below, but all have common elements. The vertical element, "the web," resists shear forces, whereas the horizontal flanges (the tops and bottoms of the "I") resist bending and are where the most force is applied to the beam during lifting.

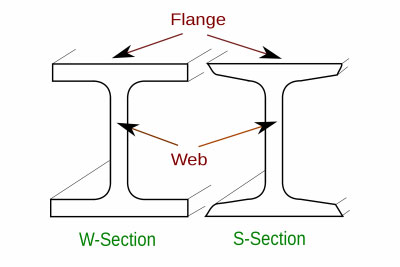

shapes of types of H beams

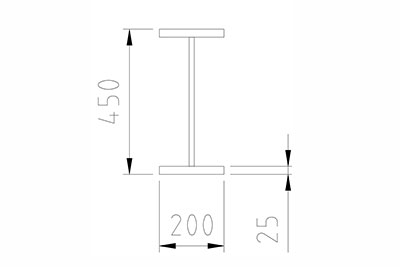

Sizes and dimensions of H beams of 10 ton electric hoist for Argentina

W- Beams

W-Beams have wider flange surfaces than I-Beams and constant thickness parallel flanges. The wider flange of a W-Beam provides the space required by the trolley wheels. Again, beams come in a wide range of thicknesses, widths, and weights for a variety of applications, and proper selection and installation are critical to meeting engineering structural standards in a lift system.

The S-shaped beam

S-Beams have a slope on the inner flange that increases the beam's strength and durability (the S comes from the design of the flange's inner surfaces). They can carry more weight than I or W shapes but are more expensive.

H beams are typically made of structural steel, but they can also be made of aluminum or other materials.

H beams are common in the construction industry and come in a variety of standard sizes. There are tables available to help you choose a suitable steel I-beam size for a given applied load. H beams can be used as both beams and columns. I beams are widely used in the hoist and crane industries, as well as in I beam hoist, I beam crane, I beam jib crane, I beam overhead crane, and so on.
