Engineered Open Winch Crane 30 Ton for Sale France European Style

Overhead bridge crane for sale Maldives, good bridge crane price. Single girder bridge crane, with wire rope hoist & pendent ground control. Check now.

Project info of 30 ton engineered crane for sale France

  • Brand :Yuantai Crane
  • Types of Cranes:Double girder overhead crane with engineered crane design
  • Date of Placing Order: 2017.8.28
  • Date of delivery : 2017.9.30
  • Transportation :By sea, 40 GP container *8
  • Payment: 100% LC
  • Destination port:FOB, Qingdao
  • Destination country:France
  • First contact:2014. 12
30 ton double girder overhead crane with open winch for sale France
30 ton double girder overhead crane with open winch for sale France

Main Specifications of 30 ton overhead crane with engineered open winch trolley for sale France

Quantity

1 set

Product Name

Double girder overhead cranw with engineered open winch trolley

Crane Model

qdx

Lifting capacity

30 ton

Crane span

18.7 m

Lifting height

50 m

Working class

A5

Power supply

400V,50HZ,3P

Crane control

Ground control

Color

Crane structrue is yellow, crane trolley and both sides of frame is blue

Customized features of 30 ton overhead crane for France

  • 1. Configuration: Long travelling and cross travelling is required to adopt ABM motor; and hoisting adopts the Jiamusi motor, Boneng reducer, Jiaozuo brake; Schneider Electrics.
  • 2. Speed: Lifting speed: no-load 20m/min, load 10m/min; trolley travelling : 2-20m/min; crane running: 4-35m/min
  • 3. Control voltage: 48v
  • 4. The handle line has a separate slideway, leaving the aviation plug .
  • 5. A walling platform is need for the open winch overhead crane , and the crane trolley has no need of platform or climb the ladder.
  • 6. Need sandblasting and anti-rust treatment, paint thickness 180 microns
  • 7. The blue color code on both sides of the trolley and the trolley track is PB04
  • 8. All electrical accessories Schneider or Siemens
  • 9. The trolley track is square steel 50*70, and the trolley track is P43
  • 10. Equipped with a rain cover, the open winch crane meets the standard for outdoor use, and the wind speed is 24m/s

Customized features of 30 ton overhead crane steel structure

1. Column model: H750*400*12*16,

  • height 11.5 meters, 10 pieces are required;
  • Height 6.9 meters , 4 pieces are needed,
  • a total of 14 pieces including inclined supports and embedded parts

2. Rail bearing beam model: H900*440*12*16*365*14 , 7m /piece , a total of 12 pieces.
3. Crane track: P43, 12.5 m/ pieces, all together 6 pieces, 4.5 m/pieces, 2 pieces are required; a total of 350 pressure plates; a total of 11 pairs of clamping plates.
4. One steel structure ladder, with 8 meters walking platform and handrail

Customized features of 30 ton overhead crane accossory

Lifting Jiamusi motor 1

other requirements:
1. The production drawings need to be confirmed by the customer before production
2. All accessories must meet European standards, bearing welding and mechanical parts must meet DIN standards, and all electrical wires must have CE certification

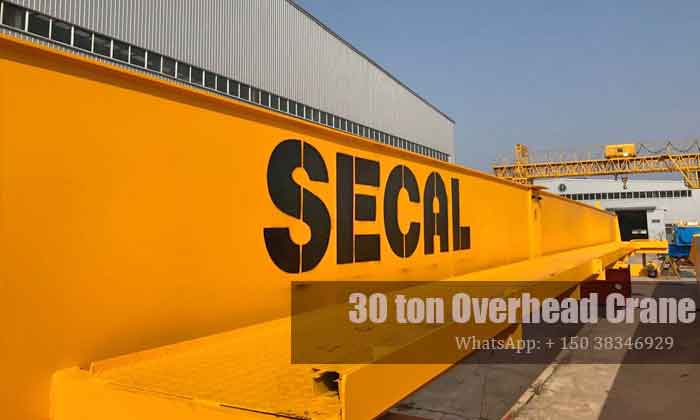

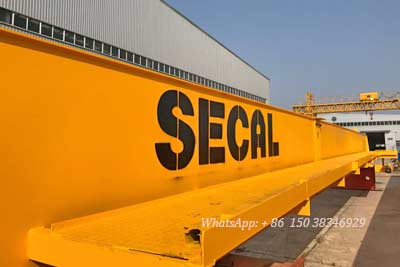

3. The main girder o the open winch crane needs to print client’s LOGO ,

Gallary of 30 ton double girder overhead crane with builtin winch trolley for sale France

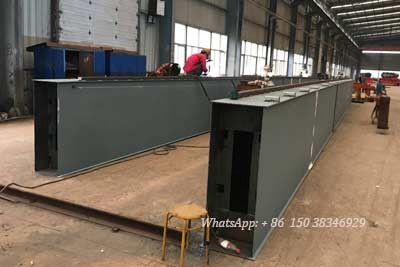

Main girder of 30  ton  open winch overhead crane  for sale FranceMain girder of 30 ton open winch overhead crane for sale France
Main girder of 30 ton engineered open winch overhead crane for sale FranceMain girder of 30 ton engineered open winch overhead crane for sale France
Main girder  painted for  France 30 ton crane projectMain girder painted for France 30 ton crane project

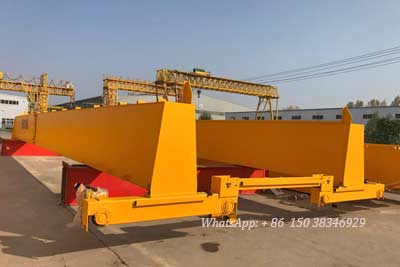

Main girder of 30 ton double girder overhead crane with builtin open winch  for sale France Main girder of 30 ton double girder overhead crane with builtin open winch for sale France
30 ton overhead crane engineered open winch 30 ton overhead crane engineered open winch

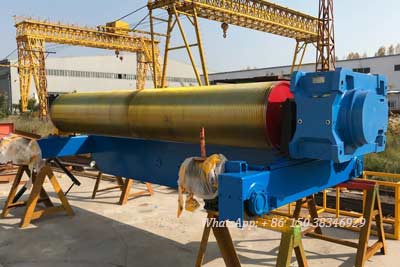

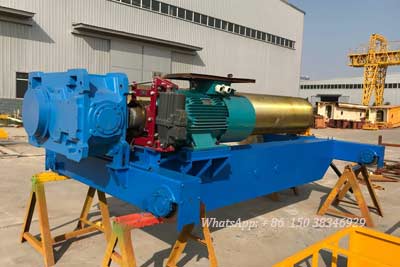

30 ton builtin open winch trolley for france client 30 ton builtin open winch trolley for france client
