Portable Design Motorized Gantry Crane Travelling Under loading
Small portable gantry, motorized travelling under loading, up to 10 ton. Economical & powerful motorized gantry crane for sale, good price. Check benefits now.
The ability to move your gantry crane while it is carrying a load is one of the most significant advantages of using a motorized portable gantry crane. While many manufacturers strictly limit or prohibit the ability to move a gantry crane under load, the motorized portable gantry crane of Yuantai Crane are designed to be moved under load. There are several advantages to using a gantry crane that can move under load.
The portable gantry cranes can be used in a facility without the need for foundations or long-term installation. Because they are easily disassembled and relocated, the movable gantry cranes are ideal for rented facilities or potential future workflow changes. The portable motorized gantry cranes, unlike most permanent material handling systems, can move loads from indoors to outdoors or between buildings.
Yuantai Crane Portable Gantry Cranes can roll to any location within a building, making it simple to provide full coverage. The portable gantry cranes can carry items with ease on flat floors, through confined places, or beneath low clearances thanks to their tailored gantry designs.
- Load capacity: 0.5 ton – 20 tons
- Crane span: 2m – 8m or customized
- Lifting height: 1m to 6m or customized
- Hoist unit: Motorized or manual
- Working duty: A3
- Crane travelling: motorized travelling with castors
- Model： PT-5
- Max Capacity：20 tons
- Max Height ： 10 meters
- Max Span：15 meters
- Hoist Type： Electric hoist with motorized trolley
- Crane Travelling：Rail-mounted motorized travelling
Casters

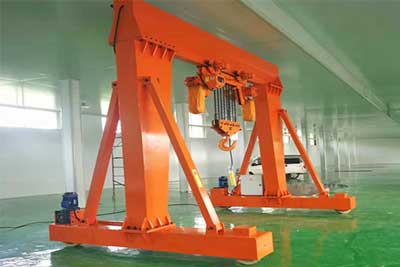

Every motorized portable gantry crane has rolling casters that allow it to be moved while under load. When carrying a load, all motorized gantry cranes can be moved whereas, the manual travelling portable gantry crane is not re-commanded to move under-loading. Generally, the motorized small gantry cranes come with standard crane casters, which are travelling on smooth concrete surfaces. These standard casters provide smooth operation and low rolling resistance. Polyurethane casters enable users to move a loaded motorized gantry crane with about 5% of the system's maximum rated capacity.
All motorized gantry cranes can be moved under load with rolling caster. With small castors, the motorized can be used outdoors but it is required the travelling ground should flat to ensure safety. Or the rubber tyred gantry crane will be used to ensure safety if high mobility is required. Customized gantry cranes are available to meet your particular application and lifting requirements.
Light duty rail travelling motorized gantry crane
Rail traveling motorized gantry cranes are small gantry cranes with light gantry crane design. They are commonly used for light duty material handling in workshop or outdoor applications, such as small factories for daily light duty material handling, warehouse storage, and ship loading, as well as heavy parts handling for machinery maintenance, and so on. They are well-designed and cost-effective light duty portable gantry cranes with rail travelling design.
Moreover, the rail travelling portable gantry cranes can be customized for your special requirements for mold handling, automotive factory, mine, construction site and other industrial applications, etc.
The rail traveling motorized gantry crane has a rational gantry structure, high mobility, and a small footprint. Small gantry cranes are typically used to handle loads weighing 500kg to 5000kg. The rail gantry crane with tailor gantry crane design can be used for workshop equipment installation, repair, and debugging, etc. The motorized gantry crane will assist you in reducing manpower, lowering production and operating costs, and improving work efficiency. Contact us right away to get your cost-effective small rail travelling motorized gantry crane design.
Motorization
Most motorized gantry cranes can be moved while loaded, but some high-capacity applications require custom gantry crane designs. A Yuantai Crane Electric Motorized Portable Gantry Crane is the way to go when you need high movability.
Standard heights of 1-9 m, standard spans of 2-12 m, and capacities of up to 10 tons are available for portable motorized gantry cranes. The motorized gantry crane's higher capacity and larger height and span make it a more cost-effective alternative to large bridge cranes when long distance travel would require long runways and numerous foundations and supports.
Crane Rail Drives or Trackless Drives can be used by motorized gantry cranes to move in a straight line along a predetermined path. In contrast to cranes that are fixed in place, these portable gantry crane options can be transported and set up elsewhere if the gantry crane needs to be moved at some other locations.
Safety on under loading operation
When moving a gantry crane while it is loaded, extreme caution is required. Maintain the load as close to the floor as possible and in the center of the I-beam of the gantry . DO NOT push the load and DO NOT use a lift truck or other vehicle to push or pull the gantry crane. Make sure the load not to swing or roll against crane support legs. Ensure that the floor is clean, level, smooth, and have no obstructions.
Benefits
portable motorized gantry cranes have a greater range of motion than stationary gantry cranes or permanently installed systems because they can move while loaded. They are more flexible than permanent systems because they can be moved throughout a facility, and they provide safer and more efficient material handling than other flexible solutions, such as forklifts.
The portable motorized gantry cranes can provide a wide range of motion in places where permanent material handling structures cannot be used, such as rooftop applications, because they do not require a poured foundation. Portable motorized gantry cranes, with capacities ranging from 250 kg to 10 tons and the ability to move while loaded, provide flexible, economical, and effective material handling solutions for a wide range of applications.
