Production & Delivery Gallery

Production & Delivery Gallery
  • 2022-07-27 14:52:46

16 Ton 30 M Electric Wire Rope Hoist for Sale Cambodia

16 Ton 30 M electric wire rope hoist customized for Cambodia project. Check Cambodia electric hoist specification to get your customized wire rope hoist.

Project info of 16 ton overhead crane & hoist for sale Cambodia

  • Brand :Yuantai Crane
  • Types of Cranes:Electric Wire Rope Hoist
  • Date of Placing Order: 2021-01-13
  • Date of delivery : 2021.1.27
  • Transportation :By sea
  • Payment: FCA Guangzhou
  • Destination port: FCA Guangzhou
  • Destination country:Cambodia
40 ton electric hoist for philippines
single girder overhead crane for sale Cambodia

Main Specifications of 16 ton overhead crane & hoist for sale Cambodia

Quantity

1 set

Product Name

Single Girder Overhead Crane

Crane Model

MD

Lifting capacity

16 ton

Lifting height

30 m

Working class

M4

Power supply

400V,50HZ,3P

Crane control

Pendent control

Crane Rail

included

Color

Standards

Customized features of 16 ton overhead crane & hoist

  • The running track of the hoist is I-beam, the width is 140mm, and the handle line is 10m.
  • Control voltage 24v
  • Protection class IP54

Customs declaration & registration information

  • The actual Chinese and English name of the goods: Electric wire rope hoist
  • Chinese and English name of cargo declaration: Electric wire rope hoist
  • Inland transportation cost from factory to port: RMB1200

Gallary of 16 ton overhead crane & hoist for sale Cambodia

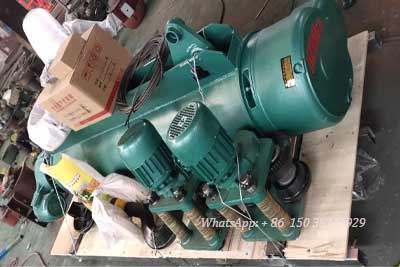

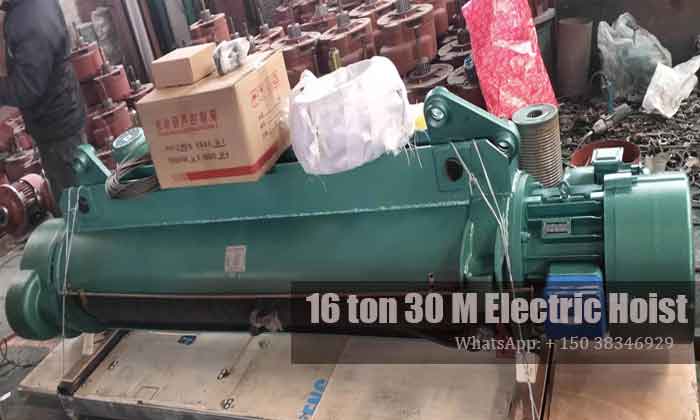

16 ton  30 m lifting electric wire rope hoist  for sale Cambodia16 ton 30 m lifting electric wire rope hoist for sale Cambodia

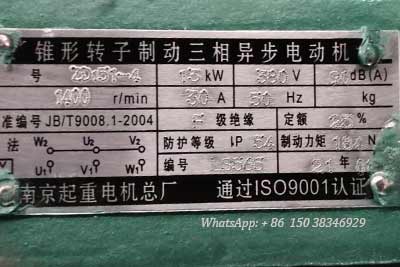

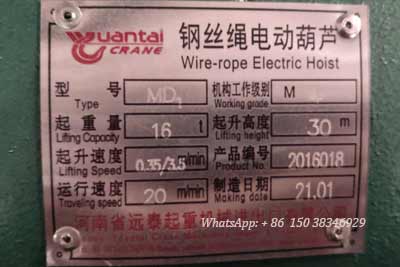

Name plate of 16 ton  electric wire rope hoist  for sale CambodiaName plate of 16 ton electric wire rope hoist for sale Cambodia

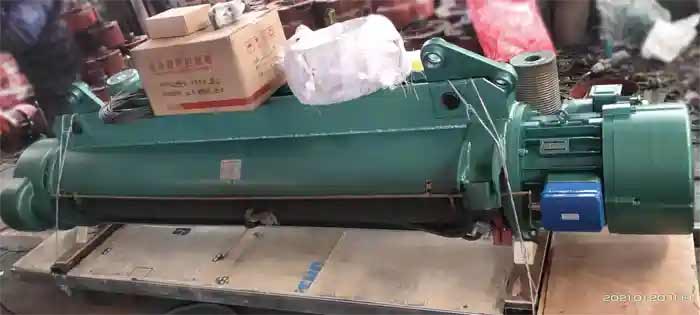

Hoist motor for the 16 ton electric hoist with 30 m lifting height for Cambodia client Hoist motor for the 16 ton electric hoist with 30 m lifting height for Cambodia client

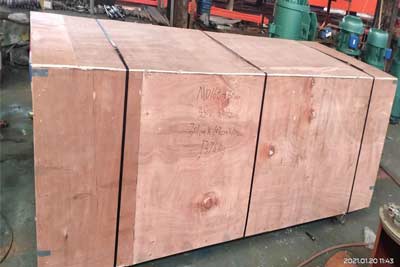

Electric hoists and hoist parts and components are packed into wooden box for delivery to CambodiaElectric hoists and hoist parts and components are packed into wooden box for delivery to Cambodia
40 ton electric hoist for philippines30 ton 60 m electric hoist for sale Cambodia good price

How to select the Right wire rope hoist for your application?

But buying an electric wire rope hoist, keep these three things in mind so you can find the best hoisting equipment for your needs.

Factor 1: Load Lifting Requirements  - capacity or tonnage you need

While there are various elements to consider, the most crucial thing to remember is the load lifting needs. How much weight is typically lifted at your location? This is the absolute minimum load that is needed, and while many hoists may be able to handle it, it is best to choose one that can handle more.

High capacity hoists provide vital security, safety, and the potential to lift even heavier loads if necessary; unanticipated load increases are not unusual. Additionally, they provide you with comfort in knowing that your typical loads won't place undue strain on the machinery, allowing you to complete the task at hand without anxiety. These hoists could also speed up your work while preventing any equipment damage.

Factor2: Keep an Eye on Lifting Numbers  - working duty cycle

.Consider how many lifts you'll need the wire rope hoist to perform before choosing one. This is yet another crucial decision aspect because it may restrict your choices if your job is really demanding. Some hoists may not be able to perform as many lifts as others due to differences in the material strength of the hoists.

Choose the wire rope hoist that can manage a high number of lifts if you anticipate putting a lot of strain on the apparatus or if there's a risk you'll need to conduct unforeseen or additional lifts. This not only gives you more flexibility if you need it, but it also ensures your safety and the safety of others while working.

Factor 3: What Are Your Priorities and Future Needs?

Although it might seem obvious, it's crucial to plan ahead. If you just purchase the electric hoist that will satisfy your current requirements, you can save money up front but finish up paying more for a replacement. Purchasing equipment that will not only suit your immediate needs but also serve you well in the future only makes sense.

In summary, select the hoisting equipment that handle larger load size than you might require, double-check your lifting frequency or working duty cycle, and choose a hoist that you are confident will meet your demands and those of your needs for a long time after your current project.
