Ultra Low Headroom Hoist Portable Gantry Crane 0.5 Ton Saudi
Manual portable gantry crane 0.5 ton, light, small, cheap small gantry crane with ultra low headroom hoist. Check gantry crane specifications & drawing.
Project info of 0.5 ton overhead crane & hoist for sale Saudi
- Brand ：Yuantai Crane
- Types of Cranes:Portable Gantry Crane
- Date of Placing Order： 2021-01-29
- Date of delivery ： 2021.02.28
- Transportation ： Truck delivery to Shanghai
- Payment: 30% prepayment
- Destination port：FOB, Shanghai China t
- Destination country：Saudi
Ultra low hoist for portable gantry cane for sale Saudi
Main Specifications of 0.5 ton ultra low headroom portable gantry crane for sale Saudi
|
Quantity |
1 set |
|
Product Name |
Portable gantry crane |
|
Lifting capacity |
0.5 ton |
|
Crane Width |
Inner Width 3.3m, Outter Width 3.5 m |
|
Lifting height |
1.74m, overall height 2 m, |
|
Working class |
M3, |
|
Power supply |
Manual hoisting & travelling |
|
Crane control |
Manual control |
|
Color |
Standards |
Customized features of 0.5 ton portable gantry crane

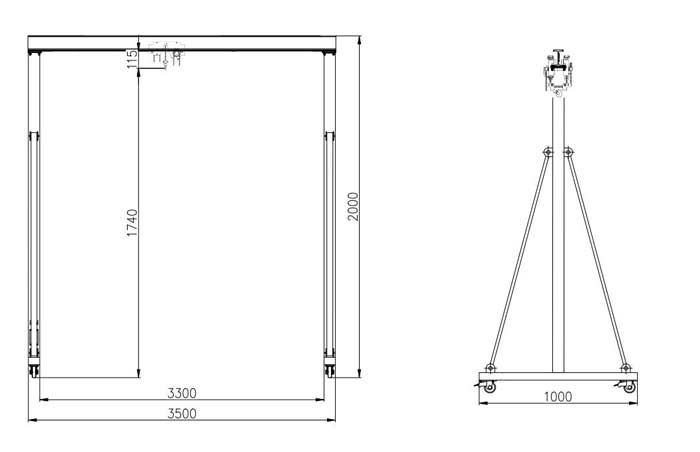

- 1. The 0.5 ton portable gantry crane is designed with manual travelling and hoisting. And the drawings of the small gantry cranes are shown in the figure below.

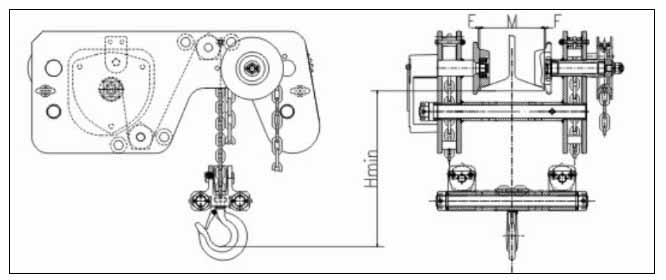

- 2. The gantry hoist is an ultra-low headroom chain hoist with a headroom height of 115mm. See the drawing below.
- 3. The wheels of the wheel travelling portable gantry crane are all universal wheels, and the length of the ground beam is 1 meter, because the customer's site space is limited, otherwise it will not be able to turn.
Gallary of 0.5 ton portable gantry crane for sale Saudi

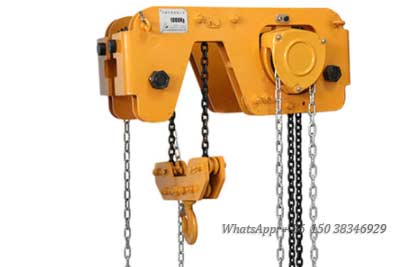

Ultra low headroom hoist for portable gantry crane Saudi
Ultra low headroom hoist for light and small gantry crane Saudi
Main structure of the 0.5 ton small portable gantry crane for sale Saudi

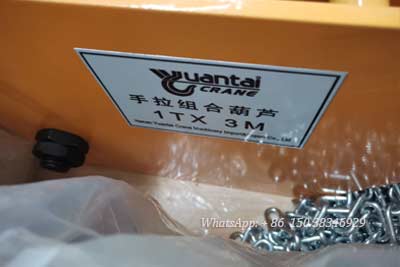

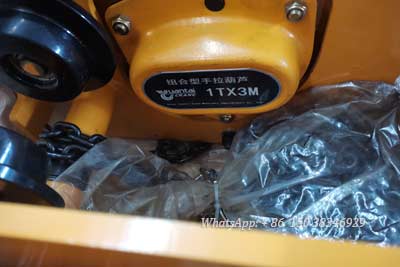

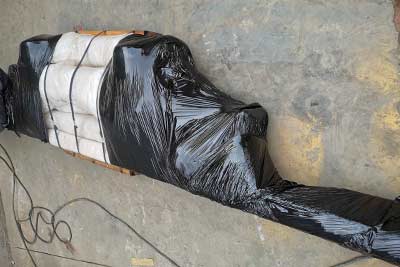

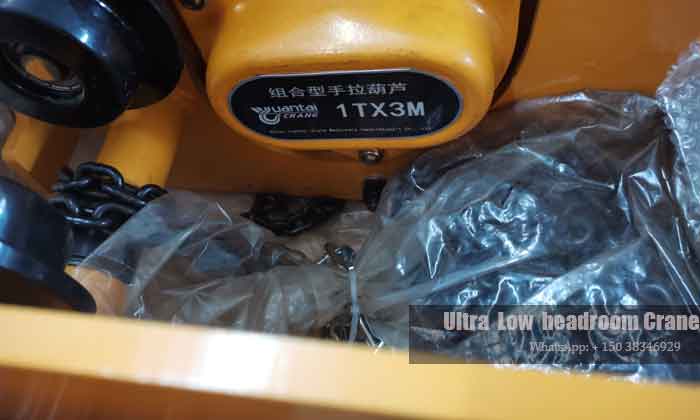

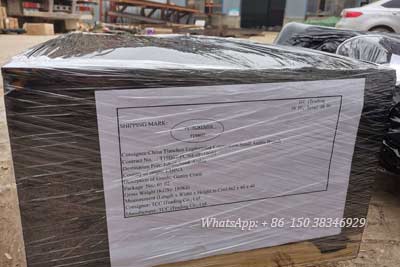

Portable gantry hoists and parts and packed for delvieyr for SaudiUltra- low headroom chain hoist
- Main Specifications:1T | 2T | 3T
- Typical application: Ultra-low-altitude operation without power supply, suitable for narrow and ultra-low space requirements
Features of Ultra- low headroom chain hoist
- Ultra- low headroom chain hoist is composed of gear hoist + monorail trolley, with ultra low headroom design.
- The chain hoist block and the monorail trolley of the ultra-low chain hoist are installed together, and the load tonnage is large.
- The ultra low-headroom chain hoist wheels are equipped with anti-friction ball bearings, which make the operation smoother and smoother; high-quality bearings can withstand brutal loading and unloading.
- DLHP ultra-low chain hoist bottom hook can be rotated 360°, accurate positioning;
- The width of the monorail trolley can be adjusted according to the limited range of the I-beam.
