Production & Delivery Gallery

Production & Delivery Gallery
  • 2022-08-04 10:29:03

6 Sets Column Mounted Jib Crane 3 Ton for Romania, Good Buy

3 ton column mounted jib crane, pendent jib for sale Romania, 6 sets. Check 3 ton jib crane specifications & design now. Economical jib crane for sale.

Project info of 3 ton overhead crane & hoist for sale Romania

  • Brand :Yuantai Crane
  • Types of Cranes:Column mounted jib crane
  • Date of Placing Order: 2021-03-19
  • Date of delivery : 2021.04.20
  • Transportation :By shipping, 40GP + 20 GP
  • Payment:TT 50%
  • Destination port: CIF Constanta port
  • Destination country:Romania
Floor mounted jib crane 3 ton for sale Romania - 6 sets of crane cantilevers
Floor mounted jib crane 3 ton for sale Romania - 6 sets of crane cantilevers

Main Specifications of 3 ton overhead crane & hoist for sale Romania

Quantity

6 set

Product Name

Column mounted jib crane

Crane Model

BZ

Lifting capacity

3 ton

Crane span

4.7 m

Lifting height

2.95 m

Working class

A5

Power supply

380V,50HZ,3P

Crane control

Ground control

Application

Indoor use

Color

Standards

Customized features of 3 ton column mounted jib crane

  • 1. The total height of the column mounted jib crane is 4M, the lifting height is 2.95M, and the height of the cantilever beam needs to be controlled within 400mm;
  • 2. The length that the European style low headroom hoist can run on the cantilever beam is 3.5M (the distance between the stops is 3.5M), and the effective arm length is 4.7M;
  • 3. Equipped with European-style electric chain hoist, the height of the hoist is 650mm, the lifting speed is 1-4m/min, and the running speed is 5-20m/min;
  • 4, Cantilever with embedded parts;
  • 5. Electrical diagram, product test report and certificate of origin are required;

Customs declaration & registration information

  • The actual Chinese and English name of the goods: Column mounted jib crane
  • Chinese and English name of cargo declaration:Column mounted jib crane
  • Inland transportation cost from factory to port: RMB10000
  • Port charge:RMB7600
  • Sea freight: USD 10000 including ensurance

Gallary of 3 ton overhead crane & hoist for sale Romania

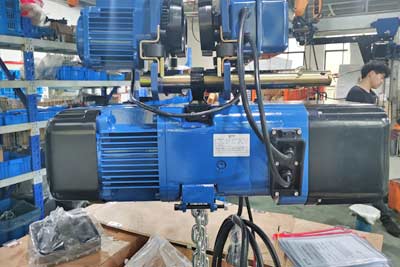

3 ton low headroom electric chain hoist  for Romania floor mounted jib crane project3 ton low headroom electric chain hoist for Romania floor mounted jib crane project

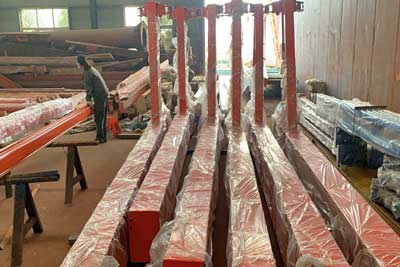

6 sets of jib crane cantilevers for 3 ton cranes  Romania6 sets of jib crane cantilevers for 3 ton cranes Romania
Details of the jib crane cantilevers - steel cantilevers Details of the jib crane cantilevers - steel cantilevers

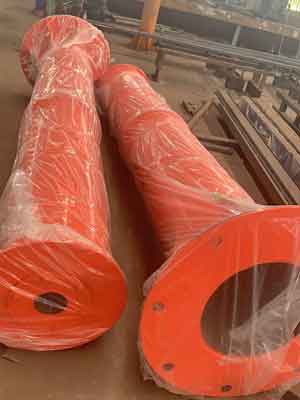

Details of 3 ton column mounted jib crane - steel columns Details of 3 ton column mounted jib crane - steel columns

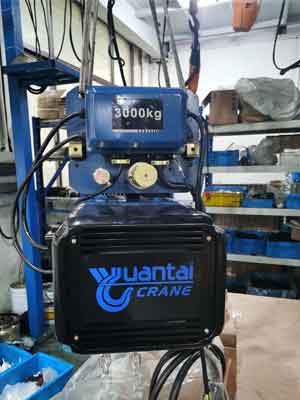

3 ton jib hoist, light weighted electric chain hoist from Yuantai Crane, a Chinese hoist and crane supplier 3 ton jib hoist, light weighted electric chain hoist from Yuantai Crane, a Chinese hoist and crane supplier

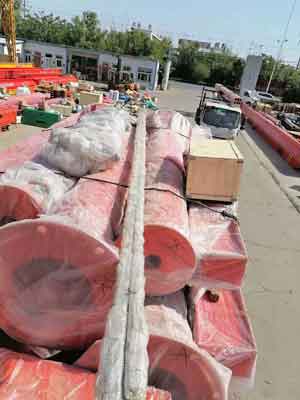

6 sets of columns packed for delivery 6 sets of columns packed for delivery

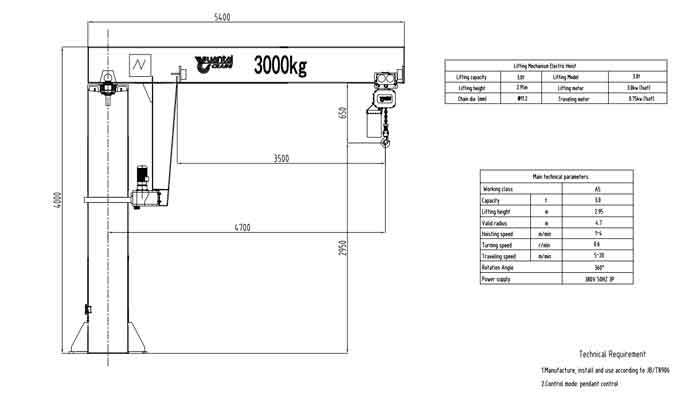

column mounted jib crane design drawing 3 ton

Features of column mounted jib crane design:

  • 360-degree rotation
  • The head assembly is made of standard plate, angles, and channels to ensure maximum rigidity and minimum deflection.
    The head assembly is designed to prevent dislodgment due to upward and forward motion. It also allows bottom entry electrification inside the head and top entry electrification when mounted above the boom.
  • Electrified, motor-driven, powered rotation through various collector ring assemblies is possible.
  • The boom or I-beam is designed to meet all specifications by incorporating a 25% factor of rated load for impact and a 15% factor of rated load for hoist and trolley weight.
    The pipe mast or column is designed to provide maximum strength with minimal deflection in order to withstand bending, buckling, crushing, and wear from the roller assembly.
    For proper lubrication, the top bearing assembly employs a tapered roller bearing with a grease fitting.

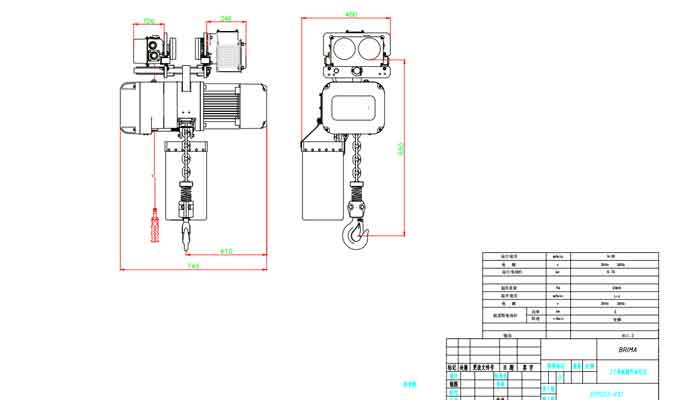

3 ton electric chain hoist for the column mounted jib crane for Romanina

Features of column mounted jib hoist :

  • Higher Performance & Faster- With advantages in high performance, high safety, and reliability, European electric chain hoists are designed with the user in mind to boost productivity and provide the most effective use of labor.
  • Sensitive and Fast -European motorized chain hoist with precise positioning and flexible operation. Lord quickly and effectively stood up, gracefully hoisting the cargo at low speed with precise alignment.
  • Longer service life for greater efficiency - Practically speaking, the service life of European electric chain hoists is increased by about 20% in compared to the standard 2m classification for chain hoists FEM rating. As a result, there is a much longer gap between general overhauls and service intervals. Only European electric chain hoists offer this extended operating life.

How to get Your Tailored floor mounted jib crane

The following factors should be considered in order to choose a right column mounted jib crane for maximum effectiveness at minimum cost.

  • Lifting capacity: The application's maximum weight should correspond to the design weight.
  • Jib cranes that are free standing or fixed on columns may rotate 360 degrees. Types that are wall mounted enable 360° rotation.
  • Lifting height: the hook vertical travelling length or how tall you need the loads to be lifted up
  • Working span: The length of the electric hoist's running and total arms.
  • Power supply: three-phase, 50/60 Hz, AC 220-480V (as you required)
  • Which materials need to be lifted?
