5 Ton Bridge Crane Pendent Control, Economical Single Girder Design

Single girder bridge crane 5 ton for sale. U shape box girder design, Economical CD/MD electric hoist, pendent control, optimal for light load hoisting.

Project info of single girder bridge crane 5 ton for Oman

  • Brand :Yuantai Crane
  • Types of Cranes:bridge crane & hoist
  • Date of Placing Order: 2021-04-09
  • Date of delivery : 2021.4.16
  • Transportation :By sea, 40 GP container
  • Payment: TT
  • Destination port: C&F Salalah Port
  • Destination country:Oman

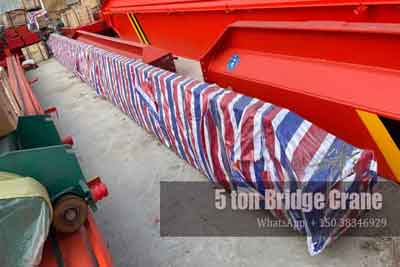

Single girder bridge crane 5 ton for sale OmanSingle girder bridge crane 5 ton for sale Oman

Main Specifications of 5 ton bridge crane for sale Oman

Quantity

1 set

Product Name

Single Girder bridge crane

Crane Model

LD

Lifting capacity

5 ton

Crane span

10.435 m

Lifting height

6 m

Working class

A3

Power supply

380V,50HZ,3P

Crane control

Ground control

Color

Standards



Customs declaration & registration information

  • The actual Chinese and English name of the goods: bridge crane
  • Chinese and English name of cargo declaration:bridge crane
  • Inland transportation cost from factory to port: RMB3500
  • Port charge: RMB4000
  • Fee freight: 6850 USD

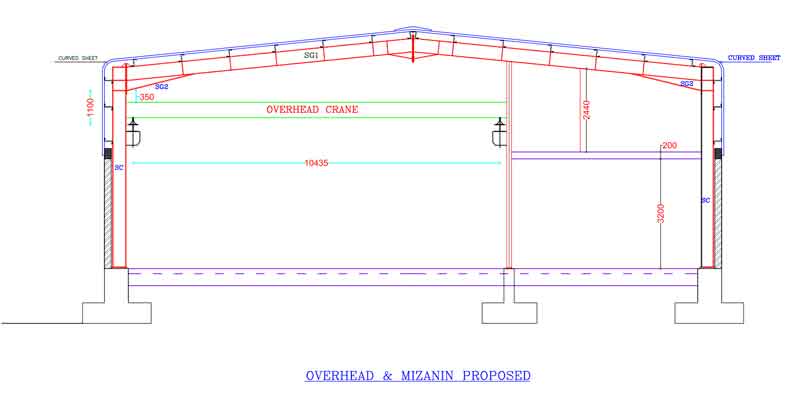

Single girder overhead crane for oman client workshop drawing
Gallary of 5 ton bridge crane single Oman

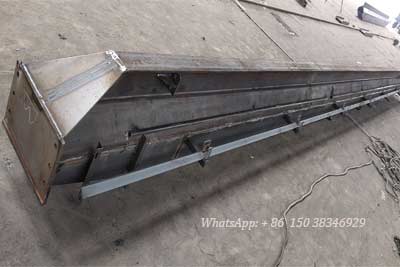

Ground beam  production of 8 ton gantry crane for sale  Uganda Main girder of single girder bridge crane 10 ton for sale Oman

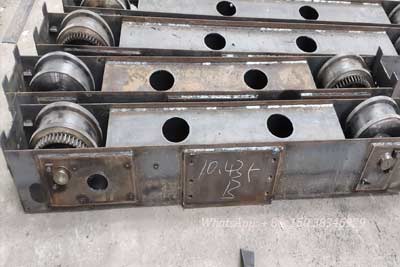

17.7 m long main girder of 10 ton overhead crane divided into 2 sections for delivery to UgandaEnd carriages of 5 ton bridge crane for oman project
10 ton overhead crane loaded into truck for delivery Wiring of the single girder bridge crane

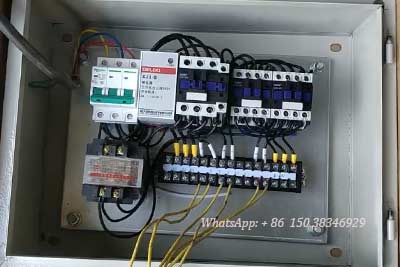

Parts and driver's cabin loaded into truck for delivery Wiring box of the single girder bridge crane 5 ton for Oman

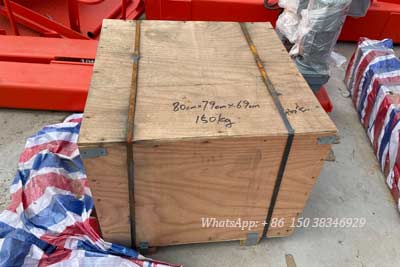

10 ton overhead crane loaded into truck for delivery Spare parts of bridge crane packed for delivery to Oman
Parts and driver's cabin loaded into truck for delivery Single girder bridge crane and related parts and components ready for delivery

Advatages of Typical single girder brdige crane

Bridge cranes with a single girder are considered to be lightweight. It is frequently used to lift loads and objects in factories, warehouses, and material inventories. However, using it in hazardous working environments, such as those that are easily combustible, explosive, or corrosive, thermal liquid, overloading, and dusty is strictly prohibited.

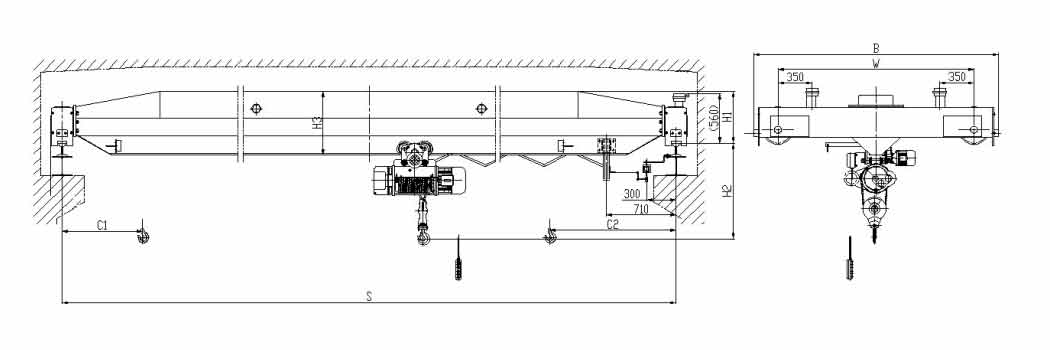

Economical single girder overhead bridge crane drawing for your reference

Economical single girder overhead bridge crane drawing for your reference

Advantages of single girder bridge crane

  • Little weight, simple installation, and upkeep;
  • Reasonable crane design structure, strong bearing capacity;
  • Low noise and gentle starting and stopping; dependable and secure functioning;
  • Low maintenance costs and a long working life
  • Lifting range: 0.5 to 32 tons

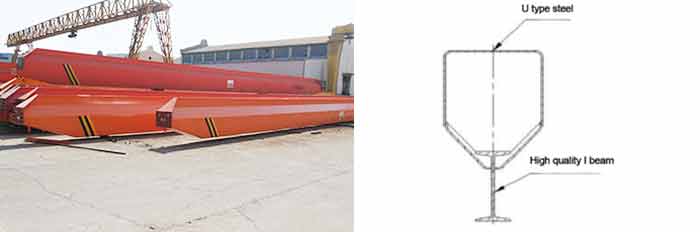

Main Girder & U shaped girder design

Main Girder & U shaped girder design drawing

Steel plate and I-beam structures that were welded together using the one-off groove-forming process into U shape girder.

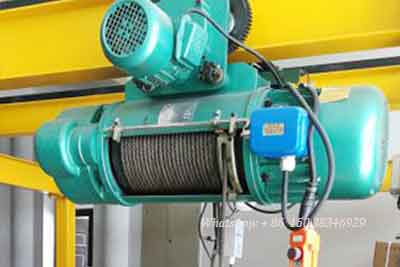

Electric hoist for overhead bridge crane

Electric hoist for overhead bridge crane
Can be CD (single lifting speed) or MD (dual lifting speed) model, realize lifting and cross travel functions.

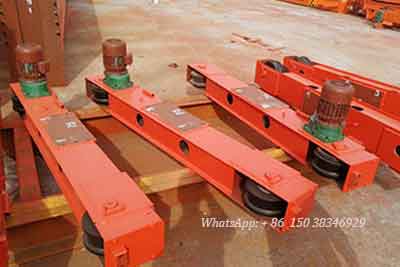

End carriage for single girder bridge cranes

End carriage for single girder bridge cranes
The end carriage of the bridge crane is composed of wheels and traveling mechanism (motor, reducer and brake) to enable the single girder crane traveling.
The end carriage is connected with the main bridge by bolts and nuts. It is very convenient for transportation and installation.

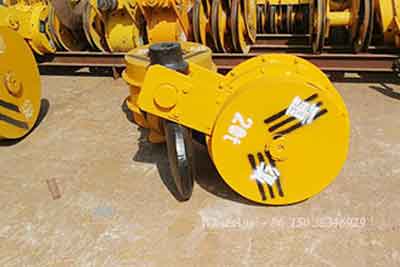

Hook block for overhead hook crane

Hook block for overhead hook crane
Sheaves, hooks, and latches make up the hook block, which rotates 360 degrees. Both a single hook and a double hook are available, and the hook is forged.

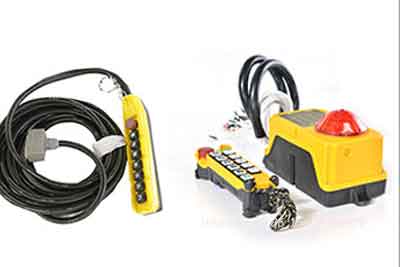

Crane control: Pendant control and/or Remote control.

Crane control: Pendant control and/or Remote control.
