2.5 Ton Portable Gantry Crane: Safe & Flexible Lifting Guide
Purpose of the 2.5-Ton Gantry Crane
The main goal of this project is to define the requirements for a 2.5-ton gantry crane designed for lifting various materials, including packing units, sanitary wares, and other items commonly found on industrial and construction sites. This crane needs to handle loads safely while allowing operators to move materials efficiently. It’s not just about lifting weight—it’s about making daily work smoother, reducing risk, and keeping operations on schedule.

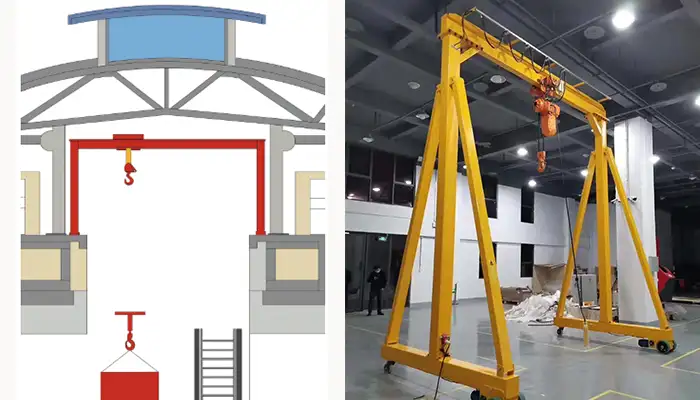

portable gantry crane for sale
Key points to consider:
- Maximum lifting capacity: 2.5 tons, suitable for 1000 kg packs and heavier materials.
- Stable handling for fragile items like sanitary wares.
- Flexible operation in confined spaces with obstacles such as access hatches and ladders.
- Adaptable to various site layouts, including underground lifting areas.
Scope of the Crane Solution
This outline focuses on portable gantry cranes, which are ideal when mobility and quick setup are important. Unlike fixed cranes, portable options can be moved and repositioned across the workspace without major effort. This makes them suitable for industrial workshops, construction sites, or any environment where the workflow changes frequently.
Why a portable gantry crane is practical:
- Easy to assemble, disassemble, and relocate.
- Can operate in tight spaces where larger fixed cranes can’t fit.
- Provides reliable lifting for both light and medium-duty loads.
- Reduces downtime since setup and repositioning require minimal labor.
- Supports safety with features like overload protection and secure hoisting mechanisms.
Material Handling Requirements
Packing units on site can weigh up to 1000 kg per pack, which makes lifting and moving them a task that requires precision. A 2.5-ton portable gantry crane is well-suited for this because it provides both the capacity and stability needed for safe operation. Operators can move materials smoothly without worrying about tipping or swinging loads, which is especially important in busy or tight areas.
Practical considerations for packing units:
- Stable lifting: Prevents sudden shifts that could damage the load or surrounding equipment.
- Precision handling: Easy control for placing packs exactly where needed.
- Easy maneuverability: Smooth movement across the site, even in confined spaces.
- Safe stacking and storage: Supports organized placement without overloading floors or racks.
Sanitary wares are typically fragile and need careful handling. Each pack can also weigh up to 1000 kg, but unlike standard packing units, damage prevention is critical. A portable gantry crane allows operators to lift, transport, and place these items safely without risk of breakage.
Key points for sanitary wares handling:
- Fragile item support: Smooth lifting and slow, controlled lowering.
- Safe placement: Accurate positioning on site or in storage areas.
- Reduced manual handling: Minimizes worker strain and potential product damage.
- Adaptable lifting options: Can handle pallets, crates, or individual items.
On the worksite, there are obstacles like access hatches, cat ladders, and louvers or demountable panels. The crane must operate around these without causing interference or damage. This is where a modular, portable gantry crane setup proves advantageous—it can be repositioned, adjusted in height or span, and navigated through tight spaces.
Considerations for site components:
- Tight-space navigation: Crane can work around ladders, hatches, and panels.
- Flexible positioning: Quick adjustments for changing site layouts.
- Modular setup: Easy assembly and disassembly for different lifting locations.
- Compatibility with underground lifts: Handles areas where lifting height includes below-ground clearance.
Crane Specifications
For this project, a 2.5-ton portable gantry crane is recommended. Depending on the site and lifting requirements, it can be configured as either a single girder or double girder crane. Both designs provide robust support for heavy loads, but the double girder option adds extra stability for frequent lifting or slightly higher capacity requirements.
Key points:
- Single girder: lighter, easier to move, suitable for moderate lifting tasks.
- Double girder: increased stability, ideal for repeated lifting of heavier or delicate loads.
- Portable design: crane can be moved and repositioned without major site modifications.
The crane offers a maximum lifting height of 9.5 meters, which includes the underground lifting clearance indicated on the site sketch. This ensures that materials can be lifted from below ground level or through site openings without requiring additional equipment.
Considerations:
- Full coverage for above-ground and underground lifts.
- Suitable for multi-level sites or areas with hatches and panels.
- Adjustable height options depending on load and site constraints.
With a maximum capacity of 2.5 tons, the crane is well-suited for lifting packing units and sanitary wares, typically weighing up to 1000 kg per pack. It also handles light-to-medium industrial loads, making it a versatile solution for workshops, construction sites, and industrial settings.
Advantages:
- Handles multiple load types safely.
- Reduces need for multiple lifting devices on site.
- Ensures stable, controlled lifting for fragile or heavy items.
One of the main advantages of a portable gantry crane is its mobility. It can be assembled, disassembled, and moved easily across the workspace, allowing operators to adapt to changing site conditions or relocate lifting operations as needed.
Features:
- Wheeled base for smooth movement.
- Modular frame for quick assembly/disassembly.
- Compact footprint allows operation in tight or restricted areas.
The crane is built for long-term operation with features that support frequent lifting while maintaining safety and reliability. Robust construction ensures minimal maintenance and consistent performance, even in industrial or high-traffic environments.
Durability benefits:
- Reinforced frame and load-bearing components.
- Reliable hoisting mechanisms with overload protection.
- Low-maintenance design for continuous use.
- Suitable for workshops, factories, and construction sites.
Site & Operational Considerations
When planning for a 2.5-ton portable gantry crane, site access and clearance are critical. The crane must be able to move freely under access hatches, cat ladders, and removable panels without causing damage or obstruction. Proper clearance ensures smooth operations and avoids delays during material handling.
Practical considerations:
- Navigate around tight spaces in workshops or industrial sites.
- Adjust crane position to work safely near ladders, hatches, and panels.
- Maintain safe distances from walls, ceilings, and other equipment.
- Flexible setup allows for quick repositioning as site layout changes.
The crane is designed to operate on a standard 380V, 50Hz, 3-phase power supply, which is common in most industrial and construction environments. However, the system can be adapted to meet specific client requirements, ensuring seamless integration with the site's electrical infrastructure.
Key points:
- Compatible with standard industrial power systems.
- Can adapt to site-specific voltages or phases if required.
- Supports consistent and reliable crane operation without interruption.
Safety is a top priority when lifting materials, especially fragile sanitary wares or heavy packing units. The portable gantry crane is built to support zero-failure lifting with overload protection and secure load handling mechanisms. Operators can work with confidence, reducing the risk of accidents and damage.
Safety features:
- Overload protection prevents lifting beyond capacity.
- Stable lifting mechanisms reduce sway and load shift.
- Compliance with industry standards for industrial lifting.
- Ideal for handling delicate items alongside heavy loads without compromising safety.
Conclusion & Recommendations
Based on the material handling requirements and site constraints, the recommended solution is a 2.5-ton portable gantry crane. This crane offers a practical, safe, and flexible lifting solution for packing units, sanitary wares, and other industrial materials.
Key benefits:
- Flexibility: Portable design allows easy relocation and operation in confined spaces.
- Safety: Stable lifting, overload protection, and secure load handling reduce risk of accidents.
- High load capacity: Supports loads up to 2.5 tons, suitable for 1000 kg packs and medium-duty industrial materials.
- Mobility: Easy assembly, disassembly, and movement across the workspace.
Next steps for implementation:
- Confirm site measurements, including underground lifting height and clearances.
- Finalize crane model based on specific operational needs.
- Plan deployment and lifting operations for maximum efficiency and safety.
- Ensure operators are trained on crane setup, movement, and load handling.
This approach ensures that the portable gantry crane solution meets practical site needs, supports safe lifting practices, and allows operators to work efficiently in a variety of industrial environments.
