10 Ton Portable Gantry Cranes on WheelsFlexible Lifting Solutions

Mobile cranes up to 10 tons, ideal for safely lifting molds, parts, and equipment in dynamic industrial environments. Get your 10 ton wheel gantry crane!

Introduction

Portable gantry cranes on wheels are a practical solution for lifting and moving heavy loads in many industrial settings. Unlike fixed cranes, these cranes can be easily moved around a workshop or factory floor, making them ideal for tasks that require flexibility. They usually come with adjustable heights and spans to fit different lifting needs. The wheels allow smooth relocation without the need for a permanent setup, saving time and effort.

Flexibility is a key advantage when it comes to industrial lifting. Many factories and workshops handle a variety of parts, molds, and equipment that need to be moved frequently or positioned precisely. Having a crane that can be rolled to the right spot, lifted, and then moved again reduces downtime and improves workflow. This adaptability makes portable gantry cranes especially useful in dynamic production environments where space or layout may change often.

These cranes typically handle loads up to 10 tons, which covers most common industrial lifting tasks for molds, machine parts, and equipment. From small 1-ton capacity models to more robust 10-ton cranes, the range ensures there’s a suitable option for many different job sizes. Choosing the right capacity is important — too small, and the crane won’t handle the job safely; too large, and you may pay for unnecessary features or face difficulties in maneuvering.

Key points about portable gantry cranes on wheels:

• Designed for easy mobility across shop floors and worksites
• Adjustable height and span for versatile lifting needs
• Suitable for lifting molds, parts, and industrial equipment
• Typical load capacities range from 1 ton up to 10 tons
• Ideal for environments needing flexible, repeatable lifting tasks

This combination of flexibility, mobility, and appropriate lifting power makes portable gantry cranes on wheels a solid choice for many industrial applications. They help keep work moving efficiently without the hassle of permanent crane installations.

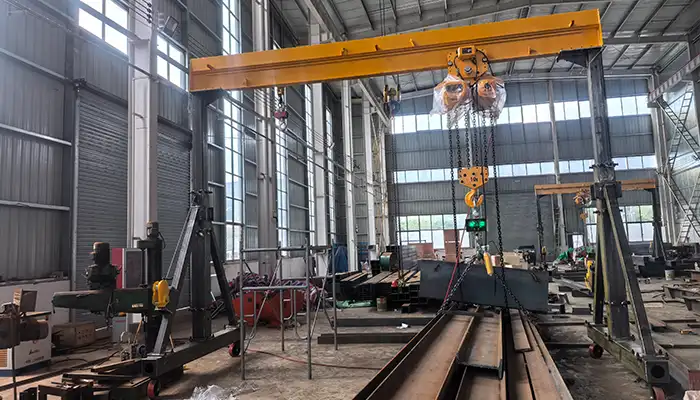

portable gantry crane on wheels , 10 ton portable gantry crane for sale Mexico, load test before painting

What Are Portable Gantry Cranes on Wheels?

Definition and Basic Components: Portable gantry cranes on wheels are mobile lifting systems designed to move heavy loads safely and efficiently within a workspace. At their core, they consist of a sturdy horizontal beam supported by two vertical legs, each mounted on wheels. This structure creates a freestanding crane that can be rolled to wherever lifting is needed without requiring permanent installation.

The main components include:

• Main beam (girder): The horizontal beam that spans the lifting area and carries the hoist.
• Legs: Vertical supports connected to the beam, designed to bear the crane’s weight and load.
• Wheels or casters: Heavy-duty wheels attached to the legs, allowing smooth movement and easy positioning.
• Hoist and trolley: The lifting device (manual, electric, or pneumatic) that moves along the main beam to raise and lower loads.

Mobility Features: Wheels, Adjustable Height, and Span: Mobility is the key feature of these cranes. Their wheels allow operators to roll the crane across factory floors or workshop spaces effortlessly. Many models come equipped with lockable wheels, so the crane stays securely in place when lifting.

Additionally, portable gantry cranes often have adjustable heights, letting you raise or lower the beam to clear obstacles or meet specific lift requirements. Some also offer adjustable spans, meaning the distance between the legs can be extended or shortened. This flexibility helps accommodate different load sizes and workspace constraints.

Typical mobility features include:

• Heavy-duty swivel or rigid wheels with locking mechanisms for stability
• Adjustable beam height through telescoping legs or pin systems
• Expandable or fixed span options to fit various load widths
• Compact enough to maneuver through standard doorways and aisles

Advantages Over Fixed or Overhead Cranes: Portable gantry cranes provide several practical benefits compared to fixed or overhead cranes:

• No permanent installation: They can be deployed quickly without costly runway beams or structural modifications.
• Flexibility in positioning: You can move the crane to the exact location of the load rather than moving the load to a fixed crane spot.
• Lower upfront and maintenance costs: Because they don’t require infrastructure or complex systems, they are more affordable and easier to maintain.
• Space efficiency: Ideal for shops with limited space or where workstations change frequently.
• Versatility: Suitable for a wide range of lifting tasks, especially in industries that handle molds, parts, and equipment regularly.

In summary, portable gantry cranes on wheels combine mobility and versatility, making them a reliable choice for industrial environments that require flexible lifting solutions without the commitment or expense of permanent crane systems.

Industrial Use Cases for Portable Gantry Cranes

Portable gantry cranes on wheels are incredibly useful in many industrial settings because they adapt to a variety of lifting and moving needs. Here’s a closer look at where they really shine:

Mold Handling in Injection Molding and Plastic Manufacturing: In plastic manufacturing, molds can be heavy, bulky, and difficult to move by hand. Portable gantry cranes make this task much safer and easier. Operators can quickly position the crane over a mold, lift it out of a press, and transport it to a storage area or maintenance station without strain or risk of damage. The adjustable height and span allow precise control, which is crucial when handling expensive molds.

• Safely lifts molds weighing from a few hundred kilograms up to several tons
• Facilitates quick mold changes, reducing downtime
• Enables safe transport between presses and maintenance areas

Moving Heavy Machine Parts and Assemblies: Manufacturing and repair shops often need to move heavy machine parts or assemblies that are too large or awkward for forklifts or manual handling. Portable gantry cranes fit this role perfectly. Because they can be moved to any location, parts can be lifted and positioned exactly where workers need them — on assembly tables, into machines, or onto pallets.

• Ideal for lifting engines, gearboxes, frames, and other large components
• Useful in both production and repair environments
• Reduces manual lifting injuries and improves workflow

Equipment Installation and Maintenance Support: When installing or maintaining industrial equipment, precise lifting is essential. Portable gantry cranes allow technicians to lift and hold equipment steadily in place during installation or servicing. Their mobility means the crane can move around the shop or factory to assist at different workstations, cutting down on the need for multiple cranes or equipment.

• Supports safe lifting and positioning of pumps, compressors, motors, and similar equipment
• Portable design saves time during equipment setup and maintenance
• Can be used indoors or outdoors depending on the model

Assembly Line Support and Repositioning: In fast-paced production lines, the ability to move equipment or parts quickly can boost efficiency. Portable gantry cranes help by lifting and shifting components as needed without interrupting the workflow. When production layouts change or lines are reconfigured, these cranes move easily to new spots, making them a great fit for flexible assembly operations.

• Speeds up component transfers between workstations
• Enables quick rearrangement of production lines
• Reduces downtime during layout changes

Small-to-Medium Fabrication Shops and Workshops: Smaller fabrication shops often don’t have the space or budget for large, fixed crane systems. Portable gantry cranes provide a cost-effective alternative, delivering heavy lifting capability in a compact and mobile package. These shops use them for welding, fitting, and moving steel structures, metal sheets, and other materials.

• Perfect for shops with limited floor space
• Affordable and easy to maintain
• Supports a variety of lifting and material handling tasks

In all these cases, the common thread is the need for flexible, reliable lifting that can be moved and adjusted as needed. Portable gantry cranes on wheels deliver that flexibility, making them a valuable tool in many industrial environments.

Typical Capacities and Configurations

When choosing a portable gantry crane, understanding the available lifting capacities and design options is key to matching the crane to your specific needs. Here’s a breakdown of what you can typically expect in this category:

Standard Lifting Capacities: 1, 2, 3, 5, and 10 Tons: Portable gantry cranes usually come in a range of capacities designed to cover most common industrial lifting tasks. Smaller models start at around 1 ton, perfect for light parts and equipment. Medium capacities like 2 or 3 tons are popular for handling molds, moderate-sized machine parts, or small assemblies. Larger models, up to 5 or 10 tons, are suited for heavier equipment or multiple items bundled together.

• 1–3 ton cranes: Ideal for lightweight loads such as small molds, tooling, or electronic equipment
• 5 ton cranes: Common in general manufacturing for medium-sized machinery and assemblies
• 10 ton cranes: Used when heavier lifting is required, such as large molds or heavy machine components

Choosing the right capacity is essential to ensure safety and efficiency. Always allow a margin above your heaviest expected load to avoid overloading.

Single Girder vs. Double Girder Designs: Portable gantry cranes typically feature either a single girder or double girder setup.

• Single girder cranes are lighter and more compact. They’re usually easier to move and work well for capacities up to about 5 tons. These cranes often use a hoist that runs directly on the beam, making them simpler and more cost-effective.
• Double girder cranes provide extra strength and stability, which is useful for heavier loads closer to the 10-ton range or when lifting bulky or irregular items. They have two parallel beams connected by cross braces, with the hoist running between them. These cranes tend to be bigger and less mobile but offer better load distribution and safety.

Manual vs. Electric Hoist Options: The choice between manual and electric hoists depends on how often and how quickly you need to lift.

• Manual hoists operate with a hand chain or lever and are simple, reliable, and low cost. They’re great for occasional lifting or where power sources aren’t available.
• Electric hoists use powered motors to lift and lower loads smoothly and faster. They’re preferred in busy shops or factories where repeated lifts are common. Electric hoists often come with remote controls for safer operation.

Both options can be mounted on either single or double girder cranes.

Adjustable Spans and Heights for Diverse Needs: One of the biggest advantages of portable gantry cranes is their adaptability. Many models offer adjustable spans—the distance between the legs—which lets you widen or narrow the crane to fit the load or workspace. Similarly, adjustable height settings allow you to raise or lower the beam for clearance over equipment or to meet specific lifting requirements.

• Span adjustments typically use telescoping legs or pin-and-hole systems for quick changes
• Height adjustments may be manual (via pins) or hydraulic/pneumatic for easier operation
• This flexibility makes one crane suitable for multiple jobs, saving you from buying several different units

In summary, portable gantry cranes come in various capacities and configurations to fit a wide range of industrial lifting needs. Whether you need a lightweight, easy-to-move 2-ton crane with a manual hoist or a heavy-duty 10-ton double girder crane with an electric hoist, there’s a practical solution that balances power, mobility, and cost.

Benefits of Using Portable Gantry Cranes on Wheels

• Workplace Flexibility & Space Optimization: Portable gantry cranes can be easily moved and adjusted, making them ideal for workshops and factories with limited or changing space. Instead of being fixed in one spot, they let you maximize floor use by moving lifting capacity wherever it’s needed.
• Quick and Easy Relocation: Unlike fixed cranes, these cranes require no complex setup. With sturdy wheels, they can be rolled into position quickly, reducing downtime and eliminating the need for heavy equipment during moves.
• No Dependence on Permanent Infrastructure: Because they don’t need runway beams or foundations, portable gantry cranes are perfect for temporary jobs, rentals, or smaller operations where investing in fixed installations isn’t feasible.
• Cost-Effective Solution: They generally cost less upfront and have lower maintenance expenses than overhead cranes. Plus, their flexibility means you can use one crane for many tasks instead of buying several specialized machines.
• Improved Safety with Precise Load Control: Adjustable heights, locking wheels, and controlled hoisting help operators lift and position loads safely, minimizing accidents and damage.

Key Considerations When Selecting a Portable Gantry Crane on Wheels

• Load Capacity and Lift Height: Determine the maximum weight you need to lift and the highest lift point. Always choose a crane with a capacity above your heaviest expected load for safety and longevity.
• Floor Type and Wheel Compatibility: Assess your floor surface—smooth floors work with standard wheels, while uneven or rough floors require heavy-duty or pneumatic wheels. Ensure the floor can support the combined weight of the crane and its load.
• Power Source Options: Decide between manual, electric, or pneumatic hoists based on your power availability and lifting frequency. Manual hoists are simple but require more effort; electric hoists provide speed and ease but need electricity; pneumatic hoists need compressed air.
• Durability and Maintenance: Select a crane built for your environment. For dusty, wet, or outdoor areas, materials and coatings should resist corrosion and wear. Also, check how accessible maintenance and spare parts are.
• Safety and Compliance: Verify the crane meets all relevant safety standards and certifications for your industry and location. This helps protect workers and ensures regulatory compliance.

Applications

Mold Transfer in a Plastics Factory: In a plastics manufacturing plant, molds must be changed regularly to produce different products. Using a portable gantry crane on wheels, operators can easily lift heavy molds out of injection molding machines and transport them safely to maintenance or storage areas. The crane’s adjustable height and span allow handling of molds of various sizes without risk of damage. This quick and flexible lifting reduces production downtime and keeps the workflow smooth.

Equipment Repositioning in a Metal Fabrication Shop: A metal fabrication workshop often needs to move heavy equipment and large steel assemblies between different workstations. Instead of relying on fixed cranes or forklifts, the shop uses a portable gantry crane to lift and reposition machinery parts exactly where needed. Because the crane is mobile, it can be moved quickly as the production layout changes during the day. This improves efficiency and helps prevent injuries caused by manual lifting.

Parts Handling in an Automotive Assembly Line: Automotive assembly lines handle heavy components like engine blocks, transmissions, and chassis parts. Portable gantry cranes on wheels assist workers in lifting and positioning these parts safely and precisely. Since assembly line layouts often change to accommodate new vehicle models, the crane’s mobility and adjustable features make it ideal for adapting to shifting production demands without causing delays.

Portable gantry cranes on wheels offer a smart, flexible solution for many industrial lifting challenges. Their mobility allows operators to move heavy molds, machine parts, and equipment quickly and safely—without the hassle or cost of permanent crane installations. With adjustable heights, spans, and a variety of lifting capacities up to 10 tons, these cranes adapt to changing workflows and workspace layouts with ease. They optimize space, reduce downtime, and improve overall workplace safety. For industries like plastics manufacturing, metal fabrication, and automotive assembly, portable gantry cranes bring reliable performance where fixed cranes might not fit the bill.

If your operation needs versatile lifting equipment that can handle multiple tasks across different locations, it’s worth seriously considering portable gantry cranes on wheels. They can save time, reduce costs, and make heavy lifting easier and safer for your team.

Get Your Portable Gantry Cranes on Wheels

Ready to find the right portable gantry crane for your needs? Start by requesting a customized quote or consultation tailored to your lifting requirements and workspace conditions. Suppliers and manufacturers can guide you through capacity choices, configurations, and optional features to match your budget and operational goals.

How to get started:

• Provide details about your maximum load, lift height, and workspace size.
• Mention any special requirements like outdoor use or power source preferences.
• Ask about delivery, installation support, and after-sales service.

For trusted suppliers or manufacturers, visit their websites or contact their sales teams directly via phone or email. Getting expert advice upfront helps ensure you invest in a crane that works safely and efficiently in your specific industrial environment.
