RMG Crane Manufacturing & Delivery | Yuantai 41 Ton RMG

Video Description

Watch the production and delivery process of a 41 Ton Rail Mounted Gantry (RMG) Crane from Yuantai Crane. This rmg crane is designed for efficient container handling operations in Uzbekistan.

The RMG crane features a 41-ton lifting capacity, 31 m span, and 19 m lifting height. It is equipped with a reliable PLC control system and quality components from Siemens, Flender, Schneider, and SKF.

This video shows the journey — from manufacturing and assembly to quality inspection, testing, and final delivery. See how Yuantai Crane builds a customized RMG solution for safe, stable, and efficient container handling.

Product Overview

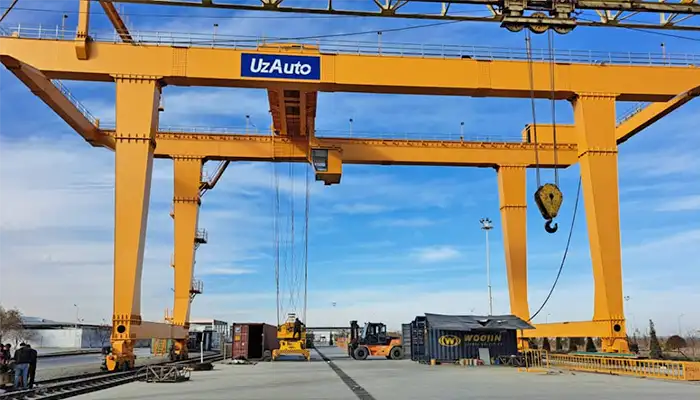

Here's a more marketing-oriented version with Yuantai Crane naturally integrated.41 ton rail mounted gantry crane for container handling

Yuantai Crane 41 Ton Container Double Girder Gantry Crane – Key Specifications

  • Brand: Yuantai Crane
  • Crane Type: Container Double Girder Gantry Crane
  • Rated Capacity: 41 tons (under spreader)
  • Lifting Height: 19 m (6+1 container stacking)
  • Span: 31 m
  • Cantilever: 9.5 m (left) + 9.5 m (right)
  • Working Duty: A8 Heavy-Duty Operation (FEM 6M)
  • Power Supply: 380V, 3 Phase, 50Hz
  • Control Mode: Air-conditioned operator cabin
  • Container Handling: Equipped with ZPMC container spreader
  • Auxiliary Hoist: Integrated 2-ton electric hoist

High-Performance Lifting by Yuantai Crane

  • Lifting Speed: 0–18 m/min
  • Trolley Travel Speed: 0–60 m/min
  • Crane Travel Speed: 0–80 m/min
  • Spreader Rotation Speed: 1.8 r/min

Premium Components

Yuantai Crane selects internationally recognized components to ensure reliable performance and long service life.

  • Travel Motors: Siemens
  • Gear Reducers: Flender
  • Electrical Components: Schneider
  • Bearings: SKF
  • Control System: PLC (Programmable Logic Controller)

Robust Structural Design

  • Total Crane Weight: 330 tons
  • Maximum Wheel Load: 280.3 kN
  • Wheel Quantity: 16
  • Wheel Diameter: 600 mm
  • Drum Size: Ø650 × 1500 mm
  • Wire Rope Diameter: 24 mm
  • Wheel Alignment: Mechanical and hydraulic system

Designed for Harsh Port Environments

Yuantai Crane container gantry cranes are engineered for demanding outdoor operations.

  • Insulation Class: F
  • Operating Temperature: -40°C to +60°C
  • Maximum Operating Wind Speed: 15 m/s
  • Climatic Rating: Y1
  • Seismic Design: Zone 8

Comprehensive Safety Systems

Yuantai Crane integrates multiple safety features to maximize operator and equipment protection.

  • Phase loss and phase sequence protection
  • Overload and overcurrent protection
  • No-voltage protection
  • Hoisting and traveling limit switches
  • Emergency stop system
  • Grounding protection
  • Anti-collision system with sensors
  • Audible and visual warning alarms
  • Wind anti-theft mechanism
  • Operator monitoring camera system
  • Safety fencing and maintenance walkways
  • Rail grippers
  • Service area and electrical cabinet lighting
  • Motion monitoring sensors

Why Choose Yuantai Crane?

  • Heavy-duty 41-ton container handling solution
  • Reliable operation for container terminals, ports, logistics yards, and intermodal facilities
  • Premium global components from Siemens, Flender, Schneider, and SKF
  • PLC intelligent control for efficient operation
  • Complete engineering, manufacturing, testing, installation guidance, and after-sales support from Yuantai Crane
