Grab Gantry Crane for Outdoor Waste Handling | 5,10 Ton Gantries

Yuantai Cranes can provide you with superior quality and technology market-leading gantry crane at affordable  prices.

Gantry cranes are a common design found primarily in outdoor applications due to the lack of a building and runway structure, it is also used indoors on occasion. Gantry cranes are used to move loads in a variety of industries and applications. Rail traveling gantry cranes are supported by legs that run on a railway. The railways, unlike the overhead bridge cranes, are located on the floor. Our gantry cranes range in size from 1 ton to 100 tons in standard configuration, and up to 400 tons in open winch/built-up trolley configuration.

Grab Gantry Crane for Waste Handling

Grab Gantry Crane  is made up of the main beam system, the crab system, the grab system, and the power supply system. This grab bucket gantries is typically a double girder gantry crane which is commonly used to load and unload materials in mines, ports, factories, workshops, warehouses, and goods yards, among other places. You can choose between mechanical and electric hydraulic grabs, or you can tell us about your working conditions and our engineers will recommend the best option for your specific situation.

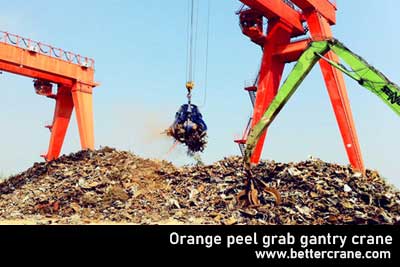

orange peel grab gantry crane  for outdoor waste handling orange peel grab gantry crane  for outdoor waste handling

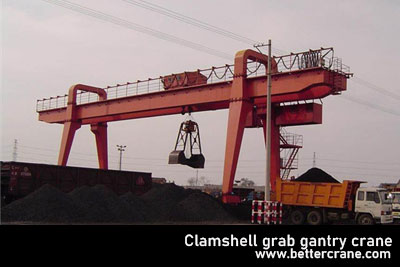

 Clamshell grab gantry crane for bulk material handling outdoor  Clamshell grab gantry crane for bulk material handling outdoor

Main specifications of grab gantry cranes

  • Capacity:Max 10t
  • Span:18-35m
  • Lifting height:10m
  • Working class:A5~A8
  • Ambient Temperature:-25~40℃

Technical brief of grab bucket gantry cranes

The main beam is welded construction with a high degree of vertical and horizontal rigidity, smaller wheel loads, and lower dead weight; end beam equipped with soft start motor and can guarantee much more stable starting; electric system is famous brand Siemens brand or Schneider brand for your choice, about the control way, there is cab, remote control for your choice, all of the configuration aims to guarantee the gantry crane with grab bucket a long service life.

  • Smooth travelling operation. Controlling acceleration and deceleration to avoid dangerous swings.
  • Electric braking, which enables the service brake to function as a safety brake in practice.
  • Compact design for the closest approaches, maximizing available space.
  • The absence of a counterweight results in lower moments of inertia.
  • Better approaches require a C-shaped design.
  • Reduced weight means less stress is transmitted to the structure.

Feature of waste handling gantry cranes

  • Reasonable structure and good performance.
  • Smooth start-up and shutdown.
  • Reliable and safe travel, as well as a long life.
  • Comfortable cabin with a good view and low noise.
  • Simple installation and maintenance.
  • Excellent part and component interchangeability.
  • Crane drive: IP54 or IP44, insulation level F.

Safety measures of grab gantry crane system

  • Protective device against weight overload.
  • High-quality, long-lasting polyurethane materials buffer.
  • Limit switch for crane travel.
  • Voltage reduction protection function.
  • Emergency braking system.
  • Current overload protection system, among other things!

Processing technology for gantry crane components

  • The main beam will be sandblasted and painted with a zinc rich epoxy primer;
  • The main beam will be cut with a plasma numerical control cutting machine;
  • The butt weld of the tension flange will be subjected to ultrasonic or x-ray flaw detection as specified.

Capacity

t

5

10

Span

m

m

18

22

26

30

35

18

22

26

30

35

Lifting height

up the rail 10m, under the rail 10m

up the rail 10m, under the rail 10m

Speed

Lift/open and close

m/min

308/308

40.92/40.92

Handcart travel

49.4

49.6

Cart travel

49

35

49

39.7

30.5

Motor

Lift/open and close

KW

Model

YZR225M-8/YYZR225M-8

YZR280M-10Z/YZR280M-10Z

Handcart travel

YZR160M1-6

YZR160M1-6

Cart travel

YZR160L-6

YZR160L-6

Weight

Handcart

t

13.8

17

Total weight for crane

86

98

100

123

123

99

117

115

137

135

Max. wheel pressure for crane

30.1

36

35.2

22

29

36

23

27

25.8

26

Grab

Distance between grab and operation room

a

1544

1531

1381

1181

1502

1500

1252

1104

Length after opening

L

2340

2600

2600

3000

3200

3520

3200

3700

Width

b

1126

1152

1452

1852

1460

1504

1960

2256

Volume

m3

0.75

1

5

3

2

2

3

6

Density of material

t/m3

5~3.3

2~3

1~9

0.8~0

2~3

7

1~2

0.8~0.1

Cart track type

Kg/m

43

43

Why Choose Us

When you buy a new grab gantry crane from us. We guarantee  that you are paying for the following:

High quality assurance

  • All products have a production or recognition permit; no counterfeit or renovated products;
  • All products are of class A or distinguished class quality.
  • Products' main data meet related codes;
  • Strictly adhere to technological specifications in manufacturing;
  • Strictly test products with standard testing devices to prevent unqualified products from leaving the plant;
  • Create complete files to keep order contract, manufacturing record, test record, material receiving certificate, and factory-leaving record;
  • All products to be delivered are free of defects in appearance and painting, and are supplied with mating parts to satisfy clients.

All in all, we will manage to provide your the grab gantr crane with  High  Crane and Operation Safety,  Competitive Pricing,Superior Technology, Durable and Reliabe,low mainteance.

Lowest maintenance

We at Yuantai cannot emphasize enough the importance of building a quality crane that requires minimal maintenance. We understand the importance of a good and reliable crane, so we don't just build one for you.

We also ensure that the crane has the most practical application for your workplace and that downtime is kept to a minimum in order to maximize production.

After-sales crane service promise

  • Quality problems with our company's products will be resolved in accordance with our company's "three guarantees" system by the "three guarantees" service team;
  • Related personnel will be dispatched to the site immediately after receiving quality complaints (via phone, letter, or oral notice) from clients;
  • 3.Personnel involved in after-sales service shall be serious and considerate in handling the problem in order to relieve clients of their concerns;
  • In addition to resolving quality issues, personnel involved in after-sales service shall train clients and answer their technical inquiries and related questions free of charge.
  • Our company will bear the associated costs for products with quality issues. Our company charges for quality problems caused by clients (or problems that occur after the warranty period has expired), but the charge will not be more than
