Case Study: 24 Sets of European Rope Hoists & Chain Hoists for Senegal — 1 Ton to 10 Ton, Cost-Effective Bulk Order

Project Background and Buyer Objectives

The buyer from Senegal came to us with a very practical challenge: they were setting up multiple workshops and needed reliable lifting equipment that wouldn’t blow the budget. These weren’t massive steel plants—just solid, working-class facilities handling regular production and repair tasks. Their focus was simple: find hoists that do the job, fit the space, and won’t be a headache later.

They didn’t want to buy everything piecemeal. Instead, they aimed to get all their hoists in one go—save time, save shipping, and make sure everything was compatible across the board. The result was a bulk order of 24 hoist sets, thoughtfully selected to match their varying needs.

Here’s what the buyer was looking for, in plain terms:

• Reliable equipment for day-to-day lifting tasks
  Some workshops needed to lift light components; others handled heavier mechanical parts. So, the buyer needed options—from 1 ton all the way up to 10 tons.
• Different hoists for different applications
  For fixed workstations, European wire rope hoists were ideal—they’re quiet, stable, and great for repetitive lifting. For areas where the load needs to move along a beam, chain hoists with motorized trolleys made more sense.
• Budget control through a bulk deal
  The buyer wanted to reduce the cost per unit without cutting corners. By ordering everything together, they saved not just on product cost, but also on packaging, logistics, and project coordination.
• Durability and low maintenance
  Equipment was expected to run for years with basic maintenance. No tolerance for frequent repairs or special spare parts that are hard to find locally.

This project wasn’t just about selling hoists—it was about solving a problem for a customer with clear goals. The order was customized, priced fairly, and delivered to support a well-planned expansion of their operations.

Selection Considerations for Electric Hoist Buyers

Before finalizing the configuration, the client considered:

• Load Type and Frequency: Lifting frequency varied between stations—some required daily operation, others only occasional use.
• Lifting Height: Required either 5 meters or 10 meters depending on installation height and clearance.
• Power Supply Compatibility: All hoists matched the client’s local three-phase industrial power (confirming 380V/50Hz).
• Mobility Needs: Chain hoists were chosen for stations where flexibility and movement along beams were needed.
• Environmental Factors: Indoor use only—standard protection grade was sufficient.

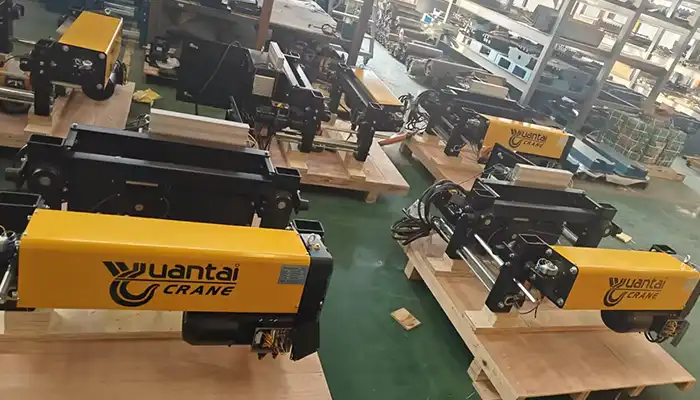

European Electric Wire Rope Hoists – 12 Units

The client needed stable, quiet, and accurate lifting solutions for fixed positions—places where loads don’t need to move horizontally but must be lifted safely and repeatedly. European-style wire rope hoists were a natural fit here. These hoists were deployed across different workshops, with lifting capacities and heights matched to the expected load and usage frequency.

Here’s the full breakdown:

These 12 wire rope hoists were chosen specifically for locations where:

• Loads are lifted vertically and repeatedly
• Precision control is more important than portability
• Noise and vibration should be kept to a minimum

Key Features of Supplied Wire Rope Hoists:

• Compact design, easy to install
  These hoists fit well even in tight headroom workshops, making them a solid choice for existing buildings.
• Smooth and quiet lifting
  Ideal for repetitive tasks where operator fatigue or load sway needs to be minimized.
• Long service life
  Motors and gearboxes were selected based on duty class. In this case, the hoists came with components rated for frequent use with minimal maintenance—saving the client time and money in the long run.
• Ease of integration
  Control boxes were pre-wired and matched to local power specifications, reducing installation time.

This mix of capacities and lifting heights gave the client enough flexibility to spread the units across various departments while keeping spare parts and operator training consistent.

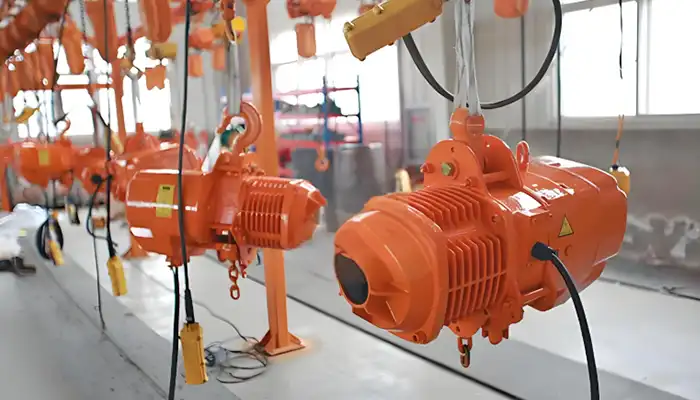

Chain Hoists with Motorized Trolleys – 12 Units

For areas where loads needed to be moved along the beam—rather than lifted straight up and down—the client chose chain hoists with motorized trolleys. These are great for mobile workstations, where operators need to shift tools, parts, or equipment between stations without manual pushing.

These hoists were installed on existing I-beams and rails across several workshops and loading bays, where mobility and simplicity were more important than ultra-precise control.

Here’s the allocation by capacity:

These chain hoists complemented the fixed-position wire rope hoists by giving the client greater flexibility in movement. Operators can move loads along rails and stop at different work zones without needing a separate lifting station at each point.

Key Features of Supplied Chain Hoists with Motorized Trolleys:

• Easy to install and reposition
  Their relatively light weight made them suitable for quick mounting and occasional relocation, depending on workflow changes.
• Smooth horizontal travel
  All units came with motorized trolleys, ensuring loads can move steadily along I-beams with minimal effort—no manual pushing required.
• Suitable for lighter-duty, variable use
  These units weren’t meant to run 24/7, but they were perfect for tasks where loads are handled a few times per shift or moved between bays.
• Standardized power and control setup
  Hoists were configured to match the site's electrical system, using simple pendant controls to make training and operation straightforward.

This combination of capacities allowed the client to assign each hoist based on real workflow demands—avoiding both over-investment in high-capacity units and underperformance in high-use zones. The 5-ton chain hoists, in particular, struck a balance between daily use and easy handling, making them the most versatile in this batch.

Total Supply Summary

In total, the client received 24 hoists tailored to meet a variety of lifting needs throughout their facility.

• 12 European wire rope hoists were installed at fixed lifting points. These units handle tasks that require precise vertical lifting without movement along the beam.
• 12 chain hoists with motorized trolleys were supplied for mobile applications, where loads need to be moved smoothly along I-beams or rails.

Capacity Range:
The hoists cover a wide spectrum from 1 ton up to 10 tons, allowing the client to lift everything from small parts and tools to heavy machinery components.

Lifting Heights:
Two standard lifting heights were used—5 meters for low-ceiling areas and 10 meters for spaces with higher clearance.

Typical Applications:
These hoists are now in use across several types of operations, including:

• Manufacturing lines where parts are assembled and moved
• Mechanical repair shops handling heavy tools and components
• General tool handling tasks, improving workflow and safety
• Assembly lines requiring reliable, repeatable lifting and positioning

By combining fixed and mobile hoists with varying capacities, the client achieved a versatile, cost-effective material handling system that can grow with their operations.

Cost-Effective Bulk Order Strategy

One of the biggest advantages for the client was placing a single bulk order for all 24 hoists, which brought multiple practical benefits beyond just upfront savings.

Optimized Unit Pricing:
By producing and packaging all hoists together, the manufacturer was able to streamline processes, reducing the average cost per hoist compared to smaller, individual orders. Bulk sourcing of materials and coordinated assembly schedules contributed to this cost efficiency.

Savings Achieved:

• Lower Shipping Costs: Consolidating all units into one shipment reduced freight and handling expenses significantly, bringing down the cost per hoist.
• Better Per-Unit Pricing: Bulk production allowed negotiation for better component and labor rates, passing on savings directly to the client.
• Shorter Lead Time: A single, larger order enabled faster production scheduling and quicker delivery compared to multiple separate orders spread over time.

Why This Matters for Buyers:
This approach works best for companies that:

• Need multiple hoists across several workshops or facilities
• Want to standardize equipment to simplify training, maintenance, and spare parts management
• Aim to minimize ordering complexity and reduce total project timelines
• Seek consistent quality and compatibility in their lifting solutions

In essence, bundling your hoist purchases into one well-planned order saves money, reduces hassle, and speeds up project completion—especially important when setting up new or expanding existing operations.

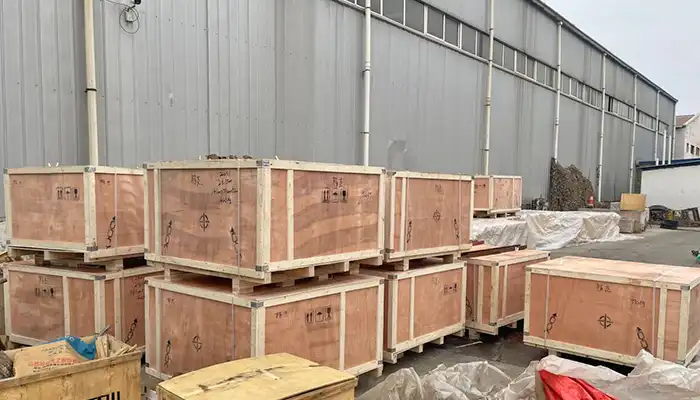

Delivery and Technical Support

The entire order was completed and shipped within the timeframe agreed upon with the client, ensuring their project stayed on schedule without unexpected delays.

Each hoist came with comprehensive technical documentation to make installation and future upkeep straightforward. This included detailed wiring diagrams, step-by-step installation instructions, and a recommended maintenance schedule to keep equipment running smoothly over time.

Installation Tips for a Smooth Setup:

• Confirm that the runway beam dimensions and strength meet the hoist’s requirements to guarantee safe operation.
• Check the power supply voltage and phase to ensure compatibility with the hoist’s electrical specifications.
• For hoists with motorized trolleys, verify there is enough clearance along the beam and a clear load path free of obstacles.
• Before starting regular use, conduct a test run with no load and then with a light load to confirm all functions work properly.

After delivery, the client continues to receive support from the supplier’s technical team. Assistance is readily available via video calls or email, helping troubleshoot any installation questions or operational issues without costly site visits. This ongoing support helps keep downtime minimal and ensures the hoists perform as expected throughout their service life.

Buyer Results and Feedback

All units were successfully commissioned across different workshops

Client highlighted:

• Smooth and safe operation
• Well-balanced product mix (rope + chain hoists)
• Strong after-sales follow-up

All 24 hoists were installed and put into operation successfully across the client’s different workshops. The smooth commissioning process helped the project stay on track without hiccups.

The client shared positive feedback, noting several key points:

• The hoists operate quietly and safely, which is crucial for a busy workshop environment.
• The combination of wire rope hoists and chain hoists met the diverse lifting needs perfectly, creating a well-balanced and versatile setup.
• After-sales support was responsive and helpful, providing confidence that any future issues would be handled quickly.

Encouraged by these results, the buyer is already looking ahead. They’re exploring options for semi-automated hoists to improve productivity in the next phase of their facility expansion.

Lessons for Buyers Planning Similar Projects

If you’re thinking about equipping multiple workshops or expanding your lifting capabilities, here are some practical tips based on this project:

• Take a full inventory of your lifting needs. Mixing fixed wire rope hoists with mobile chain hoists can improve workflow and avoid unnecessary equipment.
• Be clear on the lifting height required at each location. This impacts not only cost but also what kind of installation and space you’ll need.
• If you’re using motorized trolleys, check the full range of their horizontal movement. Make sure there’s enough beam length and no obstacles in the load path.
• Whenever possible, bundle your hoist purchases into a bulk order. This usually means better pricing, easier logistics, and faster delivery times.

These points can help you avoid common pitfalls and get the most value from your lifting equipment investment.
