Indoor Gantry Crane Senegal: 5 Ton & 10 Ton Single Girder Cranes

When it comes to the efficient handling of heavy loads within workshops or industrial settings, the importance of reliable and high-performing cranes cannot be overstated. In Senegal, the demand for sophisticated yet robust crane solutions has seen a surge, particularly in indoor settings where space constraints and specific requirements call for tailored solutions. Enter the MH 5-ton and 10-ton single girder gantry cranes, purpose-built for indoor use, offering impeccable lifting capabilities and efficiency.

Meeting Senegal's Industrial Demands

For over a decade now, our company has been at the forefront of delivering top-notch overhead cranes, gantry cranes, and jib cranes to Senegal. In 2022, we embarked on a journey of catering to the industrial demands of this West African nation, and today, our commitment to quality and customer satisfaction continues to propel us forward.

The recent acquisition of our MH 5-ton and 10-ton single girder gantry cranes by a satisfied Senegalese customer is a testament to our dedication to excellence. Introduced to us by a long-standing cooperative partner, this customer was impressed with the caliber of our products, leading to a swift and successful deal. From the initial inquiry to the final order confirmation, the entire process was seamlessly executed within a month.

Tailored Solutions for Indoor Use

The unique challenge posed by the indoor workshop space of our Senegalese client necessitated a specialized approach. With no runway beam or support column inside the workshop, the choice of a gantry crane was a strategic recommendation. Moreover, considering the workshop's clearance height of 6.84 meters, our team meticulously selected a low headroom type hoist to optimize vertical lifting space.

The crane's girder design, specifically a box girder type, was chosen to enable maximum lifting height while ensuring structural stability and durability. Incorporating dual-speed lifting mechanisms, along with soft-start motors for cross traveling and crane traveling, our solution not only ensures precision in operation but also minimizes noise and impacts on the overall mechanism.


 Single girder indoor gantry crane for sale Senagal

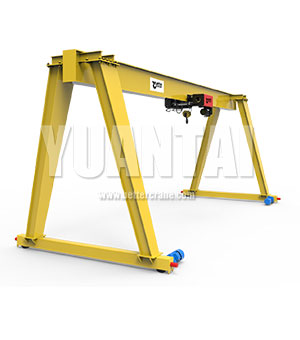

Indoor gantry crane 5 ton single girder design

• Gantry Capacity: 5ton
• Span length: 17.5m
• Lifting height: 4.95m
• Work duty: A5
• Power source: 380V/60Hz/3Ph
• Application: Indoor Use

Indoor gantry crane 10 ton single girder design

• Gantry Capacity: 10 ton
• Span length: 17.5m
• Lifting height: 4.59m
• Work Duty: A5
• Power source: 380V/60Hz/3Ph
• Application: Indoor Use

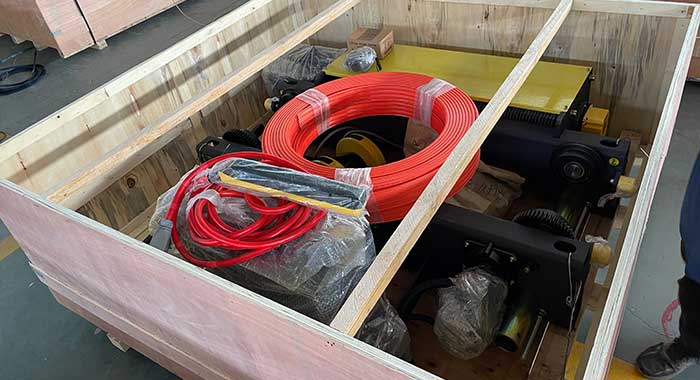

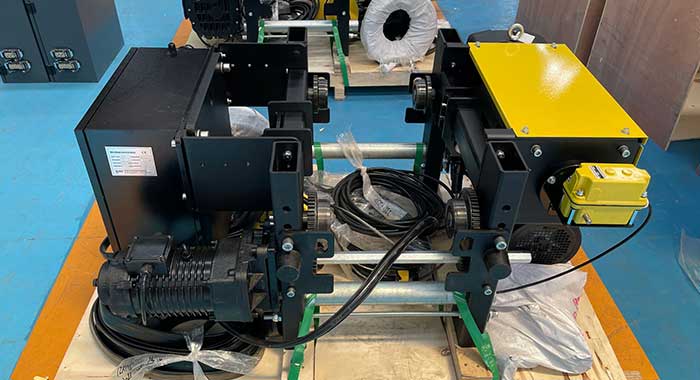

 5 ton single girder crane hoist  10 ton single girder crane hoist

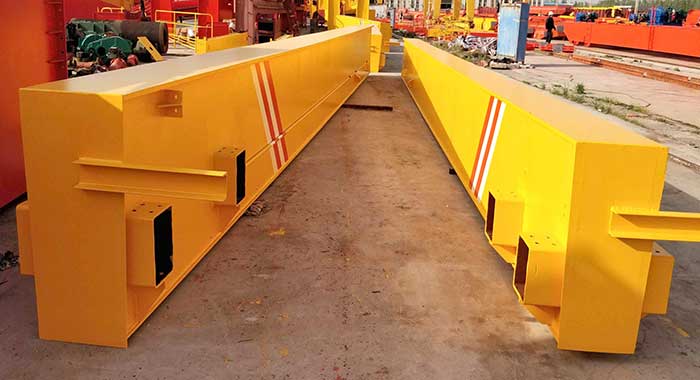

 Main girder of indoor use single girder crane

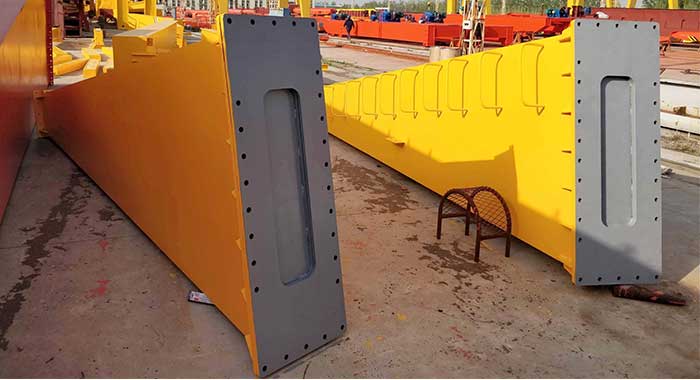

 Supporting leg of indoor gantry crane

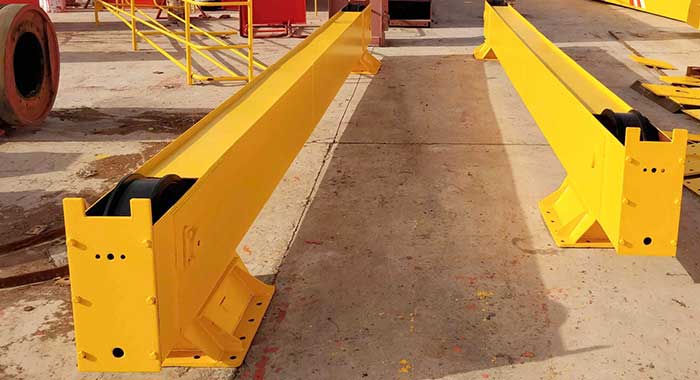

 Ground beam of single girder gantry crane for sale Senagal







Features of Single Girder Crane for Sale Sengale

Single girder gantry cranes are popular and versatile lifting solutions used in various industries due to their efficiency, flexibility, and cost-effectiveness. They come with several key features that make them highly functional and suitable for diverse applications:

• Main Girder: The main girder forms the primary structure of the crane, providing support for the lifting mechanism and load. It is engineered to withstand the weight capacity and span length required for lifting operations. Constructed from high-quality steel, it ensures stability and durability during lifting tasks.
• Support Legs: Support legs serve as the crane's legs or uprights and are responsible for bearing the weight of the crane and the loads it carries. These legs are strategically designed to provide stability while allowing the crane to move along the ground beams.
• Ground Beam: Ground beams are horizontal beams positioned at the base of the crane to support and stabilize the entire structure. They distribute the load and provide a solid foundation for the crane to operate smoothly. The design and placement of ground beams contribute significantly to the crane's overall stability.
• Low Headroom Hoist: A low headroom hoist is a specialized feature in single girder gantry cranes designed for applications with limited vertical space. This hoist configuration allows for maximum lifting height within confined areas, making it ideal for indoor workshops or spaces with restricted overhead clearance.
• Versatility and Adaptability: Single girder gantry cranes are known for their adaptability to various working environments. They can be customized to suit specific lifting requirements, whether it involves lifting heavy machinery, materials in manufacturing plants, or assisting in construction projects.
• . Ease of Installation and Maintenance: Compared to double girder gantry cranes, single girder variants often have simpler designs, making them easier to install and maintain. Their relatively straightforward construction and fewer components streamline maintenance efforts, reducing downtime and operational disruptions.
• Cost-Effectiveness: Single girder gantry cranes typically offer a cost-effective solution for lifting needs without compromising on performance. They require less material and are more straightforward in design compared to their double girder counterparts, making them a budget-friendly choice for many industries.
• Efficient Material Handling: These cranes excel in material handling tasks, providing smooth and precise movement of loads. Their design allows for efficient maneuverability, enhancing productivity in lifting and transporting goods or equipment within the working area.

Single girder gantry cranes are engineered to deliver reliable performance, adaptability, and efficient lifting capabilities across a spectrum of industrial settings. Their combination of features makes them an indispensable tool for many businesses seeking effective and reliable lifting solutions.

Economic and Efficient Indoor Crane Solution for You

At the heart of our indoor gantry crane solution lies a perfect blend of economic feasibility and operational efficiency. By customizing the crane to align with the workshop's spatial limitations and specific height requirements, we've provided a solution that optimizes both space and functionality. The careful selection of components and features not only ensures reliable performance but also minimizes operational costs over the crane's lifespan.

In conclusion, our delivery of the MH 5-ton and 10-ton single girder gantry cranes to Senegal reflects our commitment to providing tailored, high-quality crane solutions that meet the diverse needs of our clients. As Senegal continues to thrive industrially, we remain dedicated to being at the forefront, delivering innovative and reliable solutions that empower businesses to soar to greater heights.

For more information on our range of crane solutions or to explore how we can cater to your specific needs, feel free to reach out to us. Our team is committed to delivering excellence, one crane at a time.
