Case Study: 40 Ton Gantry Crane for Sale, Box Girder Gantry Crane Project in Kazakhstan

Project Overview

Project Location

Kazakhstan — a country with vast industrial activity and large open-yard operations, where heavy-duty lifting equipment is often required for construction, metal fabrication, and logistics handling. The site conditions demanded a gantry crane that could work reliably outdoors, with good resistance to temperature changes and occasional strong winds.

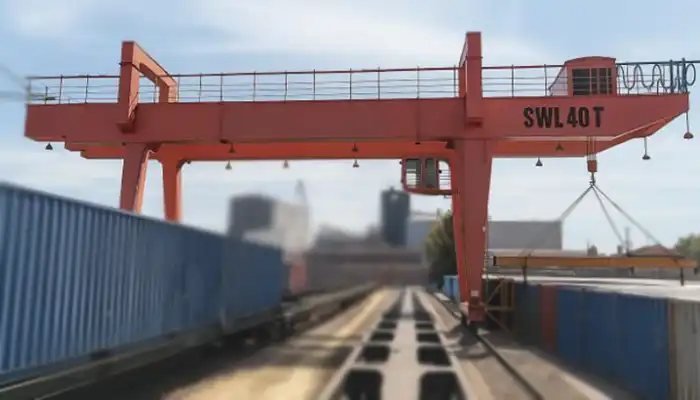

40 ton gantry crane for sale, cusotmized container gantry crane

Crane Configuration

The client selected a 40 ton box girder gantry crane with a double girder design, built for strength, precision, and long-term durability.

• Lifting Capacity: 40 tons
• Lifting Height: 15 meters
• Span: 40 meters
• Power Supply: 380V, 50Hz, 3-phase (standard for industrial plants in Kazakhstan)
• Control Mode: Pendant + Remote Control

This configuration allows the operator to work both from the ground and at a distance, ensuring flexibility and safety during material handling.

Project Purpose

The 40 ton box girder gantry crane was designed and supplied for a large industrial facility in Kazakhstan. The main purpose was to handle heavy steel materials, equipment, and oversized components that required precise positioning and stable lifting over a wide working area.

The crane’s box-type double girder structure was chosen for its high rigidity and resistance to deformation under load. This type of girder provides excellent performance for long spans, which is especially useful in open yards or large workshops.

Why the Box Girder Double Girder Design Was Selected

• Better Load Distribution: The box-type structure handles concentrated loads more evenly, reducing stress on the main beam.
• Higher Lifting Stability: The double girder design keeps the trolley movement stable, even at maximum capacity.
• Longer Service Life: Strong welding seams and internal stiffeners make the crane more durable in harsh outdoor conditions.
• Ease of Maintenance: Access platforms on both girders allow easy inspection and cable maintenance.

In short, this 40 ton double girder box girder gantry crane fits the customer’s need for a reliable and efficient lifting solution — strong enough for heavy-duty work, yet simple to operate and maintain on site in Kazakhstan.

Project Background and Client Requirements

Customer Background

The client operates an industrial yard in Kazakhstan, mainly engaged in the handling and storage of heavy steel components and large machinery. The site is open-air, meaning the equipment must withstand varying weather conditions — from hot summers to cold, dry winters. In such environments, crane stability, lifting accuracy, and reliability are not just preferences, but daily necessities.

Operational Needs

The customer was looking for a high-capacity gantry crane capable of managing large and heavy materials with consistent performance and minimal downtime. The work often involves lifting oversized items that must be positioned precisely during assembly and loading operations.

To meet these challenges, several key requirements were defined from the start:

• Double Box Girder Design: Provides strong structural rigidity and reduces girder deflection when handling loads close to 40 tons. This design also ensures long-term stability and less wear on moving components.
• High Lifting Height (15 m): Offers enough clearance for loading tall equipment and stacking materials efficiently, giving operators better control during complex lifting tasks.
• Dual Operation Modes (Remote + Pendant Control): The operator can choose between remote control for mobility or pendant control for close supervision, depending on the task and working conditions.
• Power Compatibility: The crane’s electrical system is designed for Kazakhstan’s standard industrial power supply (380V, 50Hz, 3-phase), ensuring seamless integration with the site’s existing power infrastructure.

Performance Expectations

The client made it clear that the crane must be:

• Durable, to handle long hours of work in an outdoor environment.
• Easy to operate and maintain, reducing downtime and dependency on specialized technicians.
• Accurate and stable, especially when positioning heavy materials at specific angles or locations.
• Cost-effective, providing a strong balance between upfront investment and long-term reliability.

In short, the customer wanted a 40 ton box girder gantry crane that could deliver both strength and precision — a practical, durable lifting solution built for Kazakhstan’s demanding industrial operations.

Technical Consultation and Customized Design

Engineering Communication Process

Before moving into production, several rounds of technical consultation were carried out between the client and the engineering team. The main goal was to ensure the 40 ton box girder gantry crane design could meet both the operational and environmental demands of the site in Kazakhstan. Each parameter — from the structure of the main girder to the hoist control system — was discussed in detail to make sure the final configuration matched the client’s actual workload and working conditions.

Key Design Evaluations

To achieve the right balance of strength, efficiency, and economy, the engineers focused on optimizing the box girder structure for better load distribution and span stability. The following factors were carefully analyzed:

• Lifting Frequency and Working Cycles The client’s operation required the crane to handle frequent lifting cycles throughout the day. Engineers recommended motor and gearbox selections designed for medium-to-heavy-duty service classification, providing smooth acceleration and long service life.
• Environmental Conditions Kazakhstan’s outdoor environment can vary widely — strong winds, low winter temperatures, and occasional dust. The crane design included windproof locking devices, corrosion-resistant coatings, and reliable electrical enclosures rated for outdoor protection.
• Hoisting Speed and Control Precision Since the crane would handle large steel components, fine control was critical. The proposed system featured dual-speed hoisting and variable-frequency drives (VFD) to allow smooth start/stop operation and precise load positioning.

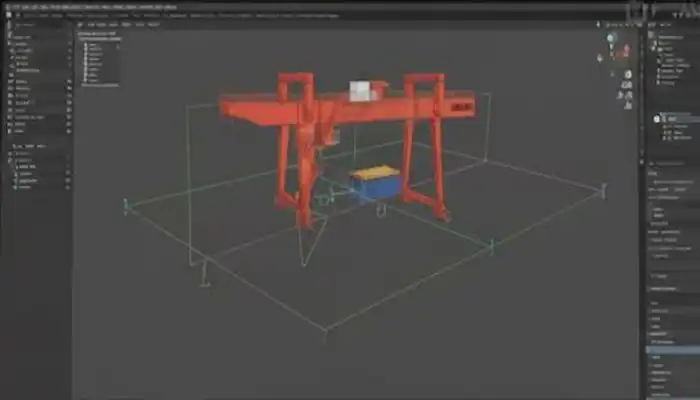

Customized Design Proposal

After analyzing all requirements, engineers proposed a double girder box-type gantry crane with:

• High-strength welded box girders with internal stiffeners for rigidity.
• Optimized span of 40 meters to cover the full working area.
• A trolley system designed to travel smoothly between girders.
• Electrical control system adapted to 380V, 50Hz, 3-phase power.
• Weatherproof and easy-maintenance design suited for outdoor use.

This customized 40 ton box girder gantry crane design offered a reliable, long-service solution — strong enough for heavy-duty lifting, stable during high-span operations, and practical for daily industrial use in Kazakhstan’s conditions.

Client Evaluation and Purchase Decision

Comparative Review Process

Before finalizing the order, the client conducted a thorough comparison among several crane manufacturers. Each supplier provided different configurations and pricing structures, but the client was focused on finding a reliable balance between cost, quality, and technical capability.
During this stage, multiple design options were reviewed, including single girder and truss-type cranes. However, after evaluating performance data and long-term maintenance factors, the 40 ton box girder double girder gantry crane emerged as the most suitable choice.

Key Factors That Influenced the Decision

The client’s selection was based on practical and measurable advantages, rather than marketing terms. The following aspects made the proposed design stand out:

• Optimized Technical Configuration The crane’s box-type double girder structure provided better rigidity, reduced deflection, and higher stability during full-load lifting. Its electrical and control systems were tailored to local standards and the client’s workflow, ensuring dependable day-to-day performance.
• Competitive Price-to-Performance Ratio Although not the lowest-priced option, the proposal offered greater long-term value through durable materials, efficient operation, and lower maintenance needs. The client recognized that investing slightly more upfront would reduce downtime and repair costs later.
• Professional Engineering Support Throughout the design and evaluation phase, the engineering team provided detailed technical drawings, load simulations, and real-time feedback. This clear communication helped the client make an informed decision and build confidence in the project partnership.

Order Confirmation and Production Start

Once the final drawings and production schedule were approved, the client confirmed the order by providing a 50% advance payment.
With the contract secured, production began immediately, following a strict manufacturing timeline to ensure on-time delivery. The project then moved smoothly into the fabrication phase, supported by regular progress updates and technical coordination between both teams.

Manufacturing and Quality Control

The 40-ton box girder gantry crane was manufactured under a comprehensive quality management process to ensure strength, precision, and reliability.

Key manufacturing highlights included:

• High-precision welding and girder assembly: Each box girder underwent ultrasonic and magnetic particle testing to detect internal defects and guarantee structural integrity.
• Dimensional and alignment inspection: Ensured accurate fit between the main girder, end beams, and trolley track.
• Load testing of hoisting mechanism: The trolley and lifting system were tested at 125% of the rated load to verify performance under maximum working conditions.
• Electrical system verification: All control circuits were tested at 380V/50Hz to ensure compatibility with Kazakhstan’s power grid and stability under fluctuating voltage.

All processes strictly followed ISO and CE quality standards, guaranteeing that the gantry crane delivered smooth, safe, and long-term performance in Kazakhstan’s demanding outdoor industrial environment.

Main Components and Structure

The 40-ton box girder gantry crane was engineered with a robust and modular structure to ensure stability, precision, and ease of maintenance.

Main components included:

• Main Girder: A double box-type steel girder offering excellent torsional rigidity and minimal deflection under full load, suitable for long-span applications in outdoor environments.
• Trolley and Hoist Unit: Equipped with a high-efficiency lifting mechanism, precision wire rope hoist, and dual-speed motor drive for smooth lifting and accurate load positioning.
• Crane Running Mechanism: Designed for stable travel along the 40-meter span, using forged wheels, motor-driven gearboxes, and adjustable speed control to ensure consistent motion and reduced wear.
• Operator’s Cab (Optional): Provides direct visibility for large material handling tasks, enhancing safety and operational control in demanding outdoor conditions.
• Electrical Control System: Integrated pendant and remote control modes allow flexible operation, with overload protection, emergency stop, and voltage monitoring functions to ensure safe and reliable performance.

Advantages of the Box Girder Double Girder Design

The double girder box girder design was chosen specifically to meet the heavy-duty requirements of the client’s industrial yard in Kazakhstan. This design is well-suited for lifting large and heavy materials over wide spans while maintaining stability and safety. By combining the strength of a box girder with the support of a double girder system, the crane offers reliable performance even in demanding outdoor conditions.

This design also provides practical benefits for operators and maintenance teams, making daily operation smoother and reducing long-term wear on the structure and moving parts. The following points summarize the key advantages:

• Superior Load Capacity: Engineered to handle up to 40 tons safely, the double girder box structure distributes weight evenly, reducing stress on the main beam and trolley system.
• High Structural Rigidity: The box girder construction minimizes deflection and vibration, ensuring stable lifting and precise positioning, even at full load.
• Extended Lifting Height: The hoist travels between the two girders, providing additional vertical clearance, which is essential for oversized material handling.
• Excellent Wind Resistance: The sturdy design makes the crane suitable for outdoor applications, able to withstand moderate wind loads without compromising safety or performance.
• Smooth Operation: Dual control options — pendant and remote — allow the operator to choose the safest and most convenient method of operation, improving workflow efficiency and reducing fatigue.

Project Results

The 40 ton box girder gantry crane was successfully delivered and installed at the client’s industrial site in Kazakhstan on schedule. The installation process included alignment checks, electrical connections, and test runs to ensure that the crane was fully operational and ready for heavy-duty material handling.

Following commissioning, the crane’s performance was closely monitored. Key outcomes included:

• Stable and Precise Load Handling: The double girder box design provided minimal deflection, allowing operators to lift and position heavy loads with accuracy.
• Consistent Operation in Outdoor Conditions: The crane performed reliably under varying weather conditions, including strong winds and temperature fluctuations, demonstrating the robustness of its design and materials.
• High User Satisfaction: Operators reported improved efficiency and ease of operation, with the dual control system offering flexibility and enhanced safety during daily lifting tasks.

Overall, the project delivered a practical, durable, and efficient lifting solution that met the client’s operational needs and expectations.

Key Insights for Gantry Crane Buyers

When selecting a gantry crane, understanding the practical benefits of different designs can save time, money, and operational headaches. For industrial operations handling heavy materials, the box girder double girder design offers several advantages that are worth considering.

• Heavy-Duty Capability: Box girder gantry cranes are strong and rigid, making them suitable for lifting very heavy loads over wide spans without excessive deflection.
• Greater Lifting Height and Stability: Double girder configurations allow the hoist to travel between the girders, providing higher lifting clearance and more consistent structural stability over time.
• Early Technical Consultation Matters: Engaging with engineers during the design stage ensures the crane is tailored to the specific site conditions, lifting requirements, and power supply, avoiding costly adjustments later.
• Balance Between Price and Quality: While upfront cost is important, investing in a well-engineered and reliable crane often results in lower maintenance costs, fewer operational interruptions, and longer service life.

In summary, choosing a 40 ton box girder double girder gantry crane is not just about lifting capacity — it’s about achieving practical efficiency, operational safety, and long-term reliability in industrial applications like those found in Kazakhstan.
