Case Study: 3 Ton Portable Gantry Crane for Spain Workshop
Case Study: 3 Ton Motorized Portable Gantry Crane for Sale in Spain
For Automobile Repair Shop — 3.5 m Span, 4.3 m Lifting Height, 220V 50Hz 3-Phase Power Supply
Project Overview
This project was completed for an automobile repair and service workshop in Spain, where the client needed a compact and easy-to-move lifting solution to handle heavy components like engines and gearboxes. The workshop operates on a 220V, 50Hz, 3-phase power supply, which is common in Spanish industrial facilities. The crane was specially designed to match their available power and workshop layout.

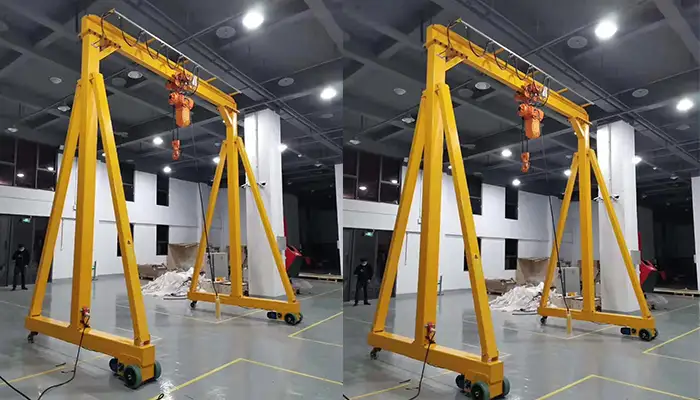

The selected model is a motorized portable gantry crane with a rated capacity of 3 tons, a span of 3.5 meters, and a lifting height of 4.3 meters. These dimensions make it practical for daily use inside repair bays without taking up too much space.
- The client runs a medium-sized garage handling car and light truck maintenance.
- The workshop has limited floor space and moderate ceiling height, which ruled out fixed overhead cranes.
- Heavy assemblies, such as engines, axles, and transmissions, need to be lifted regularly for repair and reinstallation.
- The workshop floor is smooth concrete, allowing motorized gantry movement between bays.
- Power sockets are distributed across the bays, making a 220V, 3-phase system ideal for plug-and-play use.
- Type: Motorized portable gantry crane with electric hoist and powered travel.
- Capacity: 3 tons — sufficient for typical engine and undercarriage handling tasks.
- Span: 3.5 m — wide enough to straddle cars or light trucks in standard service bays.
- Lifting Height: 4.3 m — provides clearance for lifting engines directly out of the vehicle and placing them on stands.
- Mobility: Equipped with polyurethane wheels for smooth and floor-friendly movement, even under load.
Spain's workshop electricity typically uses 220V 50Hz 3-phase, which is slightly different from the 380V industrial power seen in larger plants.
To match this setup, the crane was built with:
- Customized motors and controls rated for 220V operation.
- Phase-loss and overload protection to keep the system safe during frequent starts and stops.
- Compact control box and plug connector, so the crane can be moved between power outlets without hard wiring.
- Energy-efficient drive system that runs steadily on standard shop circuits without tripping breakers.
During daily work, the 3-ton gantry crane is used for:
- Engine lifting: Removing or installing engines with precision and minimal manpower.
- Gearbox and axle handling: Aligning and positioning components under the vehicle.
- Vehicle body lifting: Supporting partial lifts during frame inspection or suspension replacement.
- Loading tasks: Moving heavy parts or tool sets delivered to the garage.
This setup allows mechanics to move the crane where it's needed, connect it to the nearest power outlet, and start lifting within minutes—no fixed runway or foundation required.
Client Background and Needs
The client operates a medium-sized automobile repair garage in Spain, servicing both passenger cars and light trucks. Their daily operations involve frequent handling of heavy components like engines, gearboxes, and suspensions. While the garage is busy and well-equipped, space is limited, making it tricky to work with large or fixed lifting equipment.
Mechanics often need to move heavy parts from one bay to another, so the workshop requires a lifting solution that is both mobile and reliable. The crane also needed to integrate seamlessly with the workshop’s existing 220V, 50Hz, 3-phase electrical system, without complicated rewiring or adapters.
Workshop Profile
- Medium-sized garage servicing cars and light trucks.
- Frequent lifting of heavy components like engines and gearboxes.
- Limited indoor space, requiring compact equipment.
Main Challenges
- Tight workspace layout and low ceiling height, restricting fixed crane installation.
- Need for easy movement between multiple repair bays.
- Ensuring full compatibility with the workshop’s 220V 3-phase power supply.
The client wanted a crane that could fit their space, work safely under the ceiling constraints, and connect directly to their electrical system. Mobility, ease of use, and stable lifting performance were top priorities.
Technical Solution
To meet the workshop’s requirements, we designed a motorized portable gantry crane that combines mobility, strength, and compatibility with local power conditions. The solution focuses on practical use in tight spaces, easy operation, and stable performance under Spain’s 220V, 50Hz, 3-phase electrical system.
Crane Configuration
The crane is built for daily workshop use, with features that make lifting and moving heavy components easy and safe.
- Type: Motorized portable gantry crane with electric hoist and powered travel, allowing the crane to move smoothly between bays without manual pushing.
- Structure: Steel frame with adjustable height and detachable legs, so it can be moved, stored, or fitted into different bays as needed.
- Mobility: Polyurethane casters provide quiet and smooth movement on concrete floors, minimizing floor wear and giving mechanics full control when positioning the crane.
This setup allows the crane to fit into tight spaces, handle loads safely, and be ready for use across multiple service areas without complicated installation.
Power Supply Design
Electric compatibility was a key consideration for the workshop. Spain’s standard 220V 50Hz 3-phase power meant the crane had to be carefully adapted for reliable and safe operation.
- Motor and control system were customized for 220V 3-phase input, ensuring full power without overloading circuits.
- Overload and phase-loss protection keeps both the crane and workshop safe, even during repeated lifts.
- Plug-and-play connection allows the crane to be moved easily between outlets without rewiring.
Advantages for the workshop:
- Energy-efficient motors reduce electricity consumption and heat generation.
- Simple maintenance, no complex rewiring or specialist technicians required.
- Stable lifting performance, even if the local voltage fluctuates slightly, giving mechanics predictable, safe operation every time.
This combination of practical structure and tailored power design makes the gantry crane perfect for daily automobile repair work, where space is limited and reliability is essential.
Application in the Automobile Repair Shop
The 3-ton motorized portable gantry crane has proven to be a reliable helper in everyday workshop tasks, handling heavy components with ease while fitting into the garage’s limited space. Its design allows mechanics to work efficiently, safely, and without unnecessary strain.
Typical Lifting Tasks
In a busy repair shop, the crane is used for a variety of lifting and moving operations:
- Engine removal and installation: Lifting engines out of vehicles or placing rebuilt engines back in, with precise control.
- Transmissions and axles: Positioning heavy driveline components during repair or replacement.
- Vehicle body positioning: Assisting in frame alignment or suspension adjustments.
- Loading/unloading parts: Moving heavy equipment or components from delivery trucks directly into the workshop bays.
This versatility makes it an everyday tool for mechanics, saving time and reducing the need for multiple pieces of lifting equipment.
Workshop Benefits
The crane brings several practical advantages to the workshop:
- Improved efficiency: Replaces manual lifting or chain hoists, allowing a single mechanic to handle tasks that previously required two or more people.
- Compact and mobile: Can fit into small service bays and easily move between workstations, giving the garage flexibility in tight spaces.
- Safety: Reduces strain on mechanics and lowers the risk of accidents when lifting heavy components.
- Versatility: Suitable for indoor use in the workshop and short-distance outdoor tasks, such as moving parts to nearby service areas.
With this crane, the garage can handle heavier components safely, work faster, and keep operations smooth even in confined spaces.
Performance and Client Feedback
After several months of use, the 3-ton motorized portable gantry crane has proven to be both reliable and practical for the workshop’s daily operations. Mechanics report that it handles heavy components smoothly and safely, without the complications often seen with larger, fixed cranes.
Performance Highlights
- Smooth and quiet operation: The motorized travel and hoist run noise-free, allowing work to continue without disturbance.
- Stable lifting: No issues with voltage fluctuations in the 220V 3-phase system, even during peak usage.
- Plug-and-play usability: Easy to connect to existing workshop outlets, requiring minimal setup or technical knowledge.
- Compact design: Fits easily into tight service bays, giving mechanics full access to vehicles without obstruction.
Client Feedback
The client expressed satisfaction with several key aspects:
- Appreciated the crane’s mobility and versatility across different repair bays.
- Noted the compatibility with local power supply, which eliminated the need for additional electrical work.
- Praised how it simplified engine and heavy component handling, making daily tasks faster and safer.
Mechanics also highlighted that the crane reduces physical strain and allows them to focus on precise repair work rather than worrying about heavy lifting. Overall, the client considers it a practical, reliable addition to their workshop.
Conclusion
The 3-ton motorized portable gantry crane is an ideal fit for small to medium-sized automobile repair workshops in Spain. Its compatibility with 220V 3-phase power ensures smooth operation without the need for complex electrical modifications.
The crane’s compact design and mobility make it easy to move between bays and use in tight spaces, while still providing the strength needed for lifting engines, gearboxes, and other heavy components.
Mechanics can work more efficiently and safely, handling heavy parts with confidence and minimal effort. For workshops looking for a practical, reliable, and easy-to-use lifting solution, this crane delivers exactly what they need every day.
